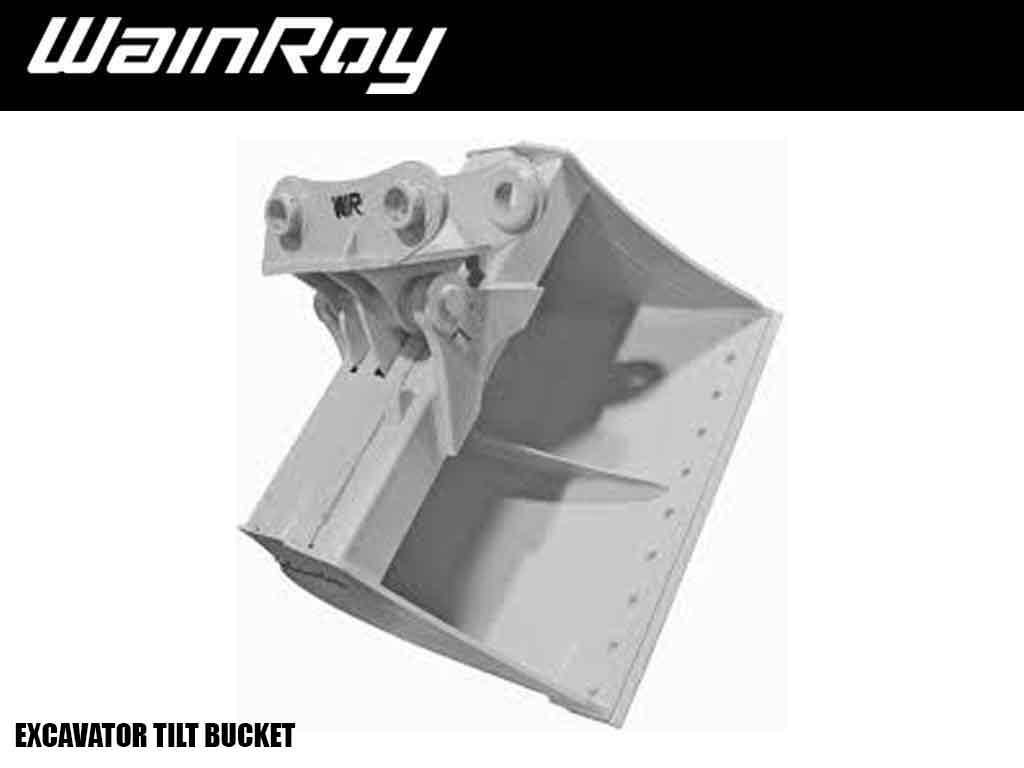

WAIN ROY Tilt Bucket for 25MT Excavators 52,000 - 65,000 lbs.

MOUNTING
SIZE

WAIN ROY TILT BUCKETS

Tilt Buckets rotate up to a total of 90 degrees, 45 degrees each side of center, for greater control and flexibility during ditch cleaning, grading, backfilling and loose material loading and unloading applications. The tilting mechanism allows the bucket to rotate at various angles in order to form the surface to the desired shape without repositioning the machine. This is especially beneficial when working along roadways or in tight operating conditions.

45° rotation. Bolt‑on edge standard. Machine must be equipped with valve and lines down to end of dipperstick. Valve must have port reliefs. For Hydraulic Kit availability & pricing, contact Dealer Services.

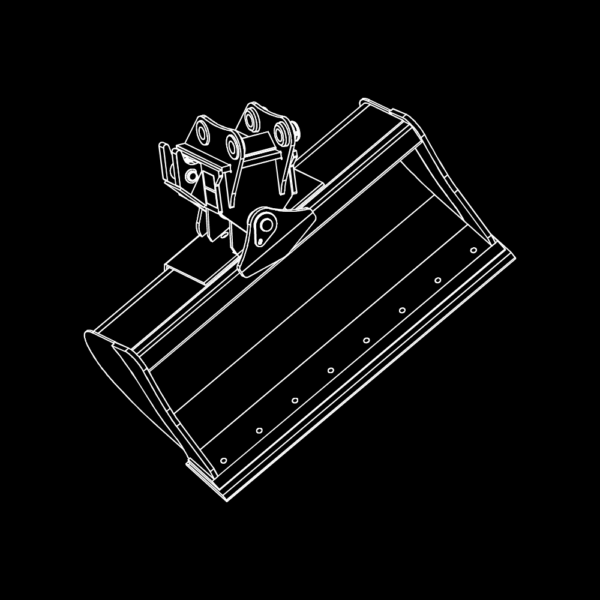

TILT BUCKET

OEM PIN ON

WIDTH
CAPACITY (CU. YD.)
LBS
TLT3PO-60 60" 1.00 1875
TLT3PO-72 72" 1.13
2400

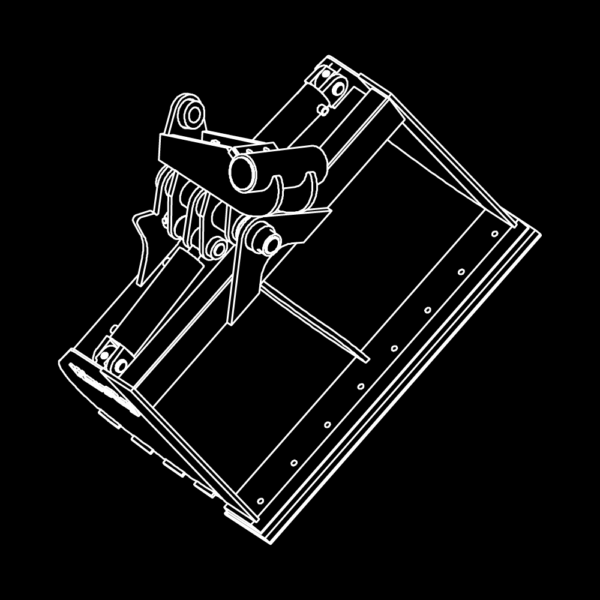

TILT BUCKET

WAIN ROY XLS / ORIGINAL

GANNON / CP / TAG

WIDTH CAPACITY (CU. YD.) LBS

TLT3QC-60

60" 0.90
1322
TLT2QC-72 72" 1.10 1468
MAKE MODELS: 25 TON 52,000 - 65,000 LBS
CASE
  • 9040B, CX235C SR, CX240B, CX245D SR, CX250D, CX290B, CX300D
CAT
  • 321C LCR, 322C L, 322C L ME, 322C L SLR, 324D L, 325C, 325C L ME, 325D L, 325F L (2017), 328, 329D L, CB-link
DOOSAN
  • DX225LC, DX255LC-5
HITACHI
  • ZX230LC, ZX240LC-3, ZX250LC-3, ZX250LC-6, ZX270LC-3, ZX300LC-6, ZX345USLC-6
HYUNDIA
  • HX260L, R250LC-7, R260LC-9A, R290LC-7A, R290LC-7LR, R290LC-9, RC250LC-7A, RC250LC-9
JCB
  • JS240, JS260, JS260LC, JS260XD, JS290
JOHN DEERE
  • 230C LC, 240D LC, 250G LC, 270C LC, 270C SLF, 270D LC, 290G, 300G LC, 345GC, 790D, 790E
KOBELCO
  • 215SR, 235SR, 235SRLC, SK230RLC-5, SK240, SK250LC-DA, SK250LC-LR, SK260LC, SK260LC-10, SK270SRLC-5
KOMATSU
  • PC210LC-10 SLF, PC210LC-11, PC220LC-7, PC220LC-8, PC240LC-10 SLF, PC240LC-11, PC270LC-7, PC270LC-8, PC308USLC-3
LIEBHERR
  • A924 Heavy Lift Litronic, A924 Litronic, A924 Plus, A924C, R906 A/C, R914C, R916 A/C, R924 Compact, R926, R926 A/C, R926 Compact Litronic, R926 Litronic
LIUGONG
  • CLG922E, CLG925D, CLG925E, CLG925LL
SANY
  • SY235C
TEREX
  • TC260LC, TXC255LC, TXC255LC-2
VOLVO
  • EC220E, EC240B-LC, EC240B-LR, EC240C, EC250E, EC290B-LC, EC290B-LR, EC290C, ECR235E, EW220E, EW230C, EW240E
