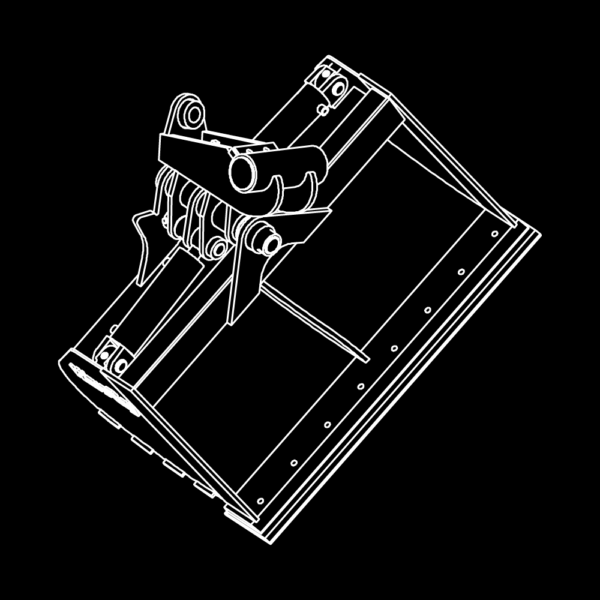

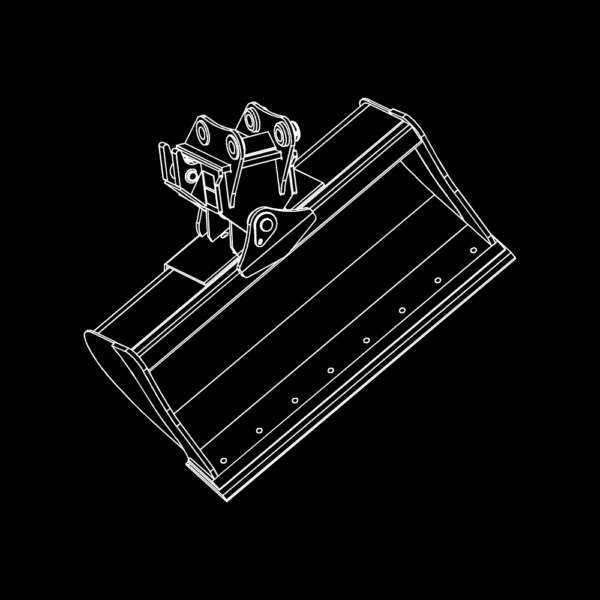

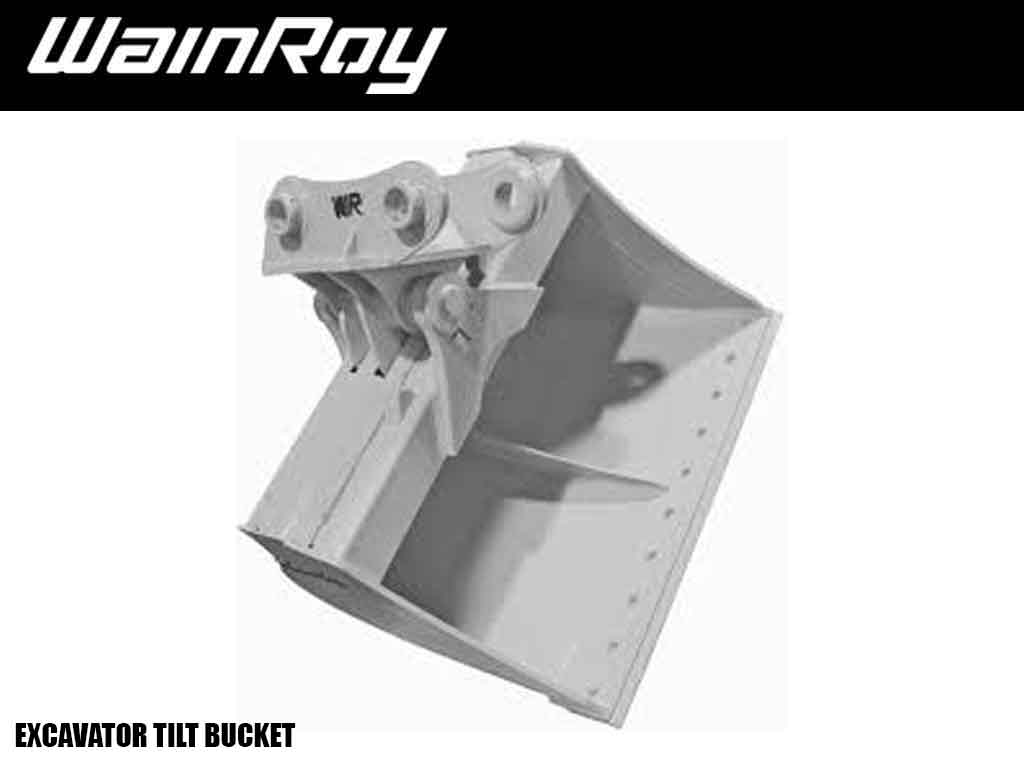

WAIN ROY Tilt Bucket for 30MT Excavators 65,000 - 95,000 lbs.

MOUNTING
SIZE

WAIN ROY TILT BUCKETS

Tilt Buckets rotate up to a total of 90 degrees, 45 degrees each side of center, for greater control and flexibility during ditch cleaning, grading, backfilling and loose material loading and unloading applications. The tilting mechanism allows the bucket to rotate at various angles in order to form the surface to the desired shape without repositioning the machine. This is especially beneficial when working along roadways or in tight operating conditions.

45° rotation. Bolt‑on edge standard. Machine must be equipped with valve and lines down to end of dipperstick. Valve must have port reliefs. For Hydraulic Kit availability & pricing, contact Dealer Services.

TILT BUCKET

OEM PIN ON

WIDTH
CAPACITY (CU. YD.)
LBS
TLT4PO-72 72" 1.80
3370
MAKE MODELS: 30 TON 65,000 - 95,000 LBS
CASE
  • 9050B, CX330, CX330LR, CX350B, CX350D
CAT
  • 326F L (2017), 328D LCR, 330C, 330C L ME, 330D L, 330F I (2017), 335F L (2017), 336 GC, 336D L, 336F L (2017), 336F L XE (2017), 340F, DB-link
DOOSAN
  • DX300, DX300LC, DX300LC SLR, DX300LC-5, DX300LL, DX300SLR, DX340, DX350LC, DX350LC-5, S300LCV, S340LCV
HITACHI
  • ZX2330LC, ZX330, ZX350LC-6, ZX370, ZX380LC-6
HYUNDIA
  • HX330L, HX380L, R320LC-7, R320LC-7A, R330LC-9A, R360LC-7, R360LC-7A, R380LC-9, R380LC9A
JCB
  • JS290, JS300, JS330, JS330L, JS330NL, JS330XD, JX360
JOHN DEERE
  • 330C LC, 330C LCSF, 350D LC, 350G LC, 370C, 380G LC, 892D, 892E
KOBELCO
  • SK260LC-10, SK290LC-DA, SK290LC-LR, SK295LC, SK300LC-10, SK330LC-ME, SK350LC, SK350LC-10, SK350LC-9E, SL330LC-DA
KOMATSU
  • HB365LC-3, PC290LC-10 SLF, PC290LC-11, PC3000HD-8, PC300HD-7 MH, PC300LC-7, PC300LC-8, PC30LC-11, PC350HD-8, PC350LC-7, PC350LC-8, PC360LC-10 SLF, PC360LCi-11, PC380LC-10 SLF, PC380LCi-11, PC390LC-11
LIEBHERR
  • A934C, R924 Compact Tunnel Litronic, R934B, R934C, R936 Compact Litronic, R936 Litronic, R944B, R944C
LINK-BELT
  • 300 X3, 300 X4, 330LX, 350 X2, 350 X3, 350 X4, 350 XF Long Front
LIUGONG
  • CLG930E, CLG936D, CLG936E
SANY
  • SY365C
TEREX
  • TXC300LC, TXC300LC-2, TXC340LC, TXC340LC-2, TXC400LC, TXC400LC-2, TXC420LC-2
VOLVO
  • EC300E, EC330B-icme, EC330B-LC, EC350E, EC360B-icme, EC360B-LC, EC380E, ECR305C, ECR355E
