TLT1PO-48
WAIN ROY Tilt Buckets for Mini Excavators 12,500 - 20,000 lbs.
$9,618.00 - $10,749.00

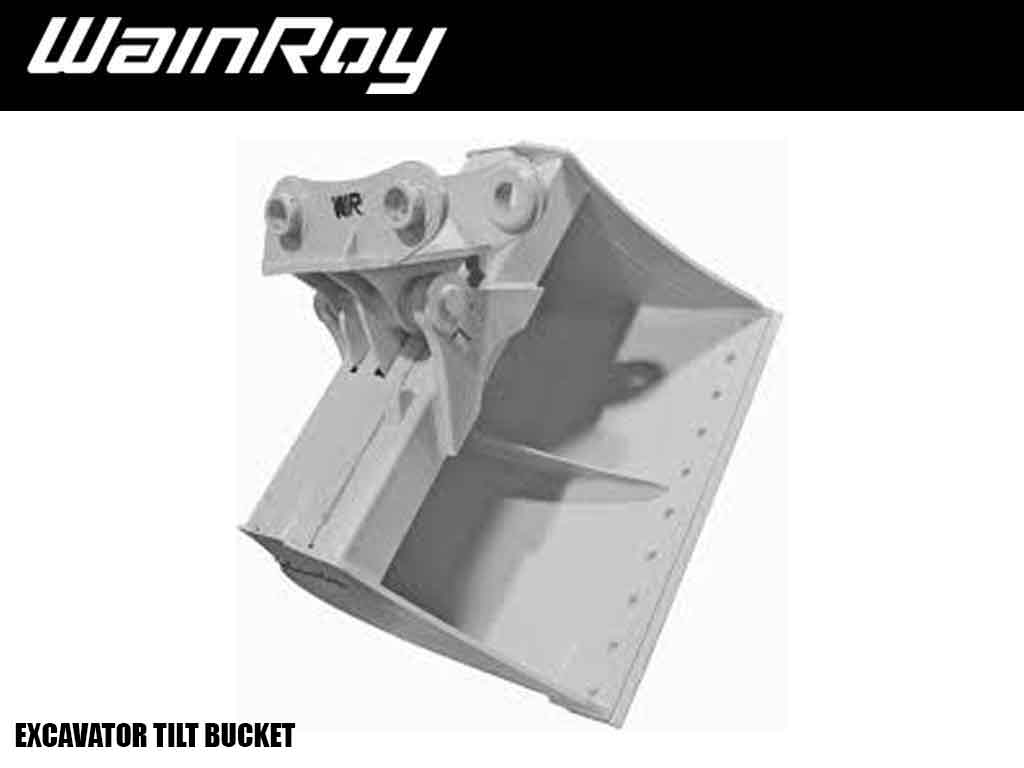

WAIN ROY TILT BUCKETS
Tilt Buckets rotate up to a total of 90 degrees, 45 degrees each side of center, for greater control and flexibility during ditch cleaning, grading, backfilling and loose material loading and unloading applications. The tilting mechanism allows the bucket to rotate at various angles in order to form the surface to the desired shape without repositioning the machine. This is especially beneficial when working along roadways or in tight operating conditions.
45° rotation. Bolt‑on edge standard. Machine must be equipped with valve and lines down to end of dipperstick. Valve must have port reliefs. For Hydraulic Kit availability & pricing, contact Dealer Services.
| AVAILABLE MOUNTS | DESCRIPTION | |
| OEM PIN ON | TWO HORIZONTAL PINS |  |
| WEDGE LOCK | WEDGE SECURED AT REAR |  |
| BOBCAT EXCHANGE | HOOK WITH HORIZONTAL PIN |  |
| KUBOTA | TWO HORIZONTAL PINS |  |
| WAIN ROY XLS | HOOK WITH VERTICAL PIN |  |
|
GANNON ELIMINATOR / TAG / CP |
SMALL HOOK WITH VERTICAL PIN |  |
|

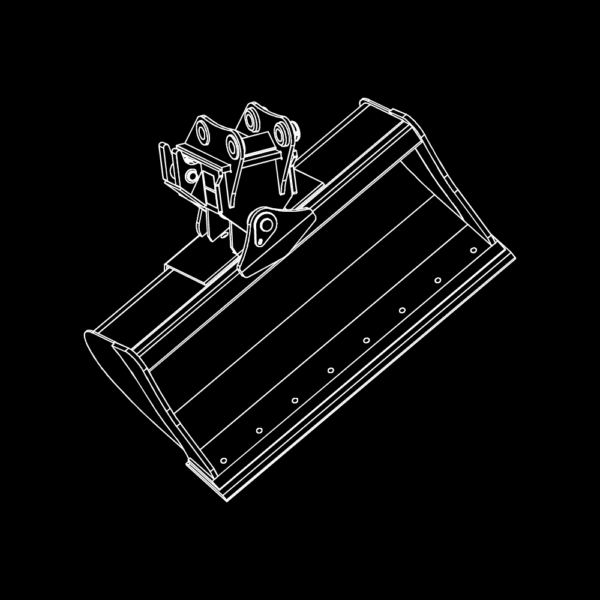

TILT BUCKET OEM PIN ON |
WIDTH |
CAPACITY (CU. FT.) |
LBS |
| TLT1PO-48 | 48" | 12.3 | 865 |
| TLT1PO-54 | 54" |
14.0 |
940 |
| TLT1PO-60 | 60" |
15.7 |
1010 |
|

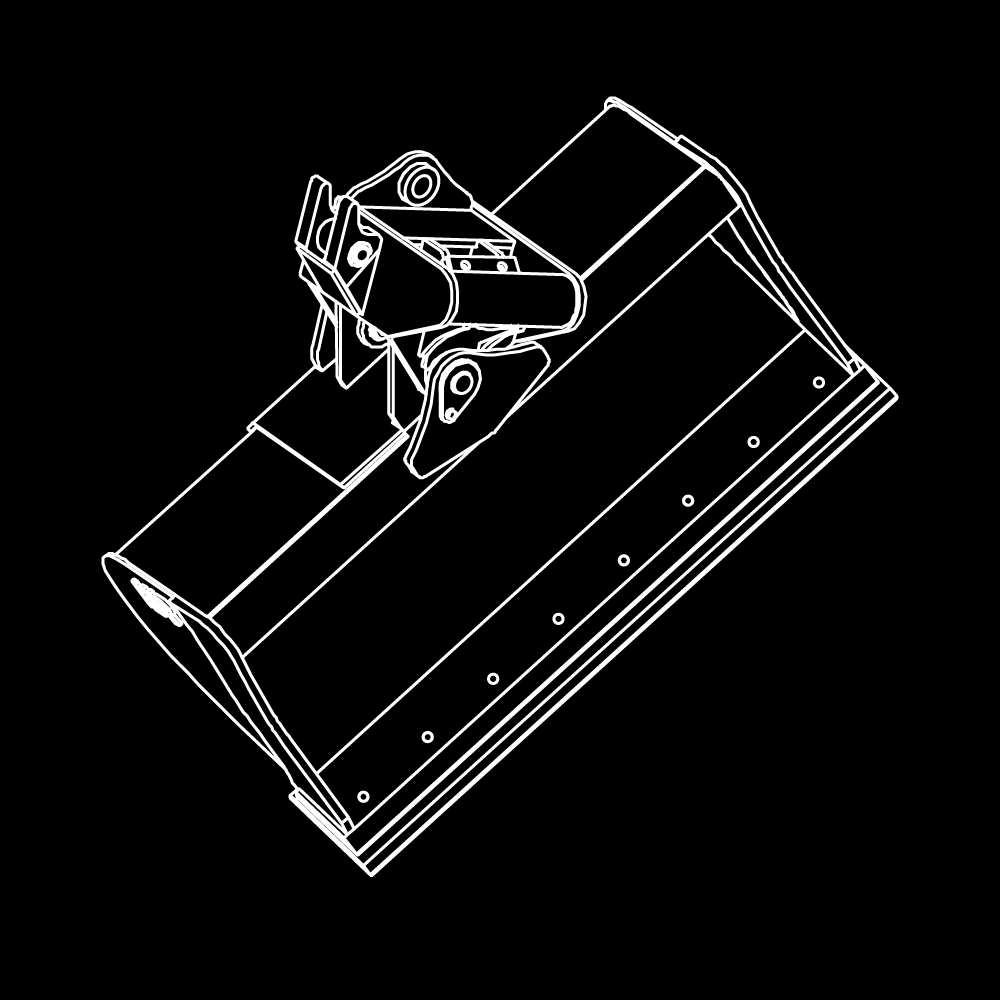

TILT BUCKET WAIN ROY XLS / ORIGINAL GANNON / CP / TAG |
WIDTH | CAPACITY (CU. FT.) | LBS |
|
TLT1QC-48 |
48" | 12.3 | 788 |
|
TLT1QC-54 |
54" |
14.0 |
850 |
|
TLT1QC-60 |
60" |
15.7 |
928 |
| MAKE | MODELS: 8 TON, 12500-20000 LB EXCAVATOR |
| BOBCAT | 442, 442S, E85 |
| CASE | CX75C SR, CX75SR, CX80C |
| CAT | 307D, 307EX, 308D CR, 308D CR-SB |
| COYOTE | DX80, DX85R-3 |
| DOOSAN | DX80, DX85R-3, S075-V, S70-V, S75-V |
| DITCH WITCH | |
|
GEHL MUSTANG |
Z80 GEN: 2 | 800Z NXT2 |
| HITACHI | ZX75US‑5, ZX85USB‑5 |
| HYUNDIA | R80CR-9, R80CR-9A |
| IHI KATO | 70Z |
| JCB | 67C-1, 86C-1, 85Z |
| JOHN DEERE | 70, 70D, 75C,80, 80C, 85, 190E |
| KOBELCO |
70SR, 80CS |
| KOMATSU |
PC78MR-6, PC78US-6, PC78US-8, PC78US-10, PC78UU-6 |
| KUBOTA |
KX057‑4 |
| LIUGONG | CLG906D |
| MECALAC | 6MCR, 8MCR, 8MCR RR |
| NEW HOLLAND |
EH70, EH80 |
| SANY |
SY75C‑TIER 2, SY75C‑TIER 3, SY75C‑TIER 3 (EU), SY75C‑TIER 3 (US), SY75C‑TIER 4F, SY80C-9S |
| TAKEUCHI |
TB68S, TB070 |
| TEREX | TC75 (HR32) |
| THOMAS | T75 |
| VERMEER | |
| VOLVO | ERC88 |
| YANMAR |
B7 5A, SV100-2A, Vi08 |
