5HD250P

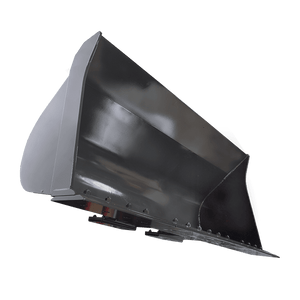

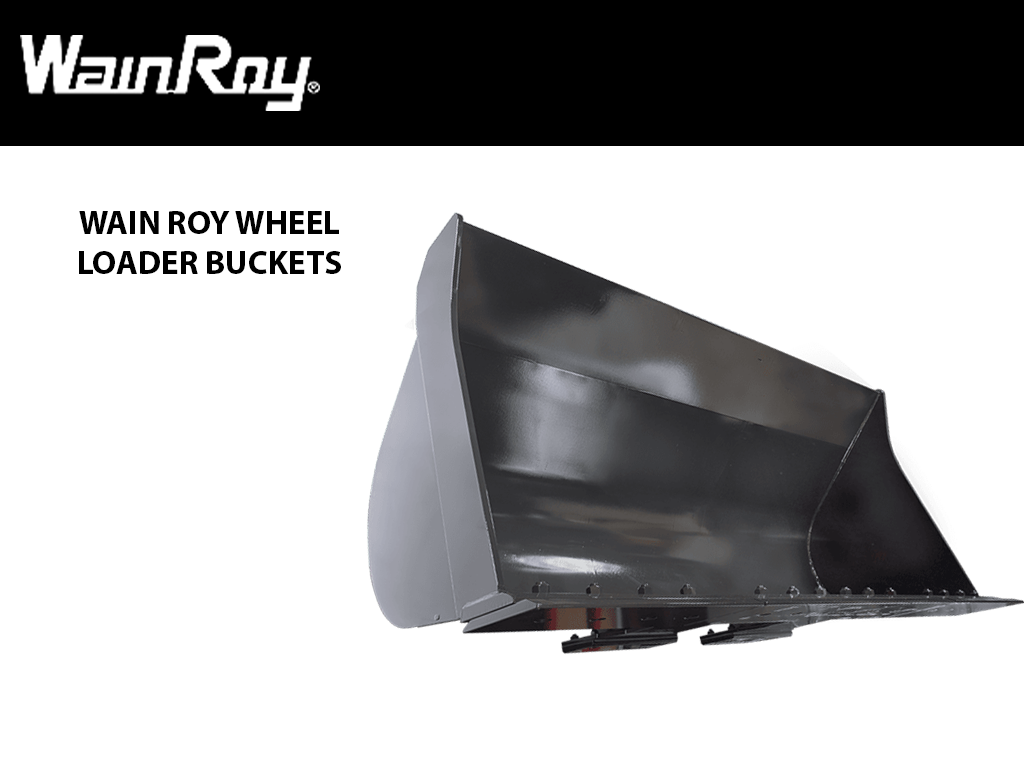

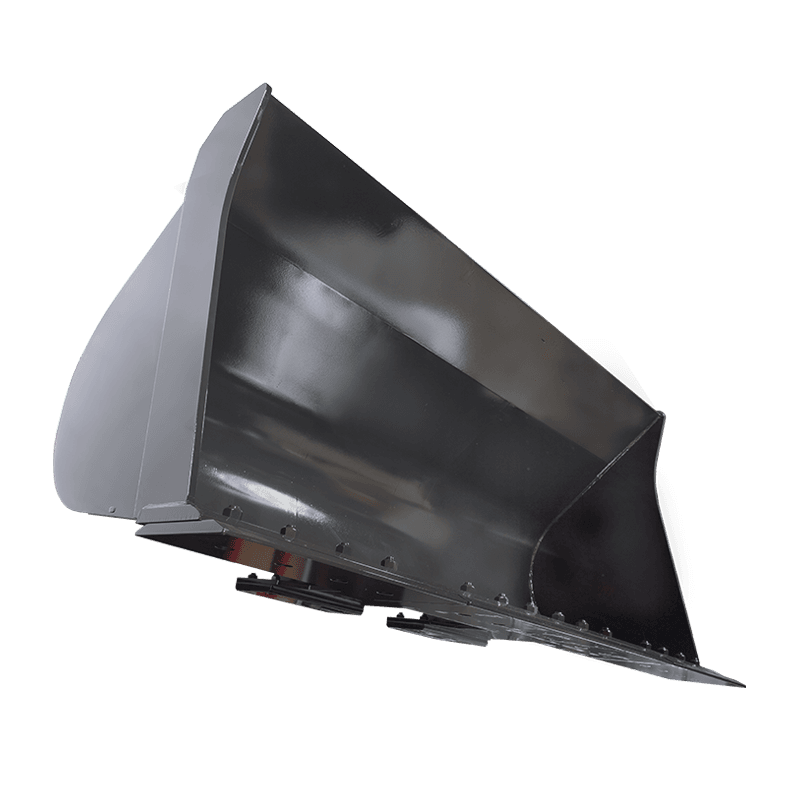

WAIN ROY Wheel Loader bucket, class 5 (3.25 - 4.00 cu. yd.)

STYLE
MOUNT
CAPACITY

***CALL FOR PRICES

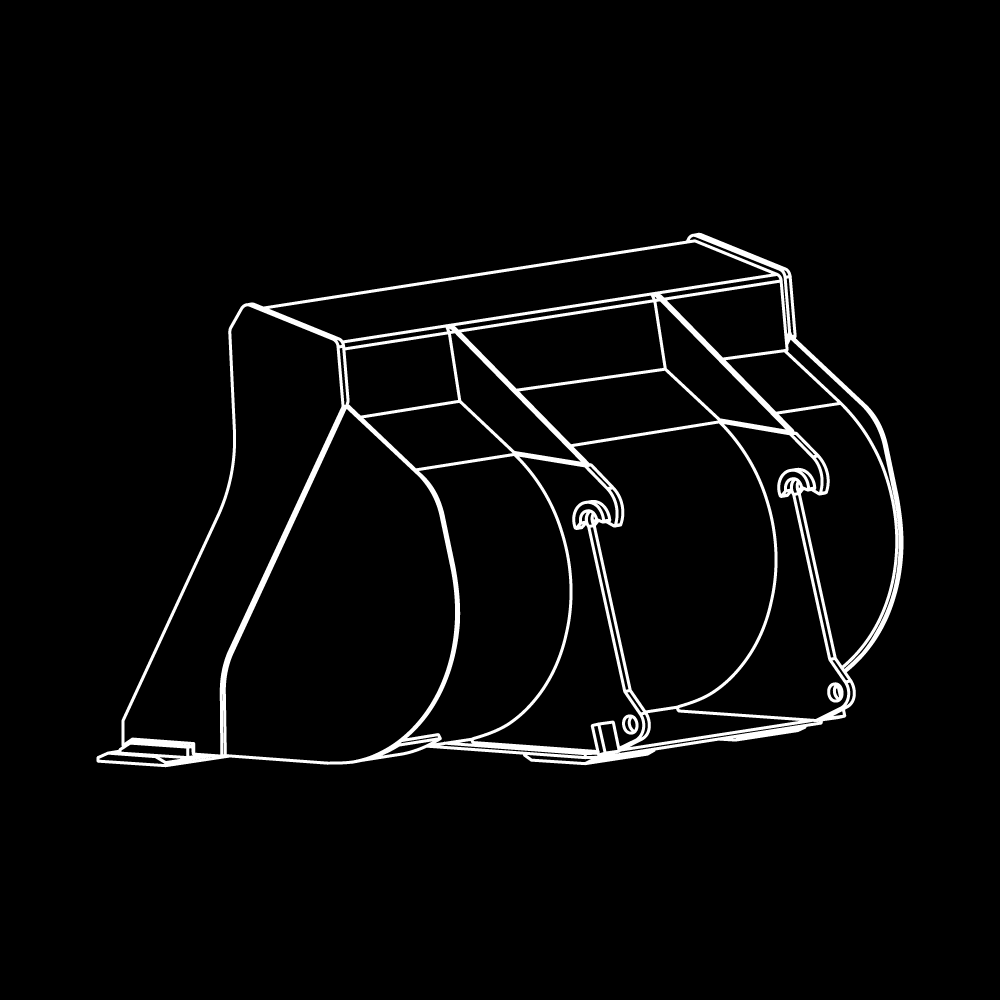

5HD

HEAVY DUTY PIN-ON & COUPLED WHEEL LOADER BUCKET

General Purpose Loader Buckets are for use with materials of a density range of 1,800 – 3,000 lbs. The Heavy-duty design and bucket material thickness ensures an extended life when the bucket is used with higher density material. They are functional for light-duty needs and rugged enough for many heavy-duty applications.

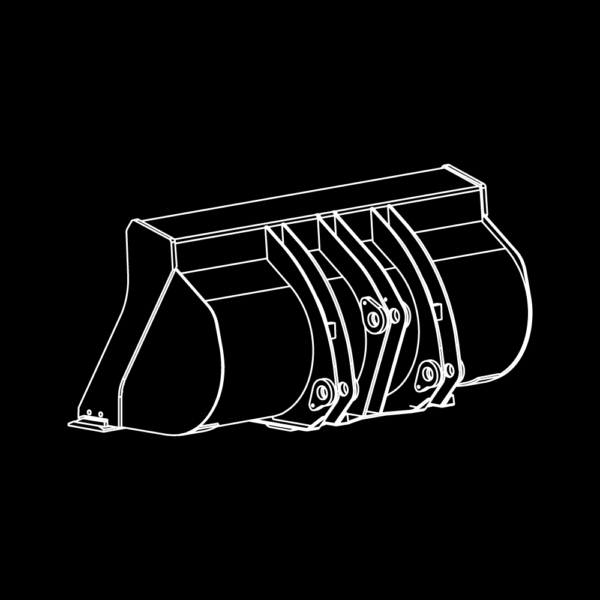

5LM

LIGHT MATERIAL PIN-ON & COUPLED WHEEL LOADER BUCKET

Light Material Loader Buckets are for use with materials of density less than 1,800 lbs/yd 3. Reduced bucket and material weight allows for increased loading capacities. Light material buckets are typically used in landscaping, compost, waste management, and agricultural/food processing applications.

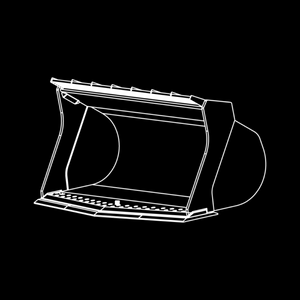

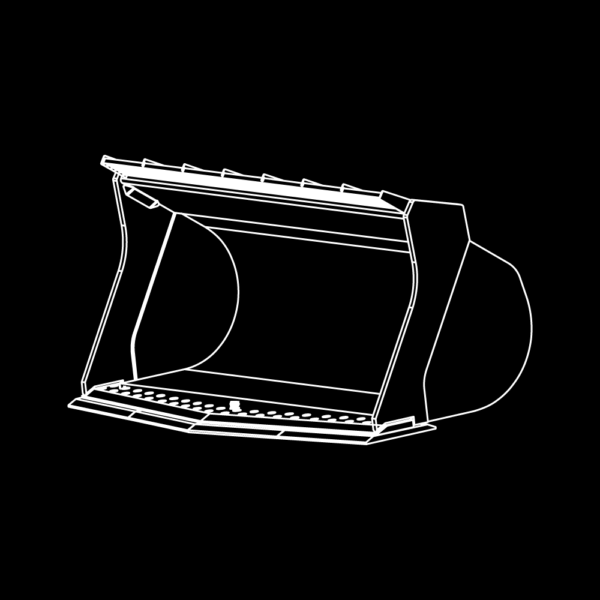

5SE

STRAIGHT EDGE ROCK BUCKET FOR WHEEL LOADERS

Rock Buckets are for use in mining and quarry applications. Rock Buckets are designed for structural strength and wear‑resistance in the most extreme conditions. Increased emphasis is placed on durability and specified usage. Rock Buckets are available in straight, semi‑spade, and spade nose front edge styles.

Pin-on and quick change buckets are available at same pricing.

5SN

SPADE NOSE ROCK BUCKET FOR WHEEL LOADERS

Rock Buckets are for use in mining and quarry applications. Rock Buckets are designed for structural strength and wear‑resistance in the most extreme conditions. Increased emphasis is placed on durability and specified usage. Rock Buckets are available in straight, semi‑spade, and spade nose front edge styles.

 CLASS 5 (3.25-4.00 CU. YD.)

STYLE CAPACITY (CU. YD.) LBS
heavy duty 2.50
2410
heavy duty 2.75
2560
heavy duty 3.00
2885
heavy duty 3.25
3295
heavy duty 3.50
3465
heavy duty 3.75
3510
heavy duty 4.00 3640
STYLE CAPACITY (CU. YD.) LBS
light material 4.50
3065
light material 5.00
3485
light material 5.50
4045
light material 6.00
4480
light material 6.50
4885
STYLE CAPACITY (CU. YD) LBS
Straight edge rock bucket 2.50 3210
straight edge rock bucket 2.75 3590
straight edge rock bucket  3.00 3985
STYLE  CAPACITY (CU. YD) LBS
spade nose rock bucket 2.50 3348
spade nose rock bucket 2.75 3590
spade nose rock bucket  3.00 3985

***LEC WILL CALL YOU TO CONFIRM YOUR MACHINE AND COUPLER STYLE

CLASS 5 (3.25 - 4.00 CU. YD)

MAKE MODEL
CASE
  • 721E, 721E XR, 721E XT, 721F, 721G
CATERPILLAR
  • 930M, 938H, 938M, 950GC, 950H, 950M, 962H, 962L, IT38H
DAEWOO / DOOSAN
  • DL250, DL250-5, DL250TC-5, DL280-5
DRESSTA
  • 530E
HYUNDAI
  • HL740-9, HL757-9, HL760-9, HL955, HL960, HL960 HD, HL960 XT
JCB
  • 436HT, 436ZX, 437 HT
JOHN DEERE
  • 624K HL, 624K Powerllell, 624K WH, 624K Z-Bar, 624K-II, 624K-II HL, 624K-II Powerllel, 624K-II TC, 624K-II Z-Bar
KAWASAKI
  • 67Z7, 70TMV-2, 70Z7, 70Z7 T4F, 70ZV-2
KOMATSU
  • WA250-3, WA250-5, WA250-6, WA250PZ-6, WA320-3, WA320-5, WA320-6, WA320-7, WA320-8, WA320PZ-6
LIEBHERR
  • L524 2plus1, L528 2plus1, L538, L538 2plus1, l542 2plus1, L546, L550 Xpower
NEW HOLLAD
  • LW170, LW170B, LW170TC, W170C
TEREX
  • SKL873, TL260, TXL250-1, TXL250-2
VOLVO
  • L60E, L60F WH, L90E, L90F, L90H
