6HD300P

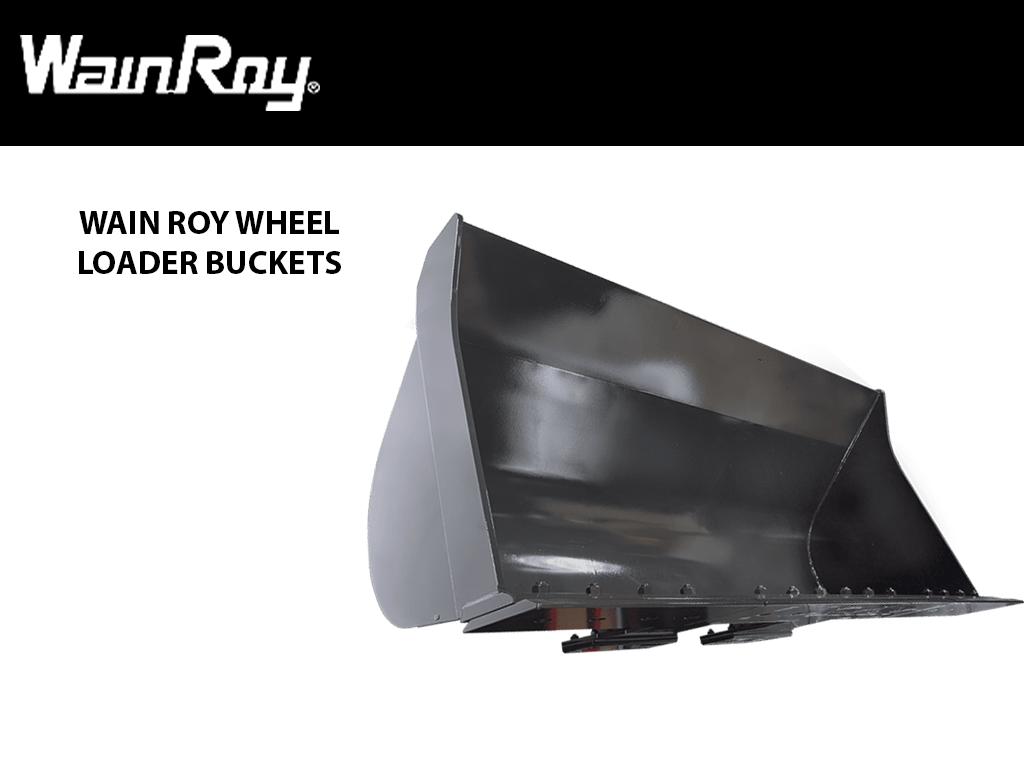

WAIN ROY Wheel Loader bucket, class 6 (4.00 - 4.50 cu. yd.)

STYLE
MOUNT
CAPACITY

***CALL FOR PRICES

6HD

HEAVY DUTY PIN-ON & COUPLED WHEEL LOADER BUCKET

General Purpose Loader Buckets are for use with materials of a density range of 1,800 – 3,000 lbs. The Heavy-duty design and bucket material thickness ensures an extended life when the bucket is used with higher density material. They are functional for light-duty needs and rugged enough for many heavy-duty applications.

6LM

LIGHT MATERIAL PIN-ON & COUPLED WHEEL LOADER BUCKET

Light Material Loader Buckets are for use with materials of density less than 1,800 lbs/yd 3. Reduced bucket and material weight allows for increased loading capacities. Light material buckets are typically used in landscaping, compost, waste management, and agricultural/food processing applications.


6SE

STRAIGHT EDGE ROCK BUCKET FOR WHEEL LOADERS

Rock Buckets are for use in mining and quarry applications. Rock Buckets are designed for structural strength and wear‑resistance in the most extreme conditions. Increased emphasis is placed on durability and specified usage. Rock Buckets are available in straight, semi‑spade, and spade nose front edge styles.

6SN

SPADE NOSE ROCK BUCKET FOR WHEEL LOADERS

Rock Buckets are for use in mining and quarry applications. Rock Buckets are designed for structural strength and wear‑resistance in the most extreme conditions. Increased emphasis is placed on durability and specified usage. Rock Buckets are available in straight, semi‑spade, and spade nose front edge styles.

Pin-on and quick change buckets are available at same pricing.

 CLASS 6 (4.00-4.50 CU. YD.)

STYLE CAPACITY (CU. YD.) LBS
heavy duty 3.00
3168
heavy duty 3.25
3346
heavy duty 3.50
3510
heavy duty 3.75
3580
heavy duty 4.00
3718
heavy duty 4.25
3812
heavy duty 4.50
3895
heavy duty 4.75 4006
STYLE CAPACITY (CU. YD.) LBS
light material 6.00
4415
light material 6.50
4895
light material 7.00
5247
light material 7.50
5490
light material 8.00
5836
STYLE CAPACITY (CU. YD) LBS
Straight edge rock bucket 3.25
4175
straight edge rock bucket 3.50
4438
straight edge rock bucket  3.75
4780
straight edge rock bucket 4.00 5086
straight edge rock bucket 4.25 5318
STYLE  CAPACITY (CU. YD) LBS
spade nose rock bucket 3.25
4310
spade nose rock bucket 3.50
4618
spade nose rock bucket  3.75
4926
spade nose rock bucket  4.00 5297
spade nose rock bucket  4.25 5518

***LEC WILL CALL YOU TO CONFIRM YOUR MACHINE AND COUPLER STYLE

CLASS 6 (4.00 - 4.50 CU. YD)



MAKE MODEL
CASE
  • 821E, 821E XR, 821F, 821G
  • CATERPILLAR
    • 950GC, 950H, 950M, 962H, 962L, 962M, 966M XE, 972M XE, IT62H
    DAEWOO / DOOSAN
    • DL300, DL300-5, DL350-5
    DRESSTA
    • 530E
    HYUNDAI
    • HL757-9, HL760-9, HL770-9, HL960, HL960 HD, HL960XT, HL965, HL965XT
    JCB
    • 456HT, 456ZX, 457HT
    JOHN DEERE
    • 644K HL, 644K HL WH, 644K Powerllel, 644K WH, 644K Z-Bar, 724K HL, 724K HL WH, 724K WH, 724K Z-Bar
    KAWASAKI
    • 80Z7, 80Z7 T4F, 80ZV-2, 85Z7, 85ZV-2
    KOMATSU
    • WA380-3, WA380-5, WA380-6, WA380-7, WA380-8
    LIEBHERR
    • L524 2plus1, L528 2plus1, L538 2plus1, L542 2plus1, L550 2plus2, L550 Xpower Z-bar, L556 Xpower Z-bar
    NEW HOLLAD
    • W190, W190B, W190C
    TEREX
    • TXL300-1, TXL300-2
    VOLVO
    • L110E, L110H, L120E, L120H, L120LB, L90E, L90F WH
