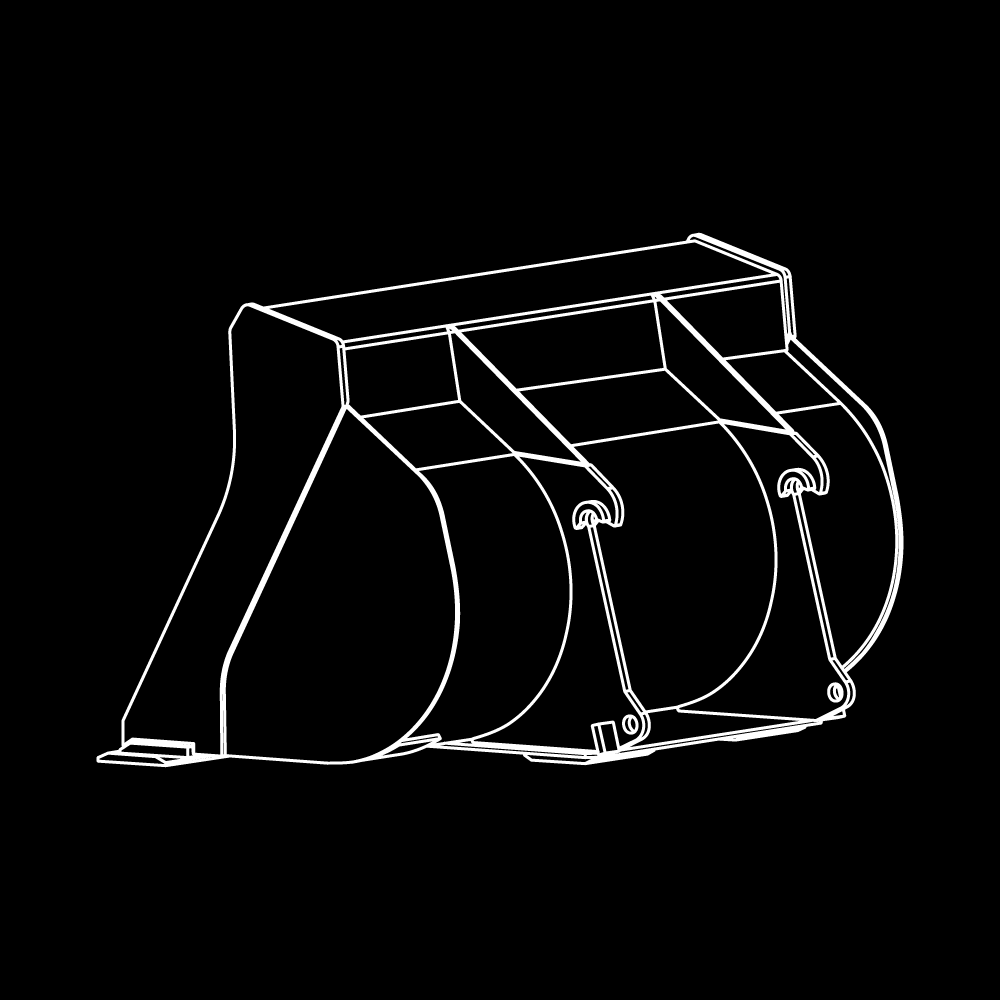

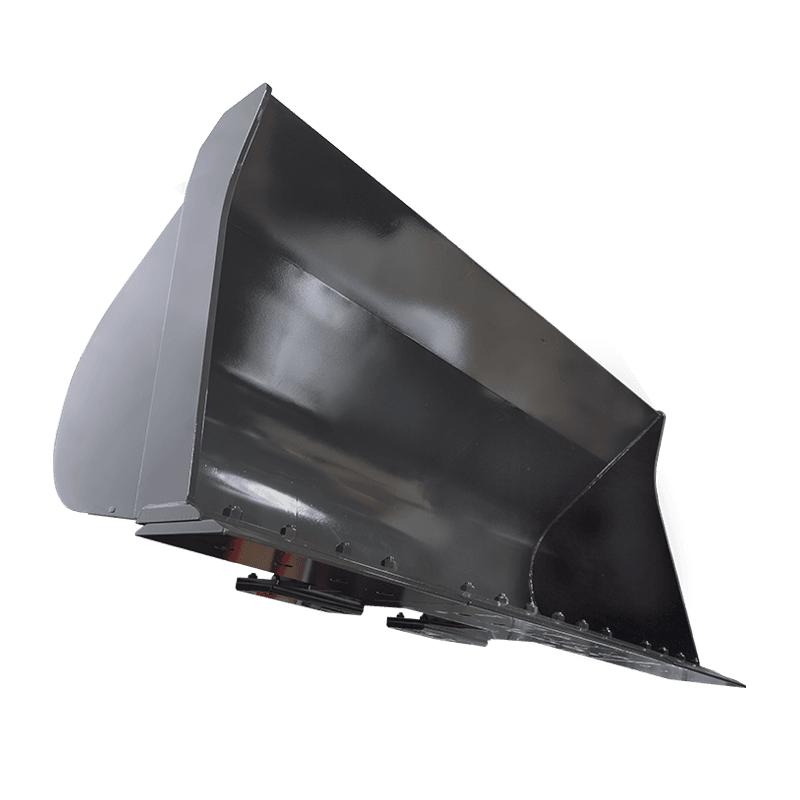

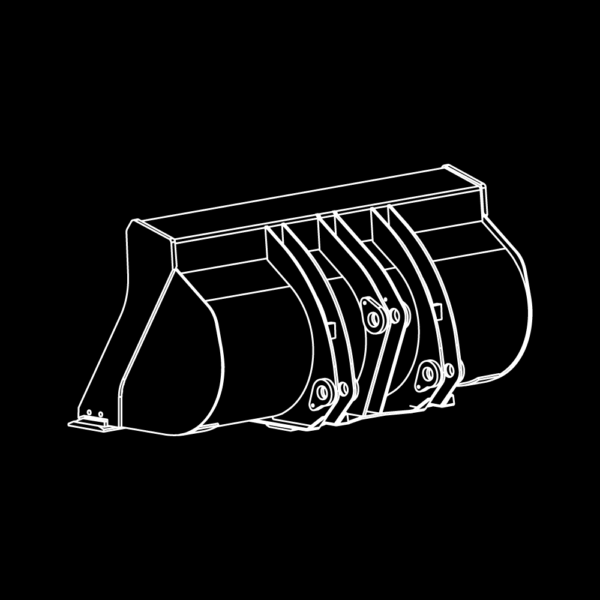

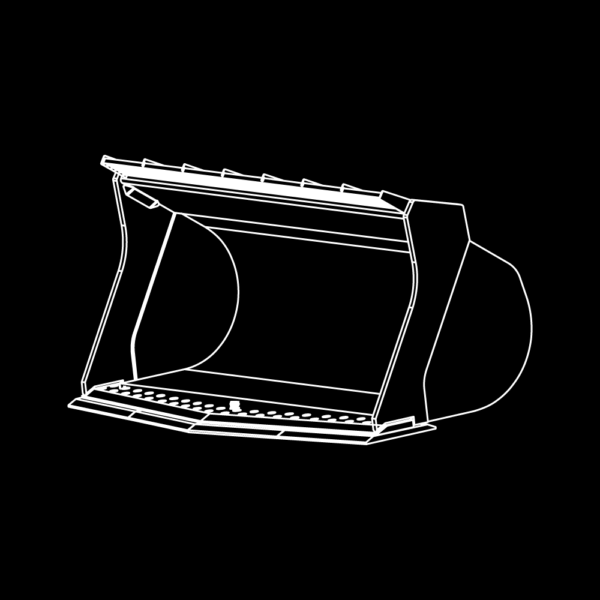

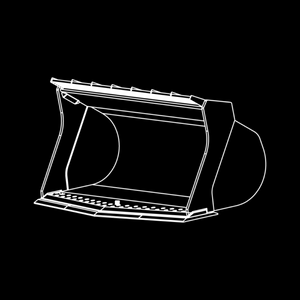

WAIN ROY Wheel Loader bucket, class 7 (4.50 - 5.50 cu. yd.)

STYLE
MOUNT
CAPACITY

***CALL FOR PRICES

7HD

HEAVY DUTY PIN-ON & COUPLED WHEEL LOADER BUCKET

General Purpose Loader Buckets are for use with materials of a density range of 1,800 – 3,000 lbs. The Heavy-duty design and bucket material thickness ensures an extended life when the bucket is used with higher density material. They are functional for light-duty needs and rugged enough for many heavy-duty applications.

7LM

LIGHT MATERIAL PIN-ON & COUPLED WHEEL LOADER BUCKET

Light Material Loader Buckets are for use with materials of density less than 1,800 lbs/yd 3. Reduced bucket and material weight allows for increased loading capacities. Light material buckets are typically used in landscaping, compost, waste management, and agricultural/food processing applications.


7SE

STRAIGHT EDGE ROCK BUCKET FOR WHEEL LOADERS

Rock Buckets are for use in mining and quarry applications. Rock Buckets are designed for structural strength and wear‑resistance in the most extreme conditions. Increased emphasis is placed on durability and specified usage. Rock Buckets are available in straight, semi‑spade, and spade nose front edge styles.

7SN

SPADE NOSE ROCK BUCKET FOR WHEEL LOADERS

Rock Buckets are for use in mining and quarry applications. Rock Buckets are designed for structural strength and wear‑resistance in the most extreme conditions. Increased emphasis is placed on durability and specified usage. Rock Buckets are available in straight, semi‑spade, and spade nose front edge styles.

 CLASS 7 (4.50-5.50 CU. YD.)

STYLE CAPACITY (CU. YD.) LBS
heavy duty 4.50
3915
heavy duty 4.75
4096
heavy duty 5.00
4498
heavy duty 5.25
4665
heavy duty 5.50
4810
STYLE CAPACITY (CU. YD.) LBS
light material 7.00
5225
light material 7.50
5486
light material 8.00
5825
light material 8.50
6160
light material 9.00
6484
light material 9.50 6795
light material 10.00 7046
STYLE CAPACITY (CU. YD) LBS
straight edge rock bucket  4.50
5515
straight edge rock bucket 4.75
5936
straight edge rock bucket 5.00
6290
STYLE  CAPACITY (CU. YD) LBS
spade nose rock bucket 4.50
5685
spade nose rock bucket 4.75 5910
spade nose rock bucket  5.00
6684

***LEC WILL CALL YOU TO CONFIRM YOUR MACHINE AND COUPLER STYLE

CLASS 7 (4.50 - 5.50 CU. YD)

MAKE MODEL
CASE
  • 1021F, 1021G, 921E, 921E XR, 921F, 921G
CATERPILLAR
  • 72H, 950M, 962H, 962L, 962M, 966H, 966M, 966M XE, 972M XE, 980H, IT62H
DAEWOO / DOOSAN
  • DL400, DL420-5, DL500
DRESSTA
  • 555B HL
HYUNDAI
  • HL760-9, HL770-9, HL965, HL965 XT, HL970, HL970 XT, HL975
JOHN DEERE
  • 744K HL, 744K HL WH, 744K WH, 744K Z-Bar, 744K-II HL, 744K-II Z-Bar
KAWASAKI
  • 85Z7 T4F, 85Z7 T4F HL, 90ZV-2
KOMATSU
  • WA430-5, WA430-6, WA470-3, WA470-5, WA470-6, WA470-7, WA470-8, WA480-5, WA480-6
LIEBHERR
  • L524 2plus1, L528 2plus1, L538 2plus1, L542 2plus1, L550 2plus2, L556 2plus2, L556 Xpower, L566 2plus2
NEW HOLLAD
  • L230B, W230C
TEREX
  • TXL400-1, TXL400-2
VOLVO
  • L110E WH, L120E WH, L120H, L150, L150H, L150LB, L70E WH
