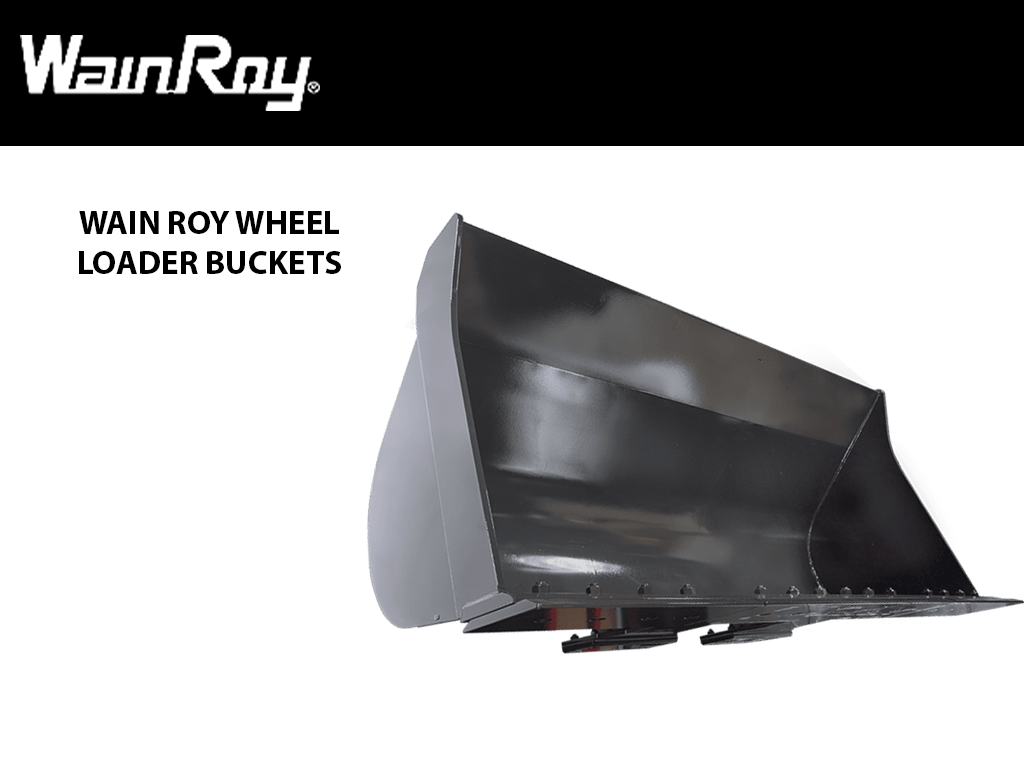

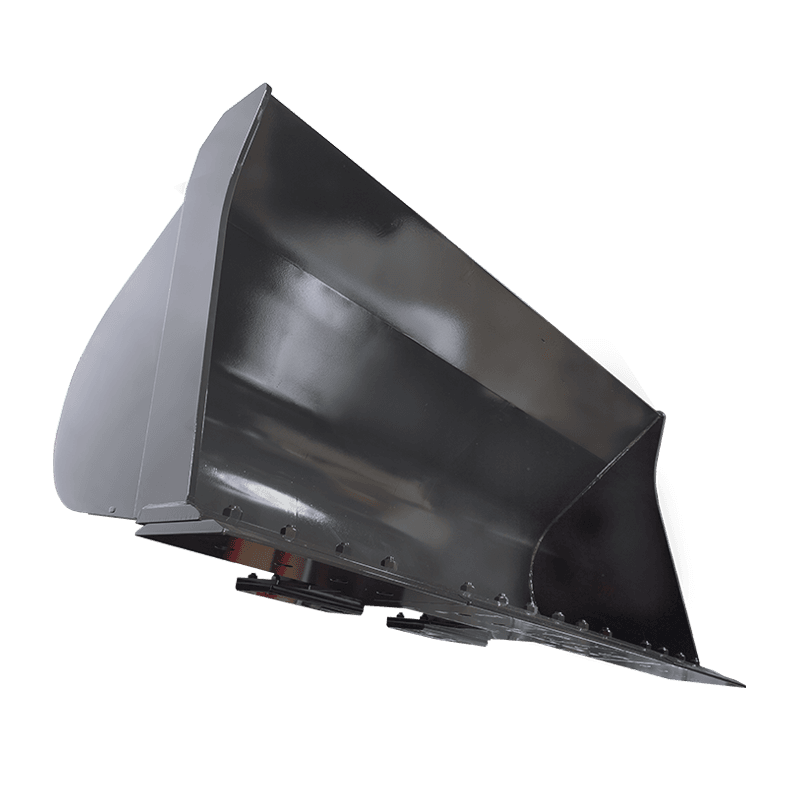

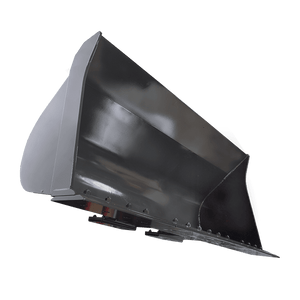

WAIN ROY Wheel Loader bucket, class 8 (5.50 - 7.00 cu. yd.)

STYLE
MOUNT
CAPACITY

***CALL FOR PRICES

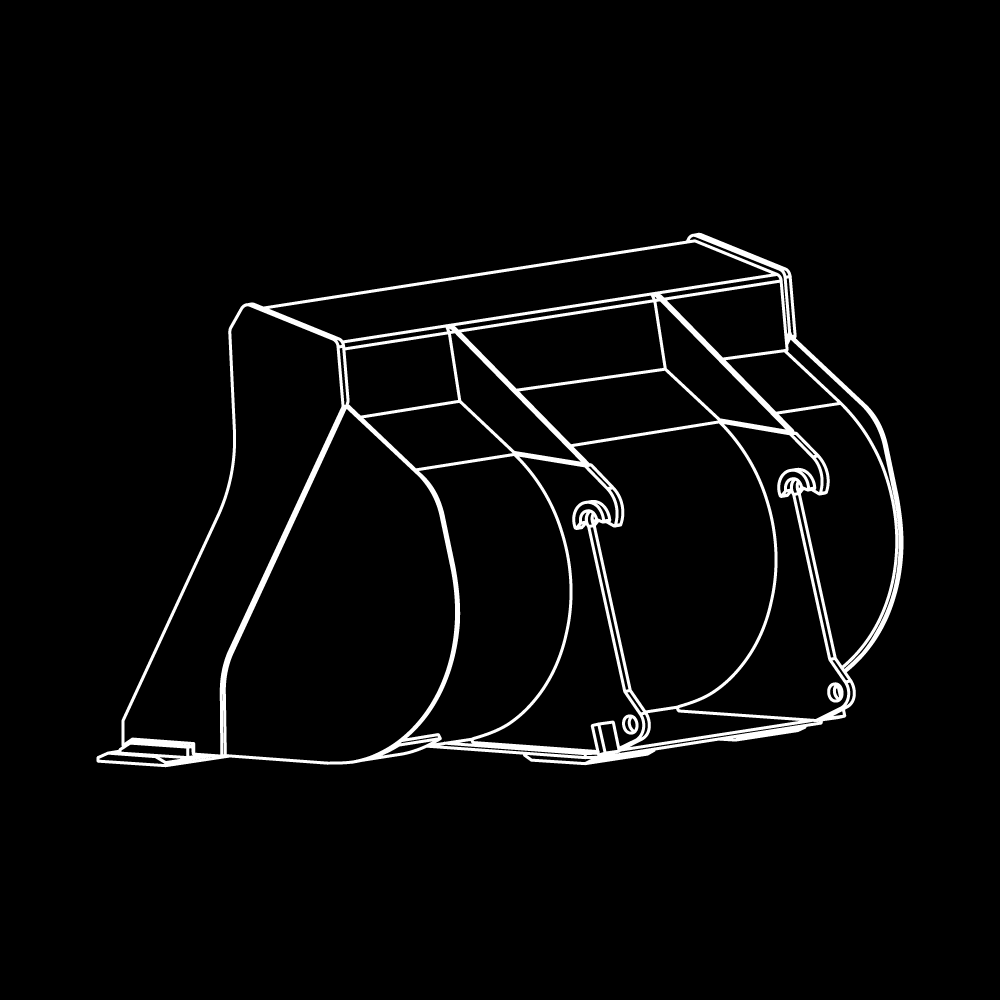

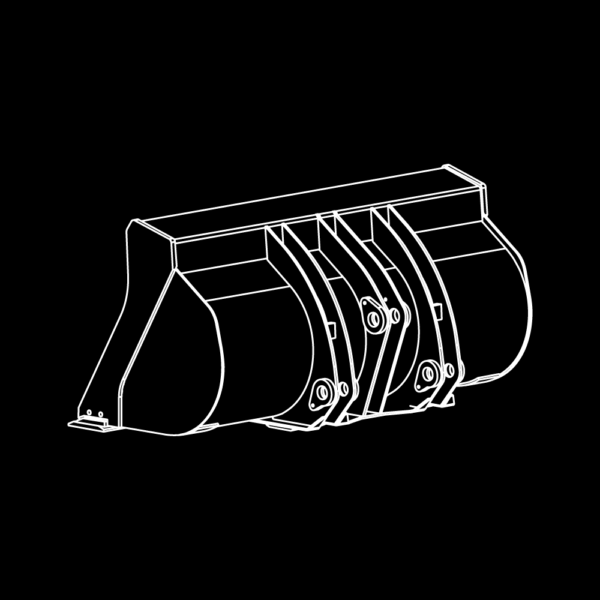

8HD

HEAVY DUTY PIN-ON & COUPLED WHEEL LOADER BUCKET

General Purpose Loader Buckets are for use with materials of a density range of 1,800 – 3,000 lbs. The Heavy-duty design and bucket material thickness ensures an extended life when the bucket is used with higher density material. They are functional for light-duty needs and rugged enough for many heavy-duty applications.

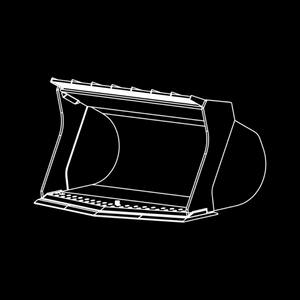

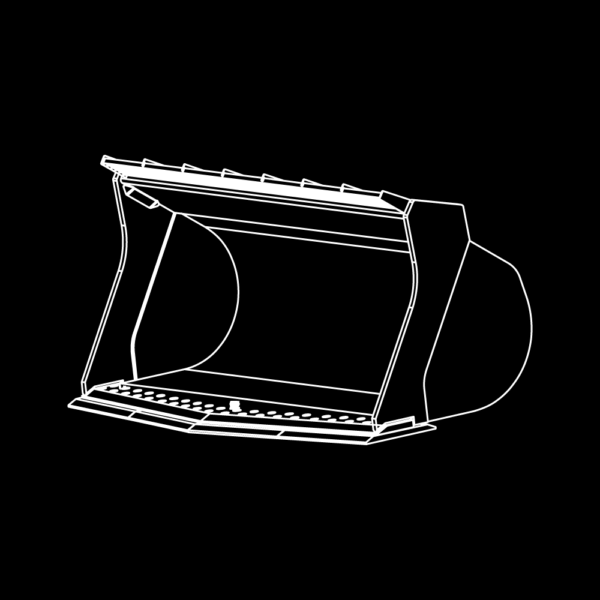

8LM

LIGHT MATERIAL PIN-ON & COUPLED WHEEL LOADER BUCKET

Light Material Loader Buckets are for use with materials of density less than 1,800 lbs/yd 3. Reduced bucket and material weight allows for increased loading capacities. Light material buckets are typically used in landscaping, compost, waste management, and agricultural/food processing applications.


8SE

STRAIGHT EDGE ROCK BUCKET FOR WHEEL LOADERS

Rock Buckets are for use in mining and quarry applications. Rock Buckets are designed for structural strength and wear‑resistance in the most extreme conditions. Increased emphasis is placed on durability and specified usage. Rock Buckets are available in straight, semi‑spade, and spade nose front edge styles.

8SN

SPADE NOSE ROCK BUCKET FOR WHEEL LOADERS

Rock Buckets are for use in mining and quarry applications. Rock Buckets are designed for structural strength and wear‑resistance in the most extreme conditions. Increased emphasis is placed on durability and specified usage. Rock Buckets are available in straight, semi‑spade, and spade nose front edge styles.

 CLASS 8 (5.50-7.00 CU. YD.)

STYLE CAPACITY (CU. YD.) LBS
heavy duty 5.50
4920
heavy duty 5.75
5184
heavy duty 6.00
5426
heavy duty 6.25
5690
heavy duty 6.50
5960
heavy duty 6.75 6184
heavy duty 7.00 6466
heavy duty 7.25 6680
STYLE CAPACITY (CU. YD.) LBS
light material 9.00
6420
light material 9.50
6786
light material 10.00
7055
light material 10.50
7286
light material 11.00
7590
light material 11.50
7956
light material 12.00
8485
STYLE CAPACITY (CU. YD) LBS
straight edge rock bucket  5.00
7285
straight edge rock bucket 5.50
7495
straight edge rock bucket 6.00
7712
straight edge rock bucket 6.50 8326
STYLE  CAPACITY (CU. YD) LBS
spade nose rock bucket 6.00
8096
spade nose rock bucket 6.50 8524
spade nose rock bucket  7.00
8992

***LEC WILL CALL YOU TO CONFIRM YOUR MACHINE AND COUPLER STYLE

CLASS 8 (5.50 - 7.00 CU. YD)

MAKE MODEL
CASE
  • 1121F, 1121G, 1221E, 1221F
CATERPILLAR
  • 966M XE, 972H, 972M, 972M XE, 980H, 980M, 986H, 986K, 988K, 988K XE
DAEWOO / DOOSAN
  • DL400, DL450-5, DL550-5
DRESSTA
  • 555B, 560C HL
HYUNDAI
  • HL770-9, HL780-9, HL975, HL975 XT, HL980, HL980 XT
JOHN DEERE
  • 824K HL, 824K Z-Bar, 824K-II HL, 824K-II Z-Bar
KAWASAKI
  • 90Z7 T4F, 90Z7 T4F HL, 92-ZV-2, 95ZV-2
KOMATSU
  • WA480-8, WA500-3, WA500-6, WA500-6R
LIEBHERR
  • L550 2plus2, L556 2plus2, L566 2plus2, L566 Xpower, L576 2plus2, L580 2plus2, L580 Xpower
NEW HOLLAD
  • L270B, W270C, W300C
TEREX
  • TXL500-1, TXL500-2
VOLVO
  • L150E WH, L150H, L180E, L180H, L220, L220H
