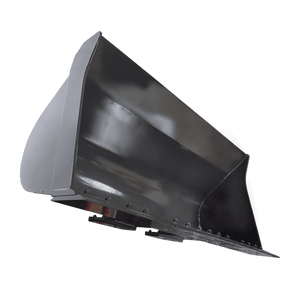

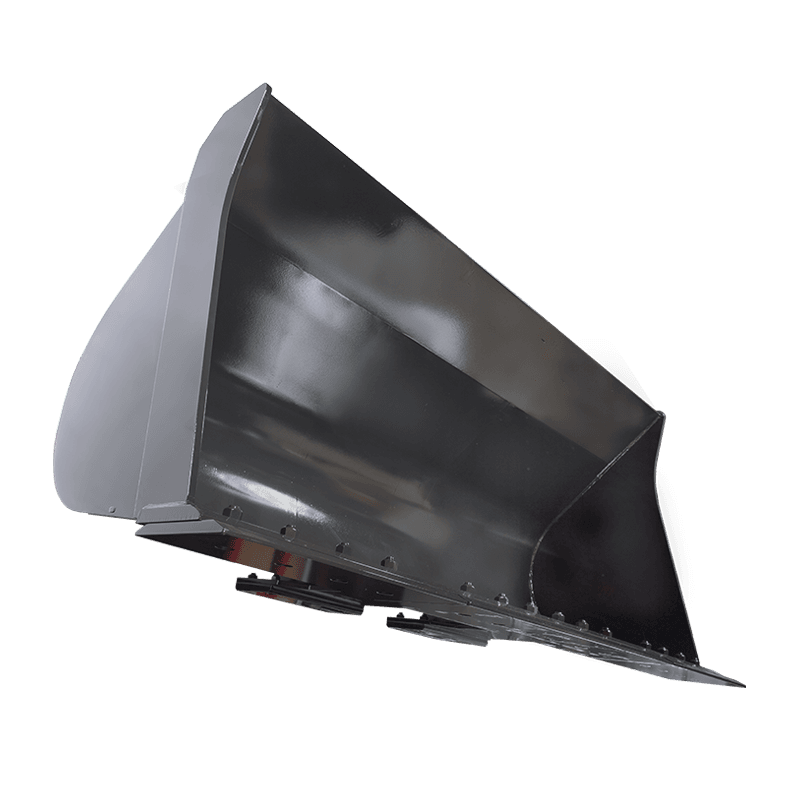

WAIN ROY Wheel Loader bucket, class 9 (7.00 - 9.00 cu. yd.)

STYLE
MOUNT
CAPACITY

***CALL FOR PRICES

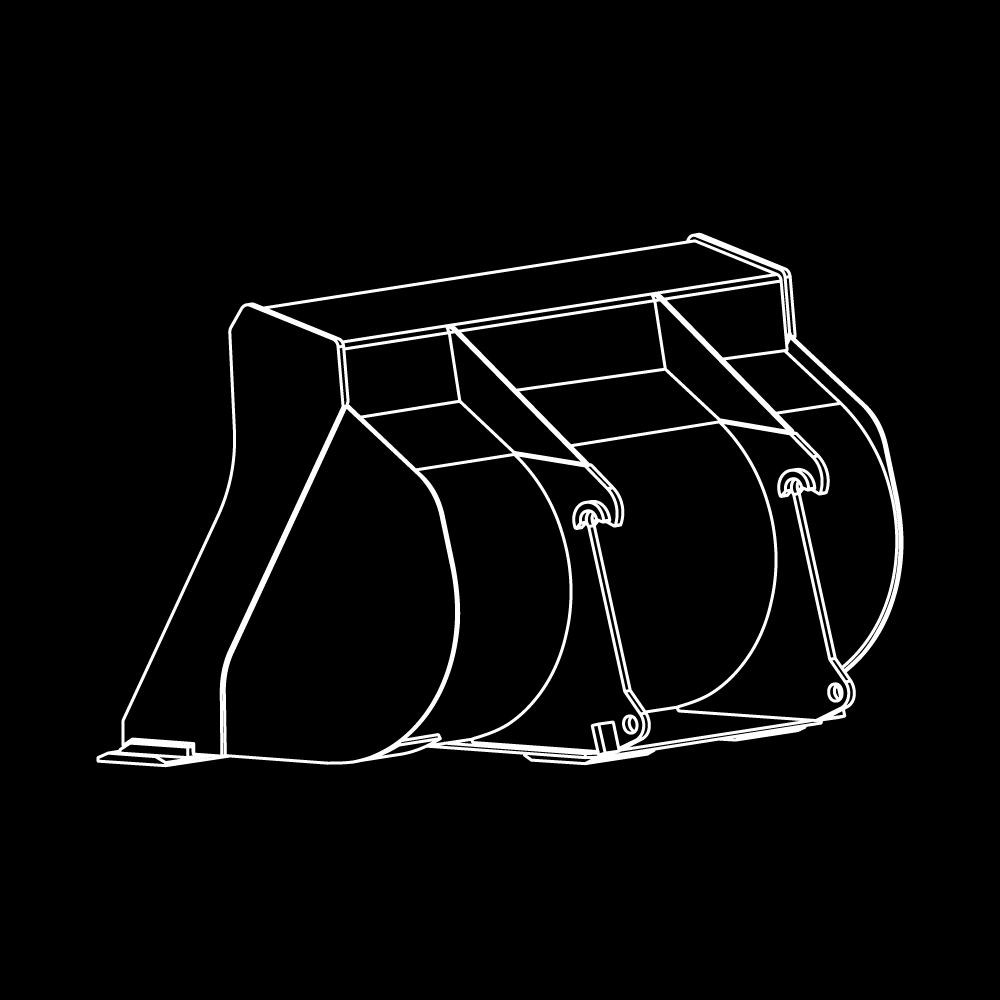

9HD

HEAVY DUTY PIN-ON & COUPLED WHEEL LOADER BUCKET

General Purpose Loader Buckets are for use with materials of a density range of 1,800 – 3,000 lbs. The Heavy-duty design and bucket material thickness ensures an extended life when the bucket is used with higher density material. They are functional for light-duty needs and rugged enough for many heavy-duty applications.

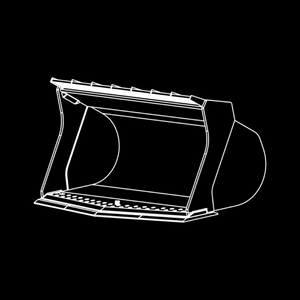

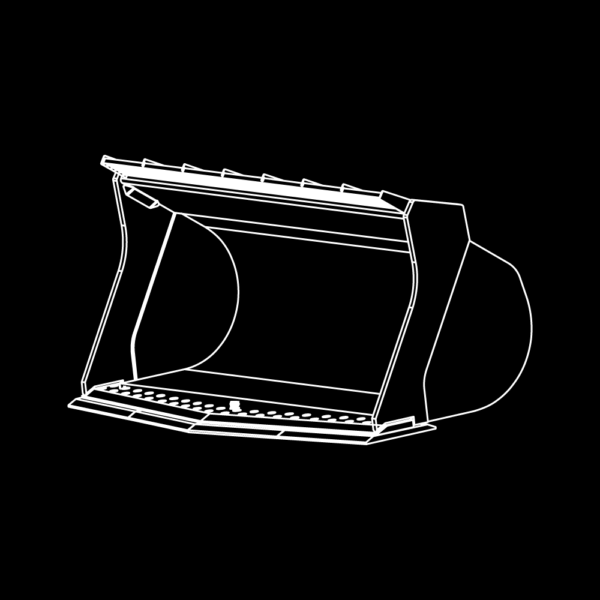

9LM

LIGHT MATERIAL PIN-ON & COUPLED WHEEL LOADER BUCKET

Light Material Loader Buckets are for use with materials of density less than 1,800 lbs/yd 3. Reduced bucket and material weight allows for increased loading capacities. Light material buckets are typically used in landscaping, compost, waste management, and agricultural/food processing applications.

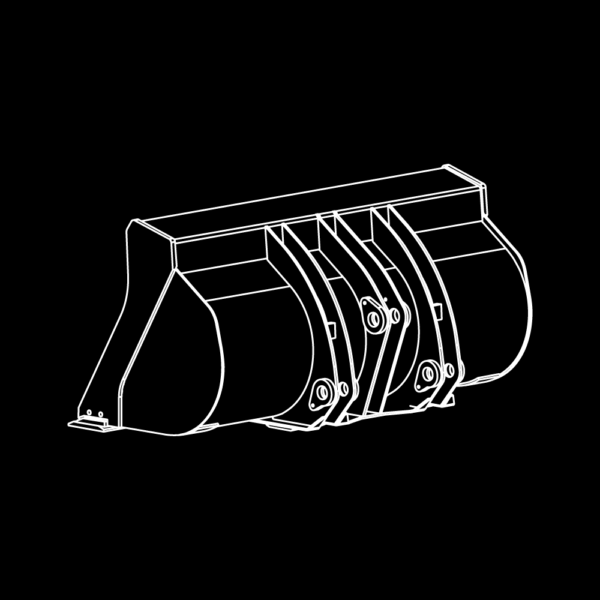

9SE

STRAIGHT EDGE ROCK BUCKET FOR WHEEL LOADERS

Rock Buckets are for use in mining and quarry applications. Rock Buckets are designed for structural strength and wear‑resistance in the most extreme conditions. Increased emphasis is placed on durability and specified usage. Rock Buckets are available in straight, semi‑spade, and spade nose front edge styles.

9SN

SPADE NOSE ROCK BUCKET FOR WHEEL LOADERS

Rock Buckets are for use in mining and quarry applications. Rock Buckets are designed for structural strength and wear‑resistance in the most extreme conditions. Increased emphasis is placed on durability and specified usage. Rock Buckets are available in straight, semi‑spade, and spade nose front edge styles.

 CLASS 9 (7.00-9.00 CU. YD.)

STYLE CAPACITY (CU. YD.) LBS
heavy duty 7.00
6640
heavy duty 7.25
6890
heavy duty 7.50
7295
heavy duty 8.00
8196
heavy duty 8.50
9056
heavy duty 9.00
9795
STYLE CAPACITY (CU. YD.) LBS
light material 12.50
8625
light material 13.00
9410
light material 13.50
9785
light material 14.00
10212
light material 14.50
10524
light material 15.00
10996
STYLE CAPACITY (CU. YD) LBS
straight edge rock bucket  7.50
9580
straight edge rock bucket 8.00
11086
straight edge rock bucket 8.50
11495
STYLE  CAPACITY (CU. YD) LBS
spade nose rock bucket 7.50
9836
spade nose rock bucket 8.00
11216
spade nose rock bucket  8.50
11694

***LEC WILL CALL YOU TO CONFIRM YOUR MACHINE AND COUPLER STYLE

CLASS 9 (7.00 - 9.00 CU. YD)

MAKE MODEL
CATERPILLAR
  • 982M, 986H, 986K, 988H, 988K, 988K XE
DAEWOO / DOOSAN
  • DL550-5
DRESSTA
  • 560C, 560C HL
HYUNDAI
  • HL780-9
JOHN DEERE
  • 844K, 844K-III
KAWASAKI
  • 115Z7, 115ZV-2, 135ZV, 95Z7, 95Z7 HL, 95Z7 T4F
KOMATSU
  • WA500-7, WA500-8, WA600-6, WA600-6R
LIEBHERR
  • L550 2plus2, L556 2plus2, L576 2plus2, L580 2plus2, L586 2plus2, L586 Xpower
VOLVO
  • L220H, L260H
