WAIN ROY

JB1PO-18

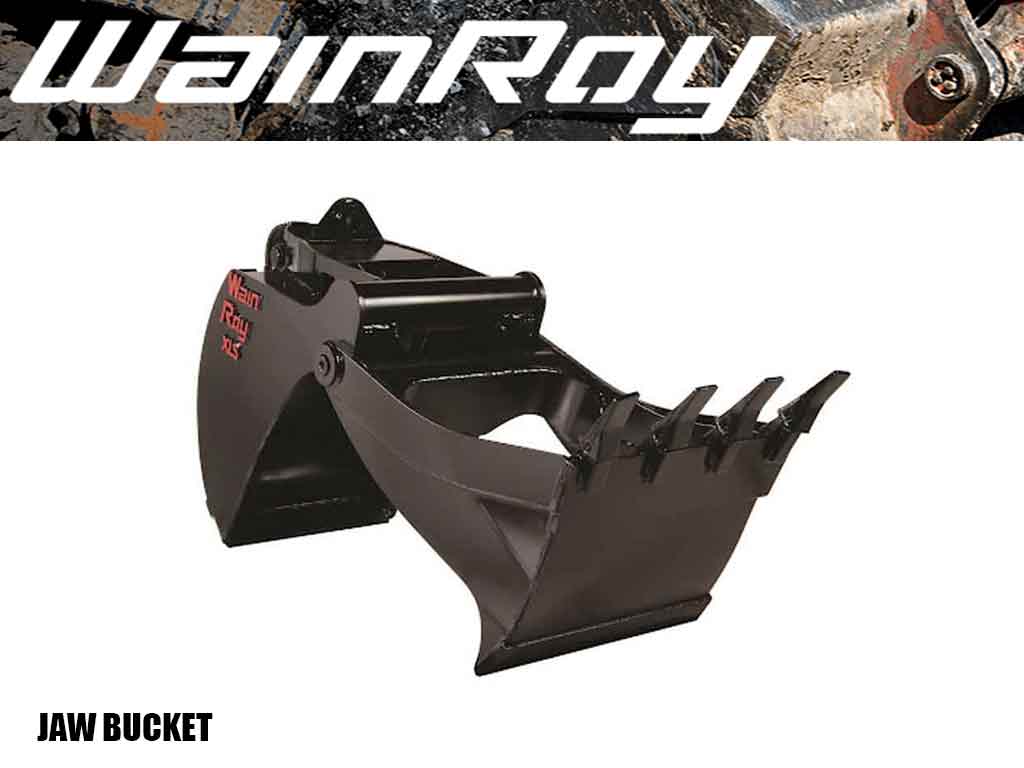

WAINROY Jaw Bucket for 1/4 yard Tractor Loader Backhoes up to 16,000 lbs.

Mounting
Size

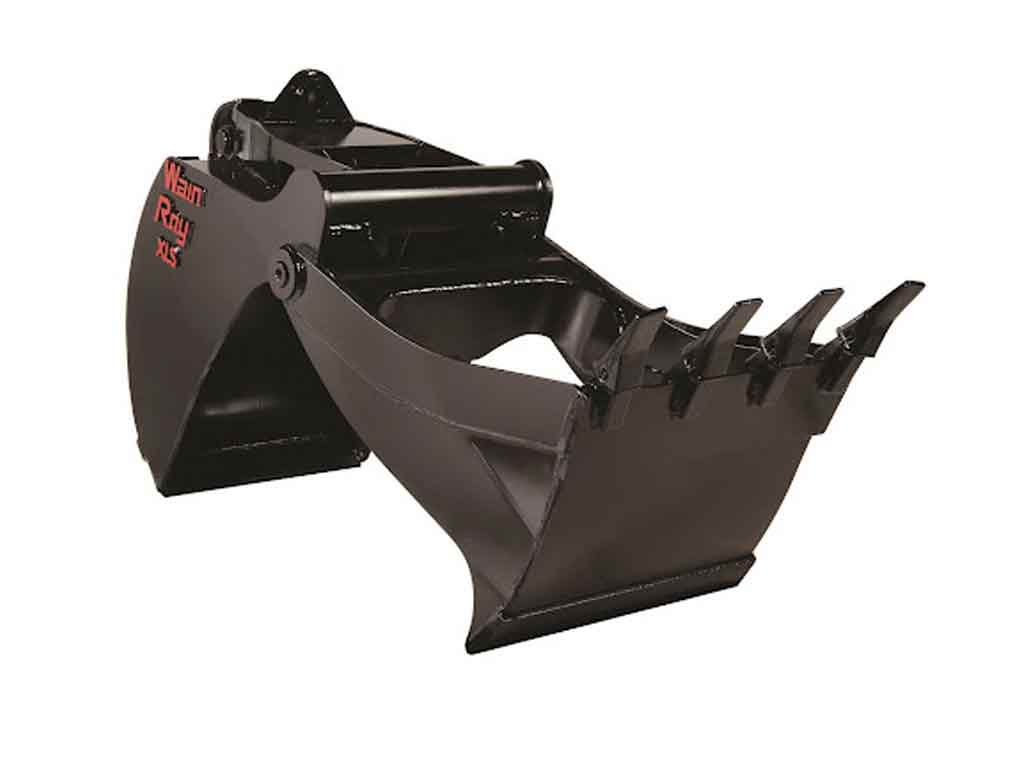

WAIN ROY JAW BUCKETS

Jaw Buckets provide the versatility of a trenching bucket and a thumb in one unit without having to weld thumb brackets onto the boom. Jaw Buckets are effective jobsite trenchers and haulers of cumbersome materials. Remove, load, and backfill material with the front jaw in the closed position and then use the hydraulically actuated jaw to pick and place large objects such as boulders, stumps, pipe, logs, concrete slabs and other debris. Jaw Buckets are an effective multi-use tool for construction applications.

Up to 16,000 LB Tractor Loader Backhoes

 JAW BUCKET

OEM PIN ON

WIDTH CAPACITY (CU. FT.) LBS OPENING TEETH
JB1PO-18 18" 5.4 570 41" 4
JB1PO-24 24" 7.6 660 41" 4
JB1PO-30 30" 9.7 740 41" 4

JAW BUCKET

WAIN ROY XLS, ORIGINAL, GANNON, TAG, CP

WIDTH CAPACITY (CU. FT.) LBS OPENING  TEETH
JB1QC-24 24" 7.6 650 41" 4
JB1QC-30 30" 9.7 730 41" 4



MAKE UP TO 16000 LB BACKHOE
CASE
  • 580 Series 3, 580 Super M Series 2, 580 Super M Series 3, 580 Super M+ Series 2, 580 Super M+ Series 3, 580 Super N, 580 Super N WT, 580 Turbo Series 2, 580L, 580M, 580M Series 2, 580N, 580N EP, 580SL, 580SM, 590 SL, 590 Super M Series 3, 590 Super M+ Series 3, 590 Super N, 590M Super M+ Series 3, 590SM
CAT
  • 415F2, 415F2 IL, 416B, 416C, 416D, 416E, 416F2, 420D, 420D-IT, 420E, 420E-IT, 420FX/420FX IT, 426B, 426C, 428, 430D, 430E, 430E-IT, 430FX/430FX IT, 436B, 436C, 4630D-IT
JCB
  • 3C 14, 3C LL, 3CX, 3CX-14, 3CX-14 SUPER
JOHN DEERE
  • 310J, 310L Backhoe, 310L EP Backhoe, 310SJ, 310SJ TMC, 310SJ TMC Tool Carrier, 310SL Backhoe, 310SL HL Backhoe, 315SJ, 315SL Backhoe, 410J, 410J TMC Tool Carrier, 410L Backhoe, 410SJ TMC
KOMATSU
  • W70A, WB140, WB142-5, WB146-5, WB146PS-5, WB150, WB156PS-5, WB91, WB93, WB93R-5, WB93R-8, WB93S-5, WB97, WB97R-5, WB97S-5, WB98
NEW HOLLAND
  • 555B, 555C, 555E, 575E, 655A, 655C, 655E, 675E, B110, B110B, B110C, B115B, B90B, B95, B95B, B95B LR, B95B TC, B95C, B95C LR, B95C TC, B95LR, B95TC, BL110B, LB110, LB1156, LB115B, LB75, LB75B, LB90, LB90B
VOLVO
  • BL60, BL60B, BL61, BL61 Plus, BL61B, BL70B, BL71, BL71 Plus, BL71B, PL70
