E30HD24

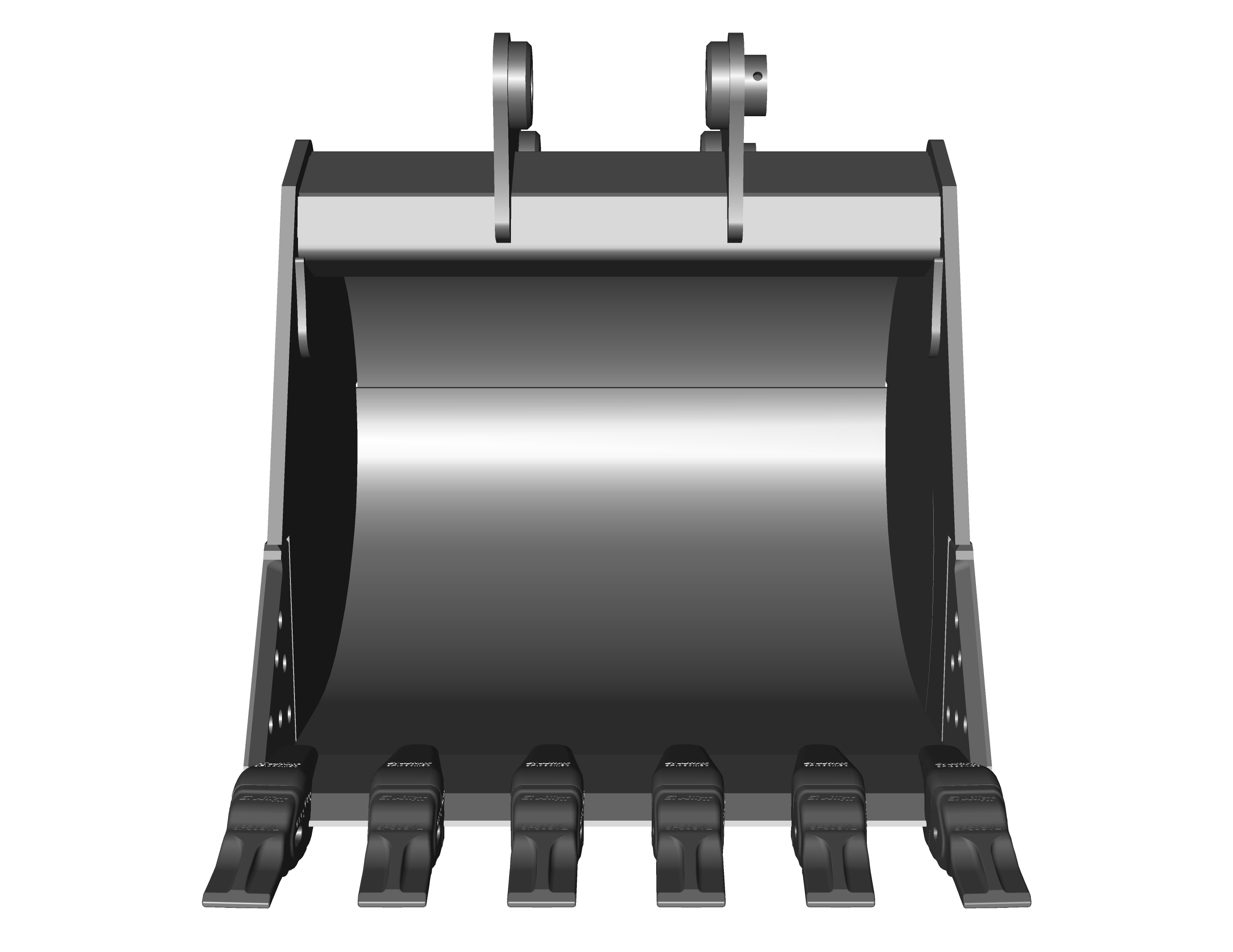

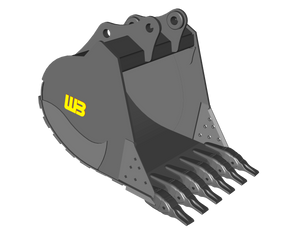

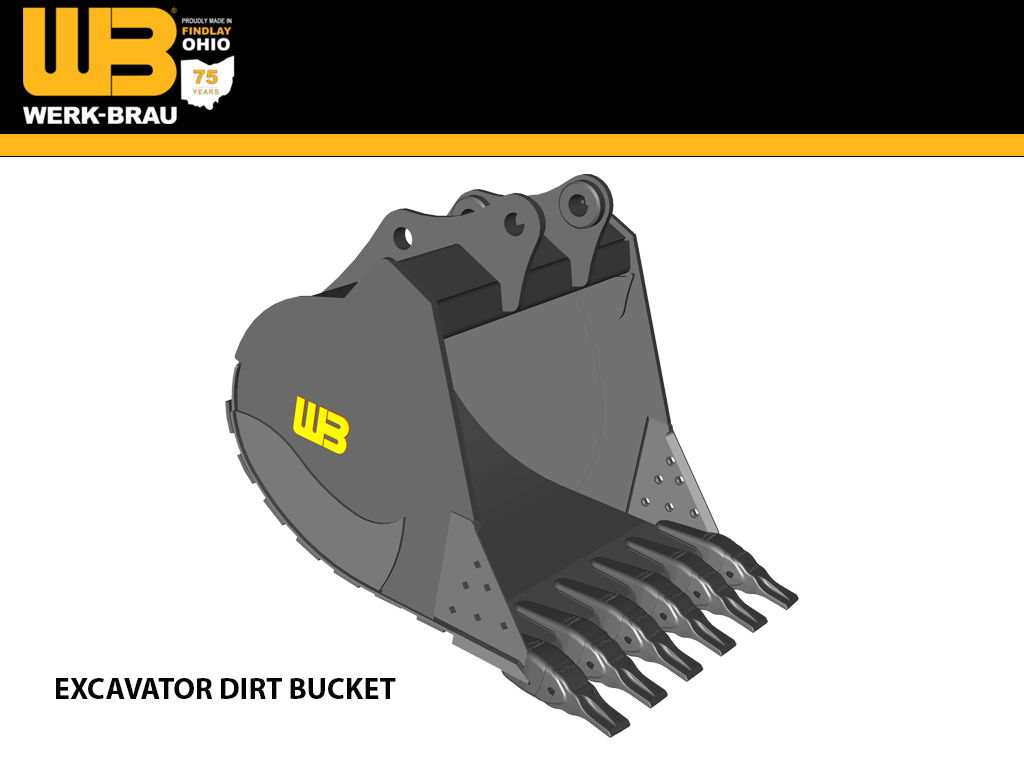

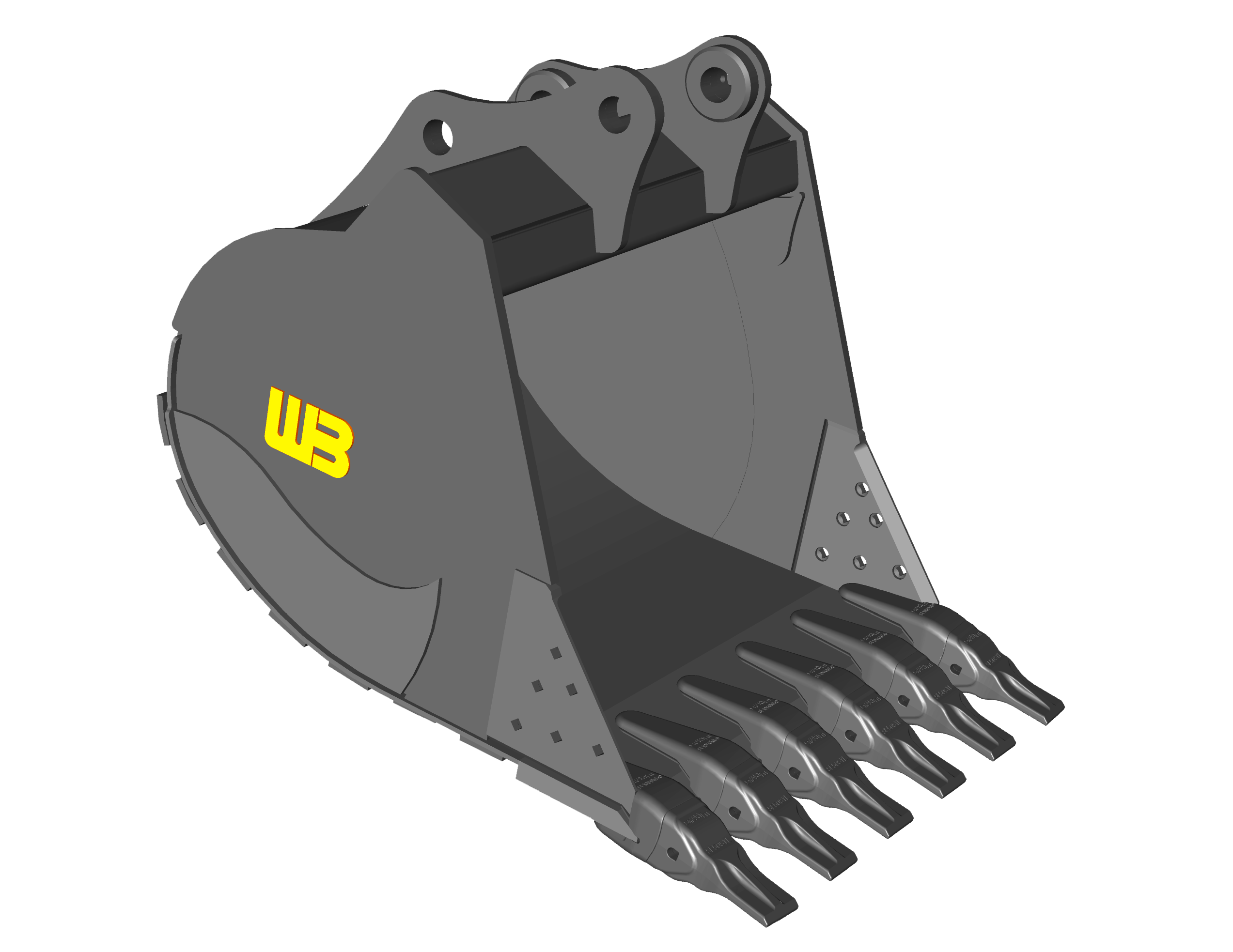

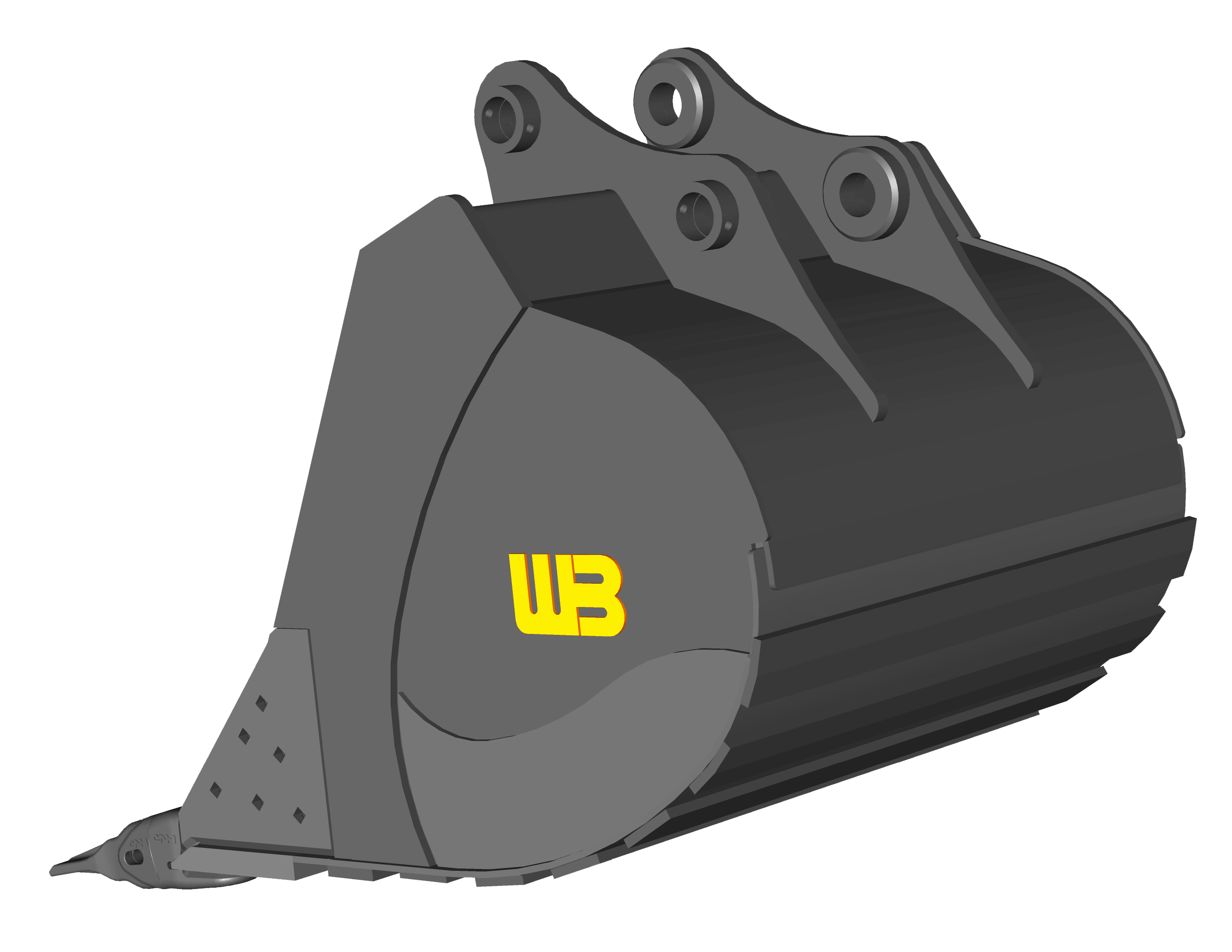

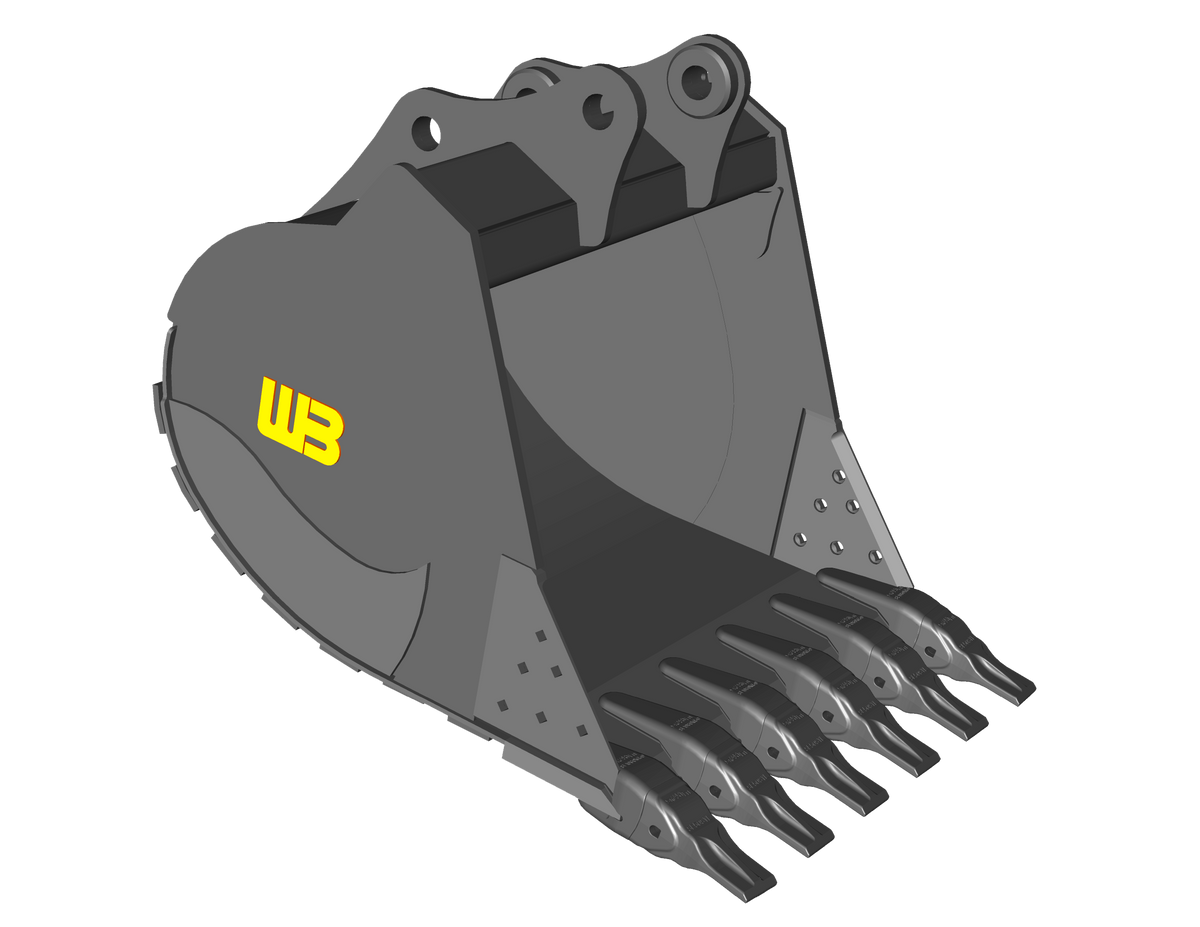

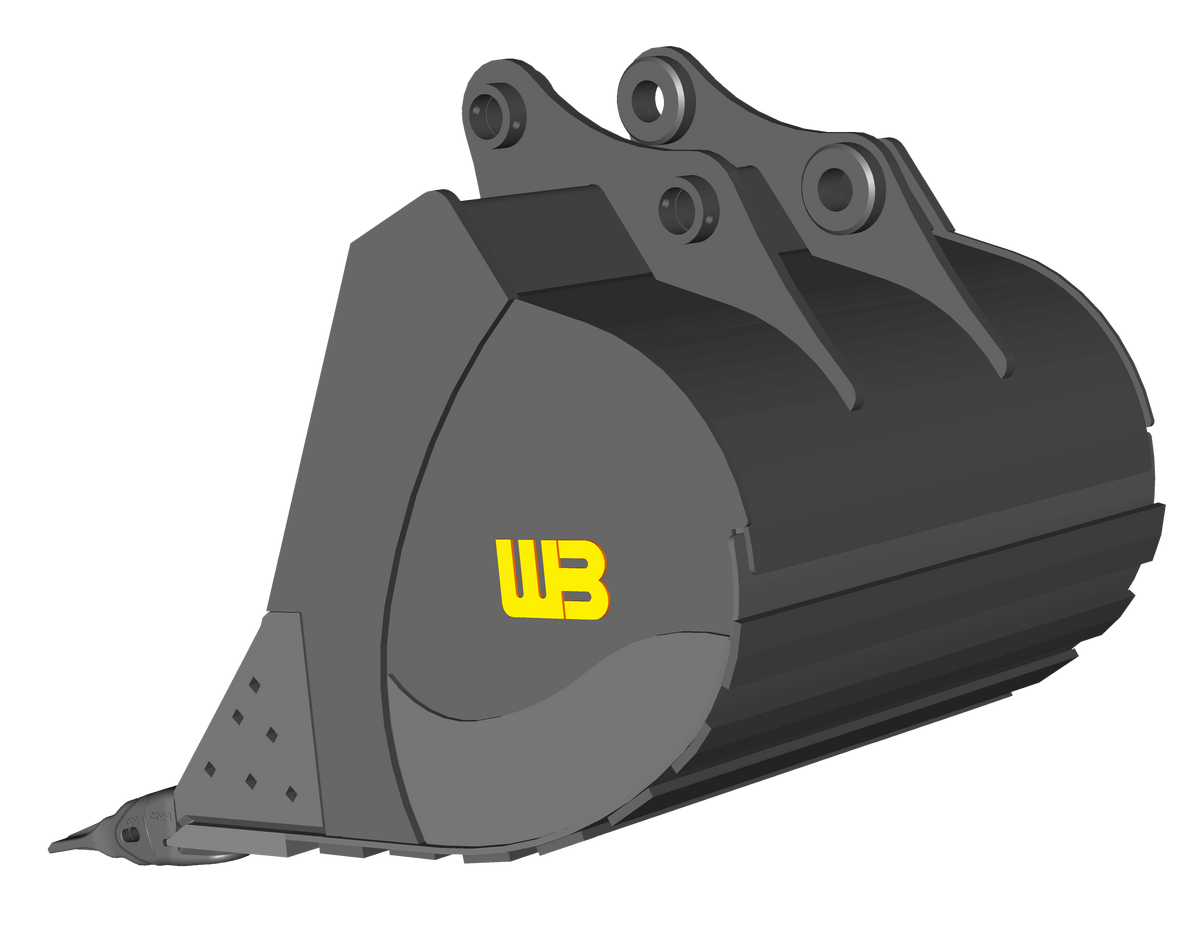

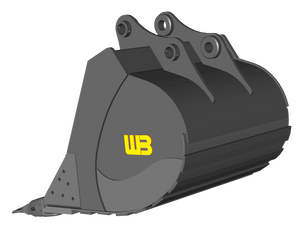

WERK-BRAU Dirt Buckets for 59,500 - 68,000 lbs. Excavators (30MT)
$9,167.00 - $16,487.00
1/24
Recommended Applications
Specifically designed for tough clay or dirt with rock scattered through the soil. Werk-Brau does not recommend using this bucket for prying required to dig solid rock. For extreme digging conditions see the 'Severe Duty Bucket', ‘Extreme Duty Bucket’ and 'V-Line Strata Rock Bucket'.
Construction
High quality T-1 steel is utilized in all critical or high wear components to ensure that this bucket has a long operation life. Heavy duty cast material is used in the buckets cutter bit. The cutting edge is backed by a heavy reinforcing plate with straps protecting the rest of the bottom. Side wear plates reinforce the sides for backfilling. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping.
Cutting Equipment Options
Equipped with industry standard teeth for extra durability. A selection of quality brand teeth are available to choose from. Bolt on cutting edges are optional. Bolt on side cuttersare highly recommended.
Standard Sizes
Available: 3/8 cubic yds. to 6-1/2 cubic yds. of various widths are available. Special designs and capacities available upon request.
Additional Features
Bolt-on side cutters are highly recommended for added endurance.
****PRICES DO NOT INCLUDE BUCKET PINS
HEAVY DUTY
| PART # | WIDTH | CAPACITY | NO. TEETH | WEIGHT |
| EX30HD24 | 24" |
0.74 |
3 | 1,875 |
| EX30HD30 | 30" | 0.92 |
4 | 2,125 |
| EX30HD36 | 36" | 1.11 |
4 |
2,375 |
| EX30HD42 | 42" | 1.29 |
5 | 2,575 |
| EX30HD48 | 48" | 1.48 |
5 |
2,775 |
| EX30HD54 | 54" | 1.66 |
6 | 3,025 |
| EX30HD60 | 60" | 1.85 |
6 | 3,275 |
| EZ30HD66 | 66" | 2.03 |
7 | 3,425 |
HEAVY DUTY HIGH CAPACITY
| PART # | WIDTH | CAPACITY | NO. TEETH | WEIGHT |
| E32HDC24 | 24" | 0.80 | 3 | 2,250 |
| E32HDC30 | 30" | 1.00 | 4 | 2,550 |
| E32HDC36 | 36" | 1.20 |
4 | 2,775 |
| E32HDC42 | 42" | 1.40 |
5 | 3,075 |
| E32HDC48 | 48" | 1.60 |
5 | 3,275 |
| E32HDC54 | 54" | 1.80 |
6 | 3,575 |
| E32HDC60 | 60" | 2.00 |
6 | 3,800 |
| E32HDC66 | 66" | 2.21 | 7 | 4,075 |
| MAKE / WEIGHT CLASS | 30MT (59,500 - 68,000 LBS.) |
| CASE | CX300, CX365E |
| CAT | 326, 328, 329, 335F, CB-LINKAGE |
| DOOSAN | DX300LC-5, DX300LC-5SLR |
| HITACHI | ZX300, ZX345 |
| HYUNDAI | HX300 |
| JOHN DEERE | 300G, 345G, 300P |
| KOBELCO | SK300 |
| KOMATSU | PC270, PC290, PC308 |
| LIEBHERR | |
| LINK BELT | 300X3, 300X4, 355X4 |
| SANY | SY365 |
| TAKEUCHI | |
| VOLVO | EC330, EC340, EC350, EC360, EC380 |
