3MDCG30

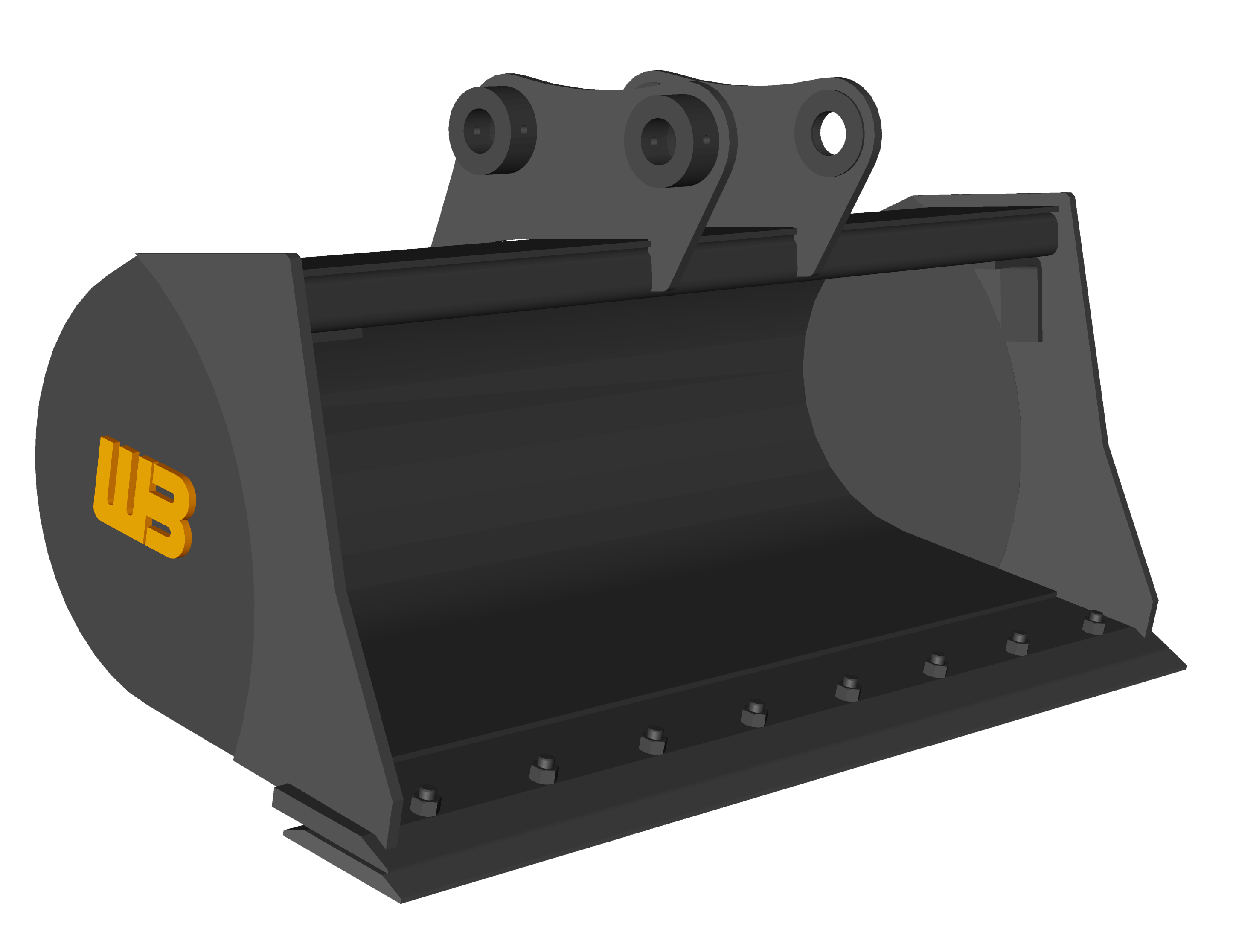

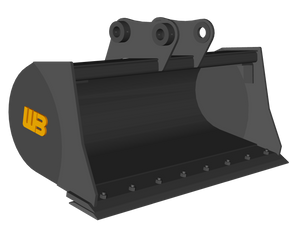

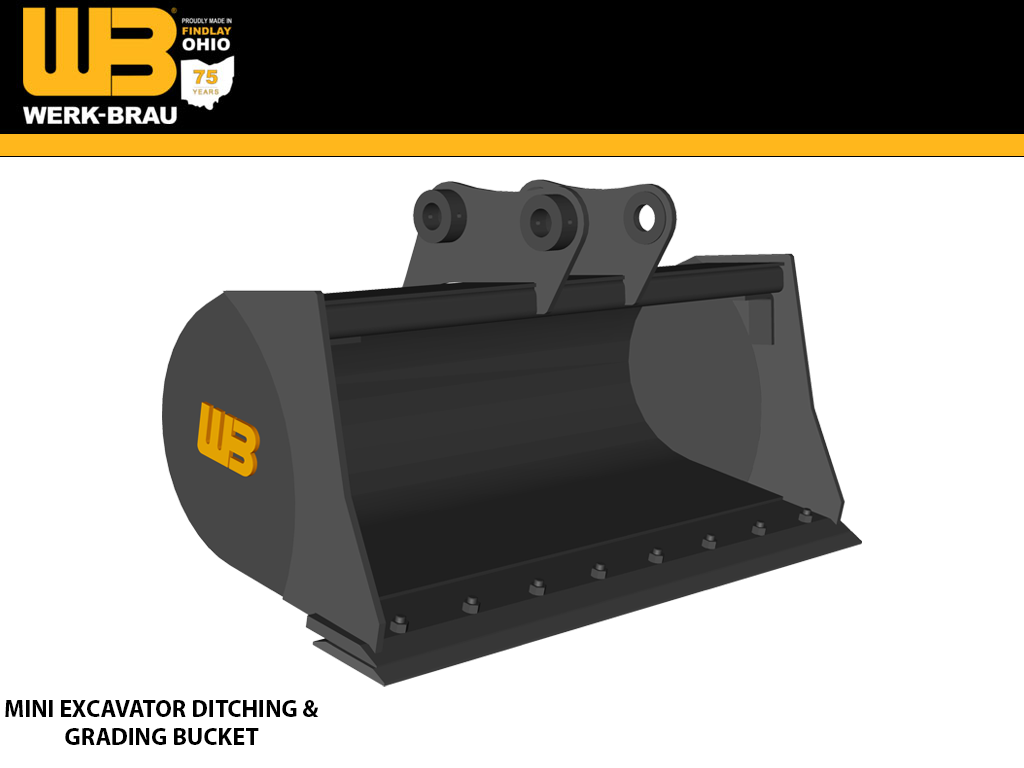

WERK-BRAU Ditching & Grading Bucket for 7,500 - 14,000 lbs. Excavators. (Mini 2)(Mini 3)

Size

1/24

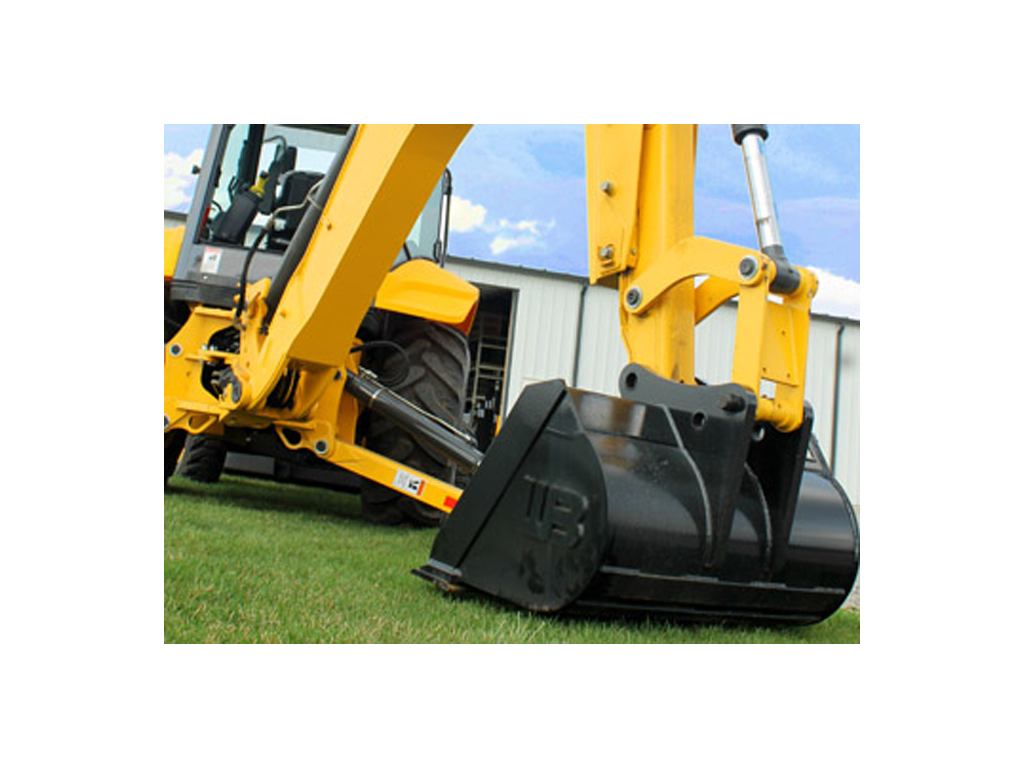

WERK-BRAU DITCHING & GRADING BUCKETS


Recommended Applications

Werk-Brau's ditching and grading bucket is specifically engineered for ditch maintenance, grading, slope work, and construction. This bucket is not designed for tough digging applications.

Quality Construction

High quality T-1 steel is utilized in all high wear components. A rigid top section assures structural stability in the wider sizes. Bottom wear straps provide extra reinforcing. Each bucket is designed with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping. Bucket comes with optional suction relief holes to allow easy dumping of sticky soils found in ditch maintenance.

Cutting Equipment Options

Teeth are not used on these buckets due to the application.

Standard Sizes

Standard widths range from 30" - 84", and capacities of .13 cu. yd. - 4.0 cu. yd.

Additional Features

Werk-Brau recommends a bolt-on cutting edge to extend and protect the bucket edge for extended hours of operation. Additional drainage holes are available. For aquatic applications Werk-Brau offers an Aquatic Ditching Bucket. Special designs and capacities are available, please request a quote from your local dealer.


PART # WIDTH CAPACITY LIP SIZE WEIGHT
3MHCG30 30"
6.20
1" x 6"
484
3MDCG36 36" 6.30
1" x 6" 524
3MDCG42 42" 8.80
1" x 6" 552
3MDCG48 48" 10.00
1" x 6" 584
3MDCG54 54" 11.20 1" x 6" 614
3MDCG60 60" 12.10 1" x 6" 655

MINI 2

MAKE / WEIGHT CLASS MINI 2 (7,500 - 11,000 LBS.)
BOBCAT
CASE
CAT
DOOSAN
DITCH WITCH
GEHL
HITACHI
HYUNDAI
IHI
JCB
JOHN DEERE 60G
KOBELCO
KOMATSU
KUBOTA
LINK BELT
MUSTANG
NEW HOLLAND
SANY
TAKEUCHI
VOLVO
YANMAR
WACKER NEUSON


MINI 3

MAKE / WEIGHT CLASS MINI 3 (11,000 - 14,000 LBS.)
BOBCAT E80, E85
CASE
CAT 306CR
DOOSAN DX80
DITCH WITCH
GEHL GE753Z, GE803
HITACHI
HYUNDAI R75
IHI 55N-2, 55NX, 65NX, 80NX
JCB 8060
JOHN DEERE
KOBELCO
KOMATSU PC78, PC95, PC88MR-8
KUBOTA
LINK BELT
MUSTANG 8003, 7503ZT
NEW HOLLAND
SANY
TAKEUCHI HR32
VOLVO
YANMAR
WACKER NEUSON ET90, EW100, 8003
