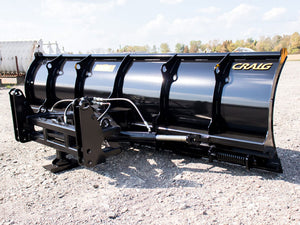

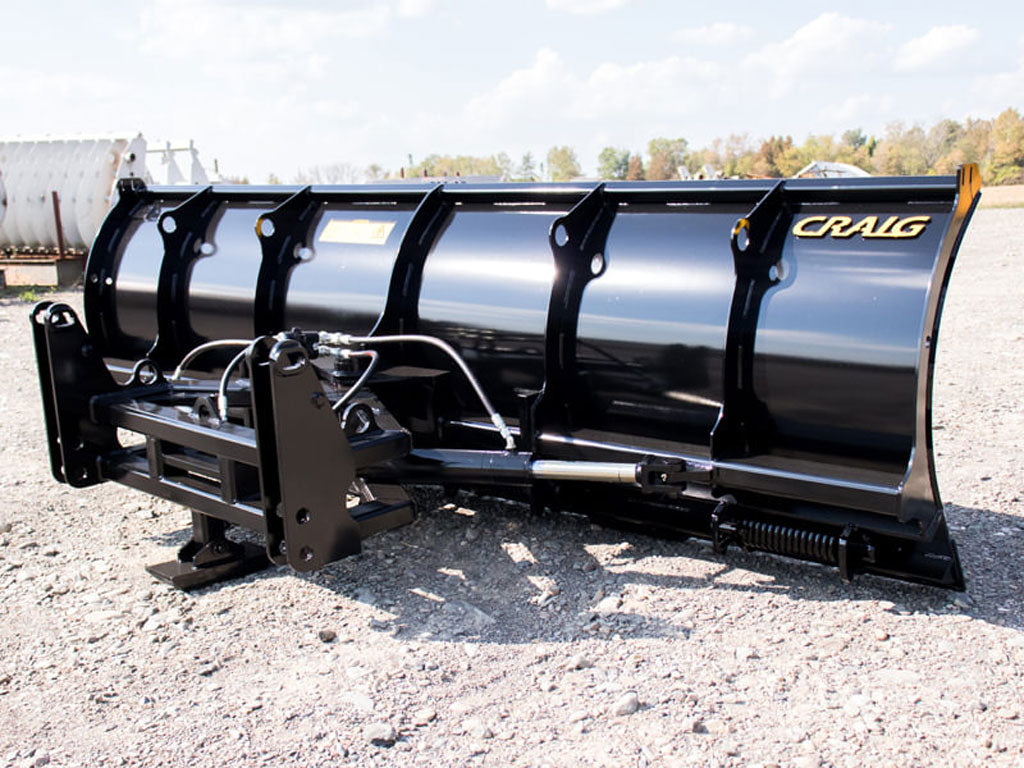

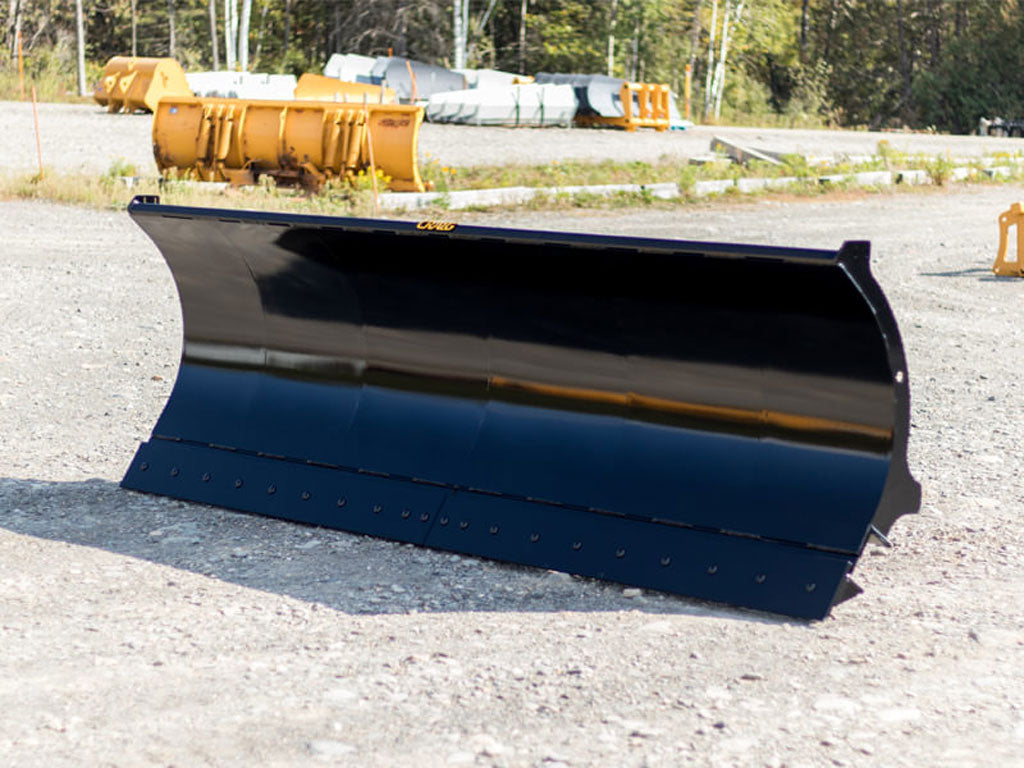

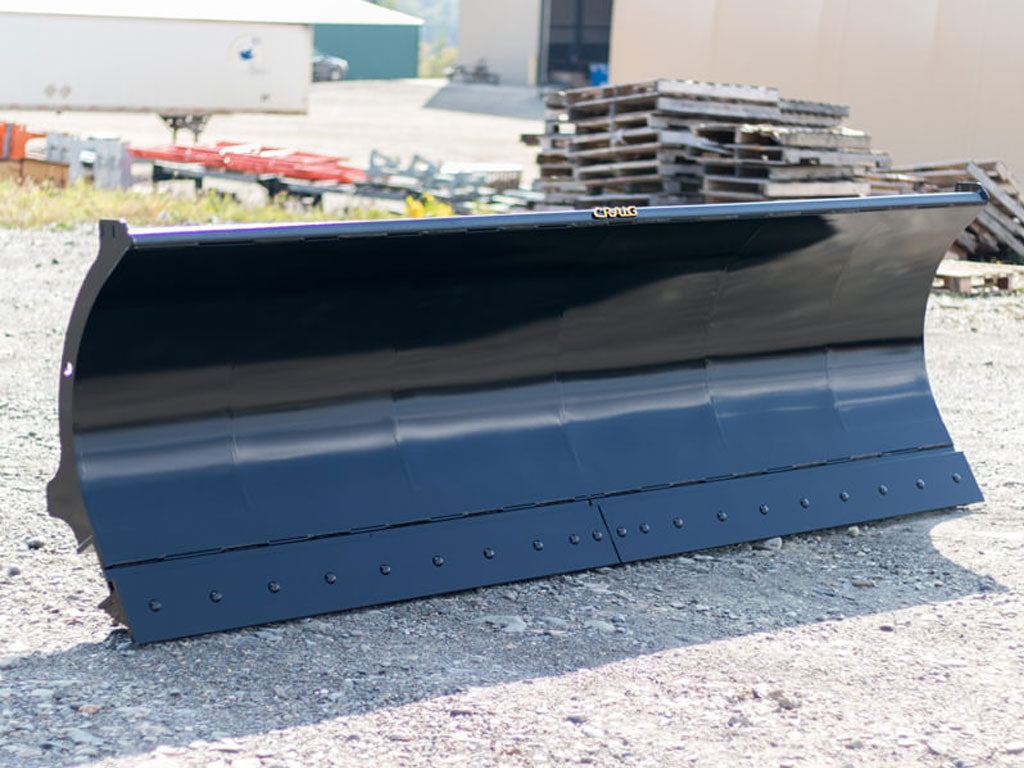

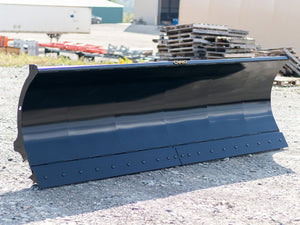

The Craig Stryker Plow is designed for small to medium wheel loaders up to a 3.5 yard bucket capacity. This standardized plowing solution comes equipped with our Vertical Down Pressure Float system and is available with a trip edge only. The Vertical Down Pressure Float system allows the plow to float and oscillate with the contours of the road as well as offers the ability to lock-out the floating capability for scraping packed snow or ice.
STANDARD FEATURES A standardized solution for contractors across North America, the Craig Stryker Plow comes equipped with our proven heavy duty two piece trip edge that is drilled to accept Craig, Cat, and A.A.S.H.O. style edges. Features a 42" tall moldboard with a 3/16" thick sheet, and is drilled to accept customer supplied curb shoes and plow markers. 10' and 12' widths available, weighing approximately 2,400 - 2,600 lbs. Painted black only
HEAVY DUTY PIVOT PIN A 2.5” pin connects the push frame to the moldboard and acts as the central pivot point for the Craig Stryker Plow. To ensure a long life from your pin, it should be greased regularly at all three greasing locations – on top of the pin and at the two locations on the side of the tube assembly of the push frame. Should you require a replacement pivot pin, the pin is easily removed with a single bolt.

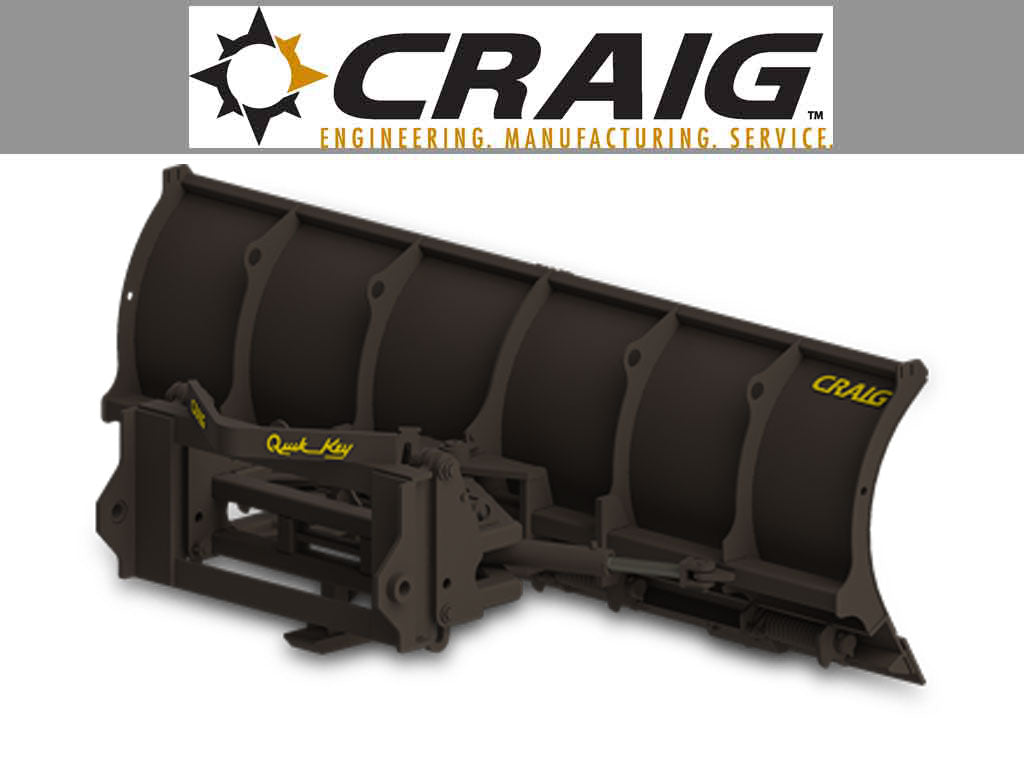

MULTIPLE HOOK-UPS AVAILABLE Available in Craig Quik Key, OEM hook-up, and pin-on configurations to easily integrate into your existing fleet.
VERTICAL DOWN PRESSURE FLOAT The Craig Stryker Plow features our new Vertical Down Pressure Float system. Rather than requiring the loader linkage to tilt forward to apply down pressure, our Vertical Down Pressure Float is engaged via the up and down movement of the loader boom arms. The Vertical Down Pressure Float can also be locked out to disable the floating capability of the plow
AVAILABLE WITH TRIP EDGE ONLY Unlike our conventional Reversible Plow that includes a push frame and a swing frame, the Stryker Plow has a push frame that is integrated into the plow similar to our Backfill Blade for loaders. Due to this design and the lack of a swing frame, the Stryker Plow is only available with a trip edge option.
STANDARD WEAR SHOES The Craig Stryker Plow features three wear shoes to protect key areas of the plow from making contact with the ground. The first wear shoe can be found on the push frame assembly. This wear shoe protects the push frame as well as helps in keeping the plow level. The other two wear shoes can be found behind the cutting edge. These wear shoes protect the trip section once the cutting edge begins to wear.
EASY OPERATION The main wear shoe on the push frame of the Stryker Plow promotes easy operation and protection. This wear shoe protects the push frame assembly as well as ensures the angle of attack of the plow is always set at the optimal angle. Having your plow at the optimal angle of attack allows the trip on the plow to function properly and protect the loader from damage
HYDRAULIC ANGLING The Craig Stryker Plow comes jumper hose ready (jumper hoses not included) to operate the hydraulic angling function of the plow. The plow is capable of angling up to 30° in both the left and right directions.
Heavy duty, proven Craig two piece trip edge
Replaceable steel cutting edges - drilled to accept Craig, Cat, and A.A.S.H.O. edges
Available in Craig Quik Key, OEM coupler and Pin-on configurations
Available in 10, 11, and 12 foot widths
Weighs 2,400 - 2,600 lbs
42” tall moldboard with 3/16” thick moldboard sheet
Available painted black only
Drilled to accept customer supplied curb shoes and plow markers
Jumper hose ready to operate hydraulic angling function (jumper hoses not included)
No additional options available
Available to come with salt saver option upon request
