FF-30SSHR—FTV-363S

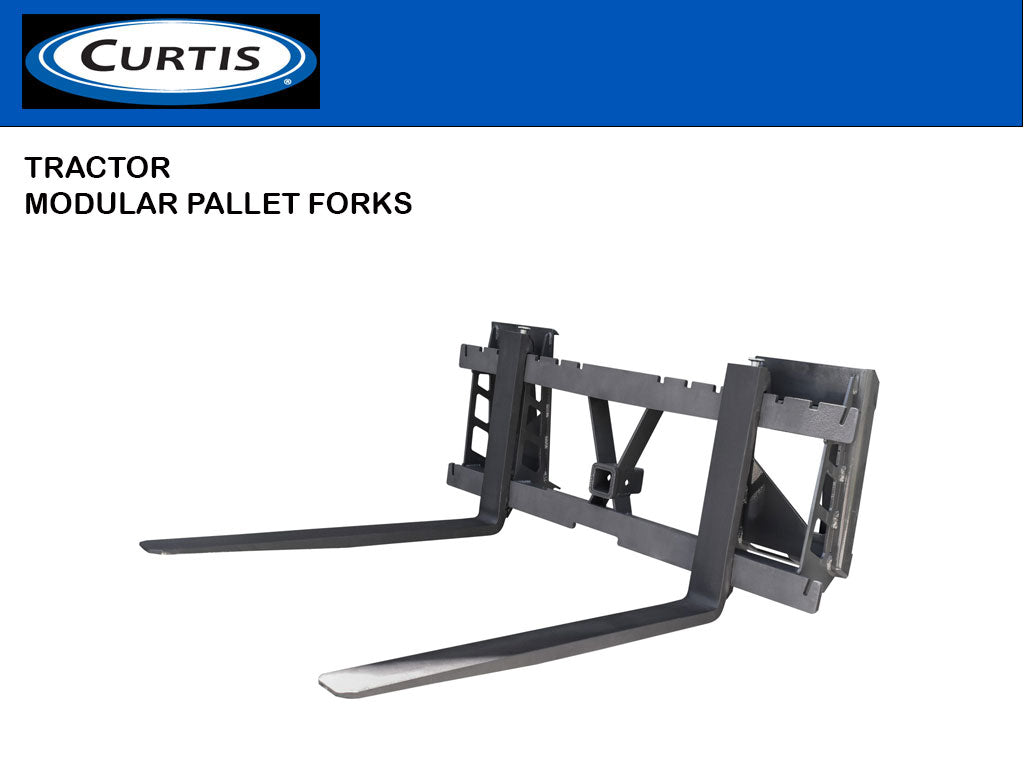

CURTIS / ARTILLIAN modular pallet forks for tractors with skid steer mounting

Size
Style

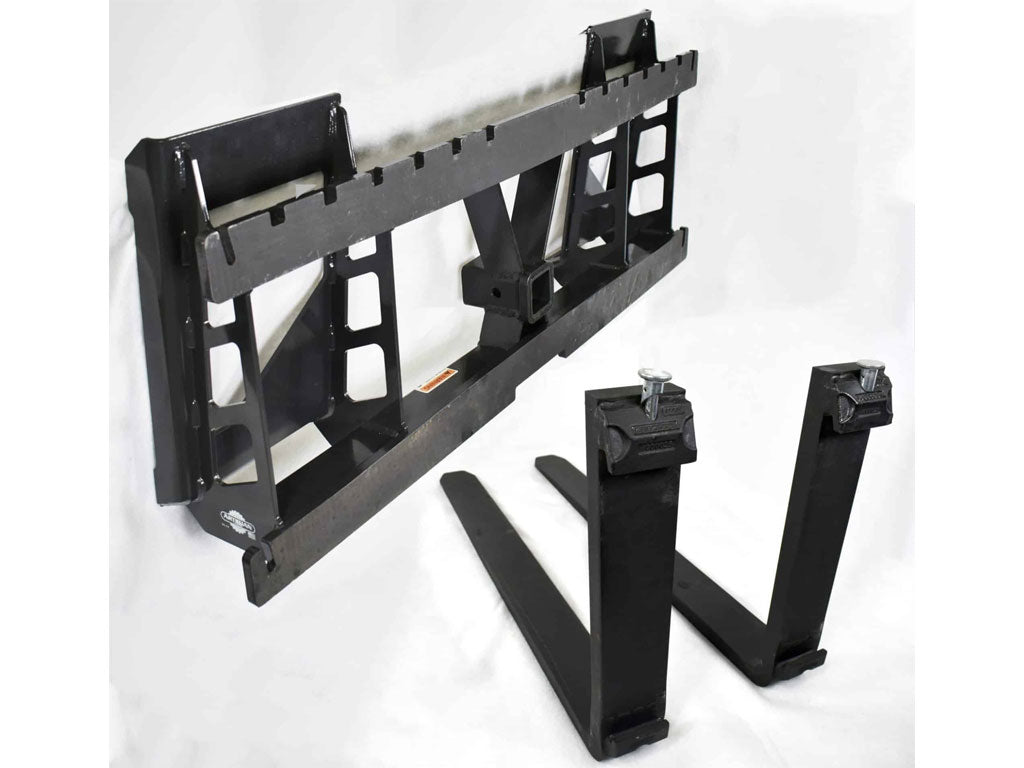

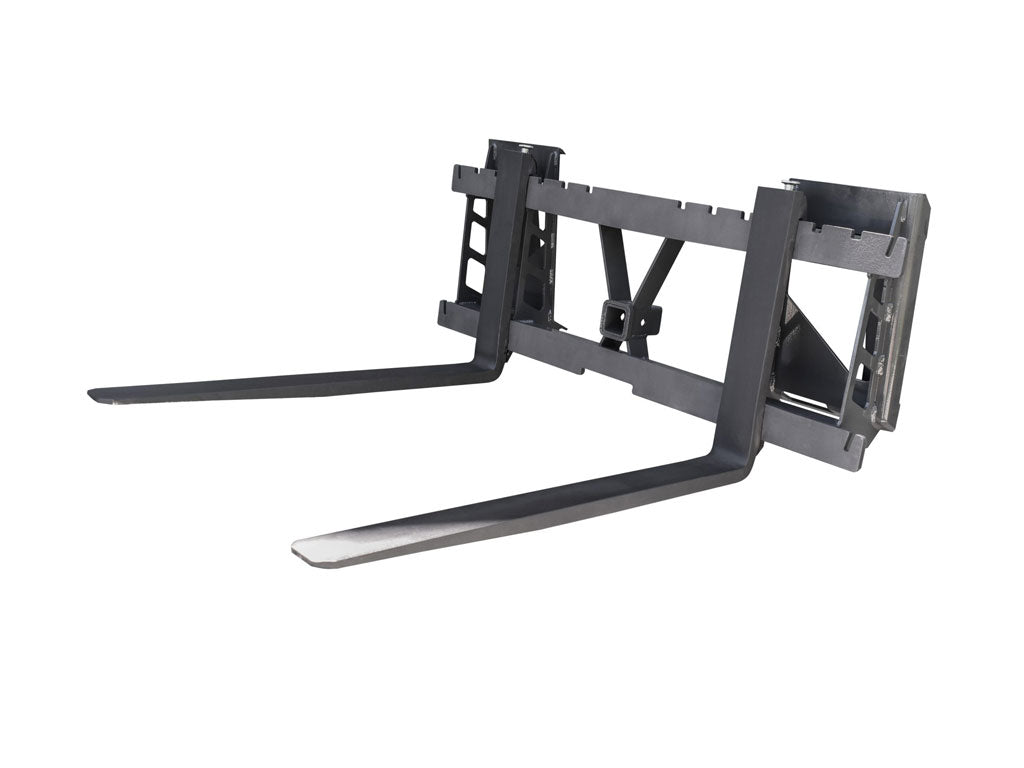

FORK FRAME SET WITH 3000 LB. SKID STEER QUICK ATTACH PALLET FORK FRAME

These pallet fork frames fit any Universal Quick Attach or Skid Steer Quick Attach loader meeting SAE J2513 standard.

  • Includes built-in 2 inch receiver
  • ITA Class 2A Hook-Type Fork Tines

*Some Quick Attach Mounts may limit rear passage of ball mount.

Adjustable Fork Spacing – Forks can be spaced from 10 inches (250 mm) to 40 inches (1020 mm) apart and locked in place

Ground Rail Bevels – Match the fork tines for smooth fork sliding, just like forklift carriages

MIG Welded Construction – Engineered for strength and professionally hand crafted

Quality Materials – Built entirely in USA with high-strength North American steel

Durable Protection – Baked on powder coat is augmented by our proprietary graphite coating on the fork rails for easiest sliding of forks

Chain Slots – For 5/16 inch (8 mm) link chain at all four corners for easy lifting and securing of loads

Finish – Dark Dark gray powder coating to complement any tractor

Trussed Frame – Every pound of excess weight is removed without losing strength

Industry Standard Forks – ITA Class II hook type (fixed) fork tines

Super High-Strength Upper & Lower Fork Rails – No cheap formed steel. Our frames are built like a real forklift carriage. These rails are laser cut from extremely high-strength and wear-resistant North American steel

Fork frame is designed for a maximum load of 3000 lb. (1360 kg) at 18 inches (46 cm) load center. Maximum load may be limited by lower-capacity fork tines.

Frame

  • Shipping Weight: 107 lbs.
  • Shipping Dimensions: 51 X 21 X 9
  • Frame Weight: 99 lbs. (45 kg)
  • Built-in 2-inch hitch receiver
  • Lift capacity: 3000 lbs.
  • Side load capacity: 2000 lbs.
  • Frame Rails: ½” thick ASTM A514/T-1 Alloy Steel
  • Tubes: ASTM A513 Steel
  • Mounting Trusses: ¼” HRPO 1010 Steel
  • JDQA Hooks: ¼” ASTM A572 Grade 50 Steel
  • JDQA Pins: Low Carbon Steel
  • SSQA Plates: ¼” ASTM A572 Grade 50 Steel

Forks

  • Shipping Weight: 66 lbs. per fork
  • Shipping Dimensions: 44 X 23 X 3 per fork
  • 2300 lb. capacity with pallet fork frame 23-JDHR
  • 2300 lb. @ 24-inch load center (1045 kg @ 450 mm)
  • Weight/pair: 120 lbs.
  • Dimensions: 3.15 inches x 18 inches x 42 inches (80 mm x 30 mm x 1066 mm)

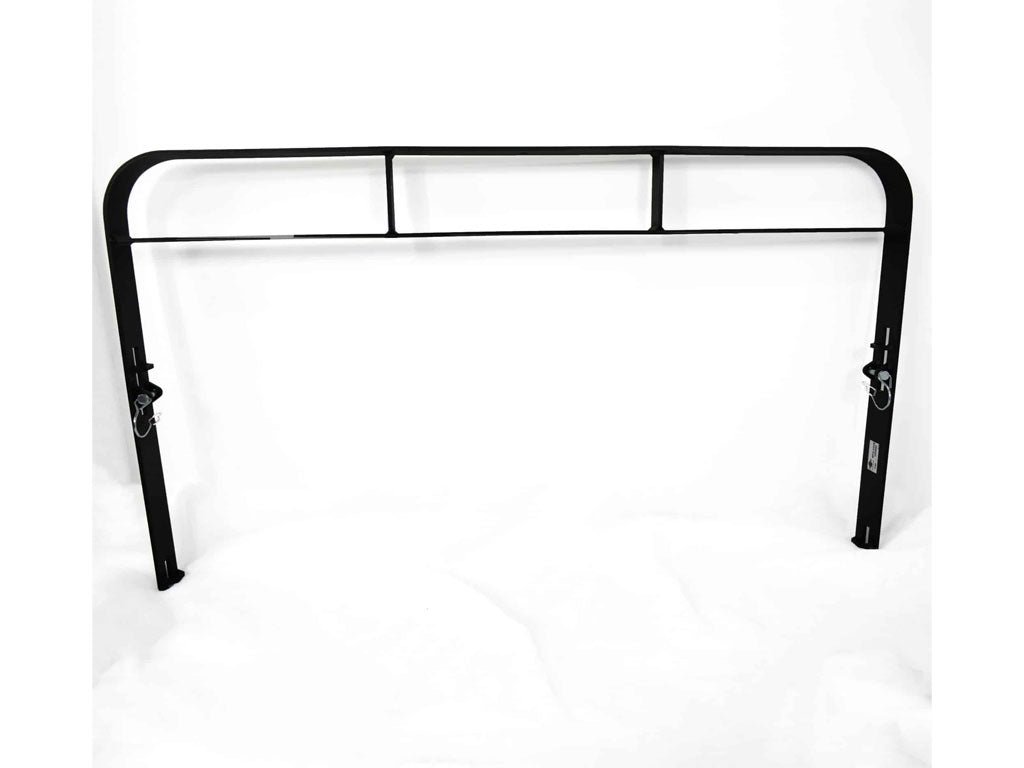

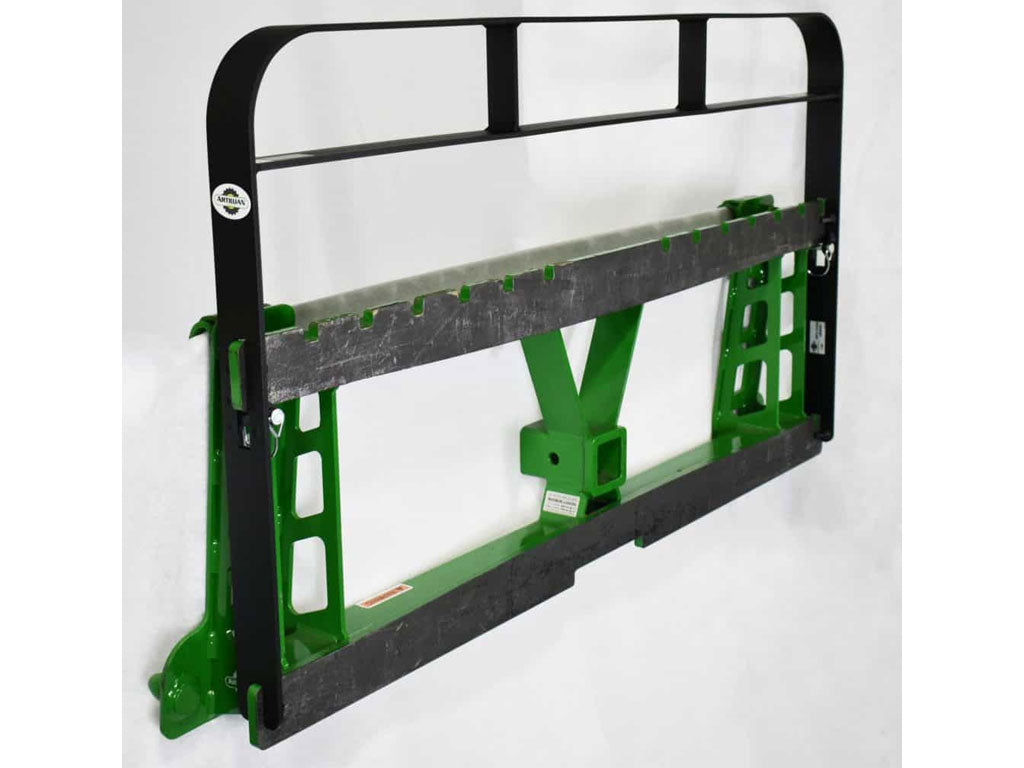

THE BACKREST IS FOR USE WITH FORKS ONLY, DO NOT USE WITH ANY OTHER ARTILLIAN ATTACHMENT

Fits all Artillian Pallet Fork Frames built after model year 2010.

Helps support brush limbs to avoid slipping backward.

This safety guard rises 29-inches (.75 m) above the forks.

It weighs just 23 lbs. (10.5 kg) and is easily removable when not needed. It is designed for a 500 lbs. (227 kg) load directly against the top edge.
