CURTIS UTV hydraulic operated snow plow

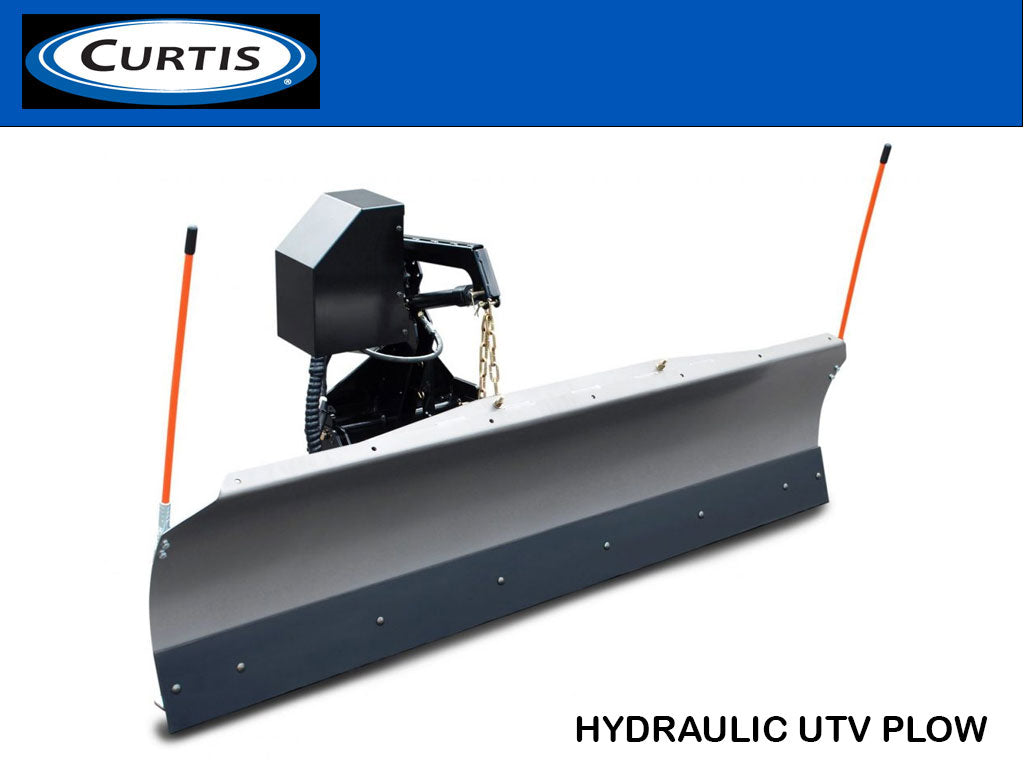

Hydraulic UTV Plow

P/N: 1UTVP

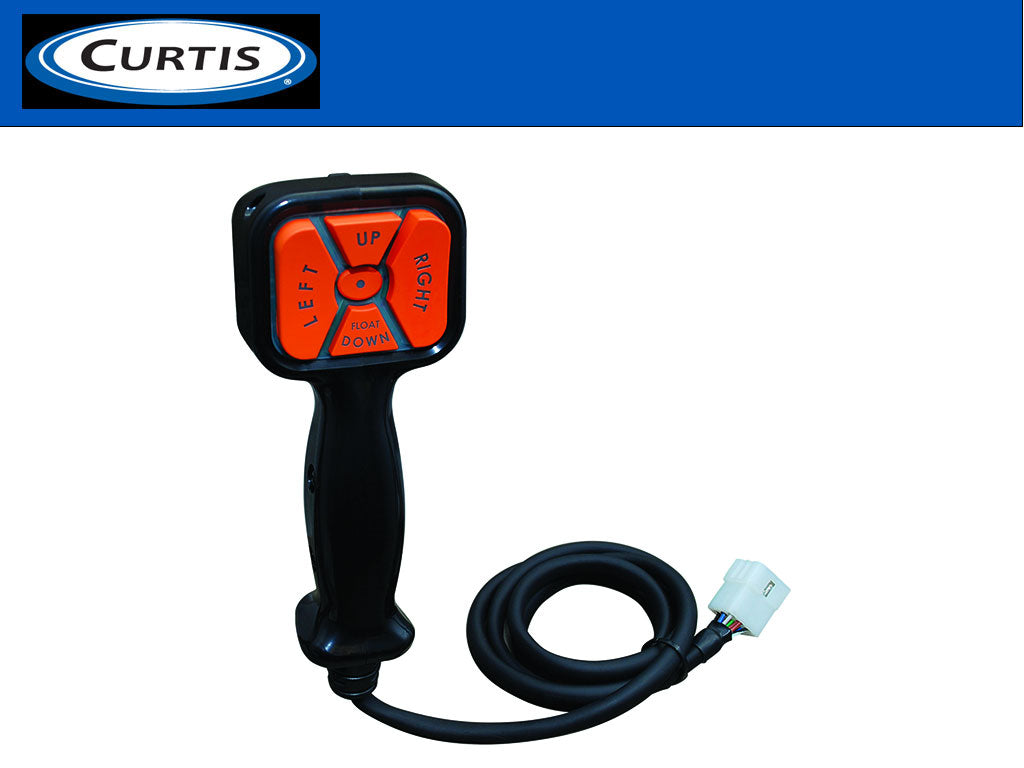

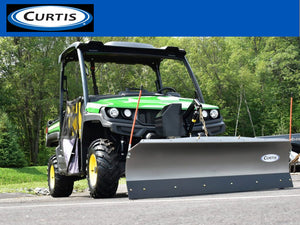

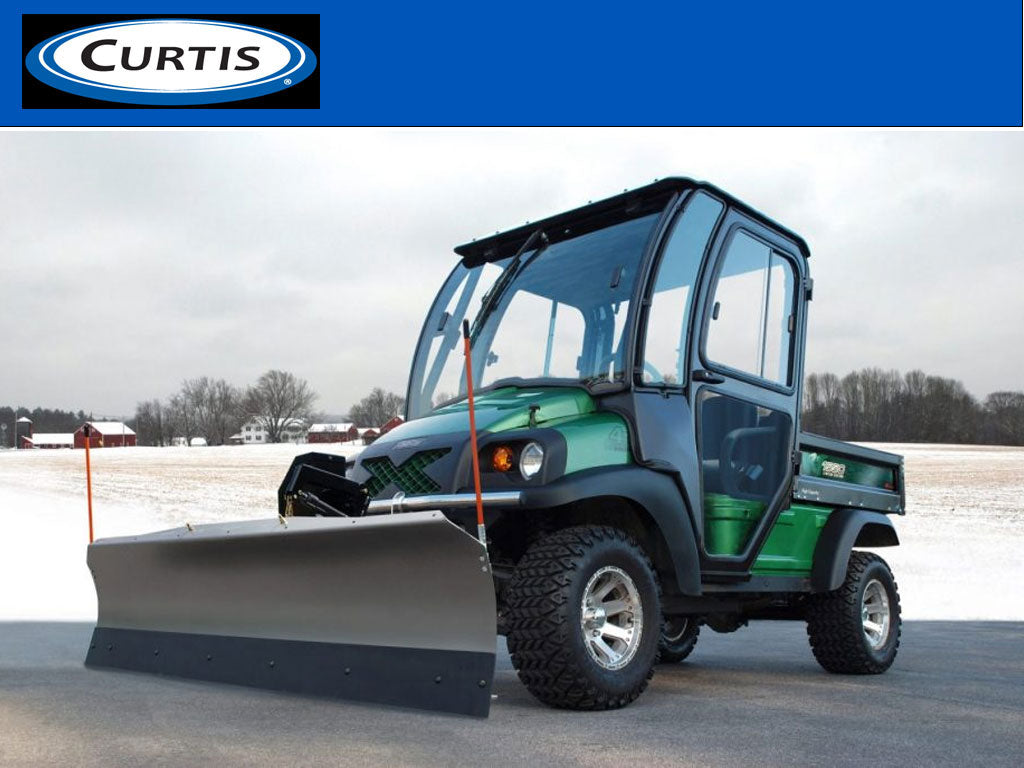

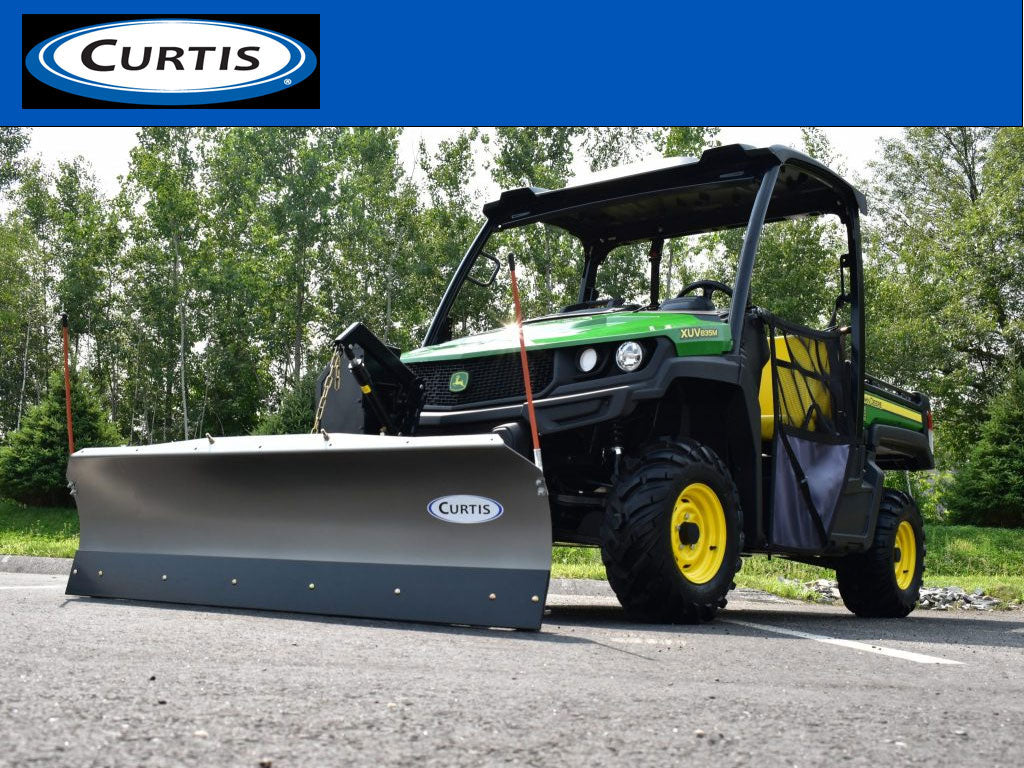

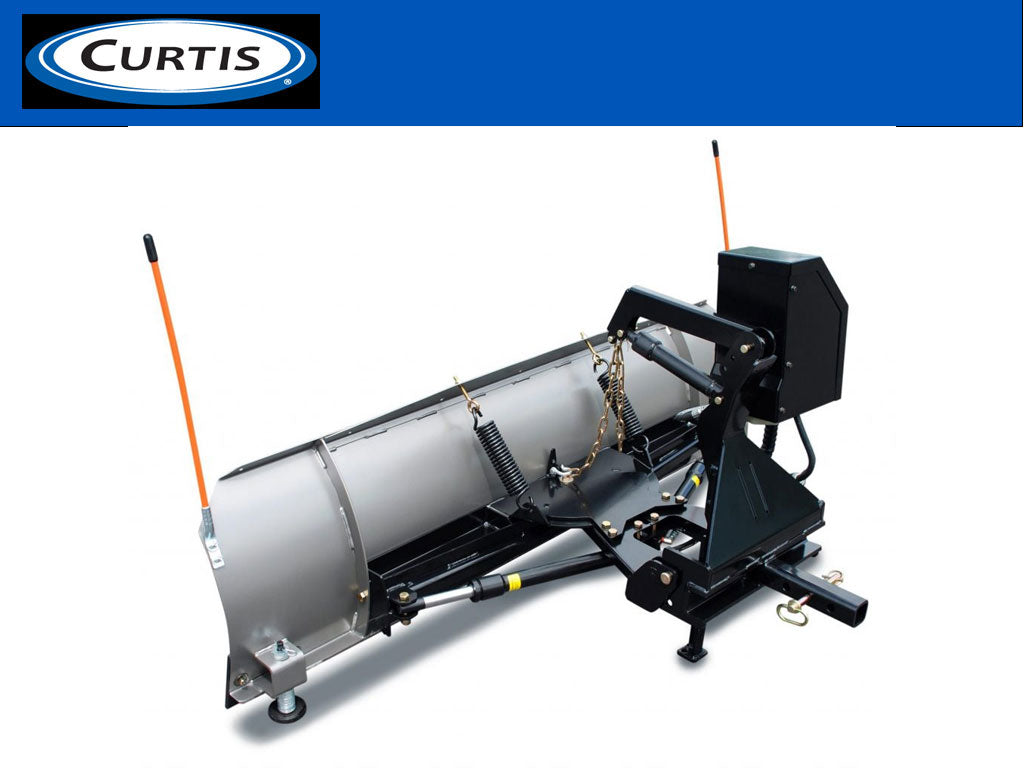

Full hydraulic plow makes quick work clearing sidewalks, small parking lots, and driveways. Illuminated, hand-held in-cab controller for easy operation in low light conditions. The plow comes assembled or unassembled. (Shown with optional blade markers.)

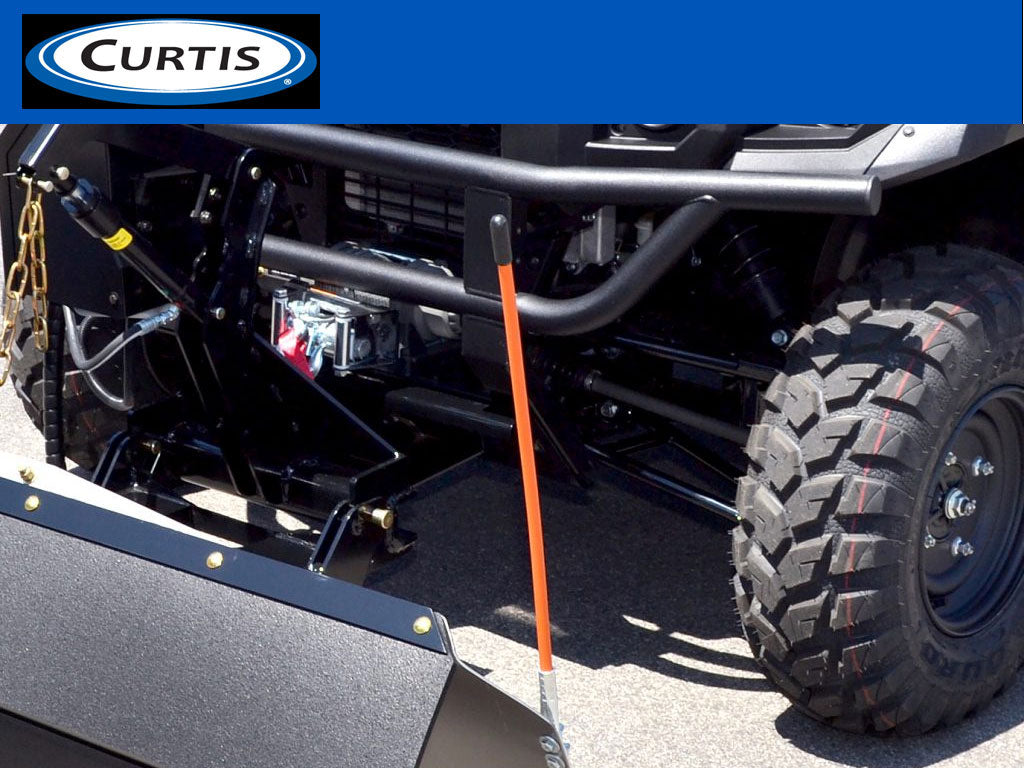

Custom Mount Kits Available for:

• Club Car XRT 1550, Carryall 1500 & 1700 (2004 – Current year) (1CCUTPMK)
• Gravely Atlas JSV 3200, 3400, 3400SD & 6400 (1PUTPMK)

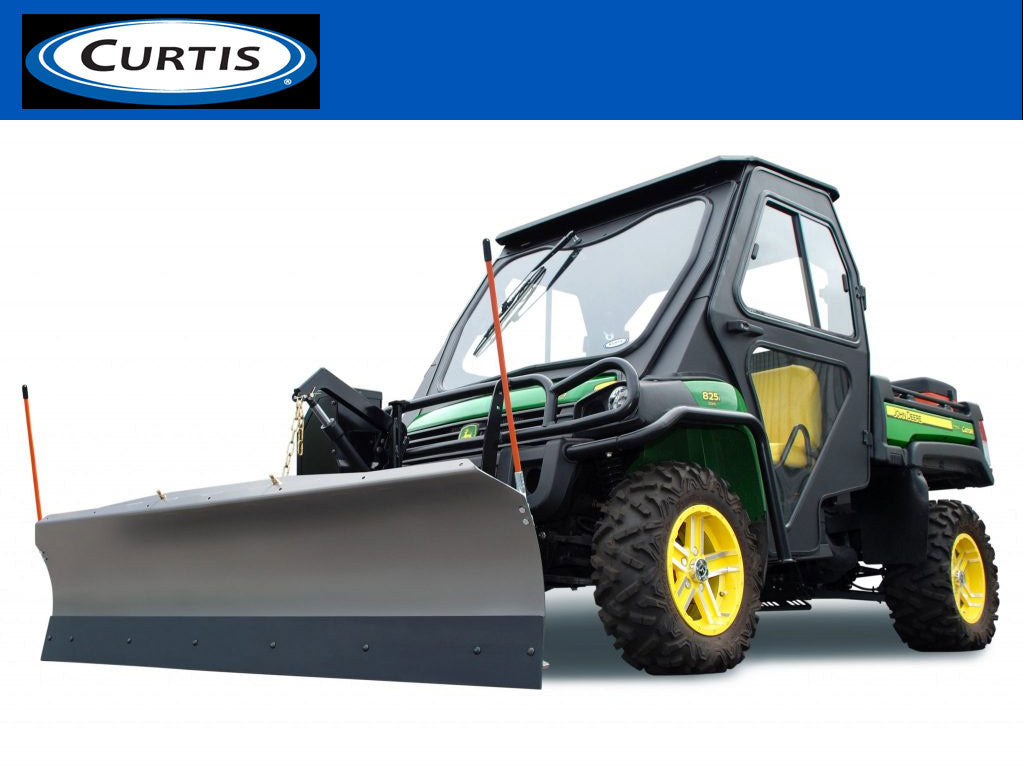

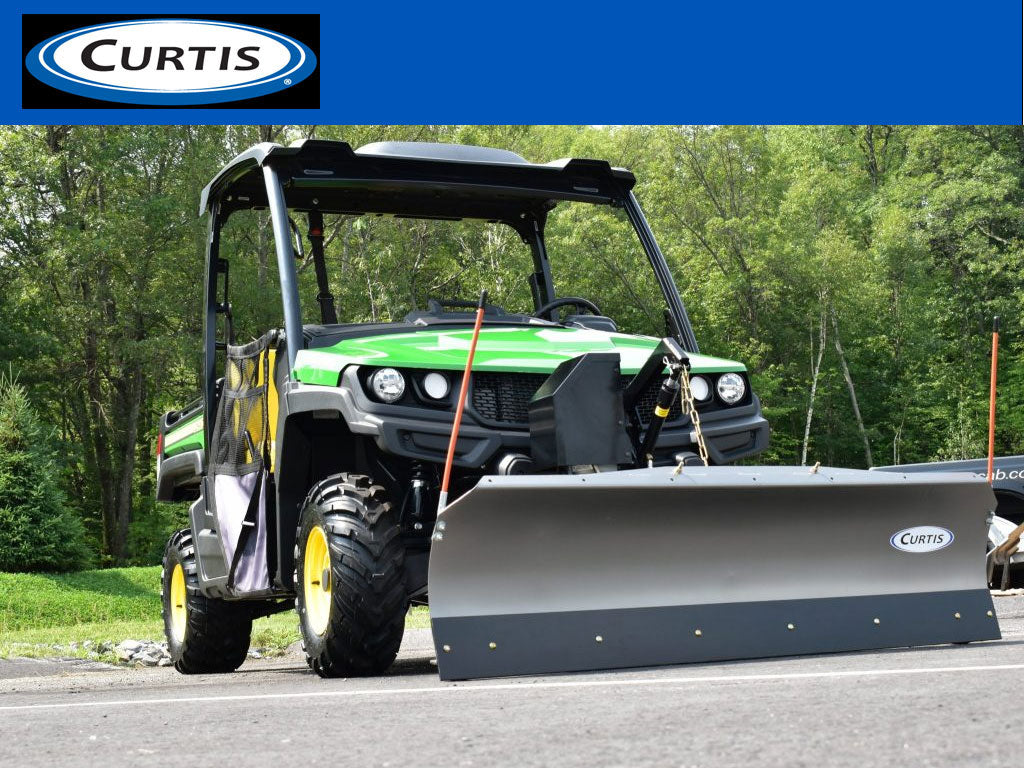

• John Deere Gator XUV 615, 625, 815, 825 & 855: 2011 and newer (1JDUTPMK)
• John Deere Gator XUV 835 & 865 (1JD835PMK)
• Kawasaki Mule Pro FX/DX, Pro FXT/DXT (1KAPFXPMK)
• Polaris Ranger 900 & XP900: 2013 to current (1PUTPMK)

FEATURES

• Full hydraulic lift and angle control
• Single plug electrical connection

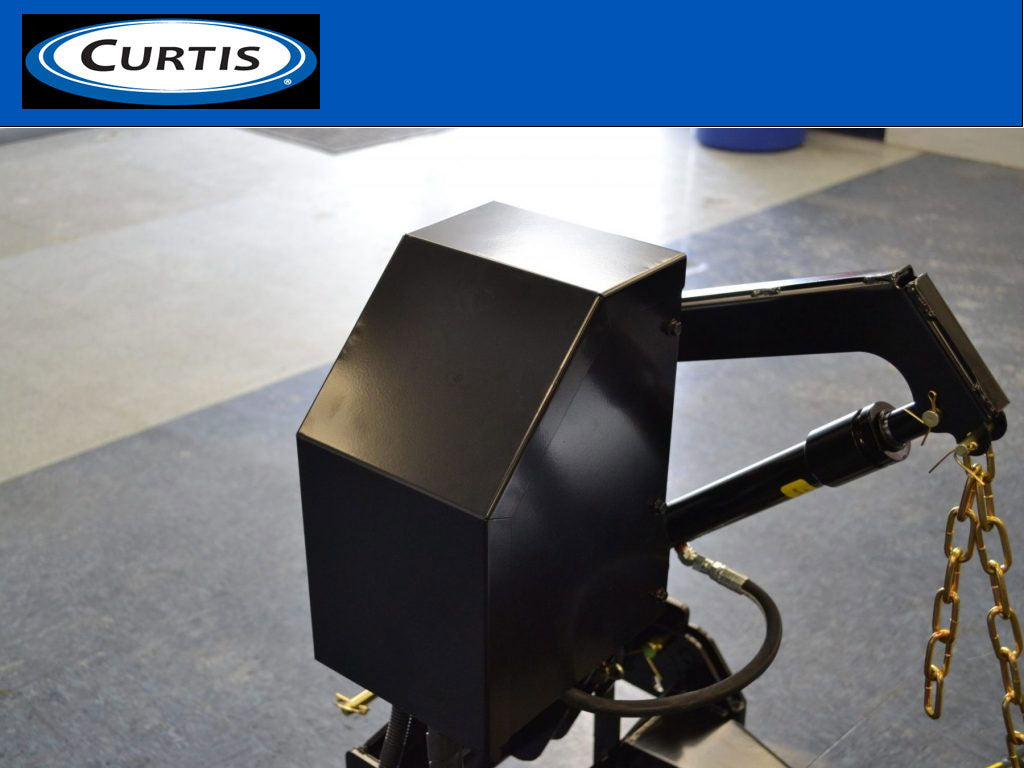

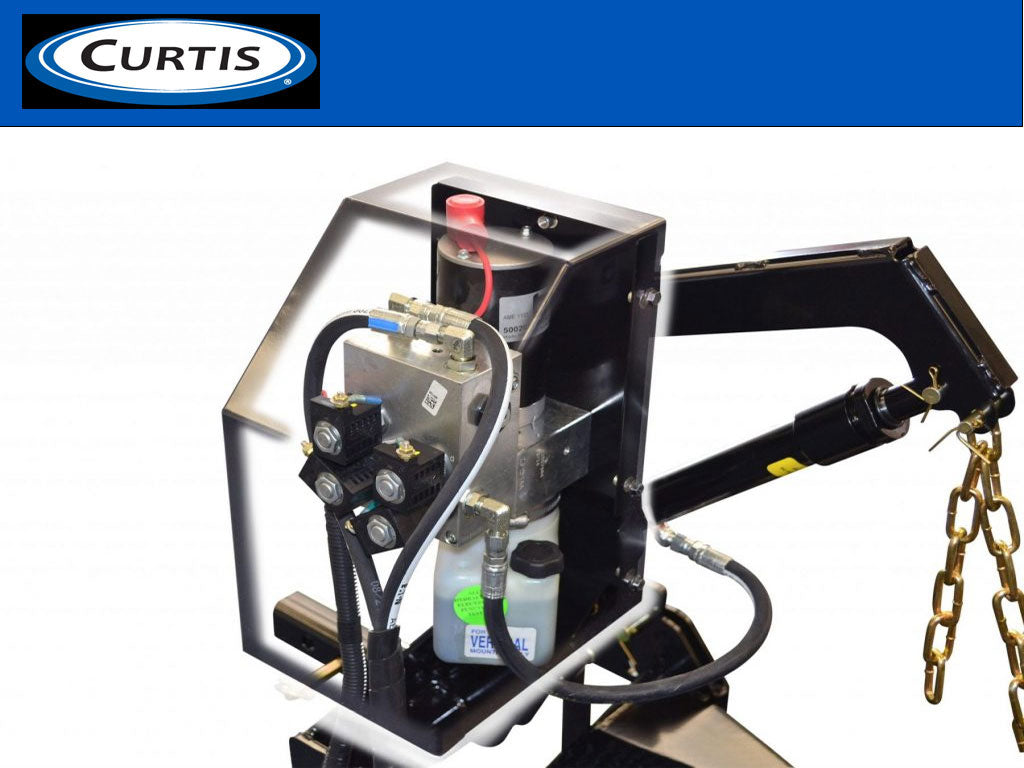

• Fully enclosed, sealed hydraulic system located on top for easy access and servicing
• Custom 2-inch receiver mount
• Quick hook up and detach
• 72-inch wide moldboard with 48-inch push frame
• Full trip, durable 12 gauge steel moldboard
• Adjustable trip springs
• Replaceable and reversible cutting edge
• Adjustable skid shoes included
• Mount kit required (sold separately)

• Moldboard: Width, 72 inches; Height, 18 inches
• Full trip moldboard
• Commercial-grade steel construction
• Steel A-Frame
• 48-inch trip frame
• Maximum blade angle: 0 degrees thru 28 degrees
• Skid shoes: 1/2 inch diameter stem
• Weight: 254 lbs.
• Cutting edge height; 6 inches, double-sided
• Custom 2-inch receiver hitch

• Rubber snow deflector (1UTVSD)

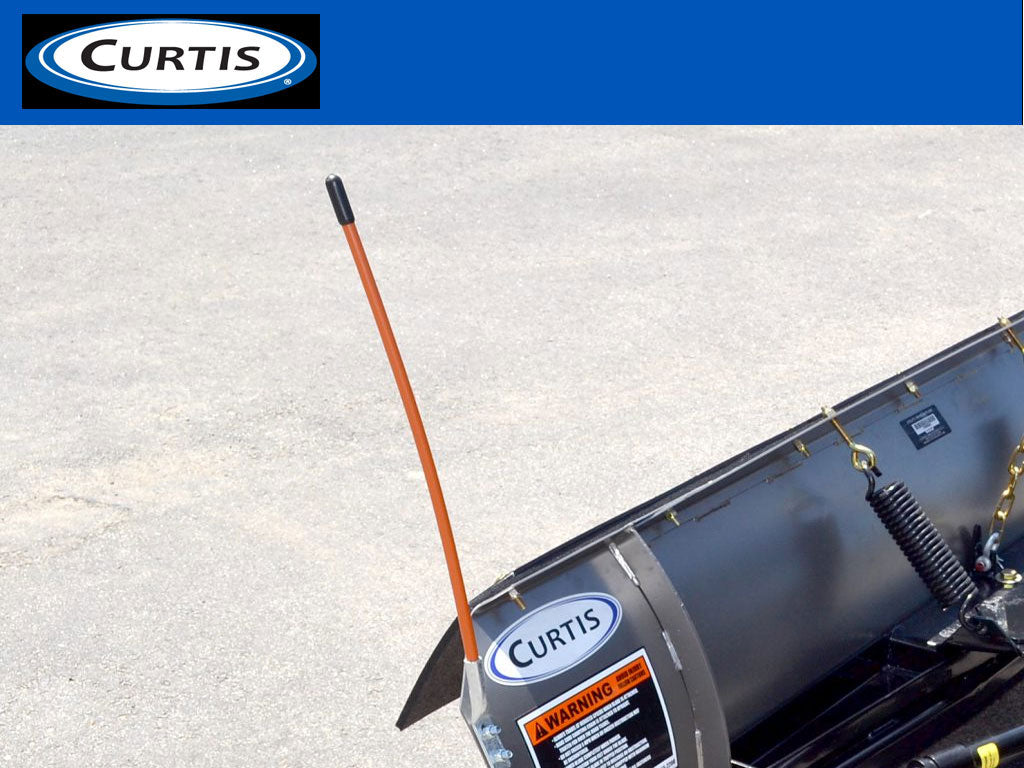

• Blade markers (1TBP37)
• Rubber cutting edge, ideal for cobblestone, brick, or other more sensitive surfaces (9PRU1)
• Assembled (1UTVP)
• Unassembled (1UTVP-1)
• Replacement cutting edge (UTV-CE)
• Custom plow mount kit
