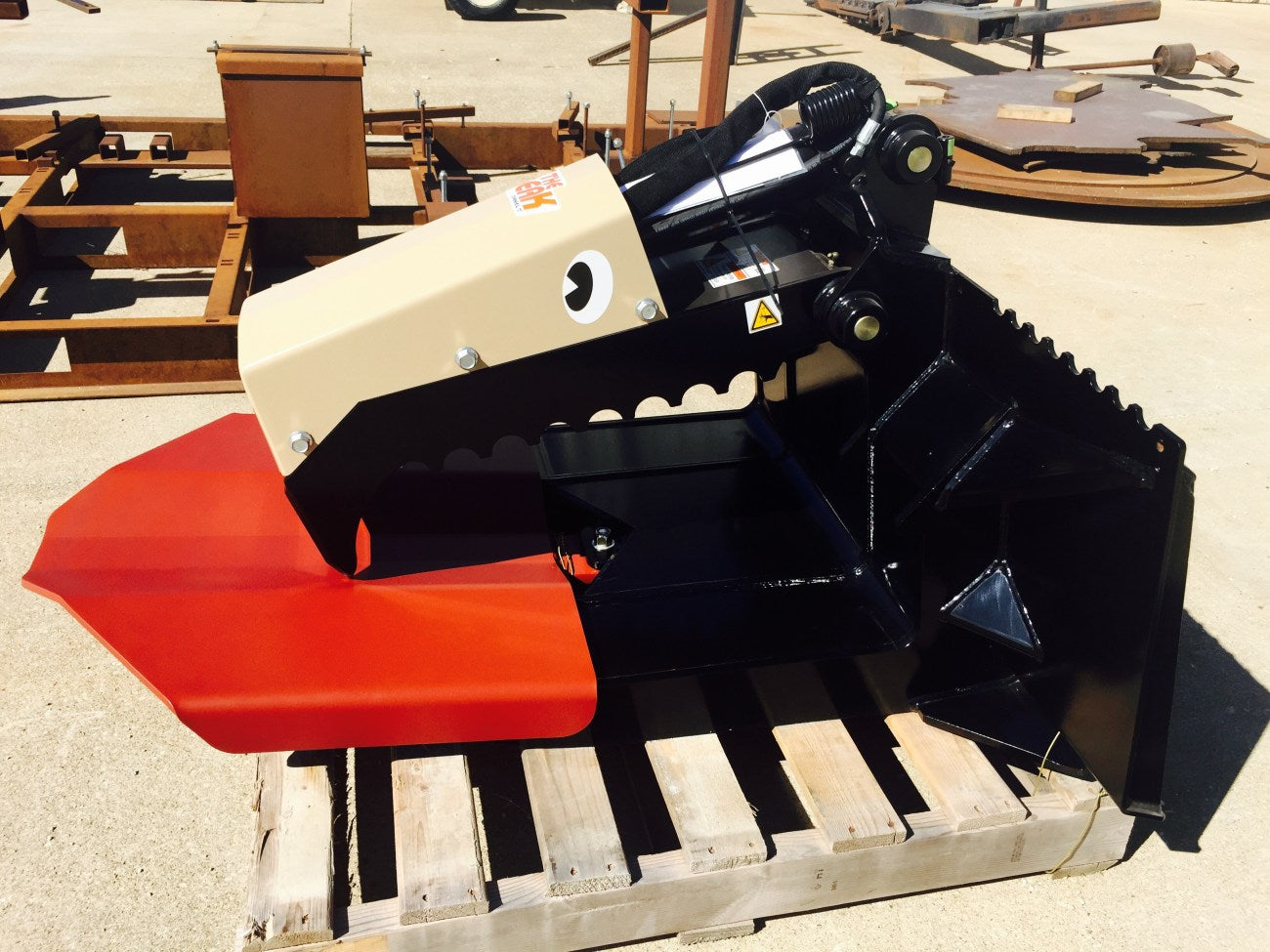

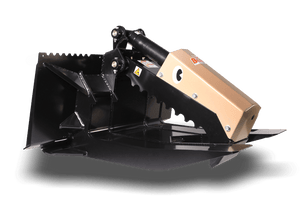

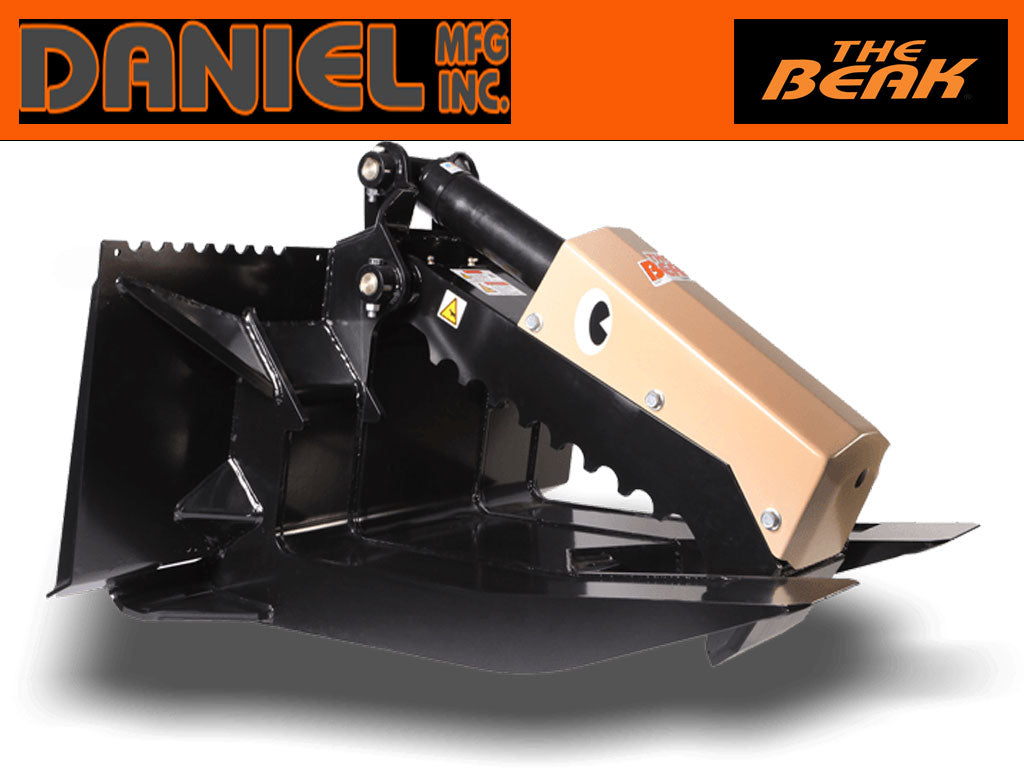

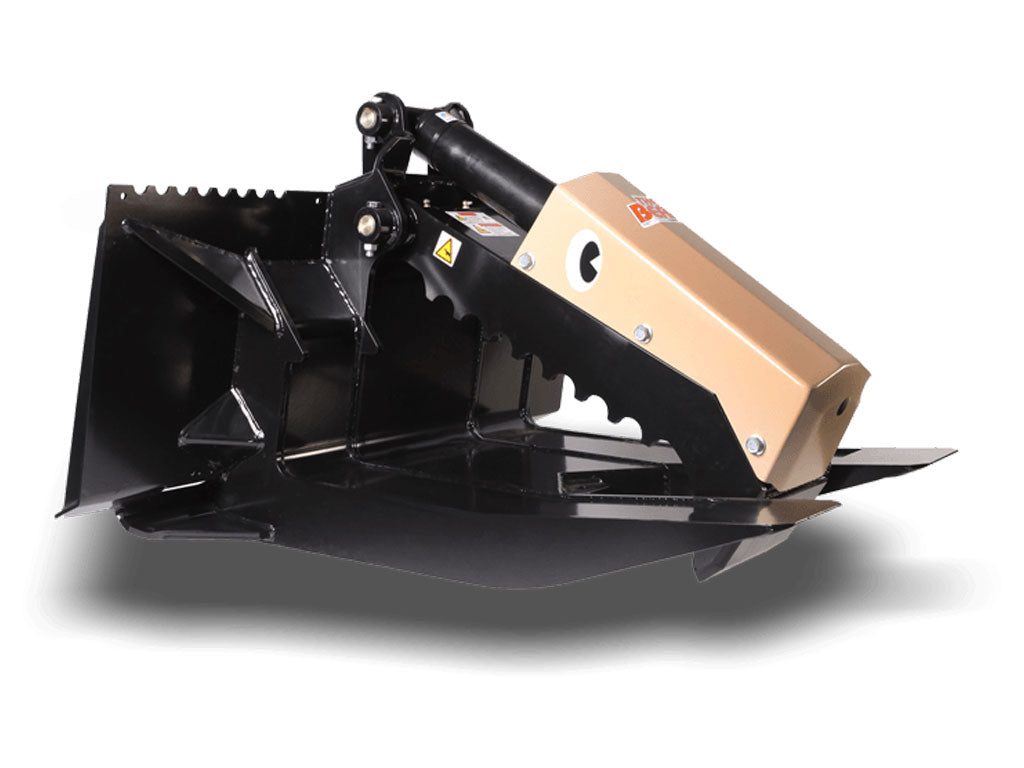

"THE BEAK" CONCRETE REMOVAL ATTACHMENT

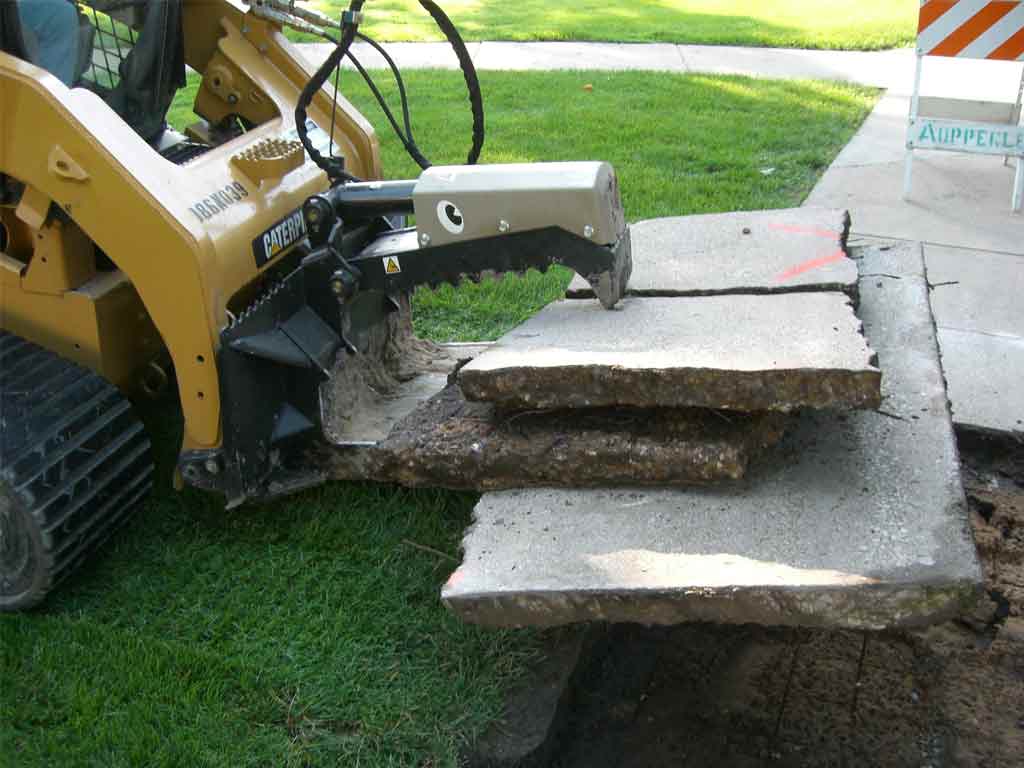

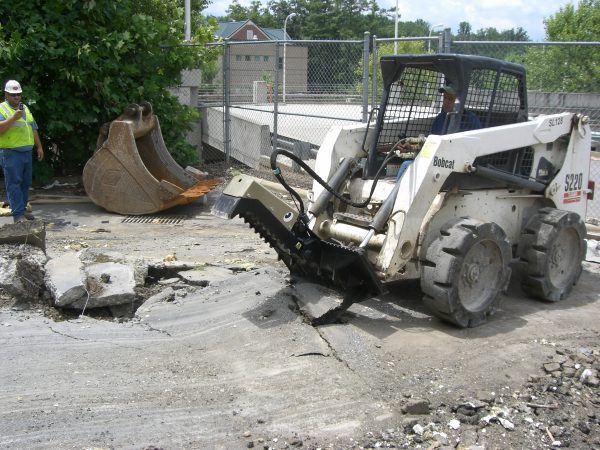

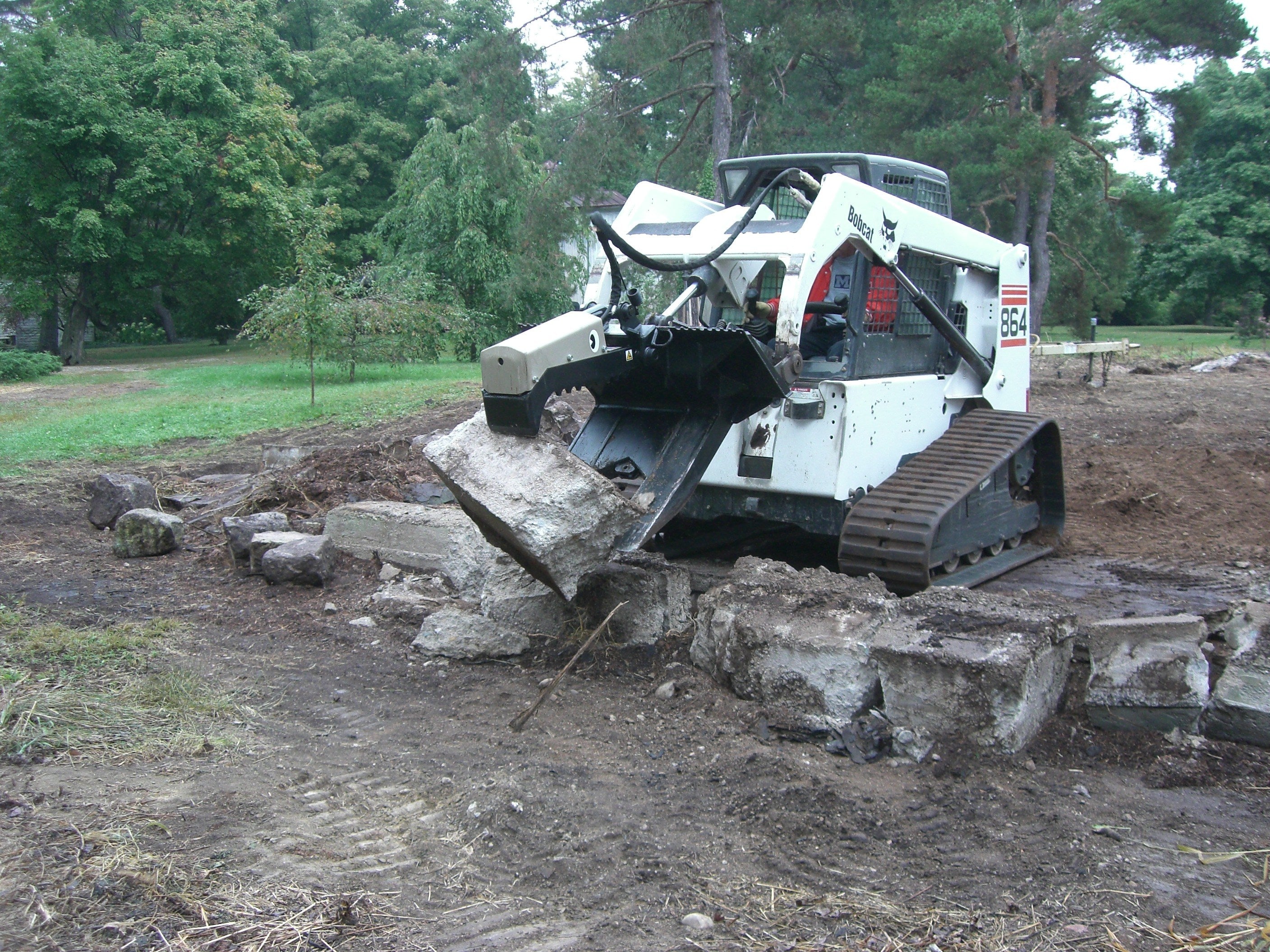

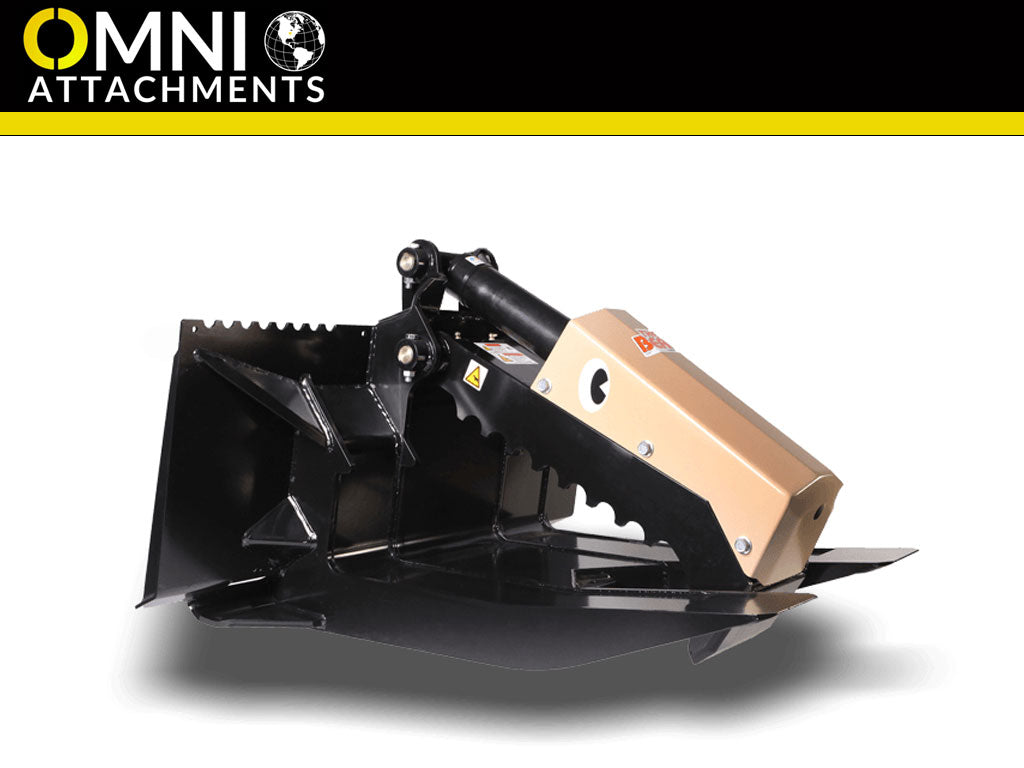

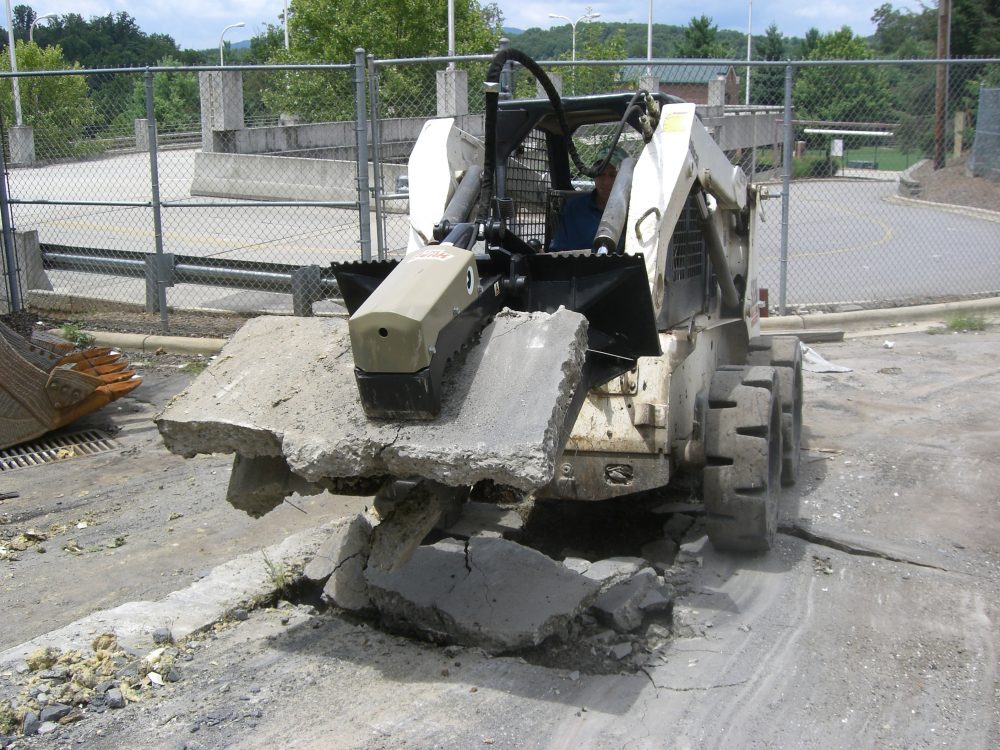

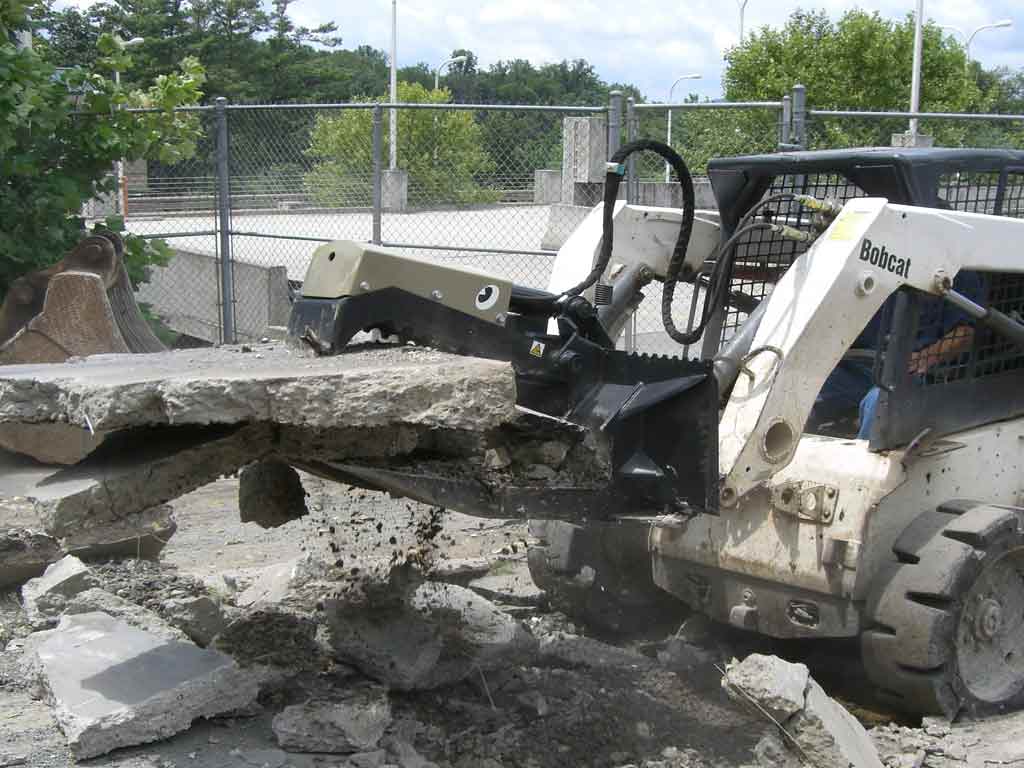

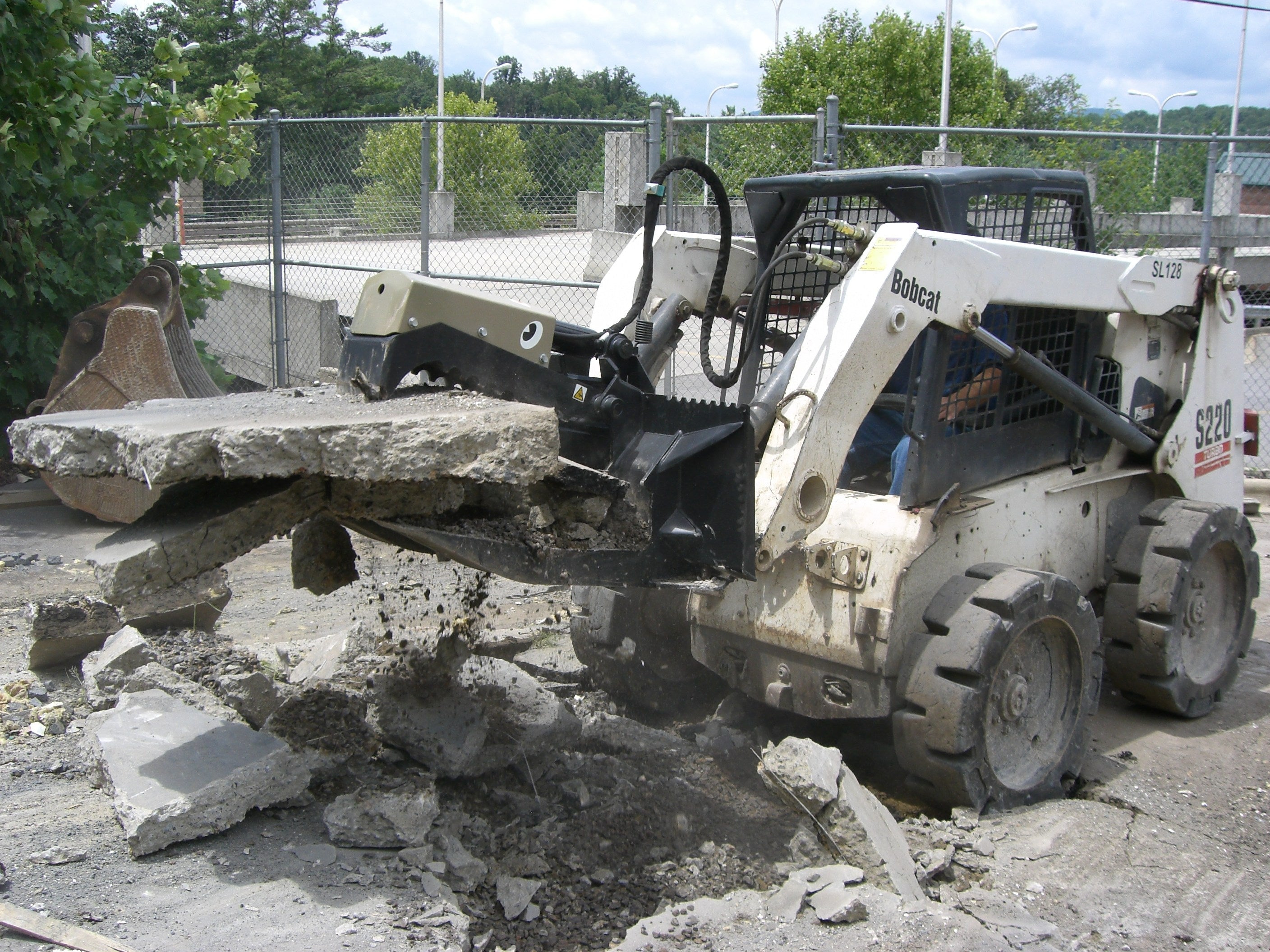

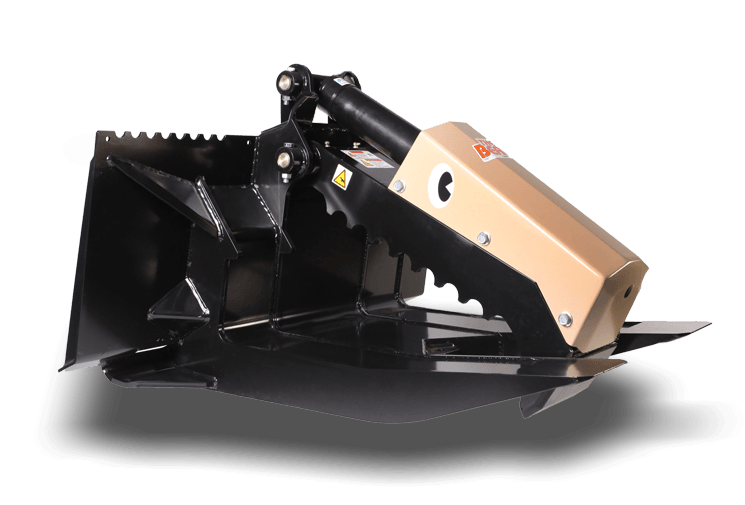

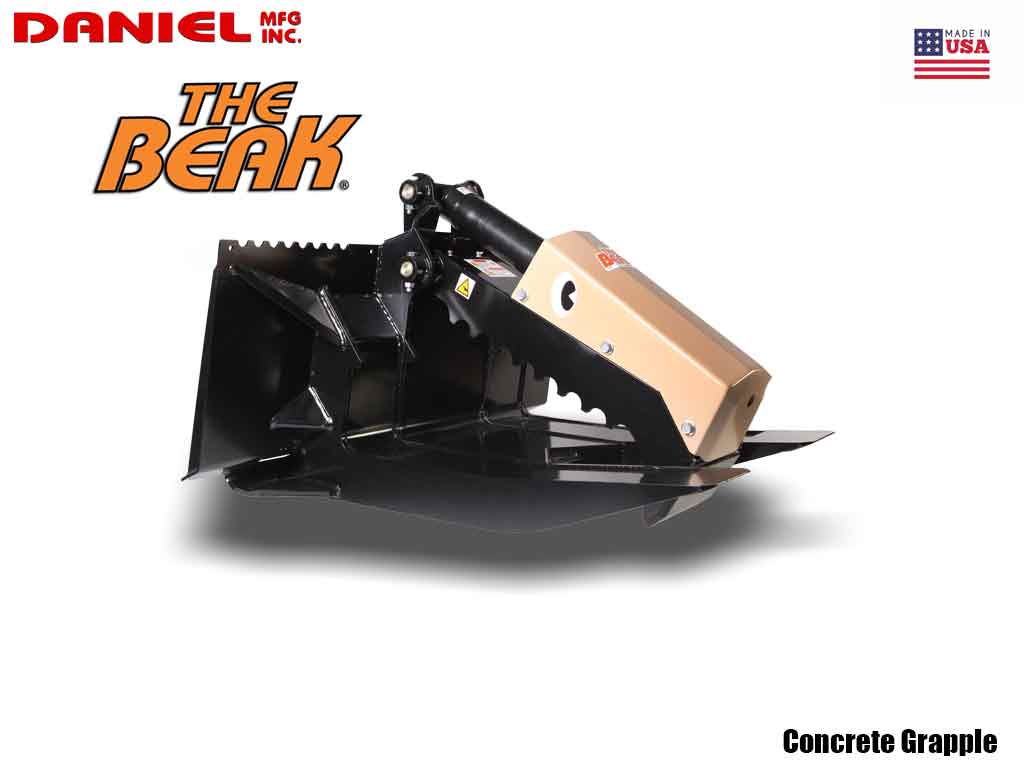

The Beak concrete removal skid steer attachment by Daniel Mfg. Inc. is designed to pry, break and move massive concrete slabs with ease. It’s unique patented fork grapple design is the only one like it in the industry with crowbar style forks that increase leverage when prying up concrete and a robust jaw that utilizes the full power of the machine’s hydraulic force to secure massive loads of material. The Beak is the most economical alternative for breaking up concrete and is built to last using only the highest quality materials and techniques when it’s being built.

• Custom Built, heavy duty 3 inch cylinder is held in place with 1-1/4 inch diameter heat treated pins.
• With 12 inches of stroke, the Beak opens to its full 38 inch potential. The Beak features flat faced couplings that quickly connect to most skid-steer loaders.
• All hydraulic components are shipped factory pressure tested for quality. It’s universal quick attachment Mounting plate can be customized to fit almost any brand of skid steer.

* Omni Attachment's was formally know as Daniel Mfg.

• Overall Width – 46 in
•  Overall Height – 28 in
• Overall Fork Width – 26 in
• Overall Fork Length – 39 in
• Jaw Opening Distance – 38 in
• Gripping Force (approx.) – 5,000 lb.
• Material – High Strength, Steel Plate
• Weight – 520 lb.
• Shipping Weight – 560 lb.
