DIGGA

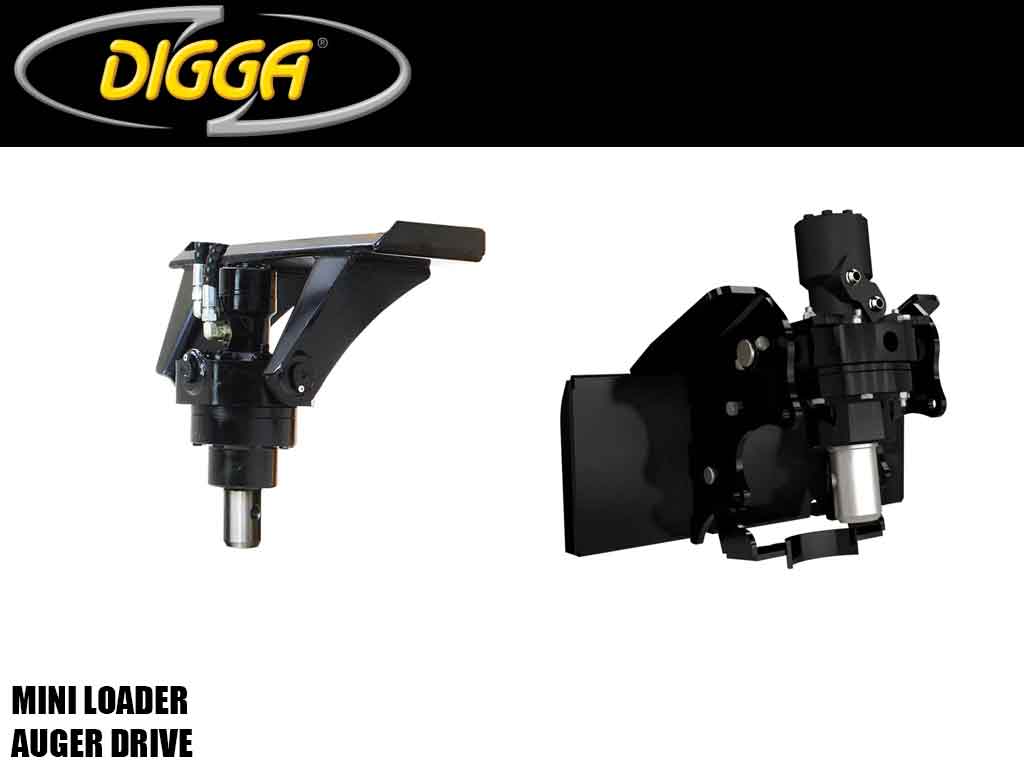

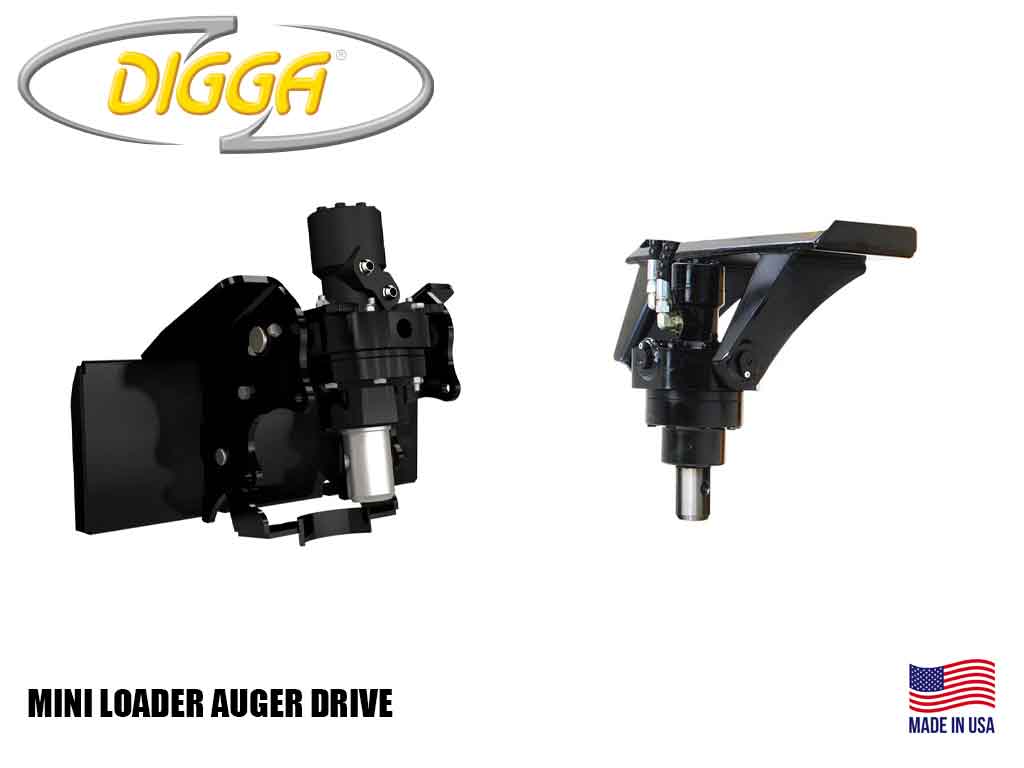

DIGGA MDS SERIES AUGER DRIVE (ML) MINI LOADER

Size
Drilling Drives for Mini Loaders 0.85ton to 1ton

Digga's range of drilling drives for 0.85 ton to 1 ton Mini Loaders are the ultimate in performance, quality and cost effectiveness. Over 30 years of design and development has produced the highest quality range of auger drives on the market today. Completely manufactured and assembled by Digga, using only the highest grade materials and strictest quality control.

Digga drilling drives are backed by industry leading warranty and local factory support.

INCLUDES

  • HOSES & FITTINGS (66" LONG)
  • MINI LOADER MOUNTING (UNIVERSAL / TORO)
  • 2" HEX SHAFT
  • 1MDS2 KIT - 2 WAY SWING MOUNTING OR 1MDS4 KIT - 4 WAY SWING MOUNTING
  • OPTIONAL BOBCAT MT MOUNTING (CALL)
Features
  • Compact Digga manufactured gearbox
  • Fitted with a Digga designed Eaton motor
  • 2 Piece shaft design ensures maximum side load ratings without increasing load on bearings
  • Lifetime shaft pull out warranty

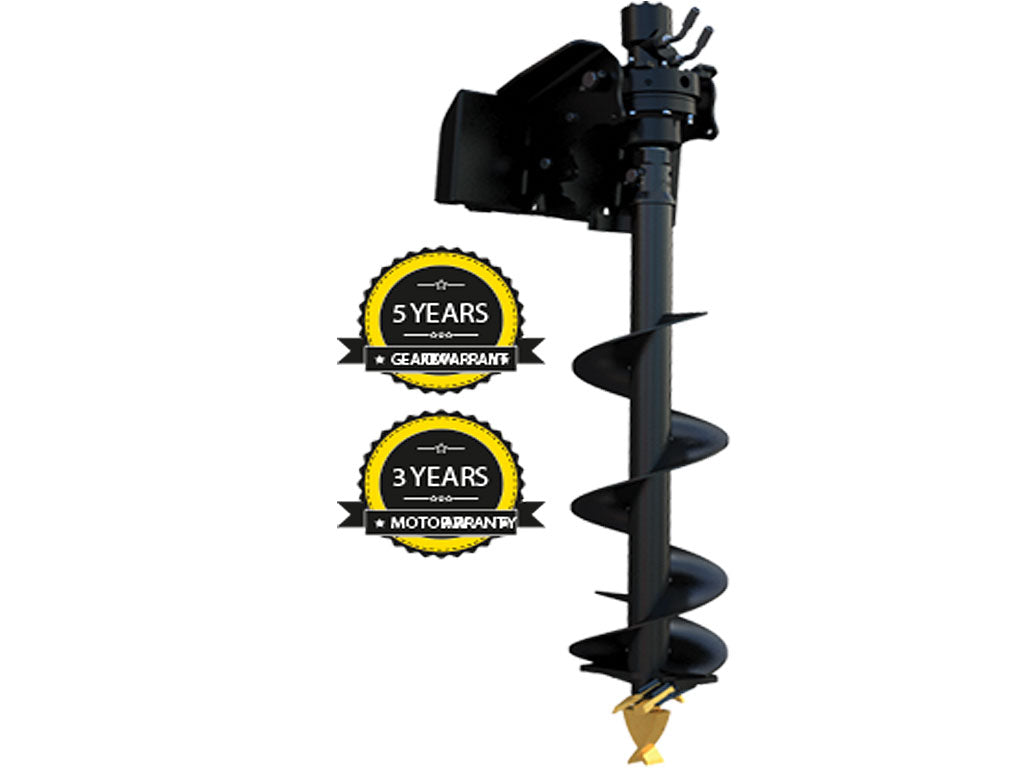

  • 5 year gear box and 3 year motor warranty
  • Over 30 years design and manufacturing experience



DETAILS 1MDS
TORQUE
(FT-LBS @ 3000 PSI)
2,119
MAX TORQUE
(FT-LBS @ 3500 PSI)
N / A
RECOMMENDED FLOW (GPM) 6-16
MOTOR TYPE EATON
MAX PRESSURE
(DO NOT EXCEED)
3000 PSI @ 11 GPM
MAX FLOW
(DO NOT EXCEED)
15 GPM @ 2300 PSI
MAX HORSE POWER 20
PRESSURE RELIEF VALVE OPTIONAL
STANDARD OUTPUT SHAFT 2" HEX

RECOMMENDED AUGER A4 / RC4
MAX DRILLING DIAMETER
(CLAY / SHALE)*
12"
MAX DRILLING DIAMETER
(EARTH)*
24"
WEIGHT (LBS) 72
OVERALL LENGTH (IN) 16.6"
DIAMETER (IN) 8"

USUALLY SHIPS IN (3) TO (10) DAYS

The 1MDS2 and the 1MDS4 are designed for standard drilling. These augers can only handle 6 to 16 GPM flow.The 1MDS2 has a two way swing mounting (forward and back). The 1MDS4 has a four way swing mounting (forward and back, side to side). You can special order a Bobcat MT mounting but you will need to call me to make that happen. The package includes The hoses, fittings, drive and mountings so it is ready to go on the job site.
