BR-002034

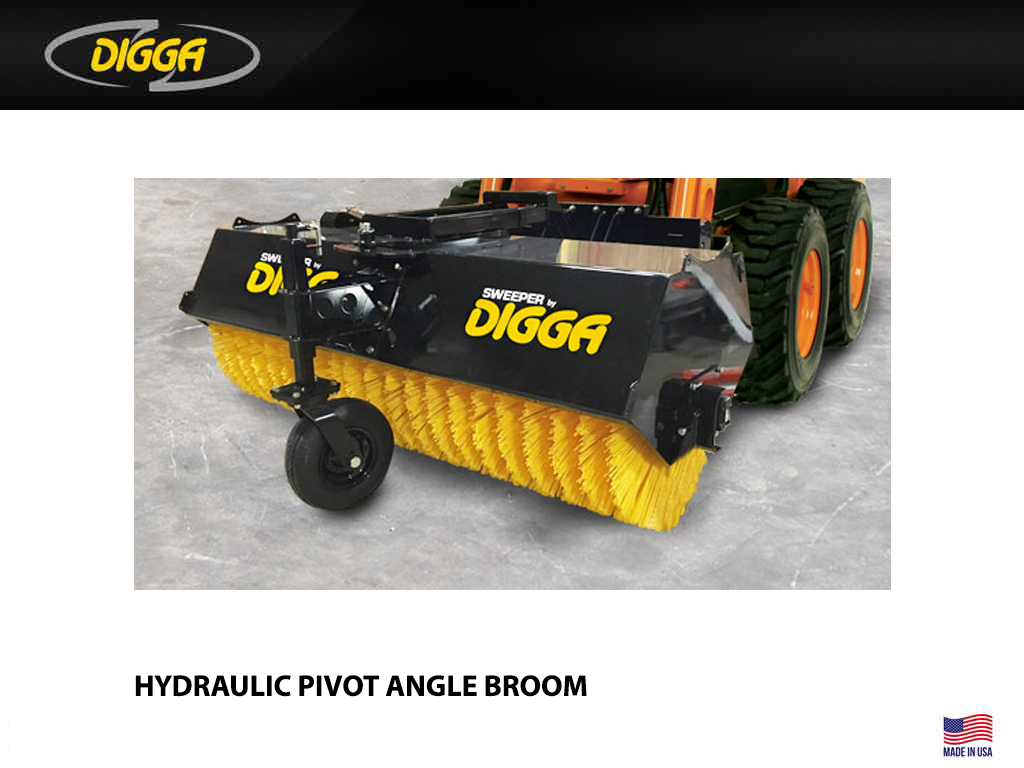

DIGGA HYDRAULIC PIVOT ANGLE BROOMS FOR SKID STEERS

SIZE
BRUSH
OPTIONS

4/24

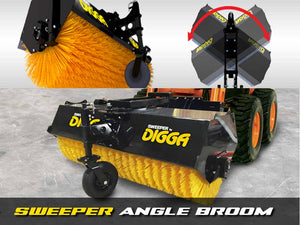

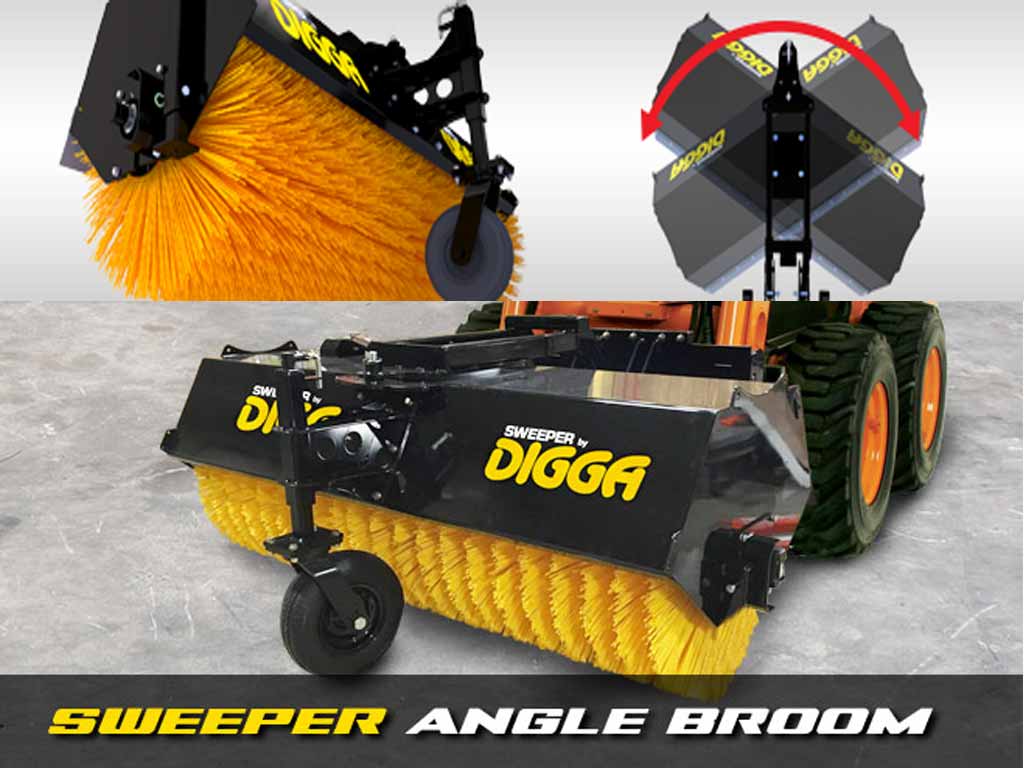

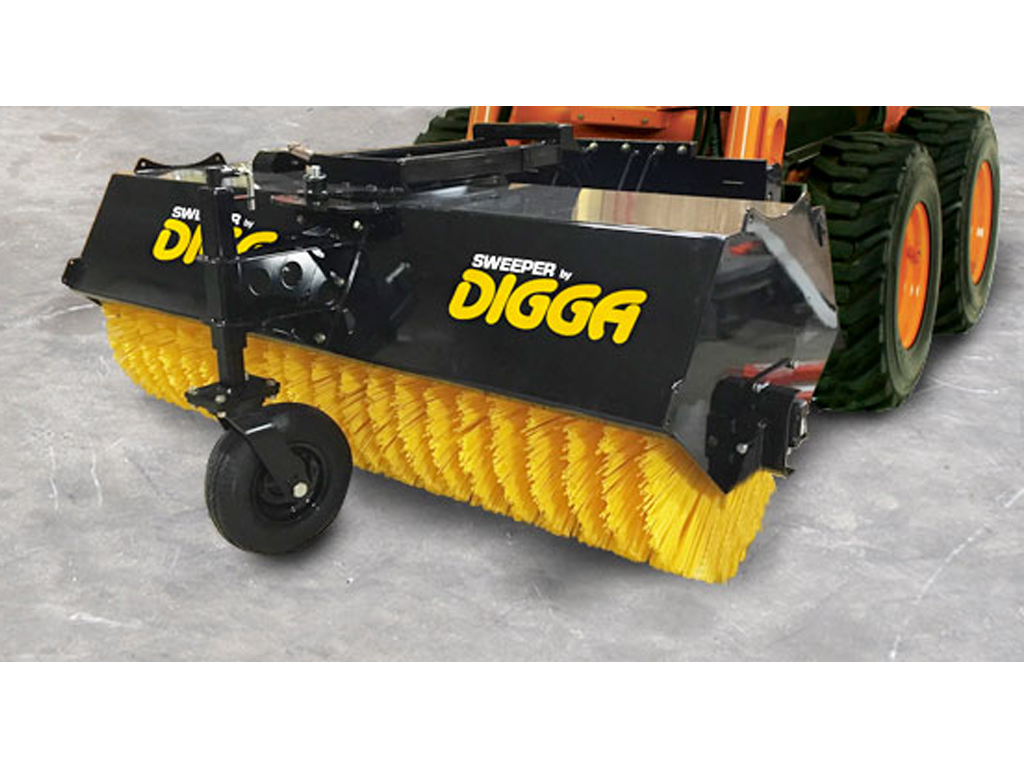

SWEEPER ANGLE BROOM

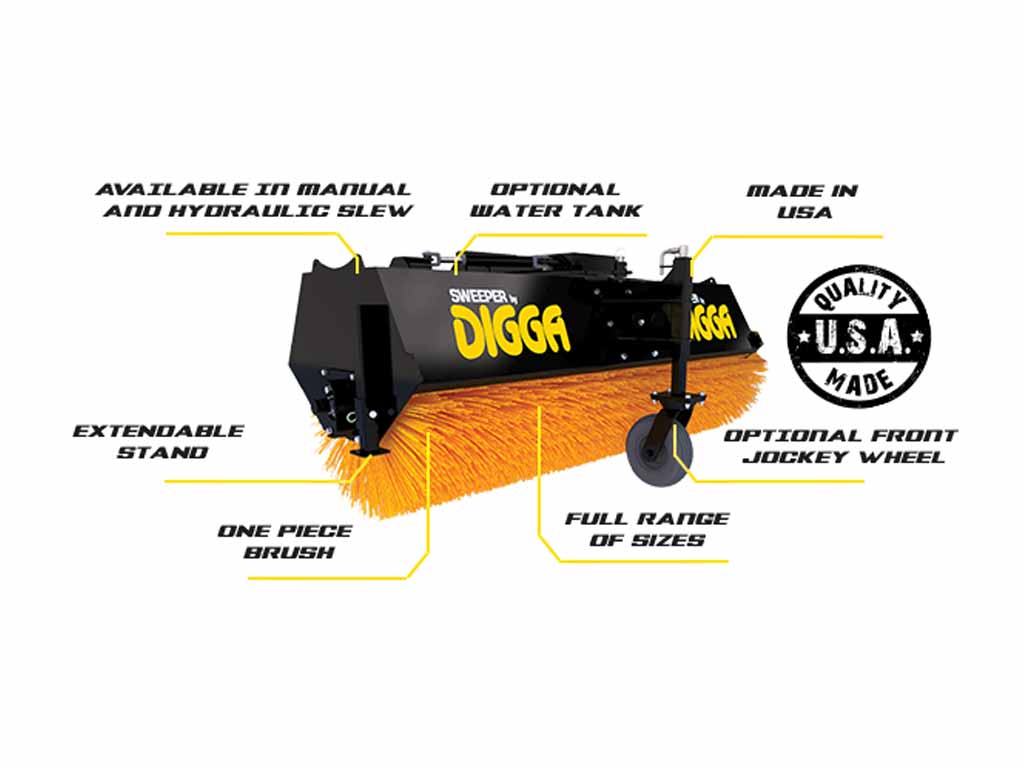

U.S.A. designed and manufactured for industrial, municipal or construction jobs. Easy attach to attach and simple to operate.

Sweeps & Collects

Sweeps and collects all kinds of debris in factory, car parks, road construction, stock yards, shipping containers and more.

Bi Directional Slew

Manual or hydraulic slew in both directions up to 30°

Optional Jockey Wheel

Heavy duty adjustable jockey wheel



MODEL 72" 84" 96"
BROOM WIDTH - ANGLED AT 15° 69.55” 81.14” 92.73”
BROOM WIDTH - ANGLED AT 30° 62.35” 72.75” 83.14”
WIDTH 82" 94" 106"
DEPTH 77" 77" 77"
HEIGHT 47" 47" 47"
WEIGHT 1063 LBS 1115 LBS 1182 LBS
MAX FLOW (DO NOT EXCEED) 25 GPM 25 GPM 25 GPM
MAX PRESSURE (DO NOT EXCEED) 3500 PSI 3500 PSI 3500 PSI
