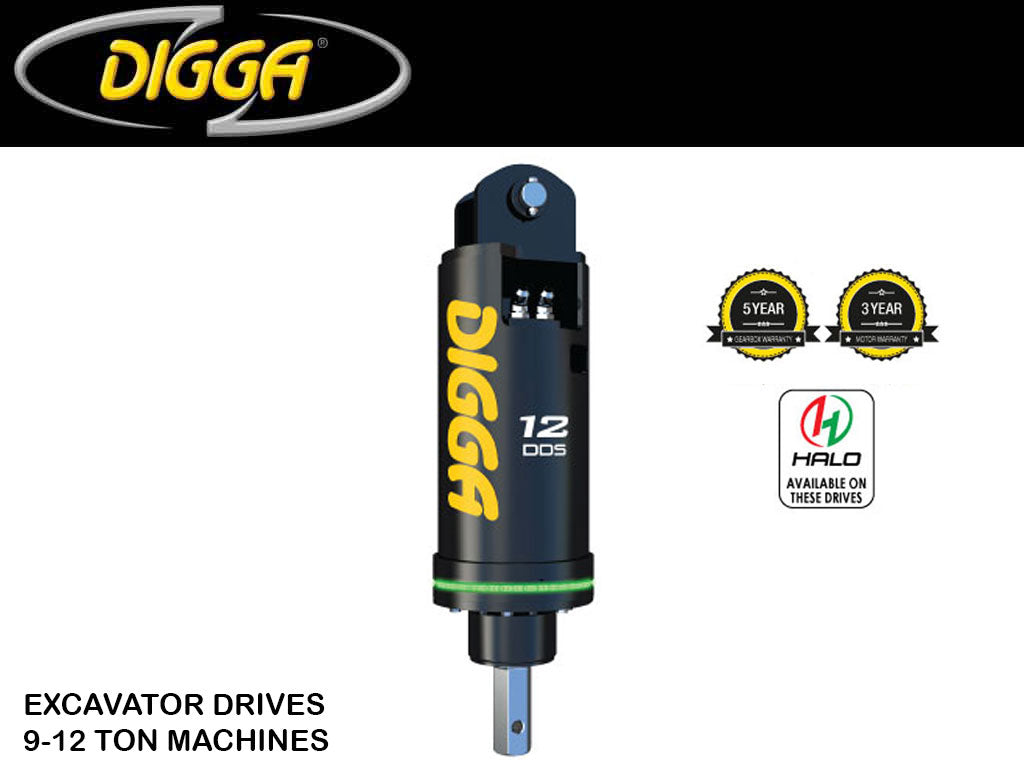

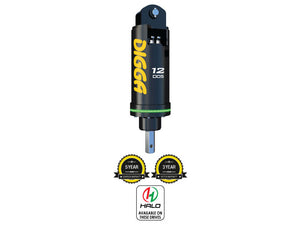

9DDS-11 / SPL300

DIGGA auger drives for excavators, 19800 - 26500 lbs. machines (9-12 Ton)

MODEL
MOUNTING
OPTIONS

5/24

AUGERS FOR EXCAVATORS 9-12T

Digga's range of drilling augers for 9-12t excavators are the ultimate in performance, quality and cost effectiveness. Over 30 years of design and development has produced the highest quality range of auger drives on the market today. Completely manufactured and assembled by Digga, using only the highest grade materials and strictest quality control.

Fitted with Digga / Eaton bell motors with integrated pressure relief valve and input housing. The innovative design allows the gearbox to go down the hole to maximize drilling depth without extensions.

Digga's new Halo Alignment System is the future of drilling. Located on the hood of the ring on the Drilling Drive, the Halo Alignment system eliminates the need for any spotter & ensures all holes drilled are plumb.

Available in Single Speed Std, low pressure (for machines with 3000 psi), Two Speed, and Two Speed low pressure (for machines with 3000 psi). Want to install Screw Anchors with your Drive? Absolutely, but to ensure full warranty protection, the addition of our patented ECV "Energy Control Valve" ensures complete protection against pile ‘flickback’ damaging your motor.

FEATURES

  • Compact high torque Digga manufactured gearbox
  • Digga designed Eaton motor with integrated pressure relief valve eliminating the need for bulky valve blocks while reducing many potential leak points
  • 2 Piece shaft design ensures maximum side load ratings without increasing load on bearings
  • Halo Alignment System available
  • Lifetime shaft pull out warranty
  • 5 year gearbox and 3 year motor warranty
  • Over 30 years design and manufacturing experience
  • Easily converted to a screw anchor drive with the addition of our patented 'anti kickback valve'

HOSES AND DISCONNECTS SOLD SEPARATELY - CALL FOR PRICE


      SPECS 9DDS 12DDS
      TORQUE (FT-LBS @ 3000 PSI) 7,811 9,893
      MAX TORQUE (FT-LBS @ 3500 PSI) 9,112 11,542
      RECOMMENDED FLOW (GPM) 18-48 22-48
      MOTOR TYPE EATON EATON
      MAX PRESSURE (DO NOT EXCEED) 3500 PSI @ 29 GPM
      MAX FLOW (DO NOT EXCEED) 55 GPM @ 1800 PSI
      MAX HORSE POWER 60 60
      PRESSURE RELIEF VALVE INCLUDED INCLUDED
      STANDARD OUTPUT SHAFT 2.5" HEX 2.5" HEX
      HALO OPTIONAL OPTIONAL

      RECOMMENDED AUGER A8 / RC8 A8 / RC8
      MAX AUGER DIAMETER (CLAY / SHALE)* 48" 36"
      MAX AUGER DIAMETER (EARTH)* 48" 48"
      WEIGHT (LBS) 350 350
      OVERALL LENGTH (IN) 37.2" 37.2"
      DIAMETER (IN) 11.4" 11.4"

      (*) Max/min drilling diameter (DIA) dependant on ground conditions. Guide is a recommendation only


      9DDS
      SPEED SPEED TORQUE TORQUE
      GPM RPM PSI FT-LBS
      18 21 1500 3905
      22 26 1700 4426
      26 31 1900 4947
      30 35 2100 5467
      34 40 2300 5988
      38 45 2500 6509
      42 49 2700 7029
      46 54 2900 7550
      48 57 3100 8071

      3300 8592

      3500 9112
      12DDS
      SPEED SPEED TORQUE TORQUE
      GPM RPM PSI FT-LBS
      22 20 1500 4947
      26 24 1700 5606
      30 28 1900 6266
      34 32 2100 6925
      38 35 2300 7585
      42 39 2500 8244
      46 43 2700 8904
      48 45 2900 9564
      3100 10223
      3300 10883
      3500 11542
