13DDS-13 / SPL300

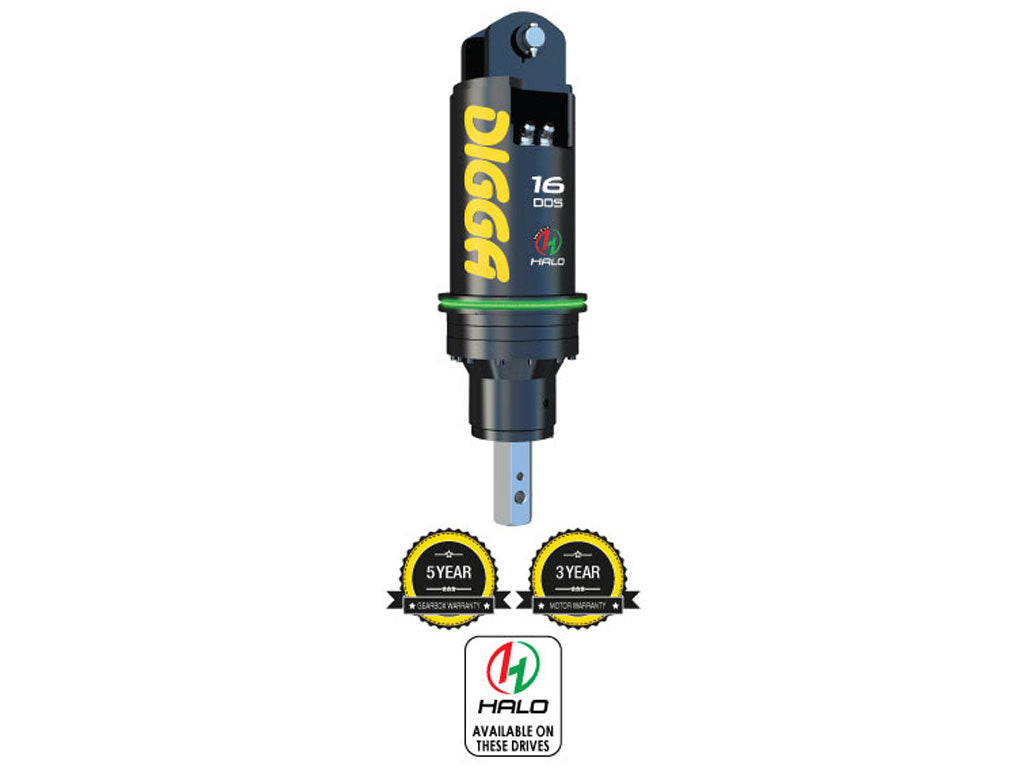

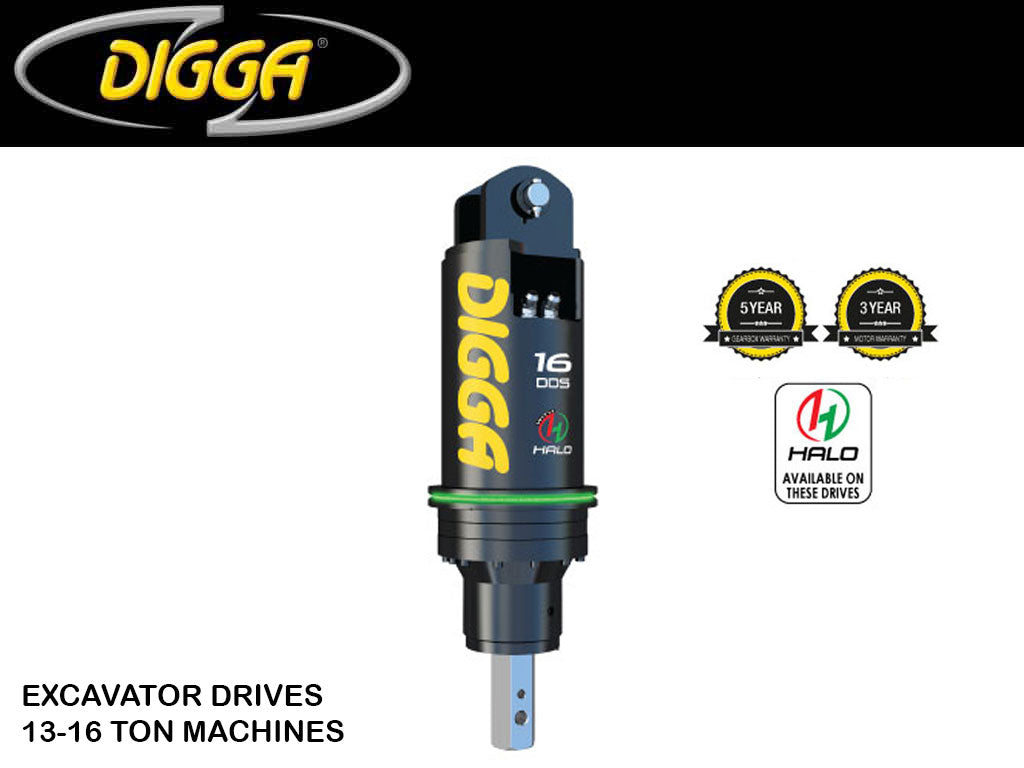

DIGGA auger drives for excavators, 28700 - 35300 lbs. machines (13-16 ton)

MODEL
MOUNTING
OPTIONS

5/24

AUGERS FOR EXCAVATORS 13-16T

Digga's range of drilling augers for 13-16t excavators are the ultimate in performance, quality and cost effectiveness. Over 30 years of design and development has produced the highest quality range of auger drives on the market today. Completely manufactured and assembled by Digga, using only the highest grade materials and strictest quality control.

Fitted with Digga / Eaton bell motors with integrated pressure relief valve and input housing. The innovative design allows the gearbox to go down the hole to maximize drilling depth without extensions.

Digga's new Halo Alignment System is the future of drilling. Located on the hood of the ring on the Drilling Drive, the Halo Alignment system eliminates the need for any spotter & ensures all holes drilled are plumb.

Available in Single Speed Std, low pressure (for machines with 3000 psi), Two Speed, and Two Speed low pressure (for machines with 3000 psi). Want to install Screw Anchors with your Drive? Absolutely, but to ensure full warranty protection, the addition of our patented ECV "Energy Control Valve" ensures complete protection against pile ‘flickback’ damaging your motor.

FEATURES

  • Compact high torque Digga manufactured gearbox
  • Digga designed Eaton motor with integrated pressure relief valve eliminating the need for bulky valve blocks while reducing many potential leak points
  • 2 Piece shaft design ensures maximum side load ratings without increasing load on bearings
  • Lifetime shaft pull out warranty
  • Halo Alignment System available
  • 5 year gearbox and 3 year motor warranty
  • Over 30 years design and manufacturing experience
  • Easily converted to a screw anchor drive with the addition of our patented 'anti kickback valve'

HOSES AND DISCONNECTS SOLD SEPARATELY - CALL FOR PRICE



      SPECS 13DDS 16DDS
      TORQUE (FT-LBS @ 3000 PSI) 10,978 13,810
      MAX TORQUE
      (FT-LBS @ 3500 PSI)
      12,808 16,111
      RECOMMENDED FLOW (GPM) 26-54 26-54
      MOTOR TYPE EATON EATON
      MAX PRESSURE
      ( DO NOT EXCEED)
      3500 PSI @ 33 GPM
      MAX FLOW
      ( DO NOT EXCEED)
      61 GPM @ 1800 PSI
      MAX HORSE POWER 67 67
      PRESSURE RELIEF VALVE INCLUDED INCLUDED
      STANDARD OUTPUT SHAFT 3" HEX 3" HEX
      HALO OPTIONAL OPTIONAL

      RECOMMENDED AUGER A8 / RC8 / RC10 A8 / RC8 / RC10
      MAX AUGER DIAMETER
      (CLAY / SHALE)*
      36" 48"
      MAX AUGER DIAMETER (EARTH)* 60" 60"
      WEIGHT (LBS) 370 370
      OVERALL LENGTH (IN) 39.6" 39.6"
      DIAMETER (IN) 11.4" 11.4"

      (*) Max/min drilling diameter (DIA) dependant on ground conditions. Guide is a recommendation only.


      13DDS
      SPEED SPEED TORQUE TORQUE
      GPM RPM PSI FT-LBS
      26 22 1500 5489
      30 25 1700 6221
      34 28 1900 6953
      38 32 2100 7685
      42 35 2300 8417
      46 39 2500 9149
      50 42 2700 9880
      54 45 2900 10612

      3100 11344

      3300 12076

      3500 12808
      16DDS
      SPEED SPEED TORQUE TORQUE
      GPM RPM PSI FT-LBS
      26 17 1500 6905
      30 20 1700 7825
      34 23 1900 8746
      38 25 2100 9667
      42 28 2300 10587
      46 31 2500 11508
      50 33 2700 12429
      54 36 2900 13349
      3100 14270
      3300 15191
      3500 16111
