4DDS-3-EM / HI-000627

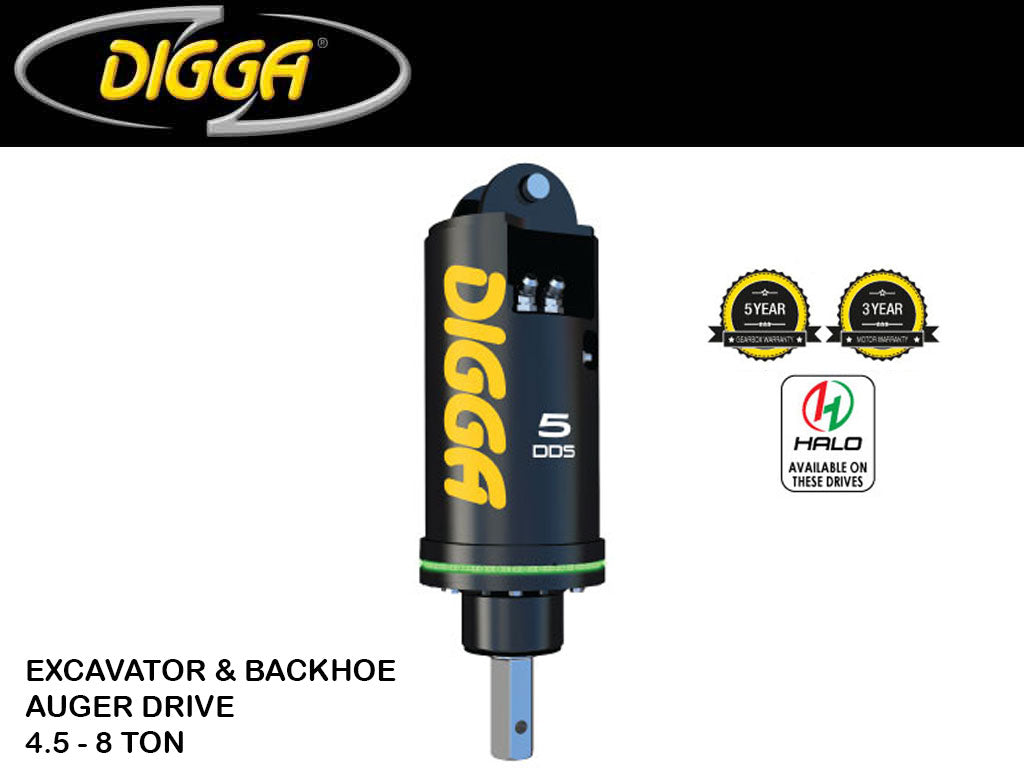

DIGGA auger drives for excavators, 9900 - 17600 lbs. machines (4.5-8 ton)

MODEL
MOUNTING
OPTIONS
9/24

AUGERS FOR MINI EXCAVATORS  4.5-8 TON

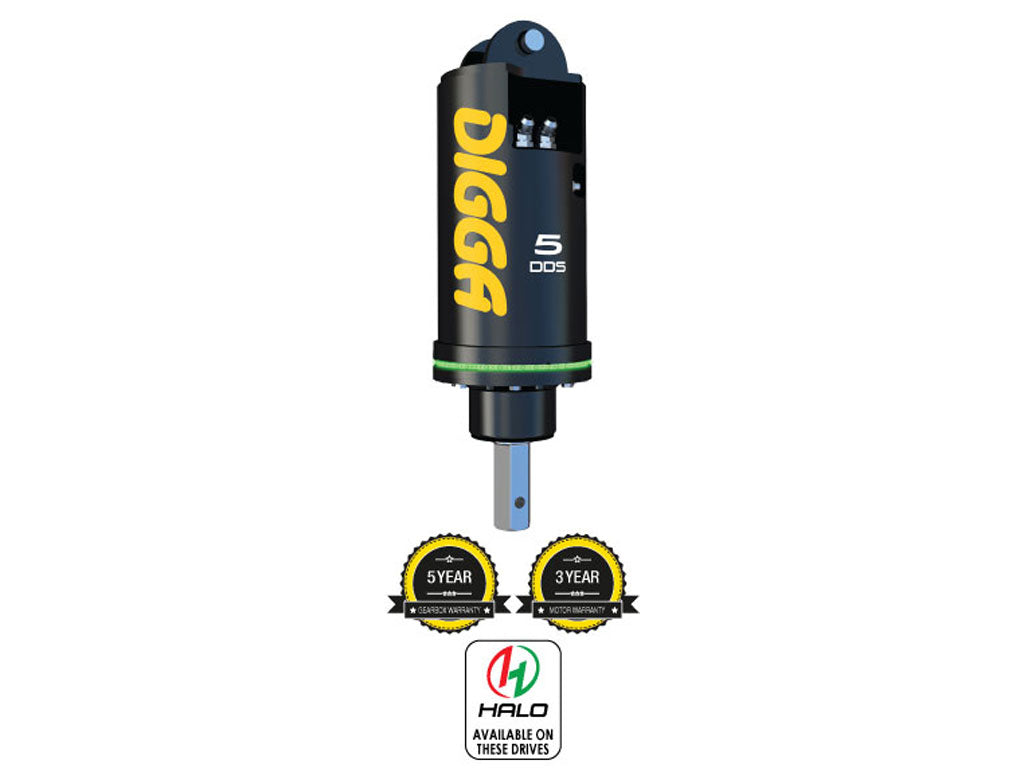

Digga's range of drilling augers for 4.5-8t excavators and backhoes are the ultimate in performance, quality and cost effectiveness. Over 30 years of design and development has produced the highest quality range of auger drives on the market today. Completely manufactured and assembled by Digga, using only the highest grade materials and strictest quality control.

Fitted with Digga / Eaton bell motors with integrated pressure relief valve and input housing. The innovative design allows the gearbox to go down the hole to maximize drilling depth without extensions.

Digga's new Halo Alignment System is the future of drilling. Located on the hood of the ring on the Drilling Drive, the Halo Alignment system eliminates the need for any spotter & ensures all holes drilled are plumb.

Available in Single Speed Std, low pressure (for machines with 3000 psi), Two Speed, and Two Speed low pressure (for machines with 3000 psi). Want to install Screw Anchors with your Drive? Absolutely, but to ensure full warranty protection, the addition of our patented ECV "Energy Control Valve" ensures complete protection against pile ‘flickback’ damaging your motor.

FEATURES

  • Compact high torque Digga manufactured gearbox
  • Digga designed Eaton motor with integrated pressure relief valve eliminating the need for bulky valve blocks while reducing many potential leak points
  • 2 piece shaft design ensures maximum side load ratings without increasing load on bearings
  • Lifetime shaft pull out warranty
  • Halo Alignment System available
  • 5 year gearbox and 3 year motor warranty
  • Over 30 years design and manufacturing experience
  • Easily converted to a screw anchor drive with the addition of our patented 'anti kickback valve'
      SPECS 4DDS HIGH FLOW 5DDS 6DDS 7DDS
      TORQUE (FT-LBS @ 3000 PSI) 3583 3,903 4,909 6,162
      MAX TORQUE (FT-LBS @ 3500 PSI) 4180 4,553 5,728 7,189
      RECOMMENDED FLOW (GPM) 10-42 10-36 12-36 14-36
      MOTOR TYPE EATON EATON EATON EATON
      MAX PRESSURE (DO NOT EXCEED) 3500 PSI 3500 PSI @ 27 GPM
      MAX FLOW (DO NOT EXCEED) 42 GPM@3100 55 GPM @ 1700 PSI
      MAX HORSE POWER 55 55 55 55
      PRESSURE RELIEF VALVE INCLUDED INCLUDED INCLUDED INCLUDED
      STANDARD OUTPUT SHAFT 2" HEX 2.5" HEX 2.5" HEX 2.5" HEX
      HALO OPTIONAL OPTIONAL OPTIONAL OPTIONAL

      RECOMMENDED AUGER A4 / RC4 A6 / RC6 A6 / RC6 A6 / RC6
      MAX DRILLING DIAMETER
      (CLAY / SHALE)*
      24" 24" 30" 30"
      MAX DRILLING DIAMETER (EARTH)* 40" 40" 40" 48"
      WEIGHT (LBS) 180 290 290 290
      OVERALL LENGTH (IN) 29" 33.7" 33.7" 33.7"
      DIAMETER (IN) 9.4" 11.4" 11.4" 11.4"

      (*) Max/min drilling diameter (DIA) dependent on ground conditions. Guide is a recommendation only.


      5DDS
      SPEED SPEED TORQUE TORQUE
      GPM RPM PSI FT-LBS
      10 24 1500 1951
      14 33 1700 2212
      18 42 1900 2472
      22 52 2100 2732
      26 61 2300 2992
      30 71 2500 3252
      34 80 2700 3513
      36 85 2900 3773

      3100 4033

      3300 4293

      3500 4553
      6DDS
      SPEED SPEED TORQUE TORQUE
      GPM RPM PSI FT-LBS
      12 22 1500 2455
      16 30 1700 2782
      20 37 1900 3109
      24 45 2100 3437
      28 52 2300 3764
      32 60 2500 4091
      36 67 2700 4418
      2900 4746
      3100 5073
      3300 5400
      3500 5728
      7DDS
      SPEED SPEED TORQUE TORQUE
      GPM RPM PSI FT-LBS
      14 21 1500 3081
      18 27 1700 3492
      22 33 1900 3903
      26 39 2100 4314
      30 45 2300 4725
      34 51 2500 5135
      36 54 2700 5546


      2900 5957

      3100 6368
      3300 6779
      3500 7189
