1DSS-3-MF

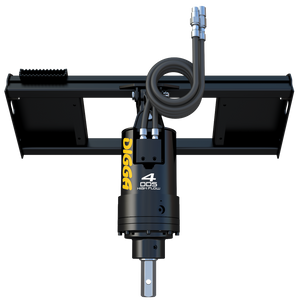

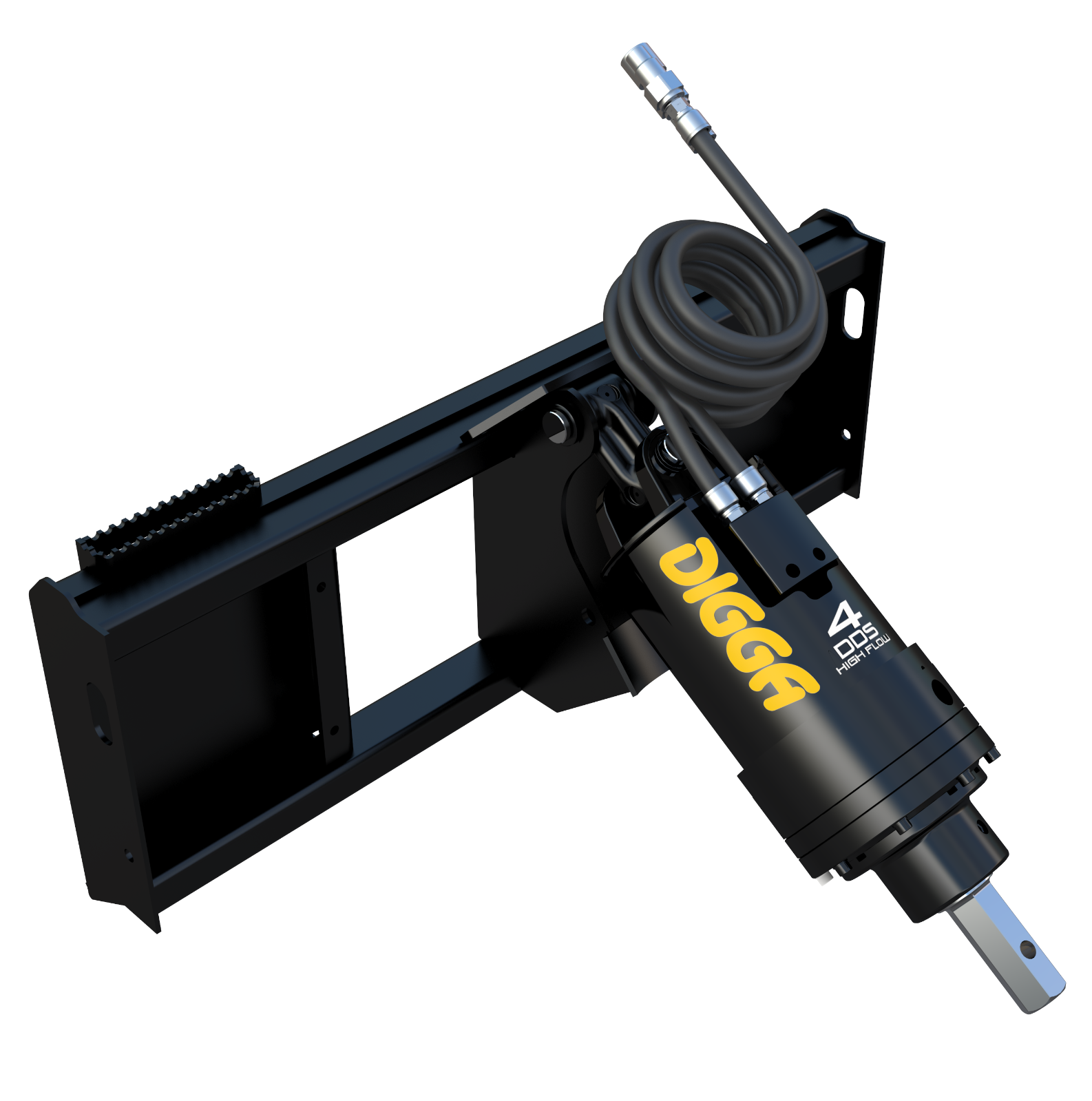

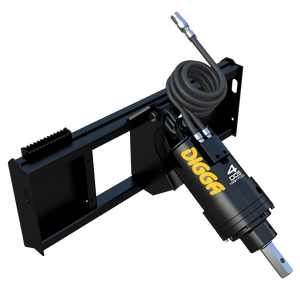

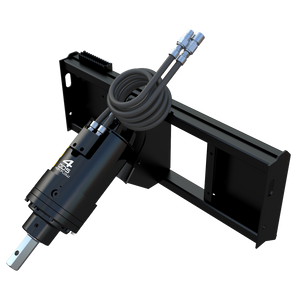

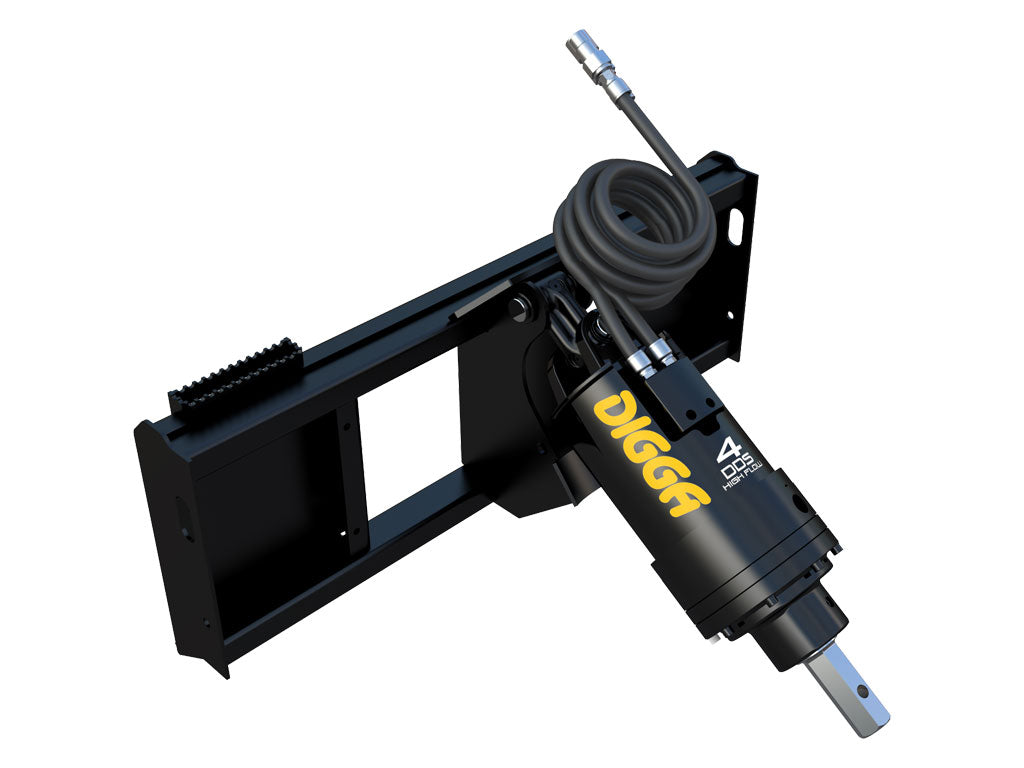

DIGGA DSS Series auger drive for skid steer (2.5 - 3.8 ton)
$2,720.00 - $6,230.00
5/24

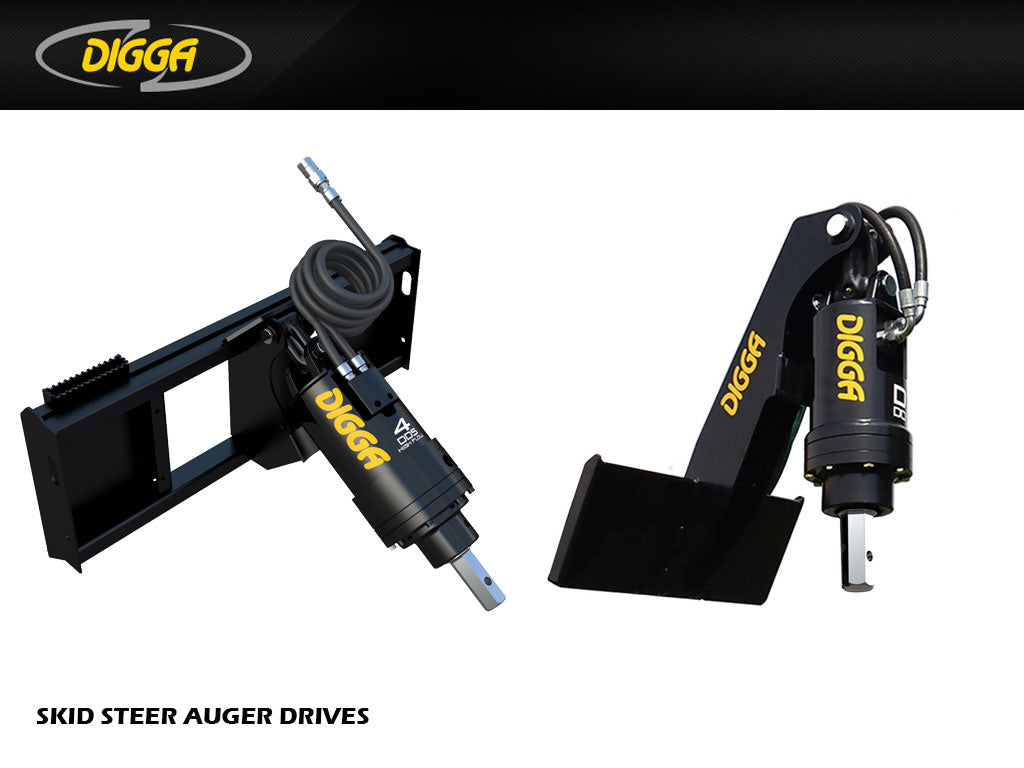

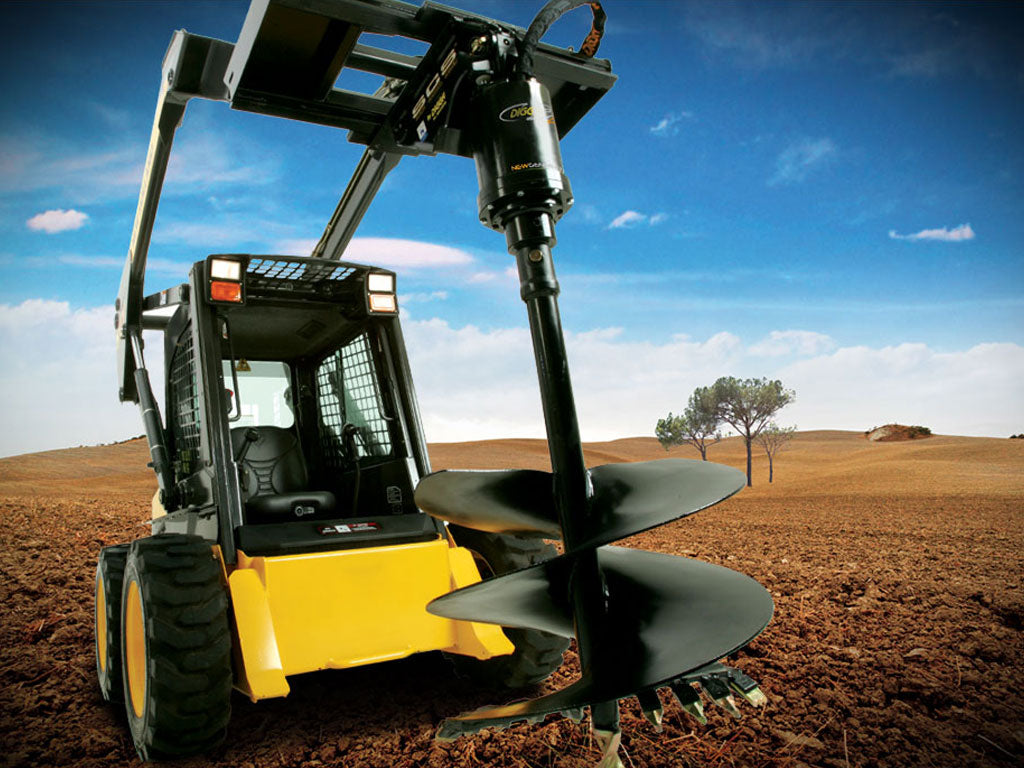

AUGERS DRIVES FOR SKID STEER LOADERS
Digga's drilling augers for skid steer loaders are the ultimate in performance, quality and cost effectiveness. Over 30 years of design and development has produced the highest quality range of auger drives on the market today. Completely manufactured and assembled by Digga, using only the highest grade materials and strictest quality control.
Fitted with Digga / Eaton bell motors and input housing,he innovative design allows the gearbox to go down the hole to maximise drilling depth without extentions, eliminating downtime and minimises maintenance, optimizing your returns.
Digga drilling augers are backed by industry leading warranty and local factory support.
FEATURES
- Compact Digga manufactured gearbox
- Digga designed Eaton motor
- 2 Piece shaft design ensures maximum side load ratings without increasing load on bearings
- Lifetime shaft pull out warranty

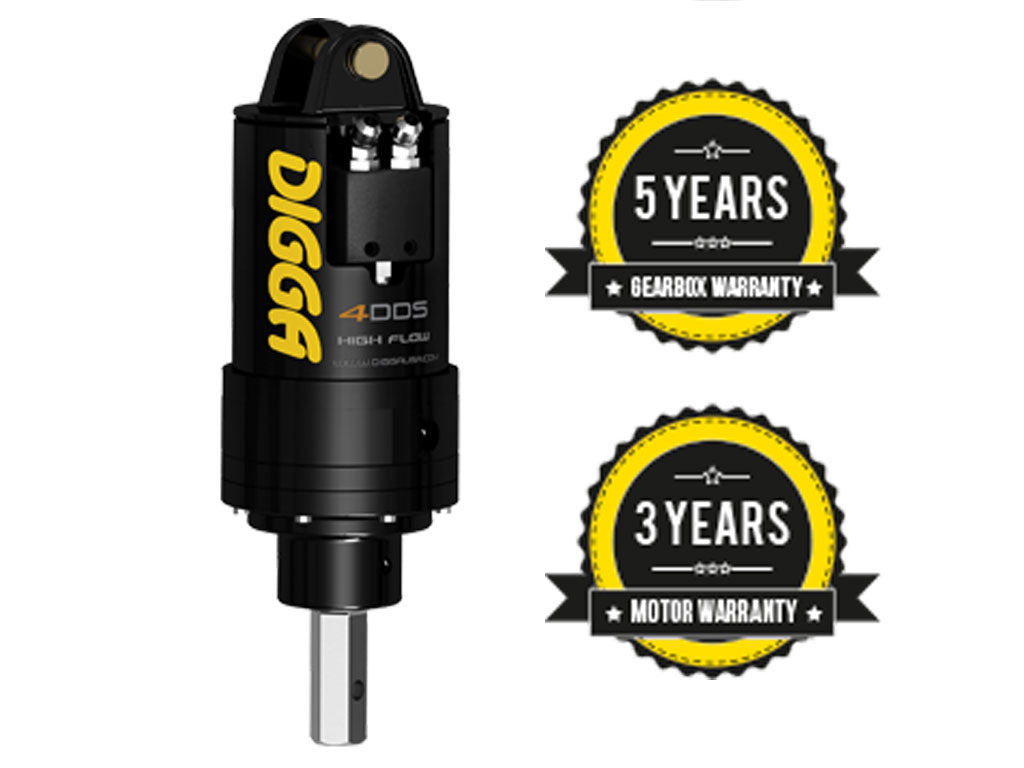

- 5 year gearbox and 3 year motor warranty
- Over 30 years design and manufacturing experience
Includes:
- HOSES & FITTINGS (87" LONG)

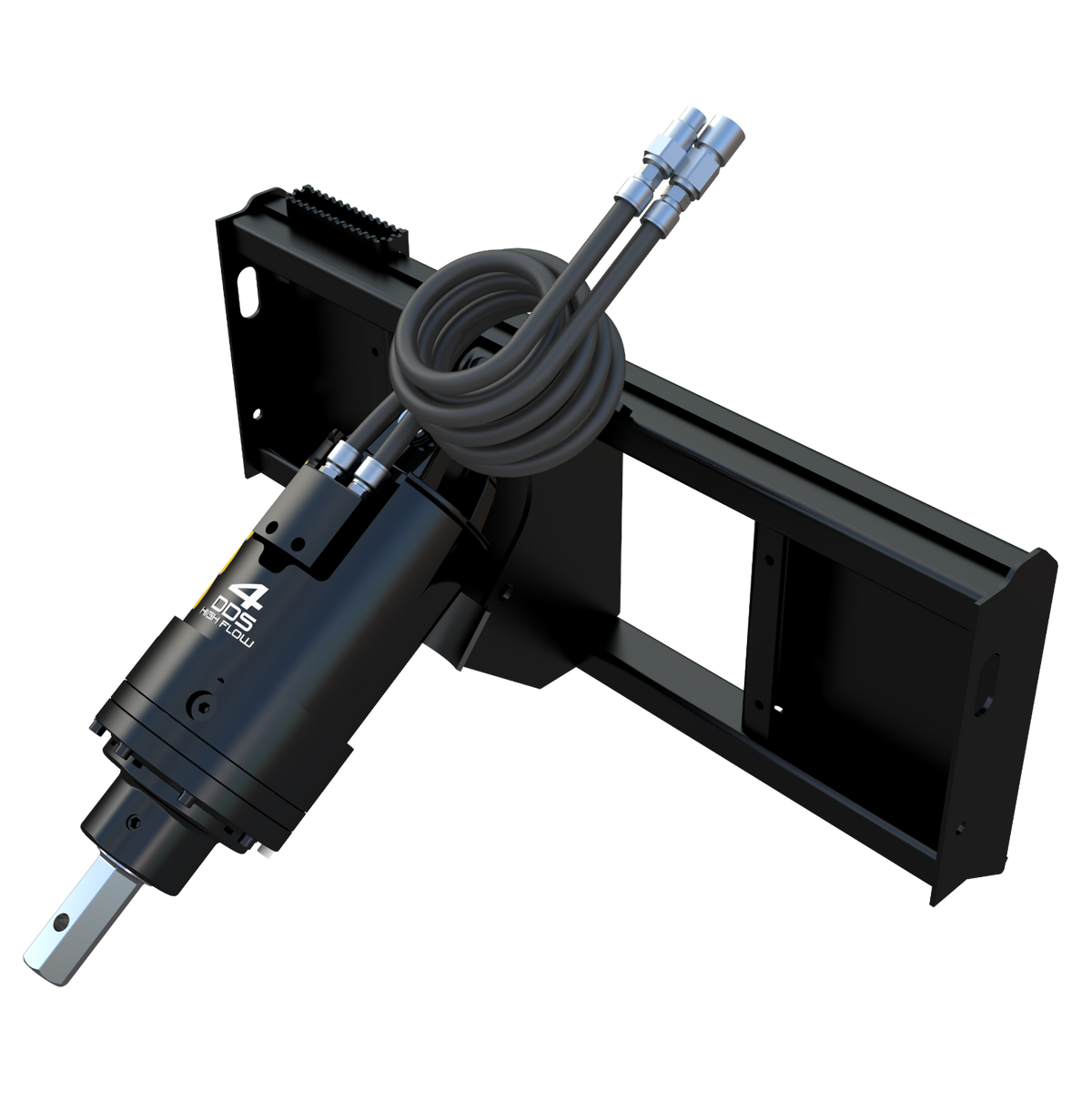

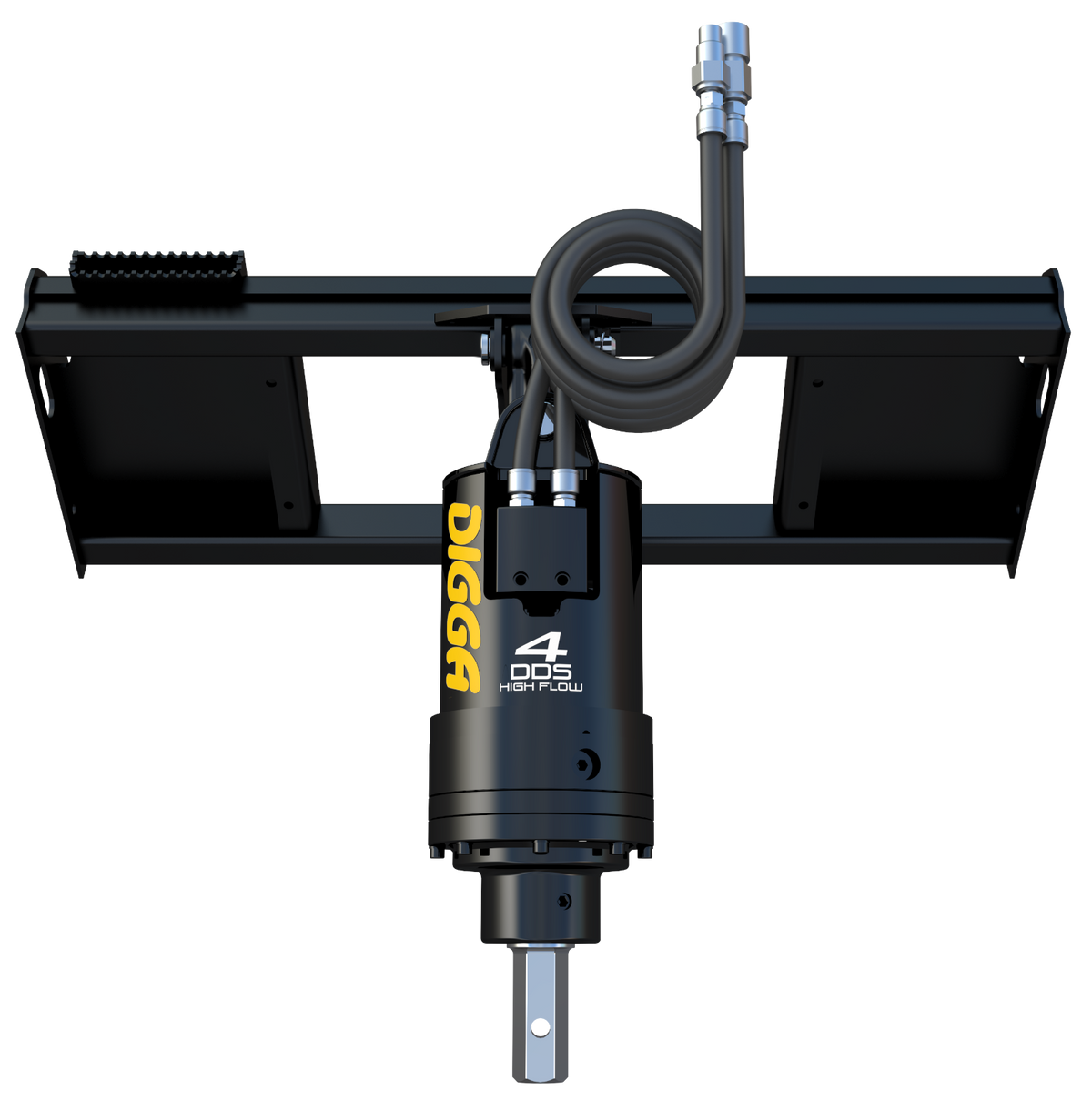

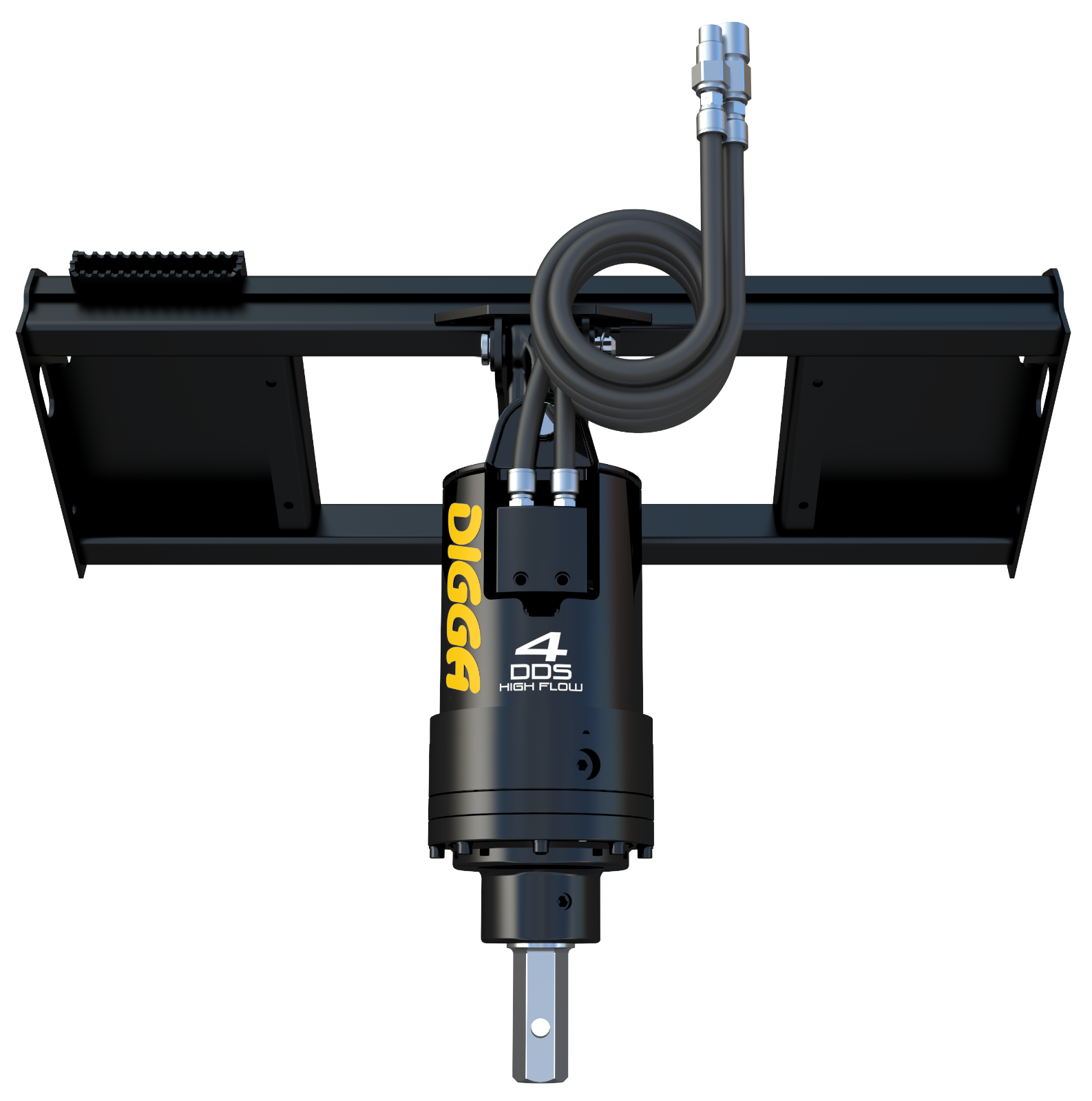

- UNIVERSAL LOADER MOUNTING (BOBCAT)
- 2" HEX SHAFT

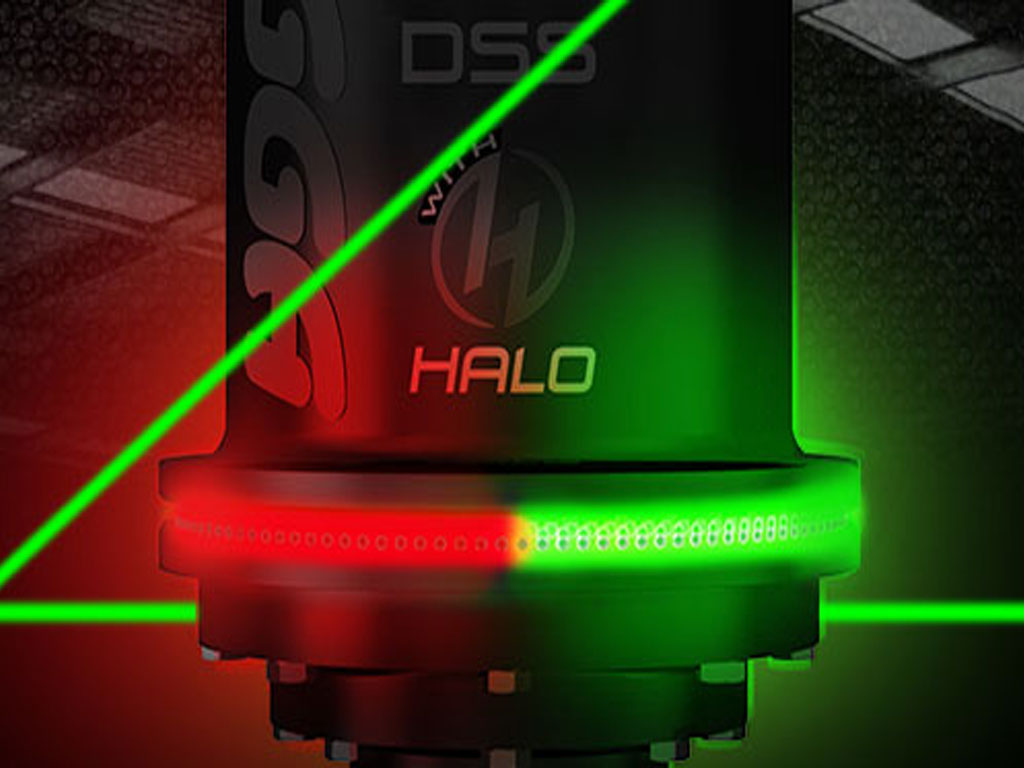

The Halo Auger Alignment System is located in the hood ring of the auger. It provides the operator with a simultaneous clear line of sight to itself, and the hole being dug. HALO utilizes a band of LED lights, which when fully illuminated green, indicate the auger is plumb. If the auger moves from its plumb position, a sequence of red and green lights will be lit to effortlessly guide the operator back to plumb. Available range at time of launch, will include ALS, ADS, DSS, and DDS augers up to 30t.
| DESCRIPTION | 1DSS | 2DSS | 3DSS | 4DSS |
| TORQUE (FT-LBS @ 3000 PSI |
1467 | 2554 | 2,829 | 3,275 |
| MAX TORQUE FT-LBS @ 3500 PSI |
1712 | 2630 | 3,300 | 3,821 |
| RECOMMENDED FLOW (GPM) | 6-16 | 10-26 | 10-30 | 10-30 |
| MOTOR TYPE | EATON | EATON | EATON | EATON |
| MAX PRESSURE - DO NOT EXCEED |
3500 PSI @ 16 GPM | |||
| MAX FLOW - DO NOT EXCEED |
30 GPM @ 1800 PSI | |||
| MAX HORSE POWER | 33 | 33 | 34 | 34 |
| PRESSURE RELIEF VALVE | N/A | N/A | N/A | N/A |
| STANDARD OUTPUT SHAFT | 2" HEX | 2" HEX | 2" HEX | 2" HEX |
| RECOMMENDED AUGER | A4 / RC4 | A4 / RC4 | A4 / RC4 | A4 / RC4 |
| MAX DRILLING DIAMETER (CLAY / SHALE)* |
12" | 24" | 24" | 24" |
| MAX DRILLING DIAMETER (EARTH)* |
24" | 30" | 30" | 30" |
| WEIGHT (LBS) | 101 | 123 | 123 | 125 |
| OVERALL LENGTH (IN) | 24.5" | 25.9" | 25.9" | 25.9" |
| DIAMETER (IN) | 7.4" | 9.4" | 9.4" | 9.4" |

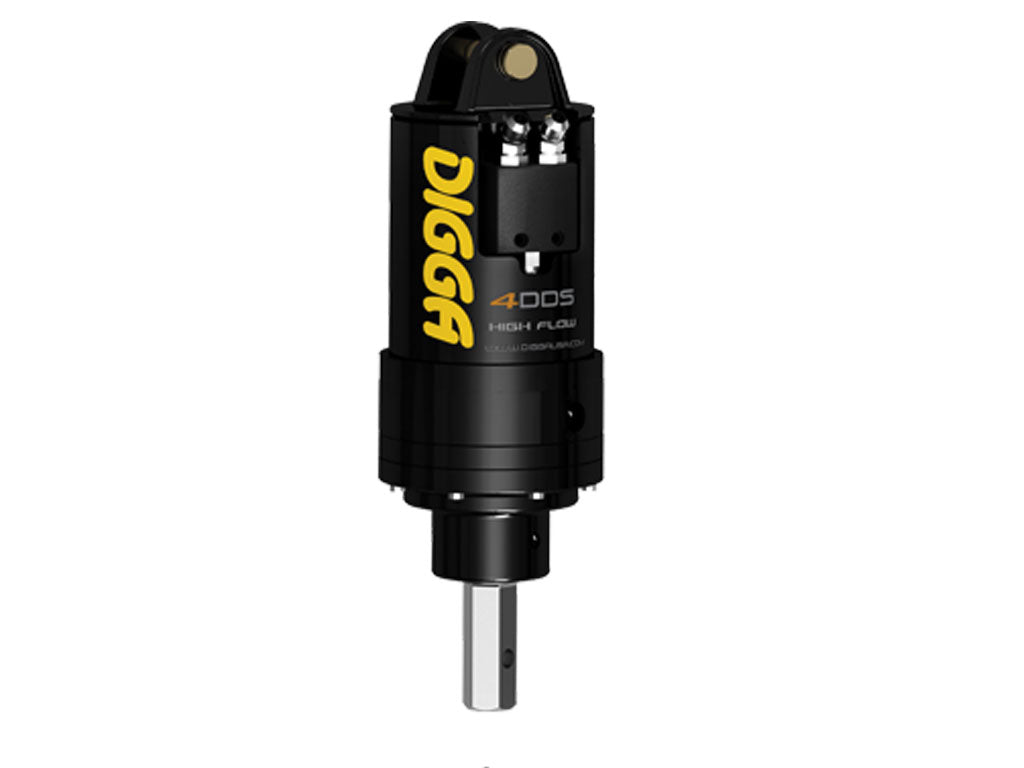

The 1DSS, 2DSS, 3DSS, 4DSS and 4DDS are designed for heavy duty drilling. These augers can only handle 6 to 42 GPM flow depending on the model. These augers have a four way swing mounting (forward and back, side to side). An mounting extension option allows you to use bit extensions to drill deep holes. The package includes The hoses, fittings, drive and mountings so it is ready to go on the job site.
