SD45HPS-ECV-SPL300

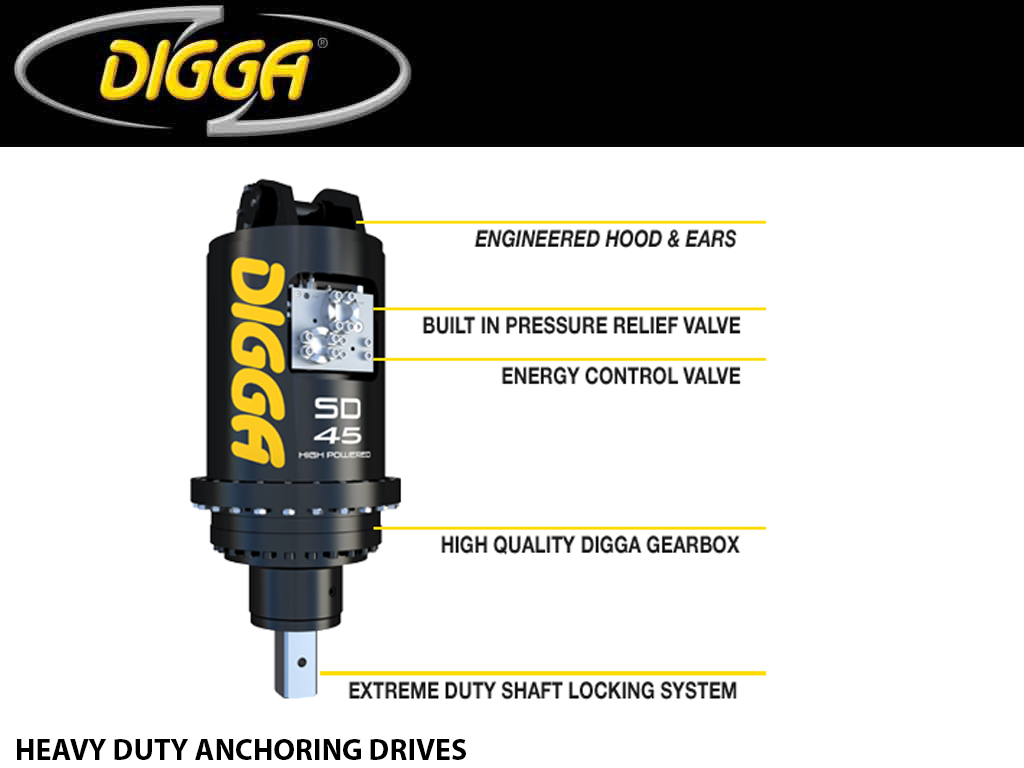

DIGGA Heavy Duty Anchoring Drives for excavators, 39700 - 66100 lbs. machines (18-30 ton)
$31,020.00 - $33,910.00
5/24
THE FASTEST ANCHOR DRIVE HEAD FOR MACHINES BETWEEN 15-30T
Digga’s High Powered Drives operate at a MAX PRESSURE OF 5,000 PSI providing you the speed and performance without detuning your machine.

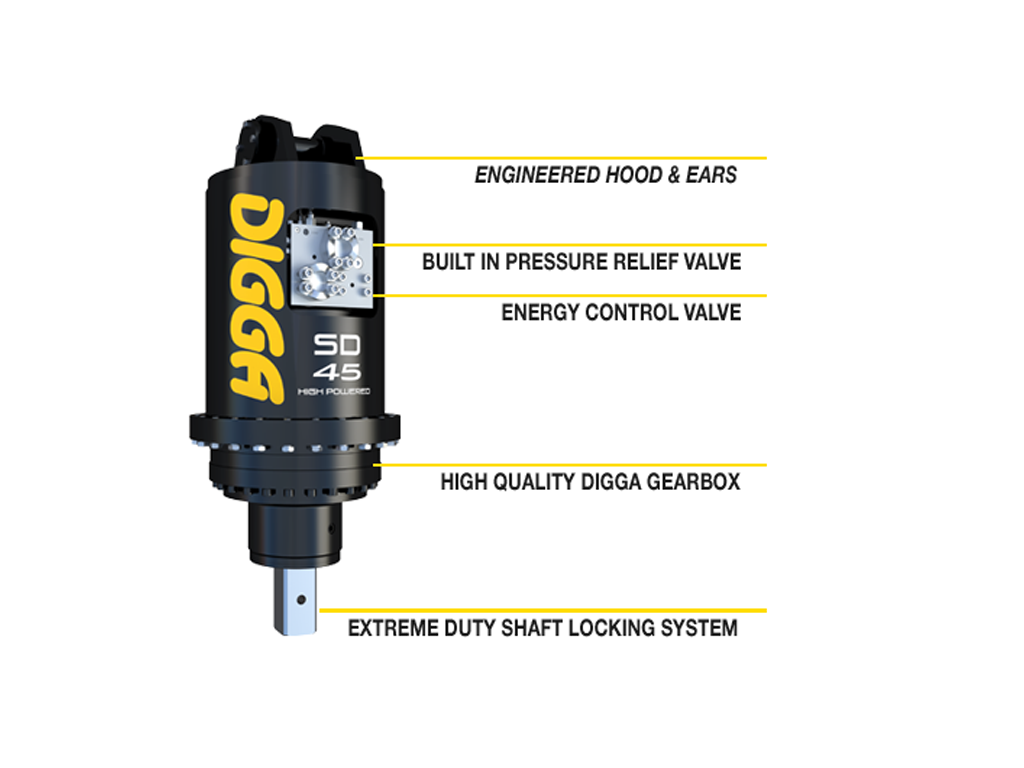

Compact, high quality Digga made gearbox
Our gears are precision machined inhouse from high grade alloy steel. The efficient, pressurized gearboxes ensure no leaks & minimal maintenance.
Built-in PRV (pressure relief valve) included
Ensures max volumetric effeciency for consistent & efficient pile installation throughout the working day.
Integrated ECV (energy control valve) included
This revolutionary bypass valve is fitted to the drive to control the rapid decompression of oil caused by pile kick-back during the screw anchoring process.
Engineered hood and ears
For maximum strength. Specifically designed for heavy duty drilling applications.
Extreme heavy duty shaft locking system
The Digga 2 piece shaft, is a separate component to the planetary carrier, isolating the planetary gears fromthe pushing, pulling & bending forces generated by the machine.
HOSES AND DISCONNECTS SOLD SEPARATELY - CALL FOR PRICE
| SPECS | SD45HPS | SD50HPS | SD70HPS | SD80HPS | SD95HPS |
| MAX TORQUE (FT-LBS) | 33,654 | 39,463 | 51,634 | 62,638 | 69,244 |
| MAX SPEED (RPM) | 46 | 39 | 30 | 25 | 22 |
| MAX FLOW (GPM) | 100 GPM @ 3,500 PSI | ||||
| MAX PRESSURE - DO NOT EXCEED | 5,000 PSI @70 GPM | ||||
| MAX HORSE POWER | 201 | 201 | 201 | 201 | 201 |
| MOTOR TYPE | RADIAL PISTON | RADIAL PISTON | RADIAL PISTON | RADIAL PISTON | RADIAL PISTON |
| PRESSURE RELIEF VALVE | INCLUDED | INCLUDED | INCLUDED | INCLUDED | INCLUDED |
| ENERGY CONTROL VALVE | NOT INCLUDED | NOT INCLUDED | NOT INCLUDED | NOT INCLUDED | NOT INCLUDED |
| STANDARD OUTPUT SHAFT | 100MM SQUARE |
100MM SQUARE |
100MM SQUARE |
100MM SQUARE |
100MM SQUARE |
| HALO | OPTIONAL | OPTIONAL | OPTIONAL | OPTIONAL | OPTIONAL |
| RECOMMENDED AUGER | RC11 / DR11 | RC11 / DR11 | RC11 / DR11 | RC11 / DR11 | RC11 / DR11 |
|
MAX AUGER DIAMETER (CLAY / SHALE)* |
60" | 60" | 60" | 60" | 60" |
| MAX AUGER DIAMETER (EARTH)* | 79" | 79" | 79" | 79" | 79" |
| WEIGHT (LBS) | 1,843 | 1,843 | 1,843 | 1,843 | 1,843 |
| OVERALL LENGTH (IN) | 50.9" | 50.9" | 50.9" | 50.9" | 50.9" |
| DIAMETER (IN) | 23.6" | 23.6" | 23.6" | 23.6" | 23.6" |
