13DDT-13 / SPL300

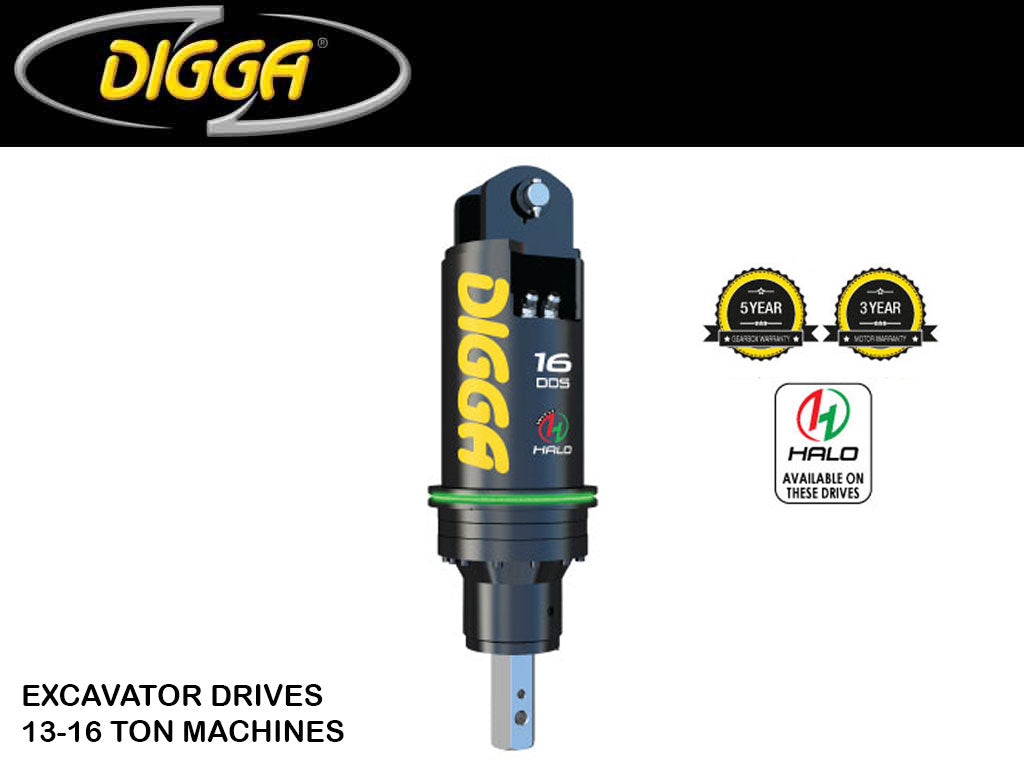

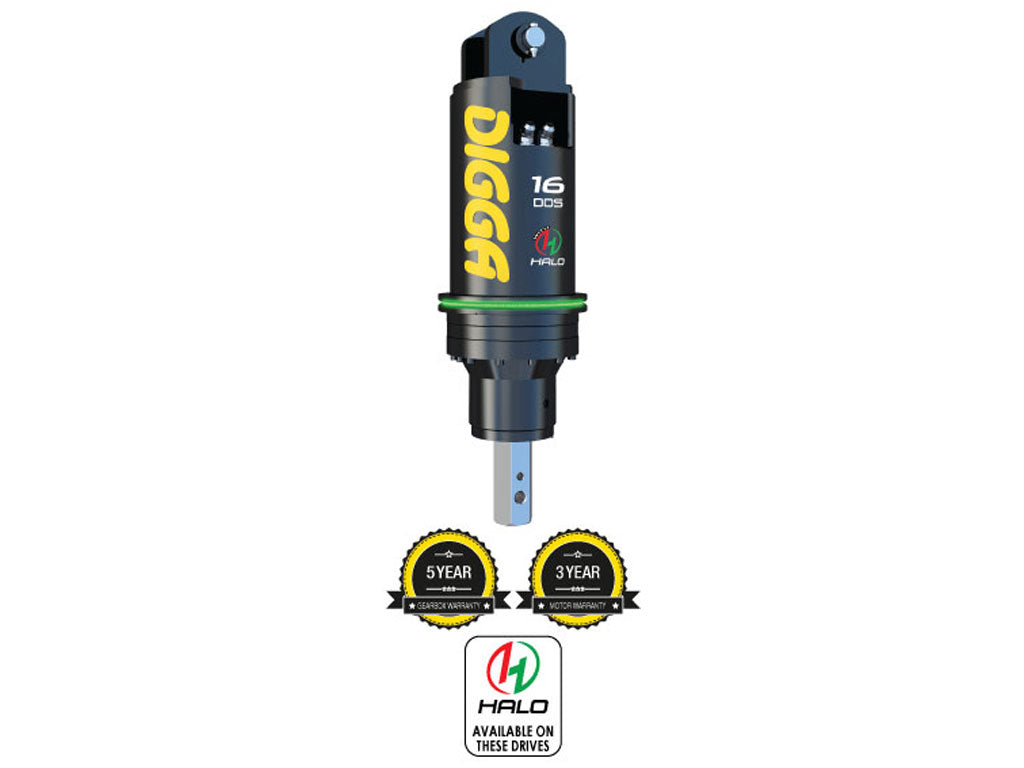

DIGGA Two Speed Auger drives for excavators, 28700 - 35300 lbs. machines (13-16 ton)
$12,170.00 - $16,400.00
5/24
2 SPEED AUGERS FOR EXCAVATORS 13-16T
Digga's 2 Speed Augers are designed to suit excavators & skid steer loaders, truck cranes, front end loaders, wheeled loaders and backhoes with flows between 16-53gpm. We distribute our 2 Speed Drilling Augers throughout North America.
FEATURES
- Compact high torque Digga manufactured gearbox
- Highly efficient design with less moving parts
- Fitted with Eaton VIS motor
- Integrated PRV (Pressure Relief Valve)
- Extreme duty shaft locking system
- Drive fits down the hole for greater digging depth
- 5 year gearbox and 3 year motor warranty
- Low maintenance
HOSES AND DISCONNECTS SOLD SEPARATELY - CALL FOR PRICE
| SPECS | 13DDT | 16DDT |
| TORQUE (FT-LBS @ 3000 PSI) | 11,441 | 14,098 |
| MAX TORQUE (FT-LBS @ 3500 PSI) |
13,347 | 16,448 |
| RECOMMENDED FLOW (GPM) | 16-53 | 20-53 |
| MOTOR TYPE | EATON | EATON |
| MAX PRESSURE ( DO NOT EXCEED) |
3500 PSI @ 33 GPM | |
| MAX FLOW ( DO NOT EXCEED) |
53 GPM @ 2200 PSI | |
| MAX HORSE POWER | 67 | 67 |
| PRESSURE RELIEF VALVE | INCLUDED | INCLUDED |
| STANDARD OUTPUT SHAFT | 3" HEX | 3" HEX |
| HALO AVAILABLE | YES | YES |
| RECOMMENDED AUGER | A8 / RC8 / RC10 | A8 / RC8 / RC10 |
| MAX AUGER DIAMETER (CLAY / SHALE)* |
36" | 48" |
| MAX AUGER DIAMETER (EARTH)* | 60" | 60" |
| WEIGHT (LBS) | 394 | 394 |
| OVERALL LENGTH (IN) | 38.6" | 38.6" |
| DIAMETER (IN) | 14.4" | 14.4" |
(*) Max/min drilling diameter (DIA) dependent on ground conditions. Guide is a recommendation only.
