DIPPERFOX SC600 for skid loaders

Options

Dipperfox Stump Crusher 600- The Stump Crusher 600 is a tool designed for cities, councils, arborists and gardens where large excavators are too big and access is limited. This model requires a smaller carrier with the unit weighing 285kg.

The main advantage of this tool is that compared to alternative stump grinders, it is safer, less noisy and more efficient. This is due to the Dipperfox having a low revolving speed with a max of 60 RPM which prevents high speed debris and in the event of the blade hitting any rock, it will be pushed away rather than ricocheting. Therefore, this allows you to create a much smaller risk zone compared to horizontal high speed grinders.

The Stump Crusher 600 is also much faster at removing stumps than other grinders and allows a drilling depth of 500mm below ground level. This allows you to plant a sampling in the same footprint of the previous tree.

Requirements for compact loader or track loader
size 2-6 t;
engine power 40-80 kW;
working pressure 150-250bar;
hydraulic flow 65-150 l/min

    Basic Information

    • 24" Cutting width
    • 28" Drilling depth
    • 17-39 gpm required
    • 2175 - 3629 psi range
    • Hoses & couplers included
    • Comes with Universal (Bobcat ) mounting. Call for other mountings
    • Requires case drain line on skid steer loader
    • Operators and by standers should wear protective gear

    SC600 can be used with variety of carriers like

    • Skid steers
    • Excavators
    • All kind of loaders
    • Backhoes
    • Compact track loaders

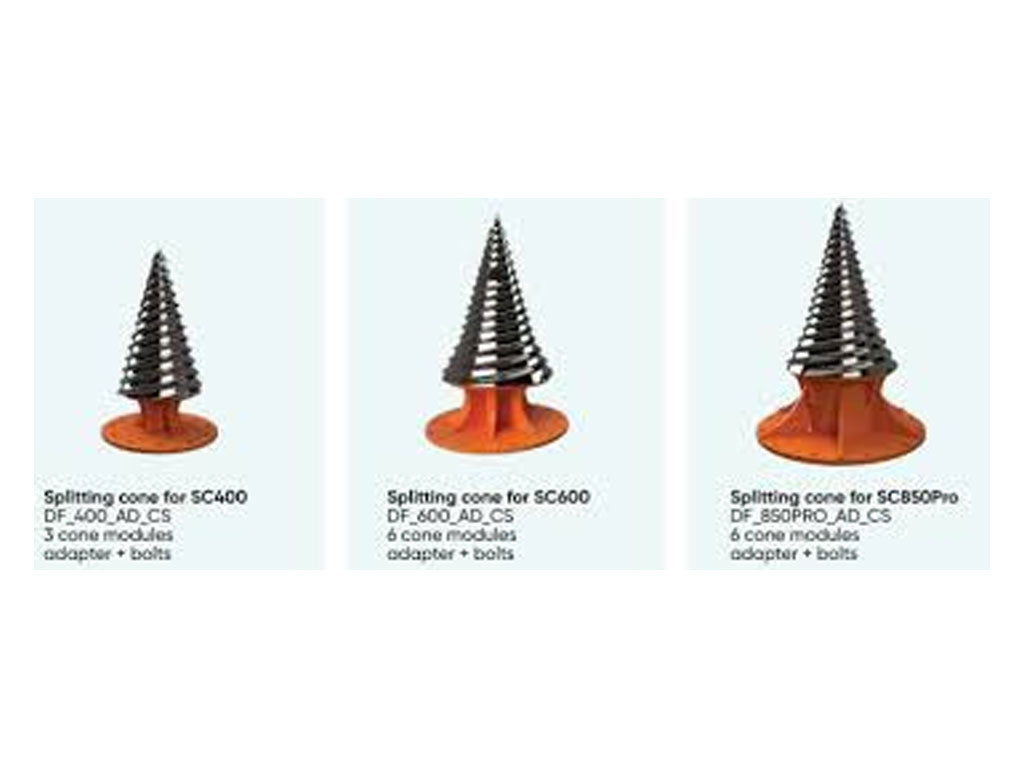

    Optional Splitting Cone

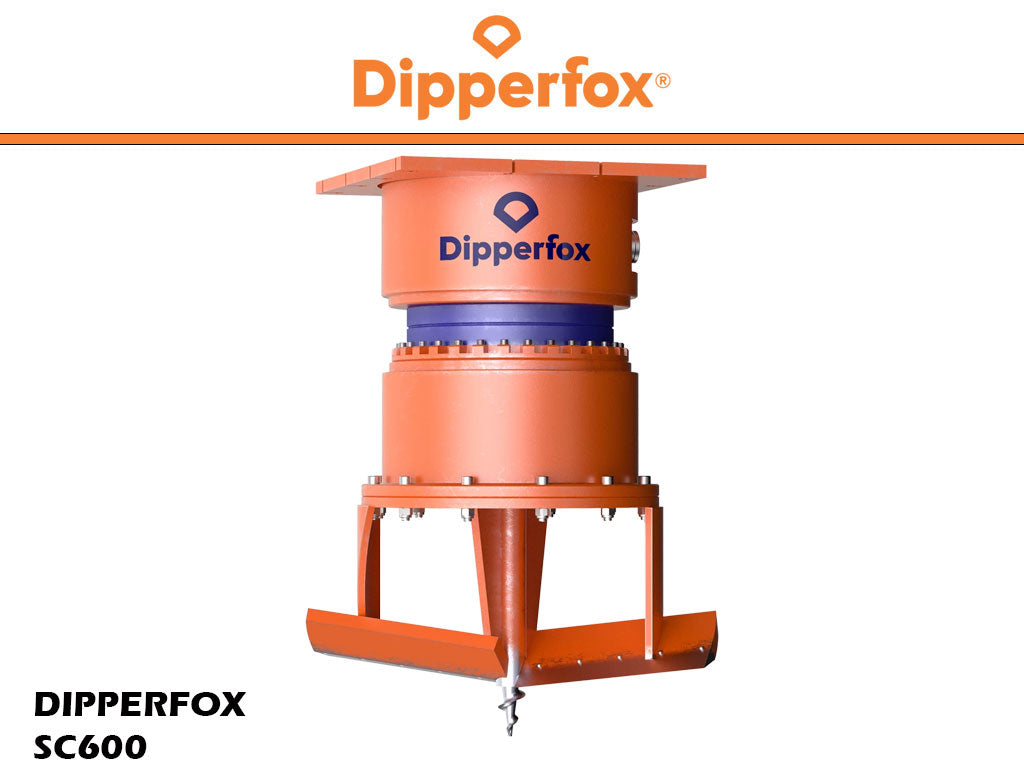

     MODEL SC600
    Machine Lbs. required 4000- 12000 lbs.
    Hydraulic flow required 17-39 gpm.
    Horsepower required 54-107 HP
    Cutting diameter 23.62"
    Drilling depth 27.56"
    Weight
    628 lbs.
    Gearbox
    1st gear torque 12465 ft lbf
    1st gear rotation 37 rpm
    2nd gear torque 7966 ft lbf
    2nd gear rotation 57 rpm
    Performance
    Stumps per hour up to 60
    Drilling speed per stump ca 60 sec
    Cutting step chip thickness .2"-.59"
