DPM mini jaws heavy duty hybrid style tree forks for mini loaders

Paddle style
MOUNTING
Hydraulic options
REVISED 1/24

MINI JAWS - HYBRID STYLE

Small but mighty, the HD Mini Nursery Jaws® is the perfect addition to your walk-behind loader. With an 155 pound capacity, the Mini Nursery Jaws® can handle your toughest jobs with ease. Like all the larger Nursery Jaws®, the Mini Nursery Jaws® can move B&B, containers, boxes and rocks and boulders. Coupled with a mini loader or walk behind loader, the HD Mini Nursery Jaws® allows you to transport your landscaping material in tight places, through gates and down narrow aisles. The Mini Nursery Jaws® will make your mini loader mighty!

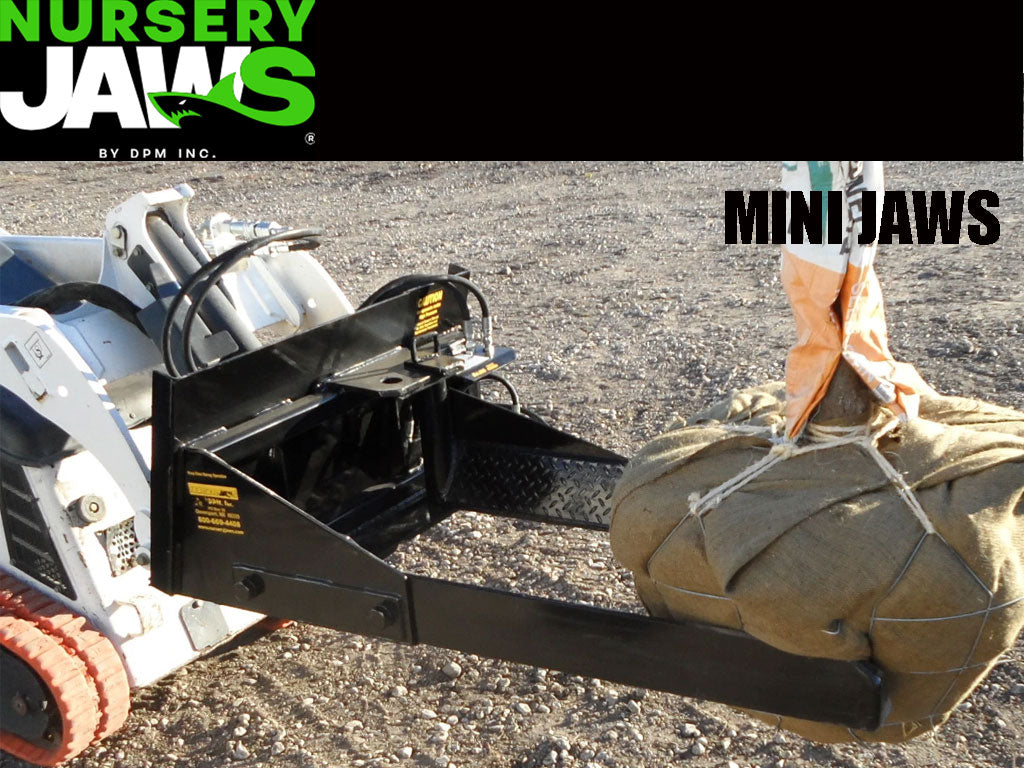

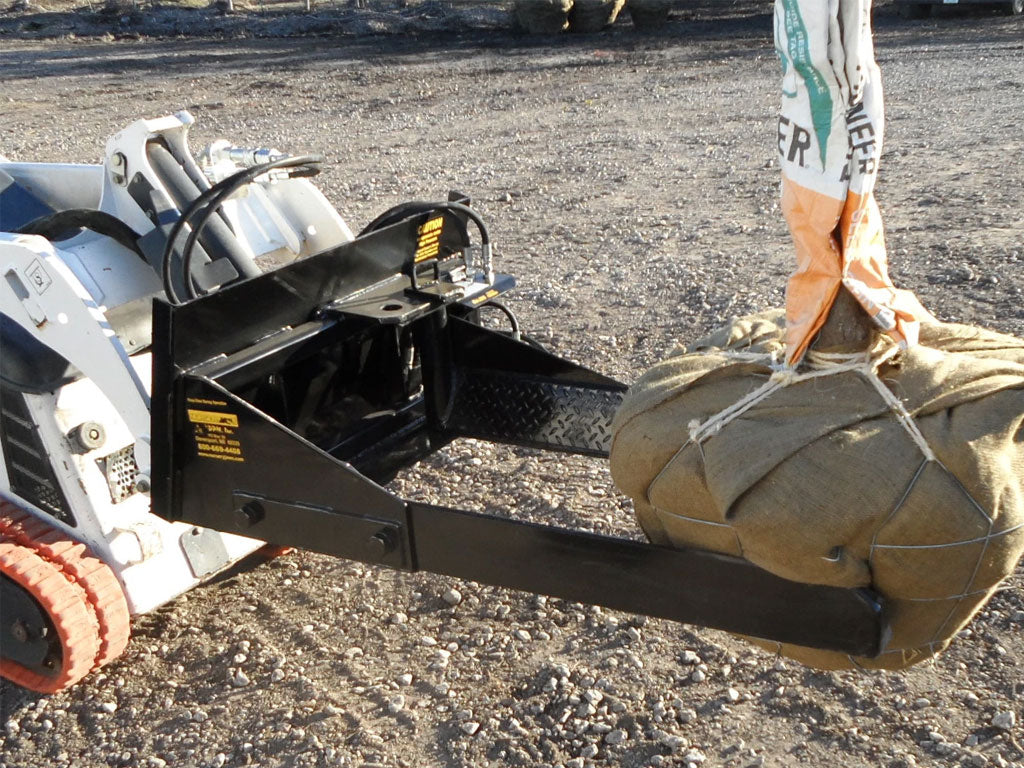

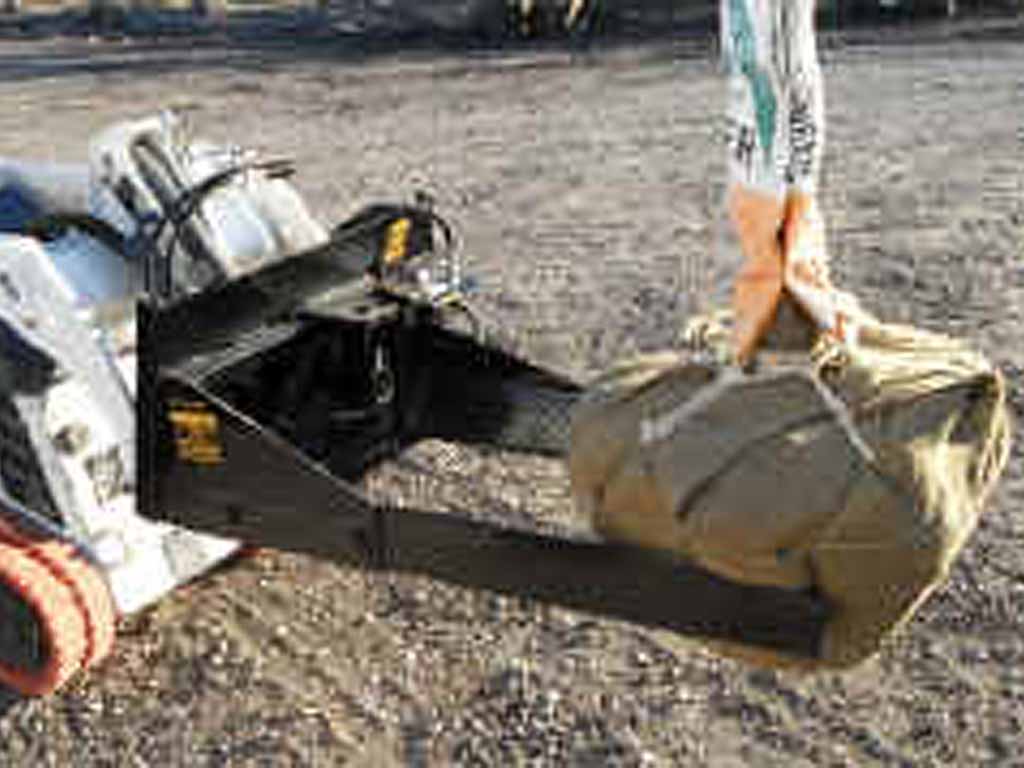

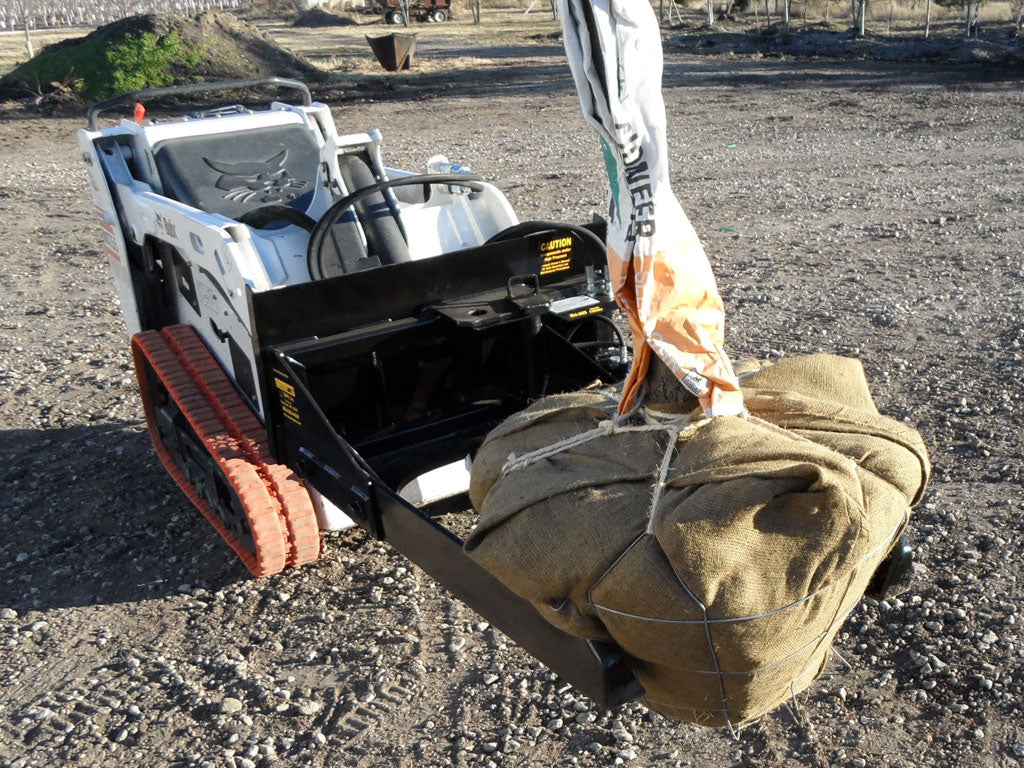

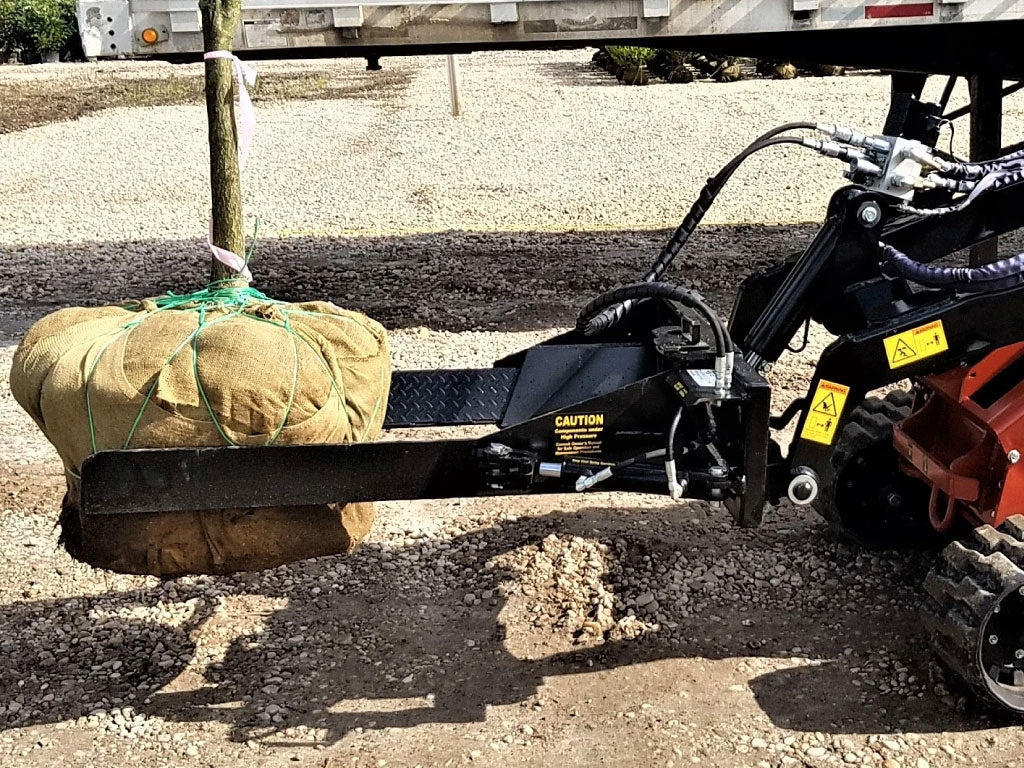

  • Handle up to 36" B&B

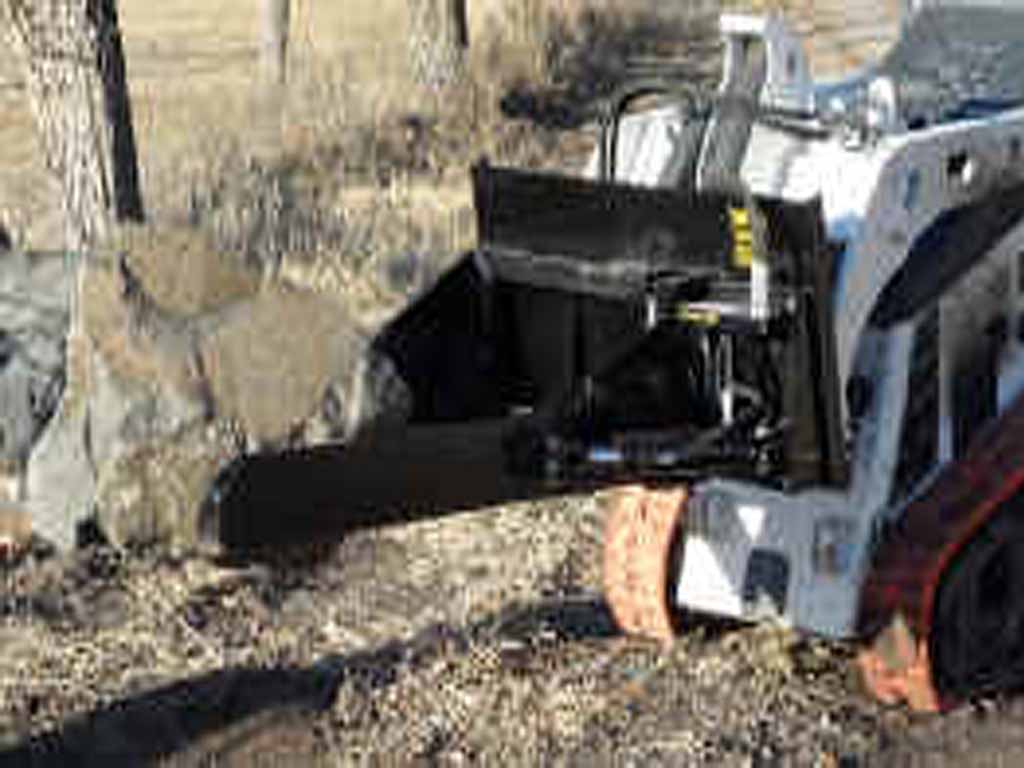

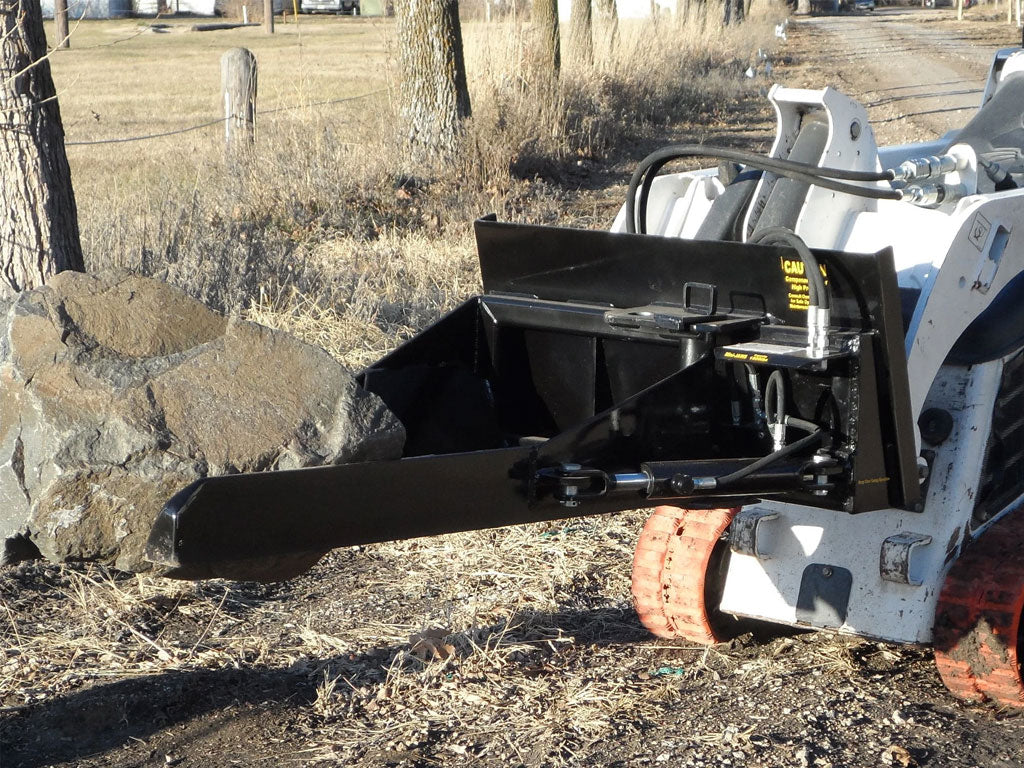

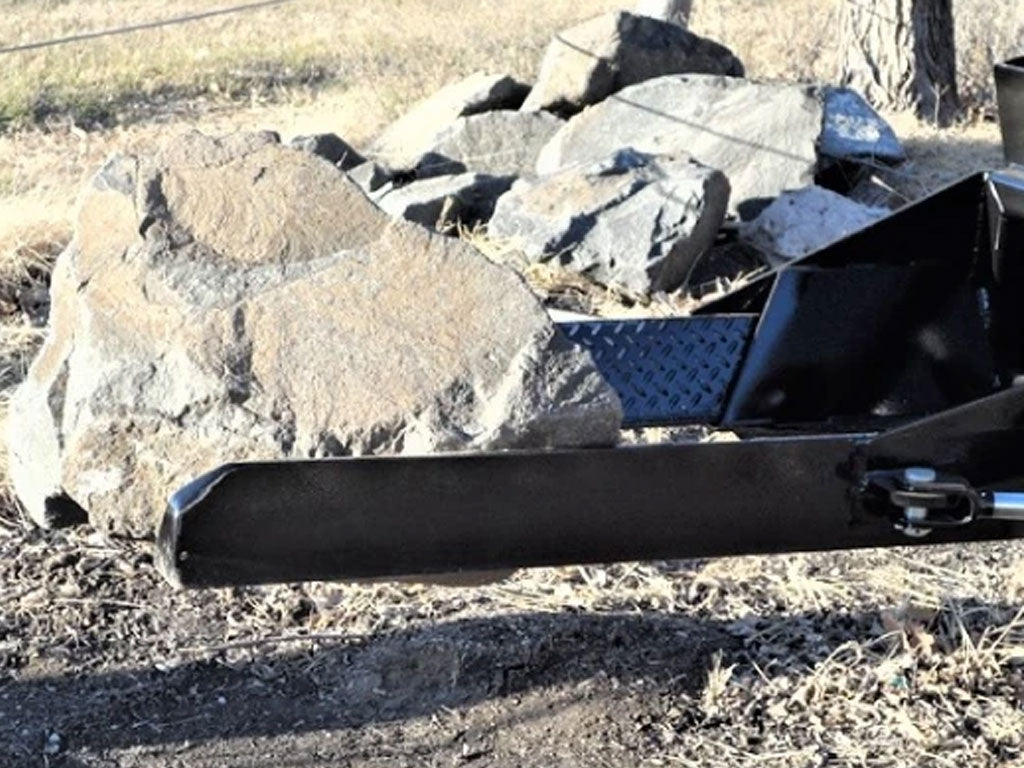

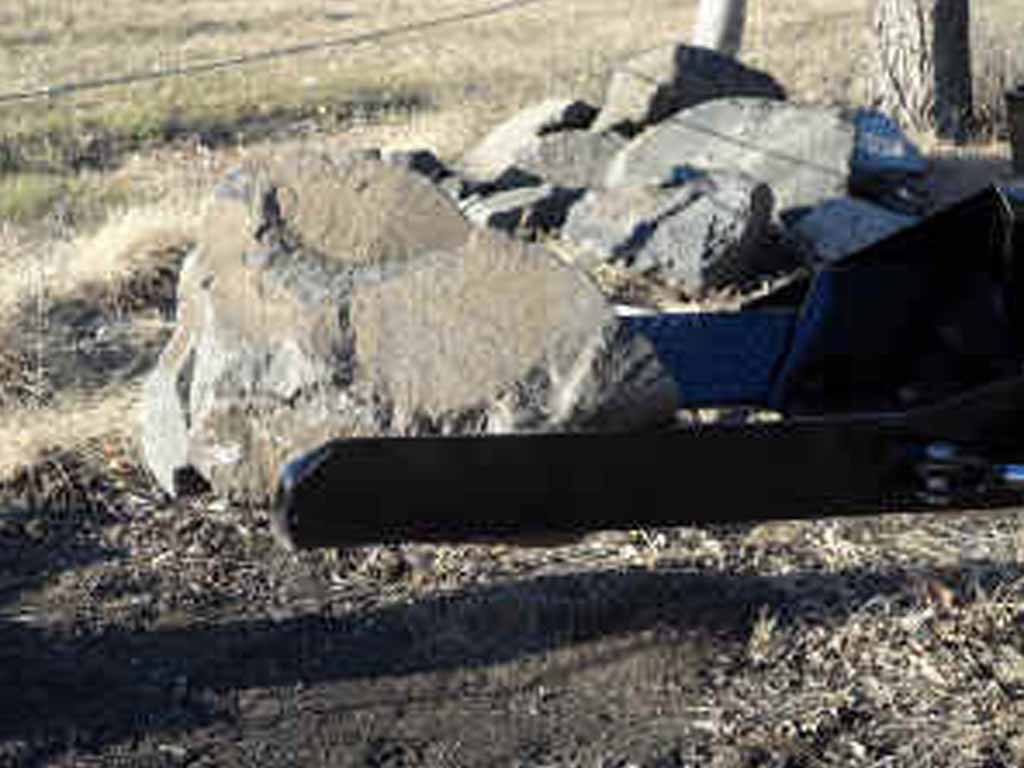

  • Move containers, rocks and boulders
  • Lightweight & Compact
  • Handle up to 1500 pounds

A perfect machine for the smaller walk behind loaders like Toro Dingo, Ramrod, Kanga, Bobcat, Gehl, Gravely and others.

Options:

  • (3) DIFFERENT SIZE PADDLES 36"x5", 42"x5" & 48"X5"
  • UPGRADDED PREASURE RELIEF COUPLERS -ALLOWS EASIER CONNECTION TO MACHINE
  • FLOW CONTROL - ALLOWS YOU TO CONTROL SPEED OF PADDLE MOVEMENT
  • BOX PADDLES - PADDLES MADE A 9 DEGREE ANGLE FOR LOADING BOXED MATERIALS

** Paddle length is the total length, and does not reflect the total usable length.

FORK LENGTHS 36", 42", 48"
FORK ANGLE 22 DEGREES
FORK MATERIAL 5" TREAD PLATE
SPREAD OF FORKS 13"-17"
WEIGHT +/- 300 LB
CARRYING CAPACITY 1500 LB
HYDRAULICS 3000 PSI
ROOTBALL CAPACITY 36"
How To Determine Which Model of Nursery Jaws To Choose

By asking the right questions, you can easily determine which Nursery Jaws best fit your operation.

Mini Jaws ...Heavy Duty

What materials will the mini handle? Up to 36" B&B, plastic containers & small rocks, depending on the loader.
Loader requirements? Compact Mini Skid Steers only, 1500lb capacity or less
Characteristics of the Mini Jaws? Lightweight (300lbs) for compact loaders, compact for use in tight spaces (36"-48" forks), Very durable construction for newer high capacity or tracked mini loaders.

What mounting does my machine have? TORO is the universal mount available on almost all mini loaders. Bobcat MT mount is available on Bobcat MT machines.

Do I need to upgrade to pressure relief fittings? My opinion is yes. Attachments can build pressure from the machines they are on or weather from sitting. With a standard fitting the only way to release pressure is to crack a hydraulic line. This can hurt someone or create a mess that can damage vegetation.

Do I need flow control or a manual valve? In most cases no. You add this option if you are worried that your operators will crush the products by not controlling the speed of the attachment.

Do I need a Box style paddle? In most cases no. You only add this option if the material you handle are contained in boxes. This is mostly done in CA.
