DPM nursery jaws 1 new style for machines with universal skid steer coupler

Revised 1/24

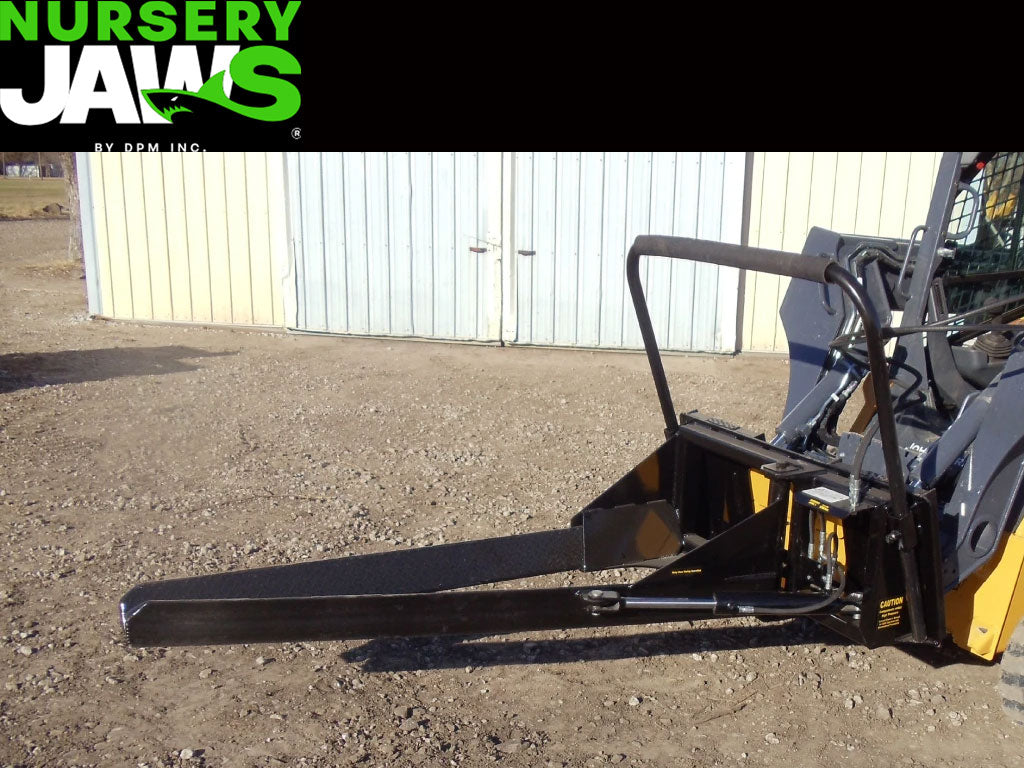

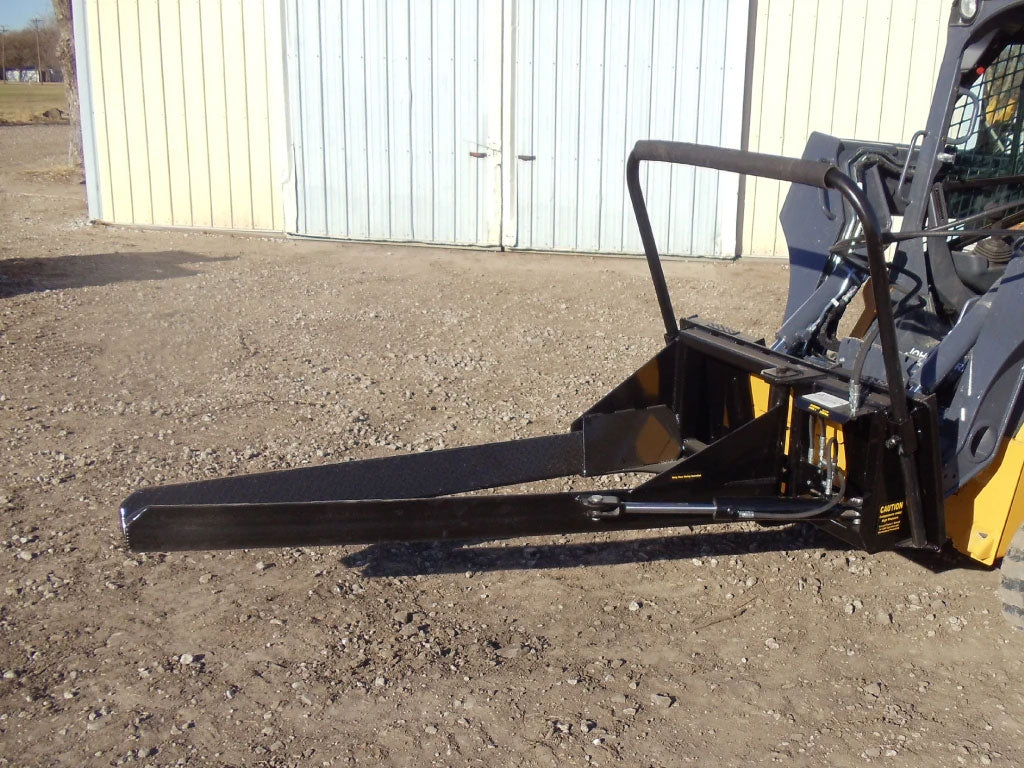

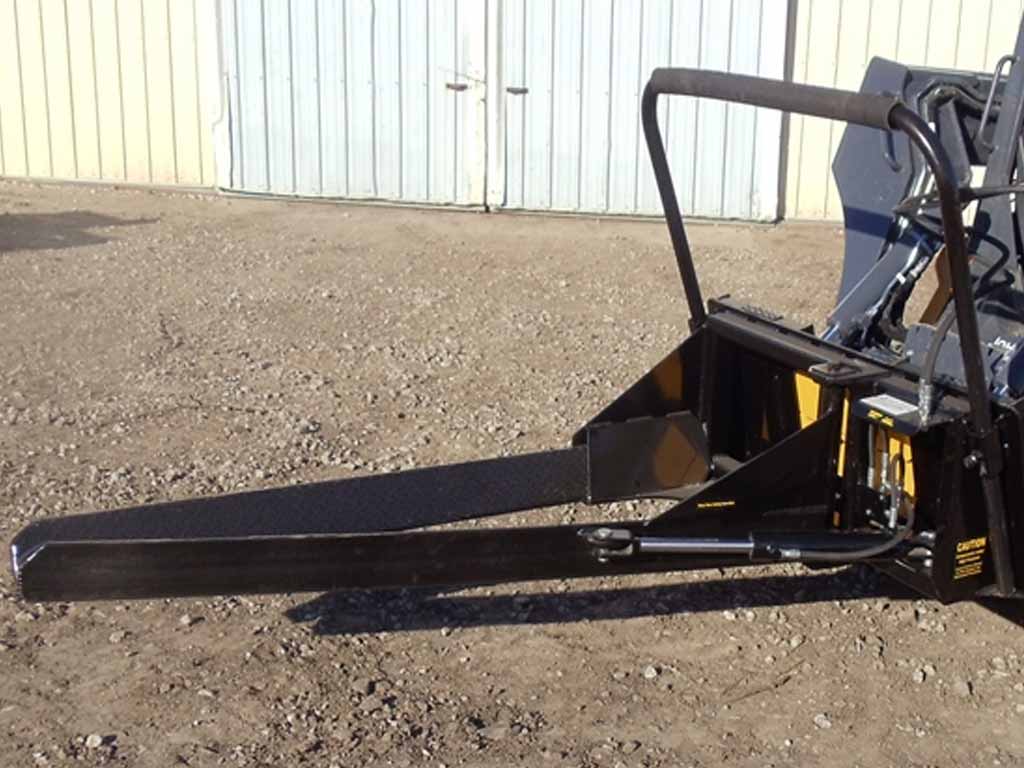

NURSERY JAWS 1 - NEW STYLE

The New Style Nursery Jaws® 1 is built rugged featuring a fixed pivot point. Built DPM tough, the New Style Nursery Jaws® 1 works equally well for the nurseryman or landscaper. Now you can handle multiple B&B, containers, boxes and boulders. The New Style Nursery Jaws® 1 features extremely durable construction to handle the hard usage that today's business demands.

With the New Style Nursery Jaws 1, you can:

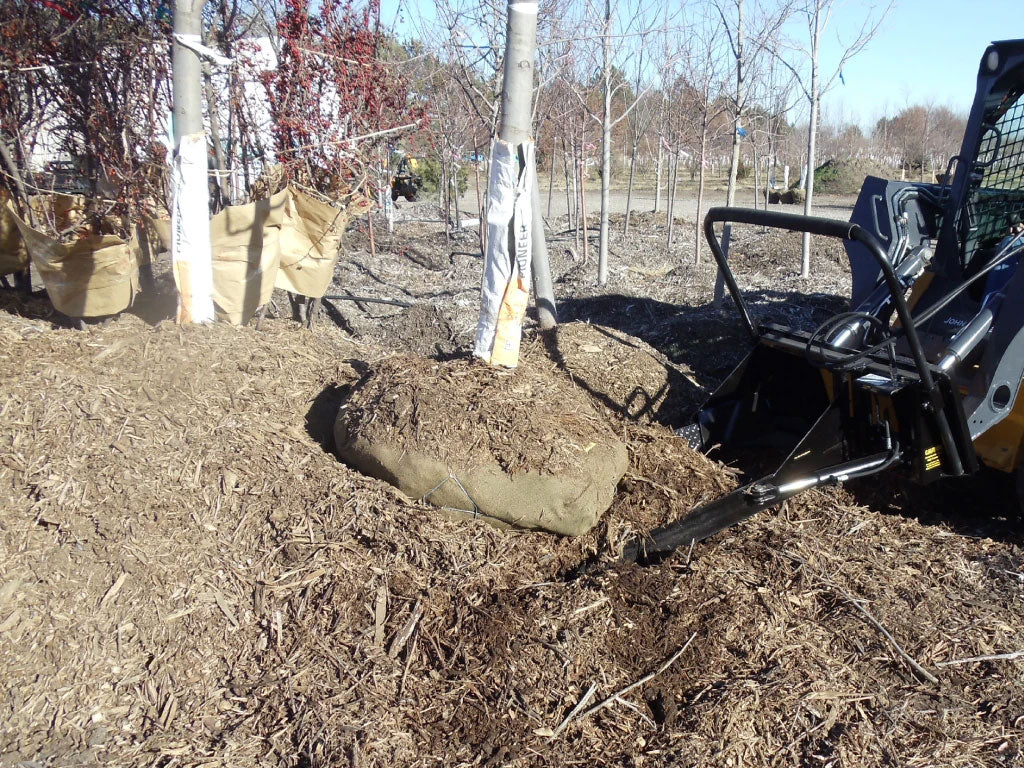

• Remove trees from mulch
• Move up to 44" B&B trees

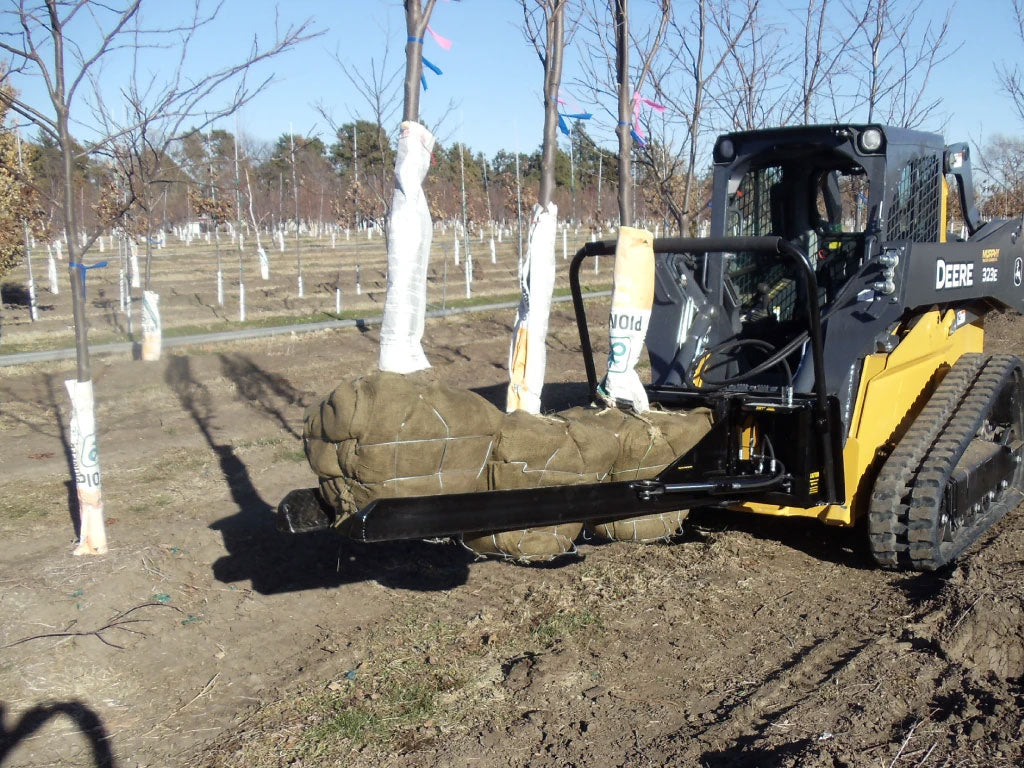

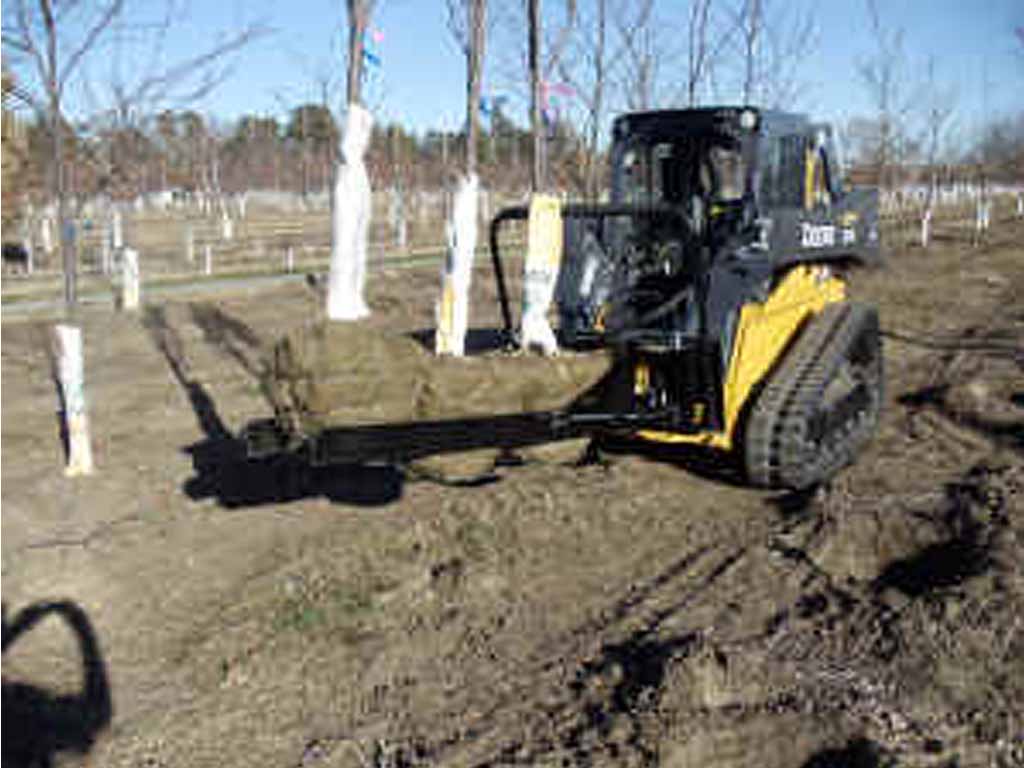

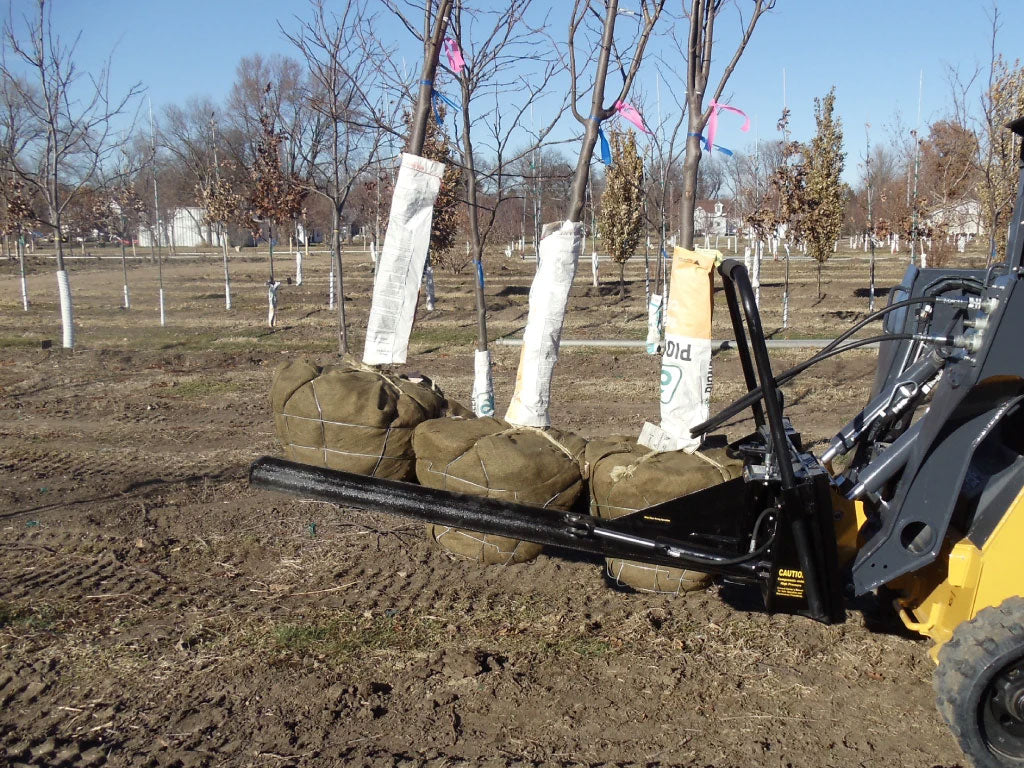

• Move multiple B&B trees (Up to 3-28" balls with 72" Forks)
• Move up to 24" boxes or containers
• Load, unload and double stack
• Transport and plant nursery stock

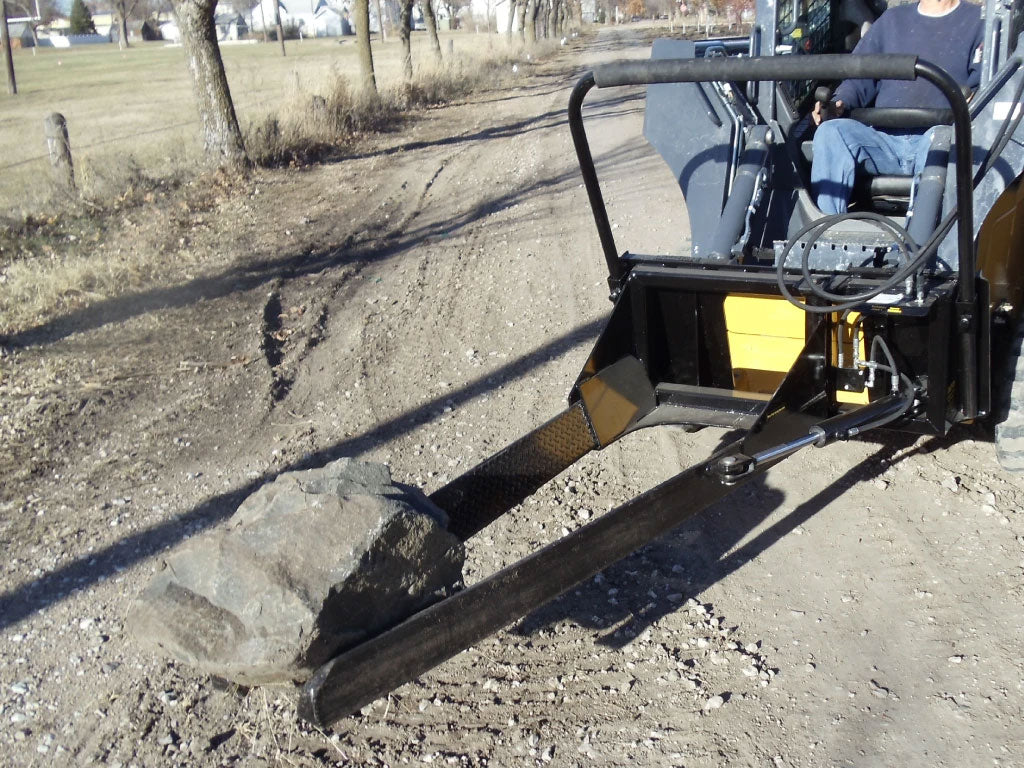

• Move and place boulders
• Simple to use
• Carry loads up to 3000 lbs.

Options:

• (2) DIFFERENT SIZE PADDLES 66"x5", & 72"X5"
• UPGRADDED PREASURE RELIEF COUPLERS -ALLOWS EASIER CONNECTION TO MACHINE
• FLOW CONTROL - ALLOWS YOU TO CONTROL SPEED OF PADDLE MOVEMENT
• BOX PADDLES - PADDLES MADE A 9 DEGREE ANGLE FOR LOADING BOXED MATERIALS

** Paddle length is the total length, and does not reflect the total usable length.

How To Determine Which Model of Nursery Jaws To Choose

By asking the right questions, you can easily determine which Nursery Jaws best fit your operation. For example, a small landscaper with a 1200lb lift capacity loader does not need a Nursery Jaws 2. Conversely, a large wholesaler with a 3000 lbs. capacity loader should not have a Nursery Jaws Jr. There are a few exceptions to every rule, but here are a few guidelines to follow.

Nursery Jaws 1-New Style...

• What material s will the NJ 1 handle? Up to 44" B&B, 24" boxes, plastic containers, grow bags, small rocks and boulders.
• Loader requirements? 1500-3000 lbs. rated capacity
• Characteristics of the Nursery Jaws 1? Simple to use, durable, same side loading and unloading (66" or 72" forks), double stacking and planting.
