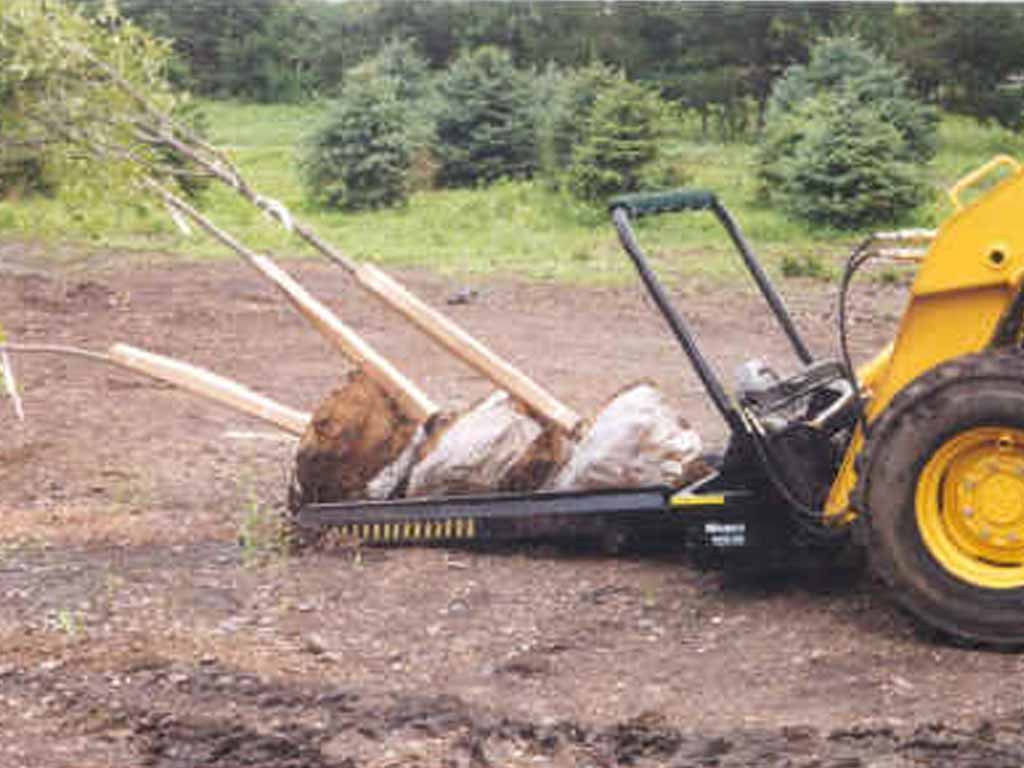

DPM next generation nursery jaw tree forks for machines with universal skid steer coupler

Width
Paddle Size
HYDRALICS
Revised 1/24

NEXT GENERATION - NURSERY JAWS

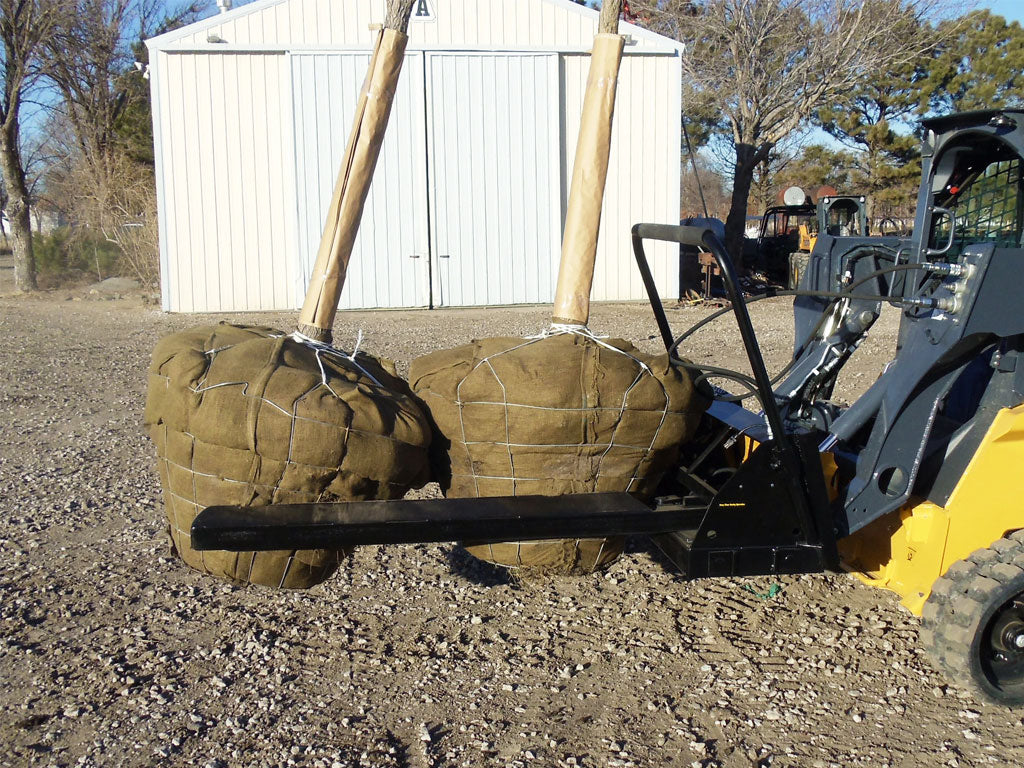

The Next Generation Nursery Jaws® are one of the newest additions to the Nursery Jaws® family of material handling attachments. Next Generation Nursery Jaws® has impressive capacity with heavy duty construction for long life. The Next Generation Nursery Jaws® incorporates the versatility of the Nursery Jaws® 2's method of handling materials but with a greater capacity, greater range of motion and with virtually no maintenance! From large to small, now you can do it all!

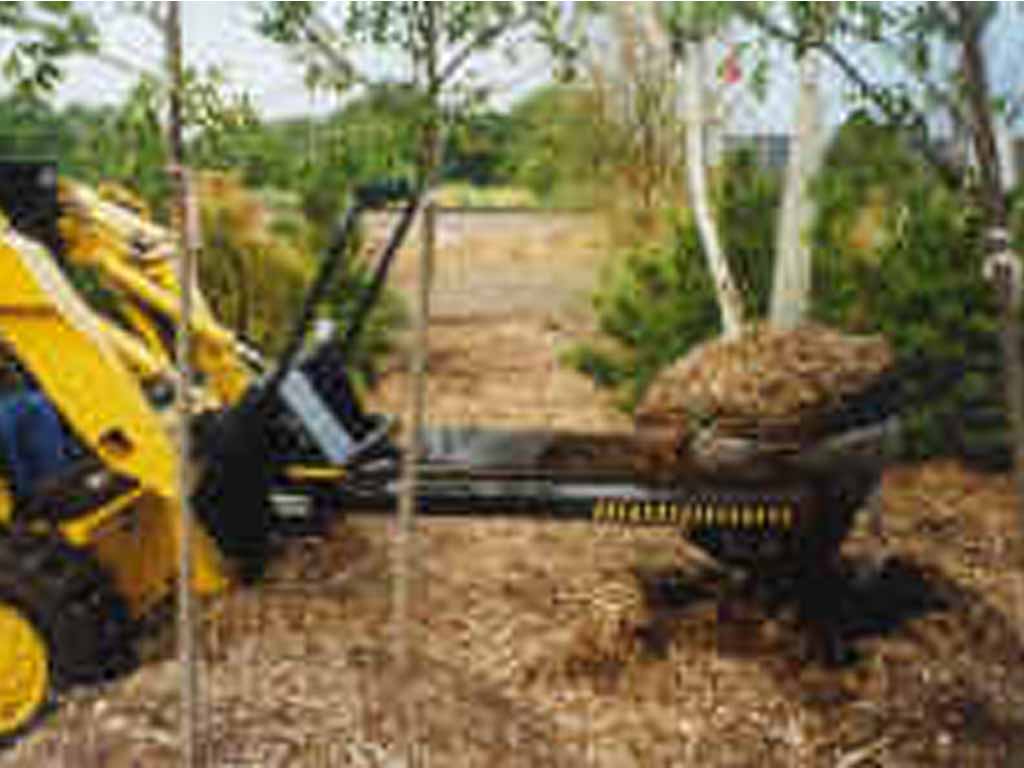

  • Remove trees from mulch

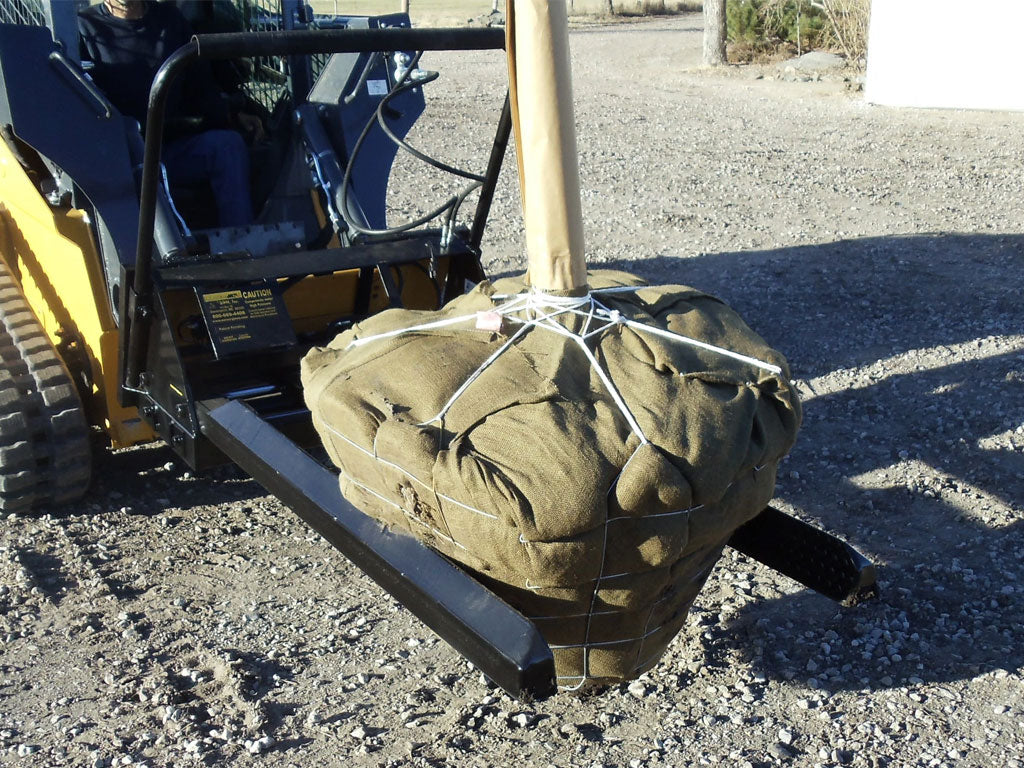

  • Move up to 65" B&B trees
  • Move plastic containers, grow bags and pallets

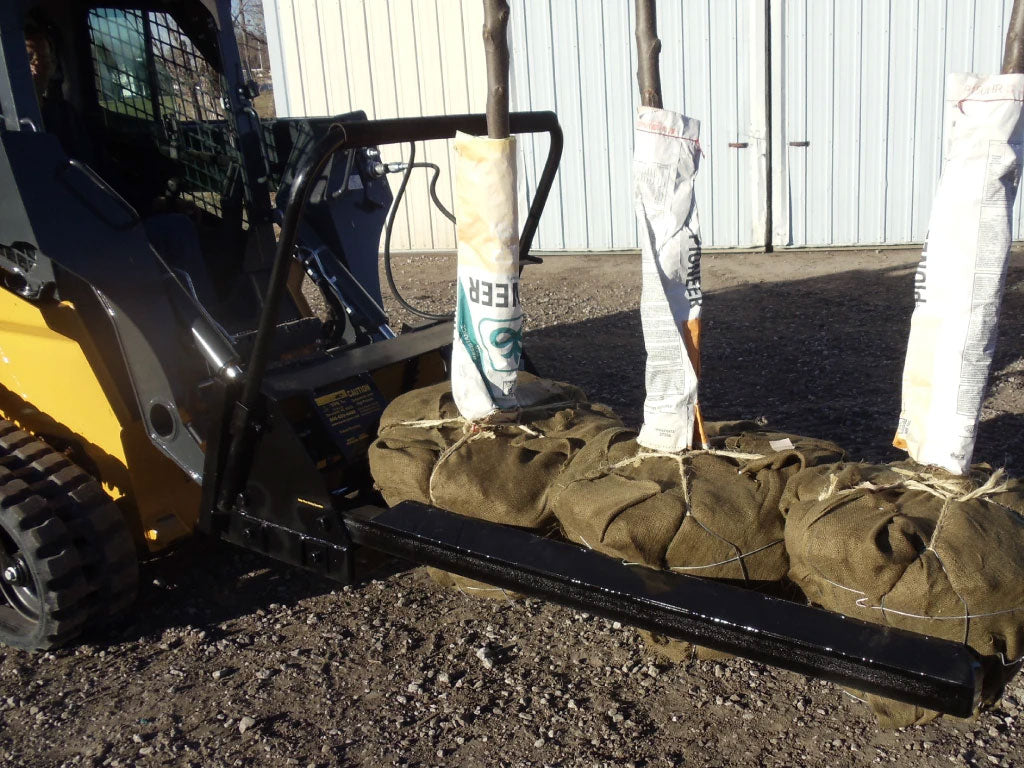

  • Move multiple B&B trees
  • Move up to 36" boxes (48" with expanded version)
  • Move and place boulders up to 2 1/2 tons
  • Load, unload and double stack
  • Transport and plant nursery stock
  • Carry loads up to 4500 lbs.
  • Two functions to adjust parallel width of the forks, with a wider range of adjustments than the Nursery Jaws® 2. The ability to handle materials either using the pivot fork or the parallel pivot arm makes it extremely USER FRIENDLY!
  • Universal skid steer mounting

Options:

  • (2) DIFFERENT SIZE PADDLES 72"x5" & 80"x5"
  • UPGRADDED PREASURE RELIEF COUPLERS -ALLOWS EASIER CONNECTION TO MACHINE
  • FLOW CONTROL - ALLOWS YOU TO CONTROL SPEED OF PADDLE MOVEMENT. ELECTRIC OR MANUAL OPTIONS
  • BOX PADDLES - PADDLES MADE A 9 DEGREE ANGLE FOR LOADING BOXED MATERIALS AND LARGER B&B.

** Paddle length is the total length, and does not reflect the total usable length.




          FORK LENGTHS 72", 80"
          FORK ANGLE 22 DEGREES
          FORK MATERIAL 6" TREAD PLATE
          SPREAD OF FORKS 16"-30"
          OPEN AT TIPS 0"-7248"
          WEIGHT 860 LB
          CARRYING CAPACITY 4500 LB
          HYDRAULICS 3000 PSI
          ROOTBALL CAPACITY 65"
          How To Determine Which Model of Nursery Jaws To Choose

          By asking the right questions, you can easily determine which Nursery Jaws best fit your operation. For example, a small landscaper with a 1200 lb lift capacity loader does not need a Nursery Jaws 2. Conversely, a large wholesaler with a 3000 lb capacity loader should not have a Nursery Jaws Jr. There are a few exceptions to every rule, but here are a few guidelines to follow.

          Next Generation Nursery Jaws.....
          • What material s will the Next Generation Nursery Jaws handle? Up to 65" B&B, 36" boxes (up to 48" with the expanded model), plastic containers, grow-bags and boulders up to 2 1/2 tons.
          • Loader requirements? 2000-4500 lbs. rated lift capacity
          • Characteristics of the Next Generation Nursery Jaws? It has 2 functions to adjust parallel width of the forks but has a wider range of adjustment than the Nursery Jaws 2. It can handle materials either by using the pivot fork or parallel movement of the pivot arm. The same principles as the Nursery Jaws 2 with increased capability, capacity & durability.
