DPM nursery jaws JR tree forks hybrid style for skid steer loaders
$3,950.00 - $4,315.00
12/24

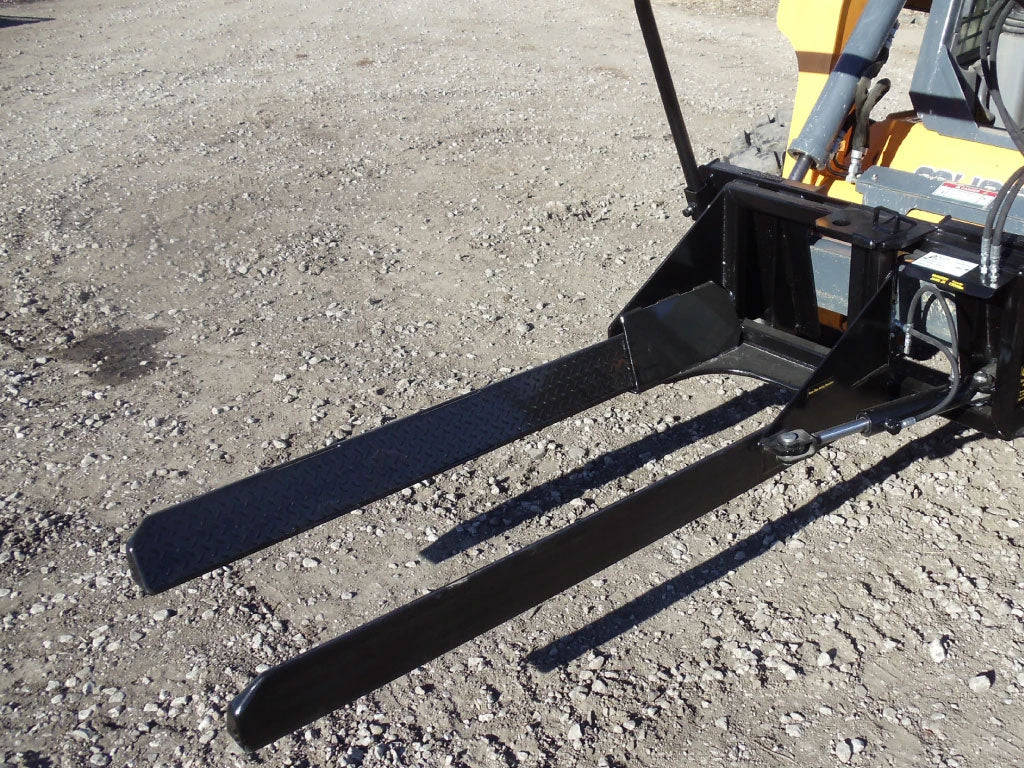

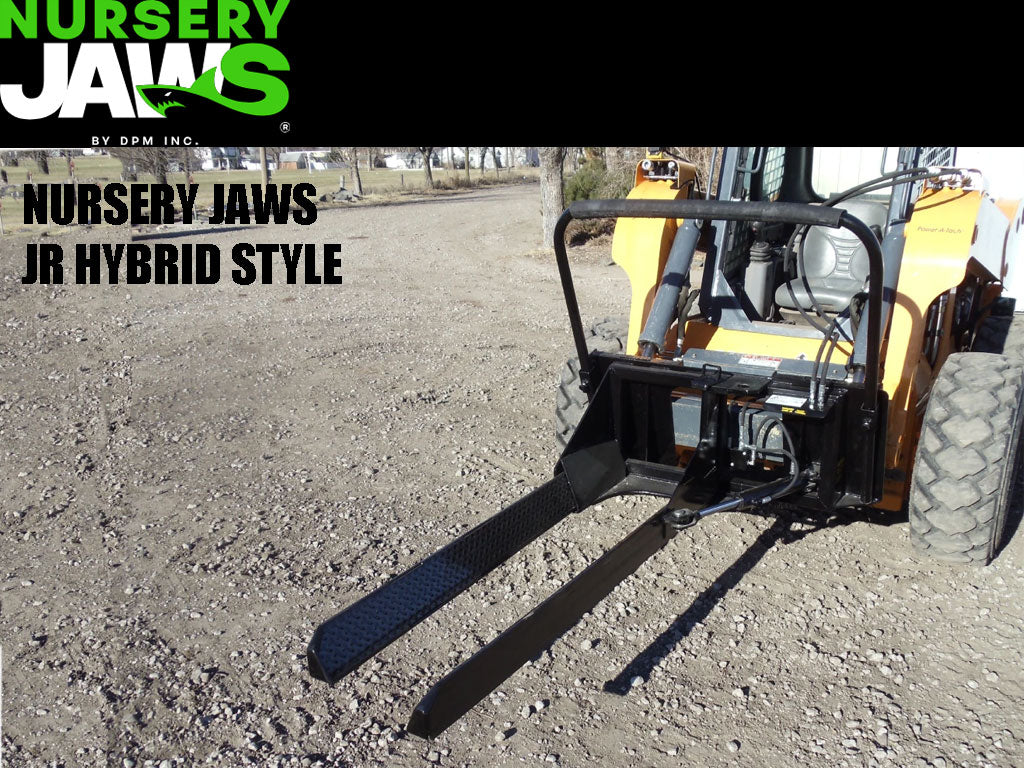

NURSERY JAWS JR - HYBRID STYLE
SKID STEER
Perfect Small to Mid-size Loader

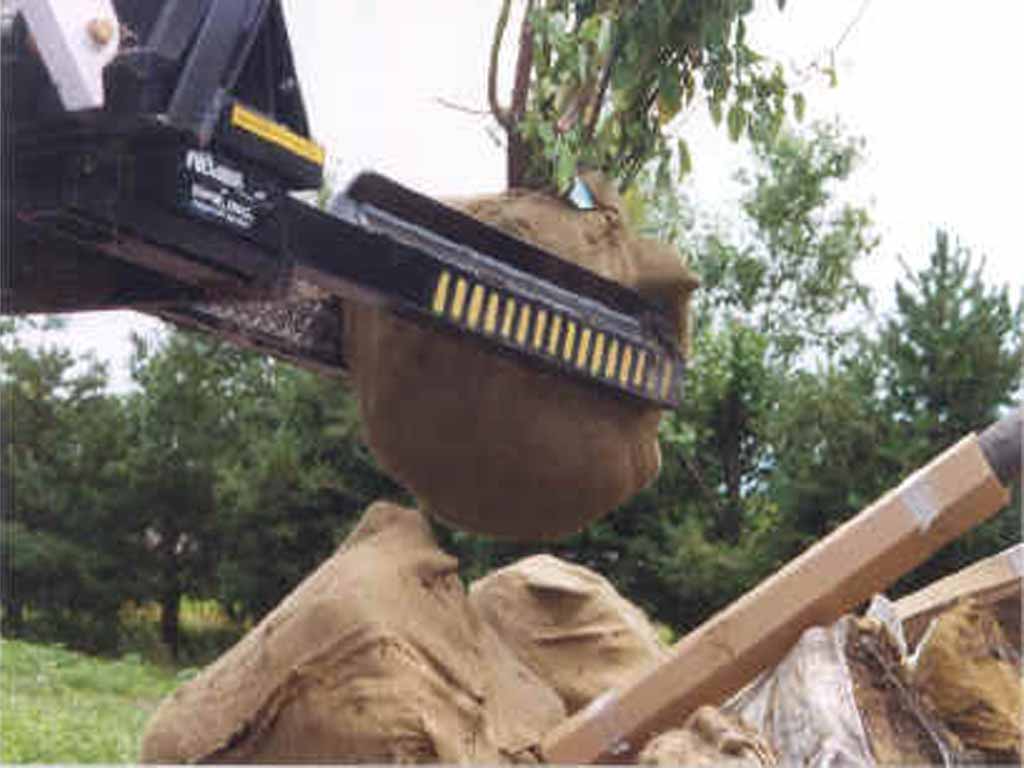

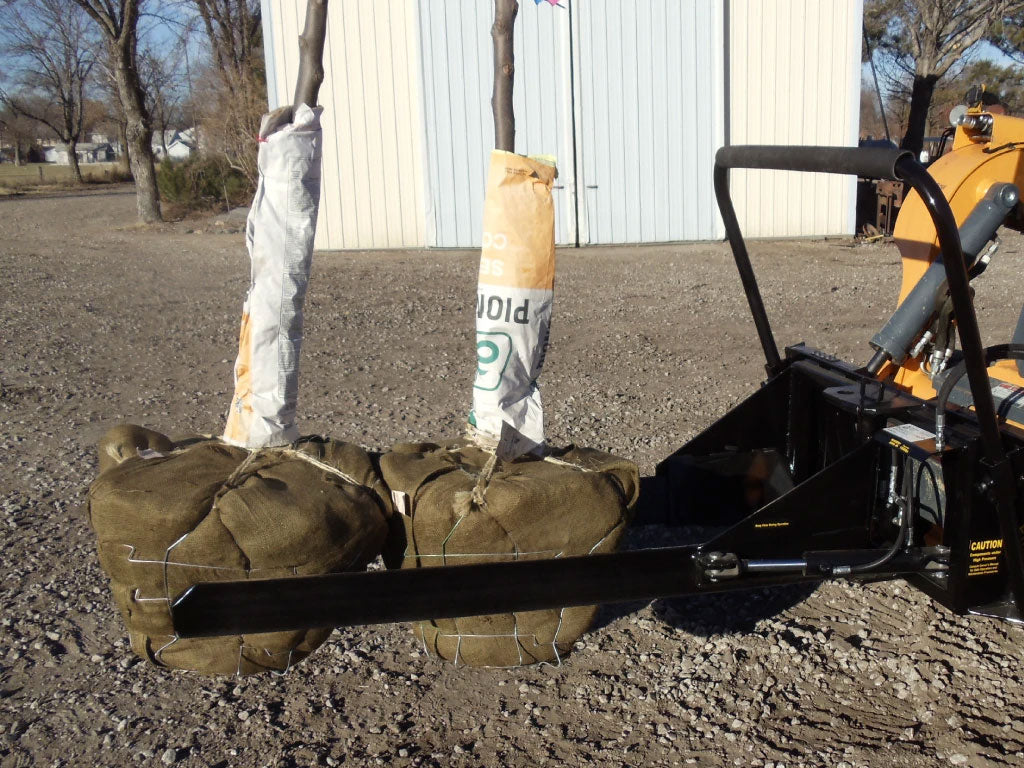

The Nursery Jaws® Jr is built to the exact standards of it’s big brothers, but with the smaller landscaper or nursery in mind. It is the perfect match for a small to mid-size loader and makes a one-person operation out of your landscaping jobs. Like all the Nursery Jaws®, the Nursery Jaws® Jr tackles all of your material handling needs. B&B, containers, boxes and boulders are all easily handles with the Nursery Jaws® Jr.
Features- Lightweight for smaller loaders
- Compact for greater maneuverability and more precise handling of smaller stock
- 20"-24" boxes
- B&B trees up to 36"
- Plastic containers

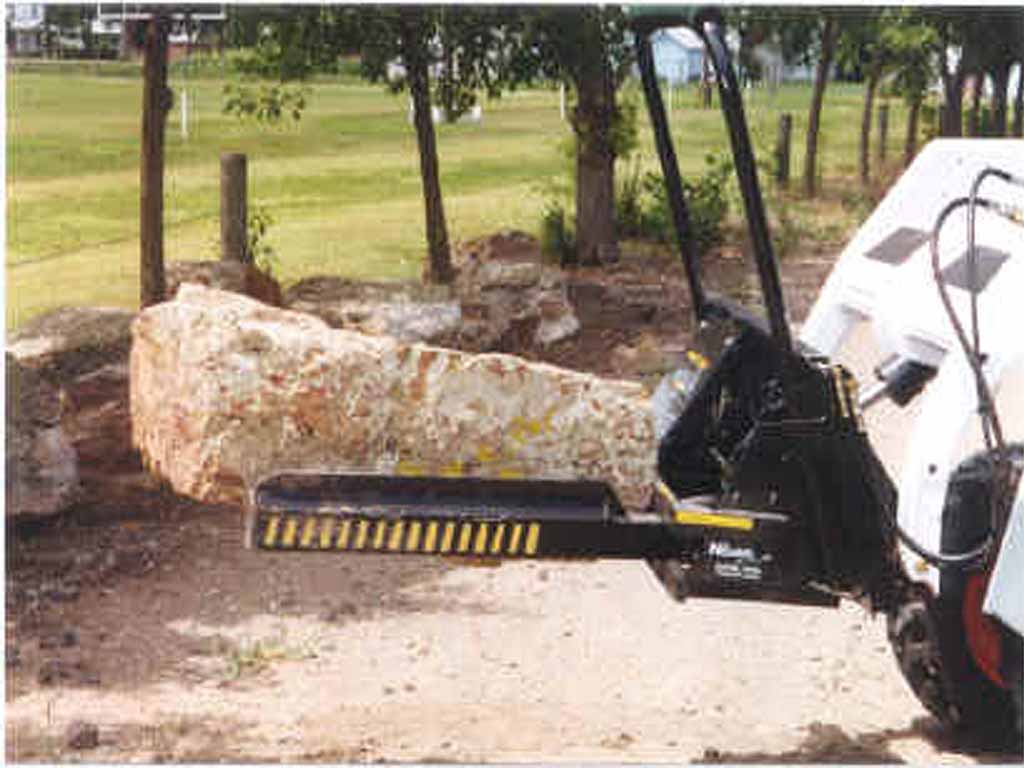

- Smaller Rock and Boulders
- Loads up to 1500lbs
- Compact for use in tight areas
- Narrow fork spacing
** Skid steer universal (Bobcat) mounting only.
Options:
- (2) DIFFERENT SIZE PADDLES 50"x5" & 60"x5"
- UPGRADDED PREASURE RELIEF COUPLERS -ALLOWS EASIER CONNECTION TO MACHINE
- FLOW CONTROL - ALLOWS YOU TO CONTROL SPEED OF PADDLE MOVEMENT. ELECTRIC OR MANUAL OPTIONS
- BOX PADDLES - PADDLES MADE A 9 DEGREE ANGLE FOR LOADING BOXED MATERIALS AND LARGER B&B.
** Paddle length is the total length, and does not reflect the total usable length.
| FORK LENGTHS | 50", 60" |
| FORK ANGLE | 22 DEGREES |
| FORK MATERIAL | 5" TREAD PLATE |
| SPREAD OF FORKS | 14"-18" |
| WEIGHT | +/- 500 LB |
| CARRYING CAPACITY | 1500 LB |
| HYDRAULICS | 3000 PSI |
| ROOTBALL CAPACITY | 36" |
How To Determine Which Model of Nursery Jaws To Choose
By asking the right questions, you can easily determine which Nursery Jaws best fit your operation. For example, a small landscaper with a 1200 lb lift capacity loader does not need a Nursery Jaws 2. Conversely, a large wholesaler with a 3000 lb capacity loader should not have a Nursery Jaws Jr. There are a few exceptions to every rule, but here are a few guidelines to follow.
Nursery Jaws Jr...
What materials will the NJ Jr handle? Up to 36" B&B, 20"-24" boxes, plastic containers, small rocks and boulders.
Loader requirements? 1500lbs rated capacity and less
Characteristics of the Nursery Jaws Jr? Lightweight (400-450lbs) for smaller loaders, compact for use in tight spaces (50" or 66" forks) and narrow fork spacing (parallel at 18").
Do I need to upgrade to pressure relief fittings? My opinion is yes. Attachments can build pressure from the machines they are on or weather from sitting. With a standard fitting the only way to release pressure is to crack a hydraulic line. This can hurt someone or create a mess that can damage vegetation.
Do I need flow control or a manual valve? In most cases no. You add this option if you are worried that your operators will crush the products by not controlling the speed of the attachment.
Do I need a Box style paddle? In most cases no. You only add this option if the material you handle are contained in boxes. This is mostly done in CA.
