ENGCON EC206 tiltrotator coupler for 8800 to 13000 lbs. excavators
ENGCON EC206 tiltrotator coupler for 8800 to 13000 lbs. excavators
ENGCON EC206 tiltrotator coupler for 8800 to 13000 lbs. excavators
ENGCON EC206 tiltrotator coupler for 8800 to 13000 lbs. excavators
ENGCON EC206 tiltrotator coupler for 8800 to 13000 lbs. excavators
ENGCON EC206 tiltrotator coupler for 8800 to 13000 lbs. excavators
ENGCON EC206 tiltrotator coupler for 8800 to 13000 lbs. excavators
ENGCON EC206 tiltrotator coupler for 8800 to 13000 lbs. excavators

1068693

ENGCON EC206 tiltrotator coupler for 8800 to 13000 lbs. excavators

$0.00

Business Financing Available

7/25

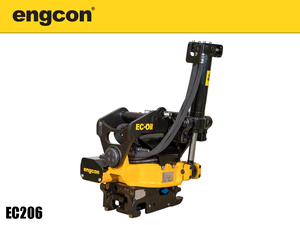

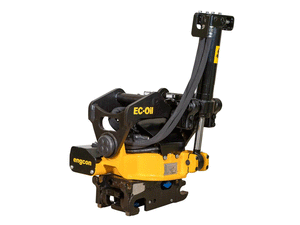

ENGON EC206 TILTROTATOR

For 8,800–13,200 lbs. (4-6 metric ton) excavators

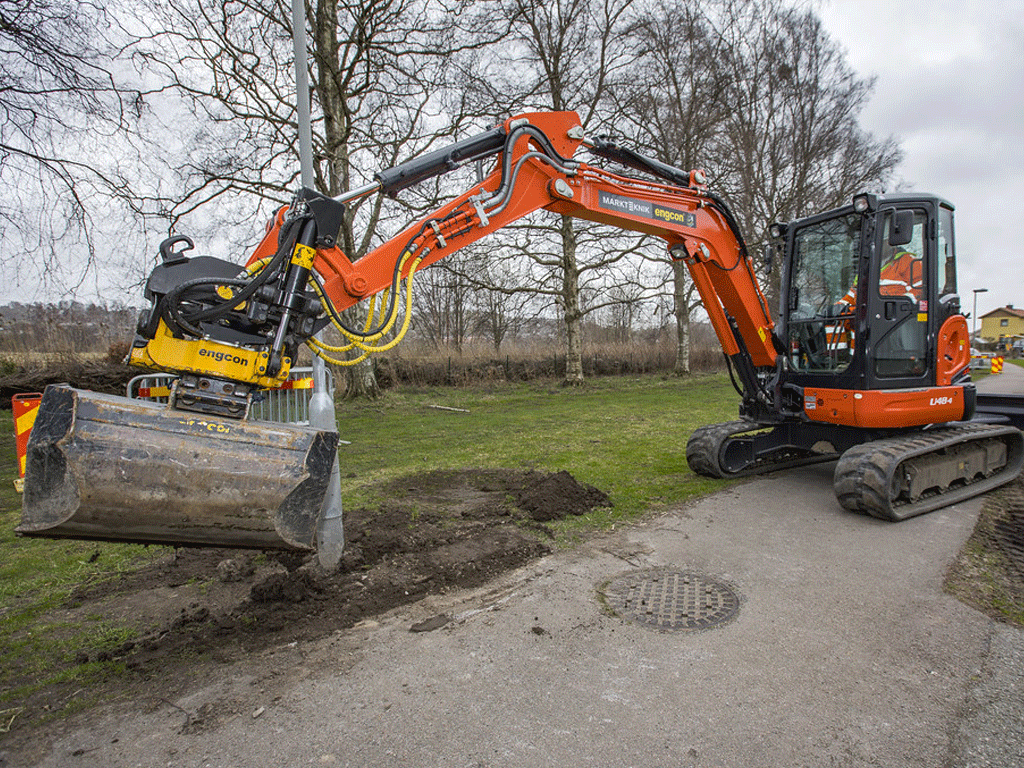

The EC206 tiltrotator is designed for 8,800–13,200 lb (4–6 metric ton) excavators, delivering unmatched efficiency, safety, and versatility. Like its larger counterpart, the EC206 features ±45° tilt and unlimited 360° rotation, enabling precision work in tight spaces with fewer machine movements.

With the EC-Oil automatic quick coupler system (included with purchase of the tiltrotator, machine coupler, and control system), operators can connect and disconnect hydraulic tools without leaving the cab, boosting productivity and comfort on every job.

Key Features:

  • EC-Oil Fully Automatic Quick Coupler System (standard on upper section with full package purchase)

  • Unlimited Rotation & ±45° Tilt Angle – Maximize maneuverability and reduce repositioning

  • Integrated Central Lubrication – Single grease point or connect to excavator’s system for easy service

  • Load-Holding Valves on Tilt Cylinders – Enhanced safety for operator and surroundings

  • Extra Hydraulic Function – Power auxiliary tools like grapples or compactors beneath the tiltrotator

  • Optional Integrated Gripper (S40) – Ideal for handling pipes, posts, and materials

  • Hardened Piston Rods – Built to withstand tough jobsite demands

  • Quick Coupler Options: S40 Standard, Optional S45 – Both compatible with EC-Oil

  • Q-Safe Technology – Advanced coupler safety built in

Control & Electrical Systems:

  • Proportional Control System – Smooth, variable control with remote support, track/wheel steering, and boom slew

  • Adaptable Electrical System – Compatible with 12V or 24V machines

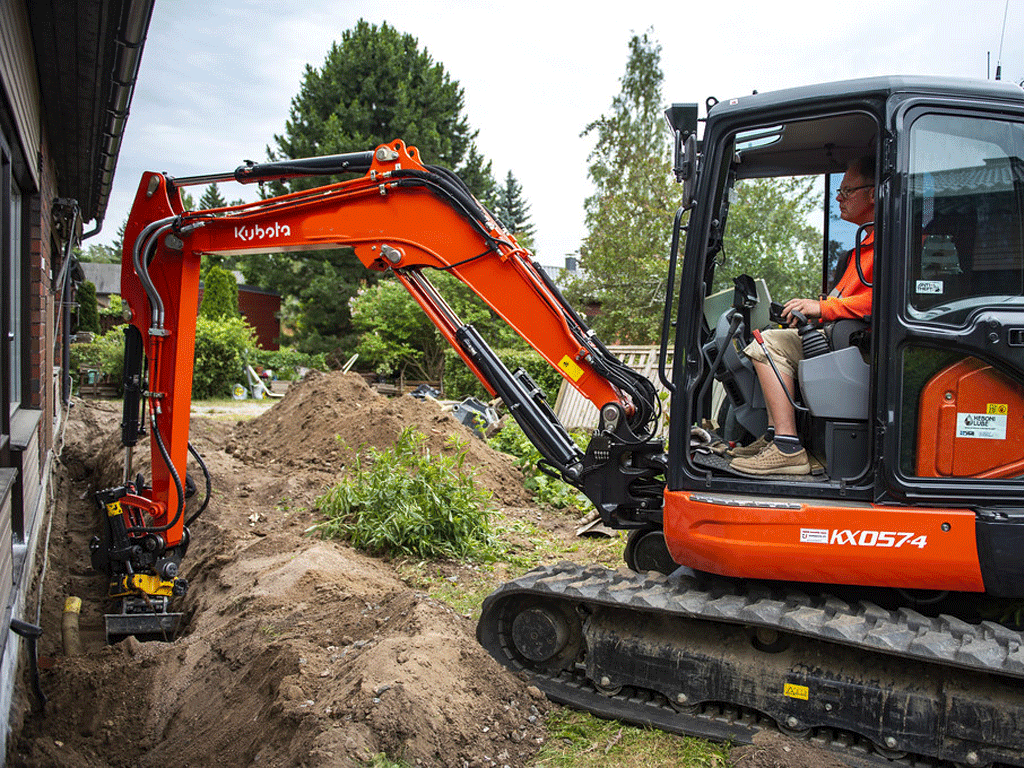

Whether you're trenching, grading, or handling materials, the EC206 from Engcon transforms your compact excavator into a multi-functional, highly profitable tool carrier.

What is included?

  • Coupler
  • Tiltrotator
  • Hydraulic block
  • Hose protection
  • C2C-DC2@ Electronics
  • DC2 Computer
  • MIG2 - Controls / Joysticks
  • Installation

Requirements for installation:

  • Domestic USA location
  • Full covered garage for machine and attachment to be installed in.
  • Product must arrive before appointment is scheduled
  • Machine and attachment must be at garage location
  • Additional man / helper (mostly for lifting)
  • Any thumb, attachment or coupler must me removed from the machine before install

* Please read other "TABS"

  • Width A [inches]:11.4
  • Width B [inches]:8.7
  • Width C [inches]:8.6
  • Total length D [inches]:19.7
  • Build height E [inches]:15
  • Tilt [°]:2x45
  • Weight [lbs.]:375
  • Max bucket width recommended by engcon [inches]:47.2
  • Rec hydraulic flow DC2/SS10 [gal/min]:11
  • Rec hydraulic flow SS9 tilt/rotation [gal/min]:4/8
  • Max hydraulic pressure [psi]:3,200
  • Max breakout torque [lbf.]:33,190
  • Standard mounting:S40, S45
  • Base machine weight [lbs.]:8,800-13,200



MAKE MODEL NOTES
AIRMAN AX48U, AX55U
BOBCAT  E42, E45, E48, E50, E55, E60
CASE CX42, CX45, CX50, CX55, CX58, CX60, CX65
CAT 305CR, 305.5CR, 306CR
COLTRAX CX49, CX56, CX58, CX62
DEVELON DX42, DX50Z, DX55R, DX62R, DX63, DX55W, DX57W
EUROCAMOCK 45
HITACHI ZX48U, ZX50U, ZX60U, ZX65USB
HYUNDIA RW60W, HW65, HX40, HX48,HX65, R55W, R55, R60CR
JCB 48Z, 50Z , 55Z, 56Z , 60C, 3CX
JOHN DEERE 50, 60
KATO HD50, HD55, HD60
KOBELCO SK45SRX, SK50SRX, SK55SRX, SR58SRX
KOMATSU PC45MR, PC55MR, PC58MR
KUBOTA U48, U50, U55, U56, KX040, KX057, KX060
LIUGONG 906
MECALAC 6MCR, 7MWR
NEW HOLLAND E50, E55, E57, E60, E65
SANY SX50, SX55, SX60, SX65W
SUNWARD SWE60UF
TAKEUCHI TB250, TB257FR, TB260, TB370, TB370W
VOLVO ERC50, ECR58, EC60, EW60
WACKER NEUSON ET42, ET58, ET65, EW65, EZ50
XCMG EX60W
YANMAR VIO50, VIO55, VIO57, SV60



 

 

 

This is one of the most popular Tiltrotators in the European market. We are expecting great market share in the USA market as the tiltrotator markets continues to grow at a rapid pace. Here are some recommendations.

  • The best feature of this tiltrotator is the "sandwich" design. The oil all runs thru the coupler. You do not need to leave the cab to hook up and run the attachments. It is also easy to remove the tiltrotator section.
  • Read all that tabs and requirements on this product
  • Recommend removing the tiltrotator and just use the coupler when using Hammers, Mulchers, Flail Mowers, Brush Cutters and rippers.
  • I would recommend adding counter weight to any excavator using a tilt rotator.
  • You will only be using attachments with a "S" Style coupler
  • Not all attachments work with the EC-Oil. You need to call us so we can look into mountings, hydraulic flows, back flow and pressures.
  • We will need to know if your machine has single circuit or dual circuit auxiliary hydraulics.
  • We will need to know if a attachment you want to use requires a case drain.
  • We can get EC-Oil top caps for attachments. Example of this is hammers need top caps.
  • Machines need to be equipped with a Cab (EROPS). The only units that can run on a non-cab machine (OROPS) is the Basic models.
