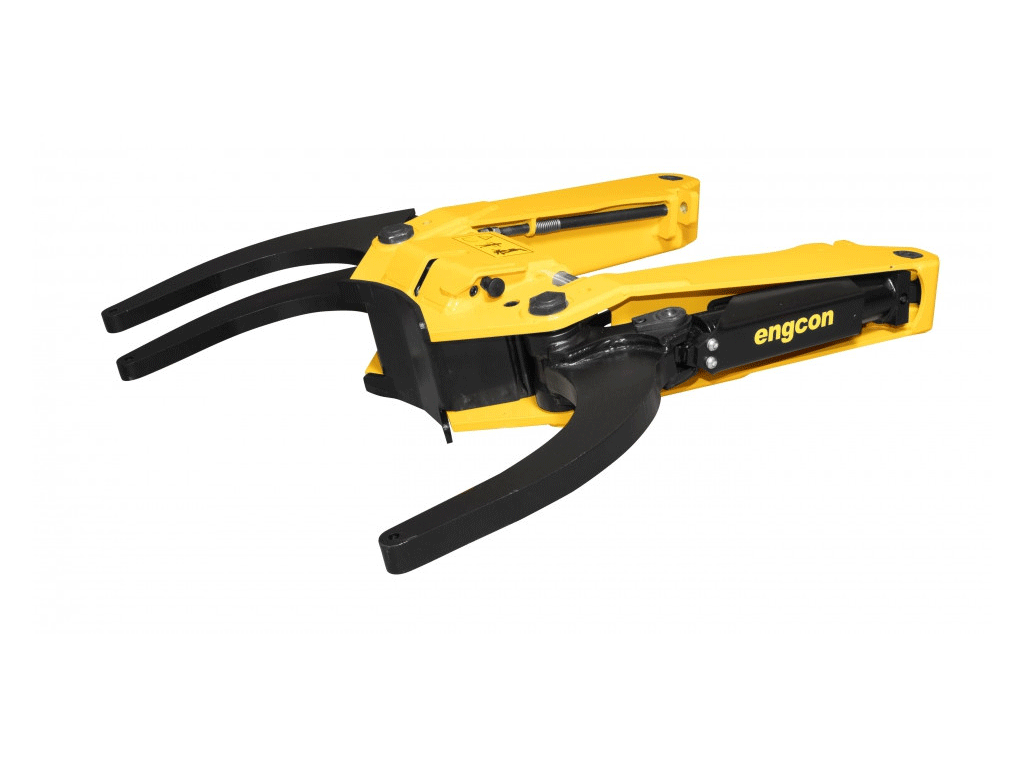

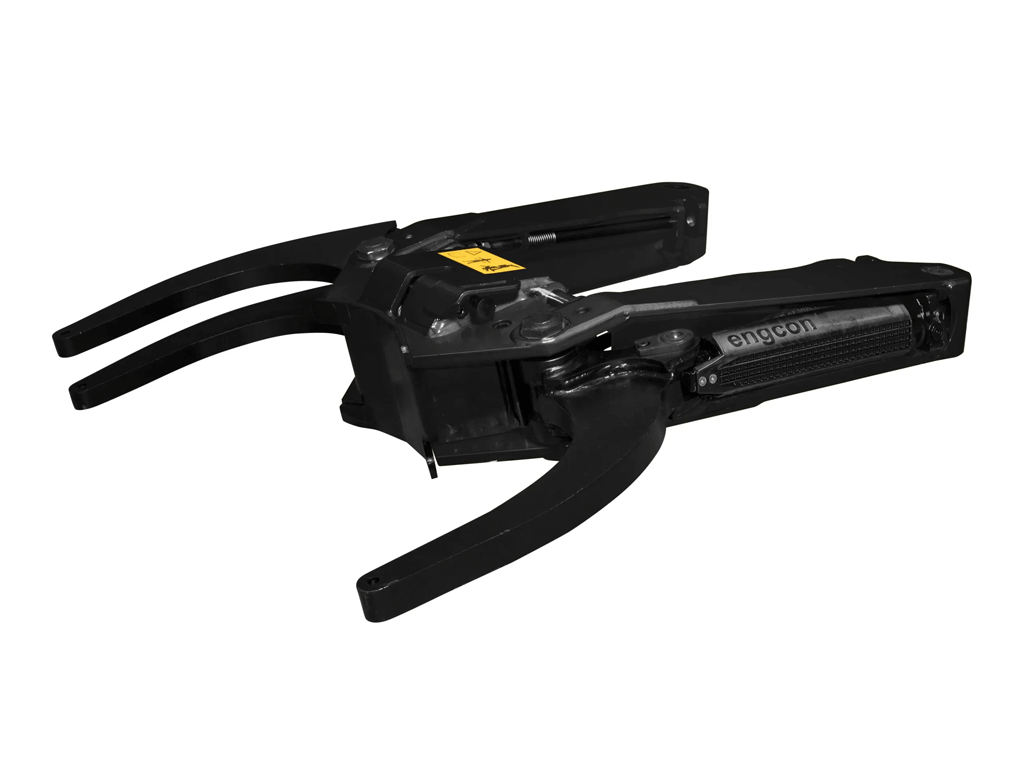

ENGCON Detachable Grabber for excavators using the ENGCON system
$0.00
7/25
ENGCON DETACHABLE GRABBER
EXCAVATOR WEIGHING 6 - 30 TONS
GRD40—GRD70

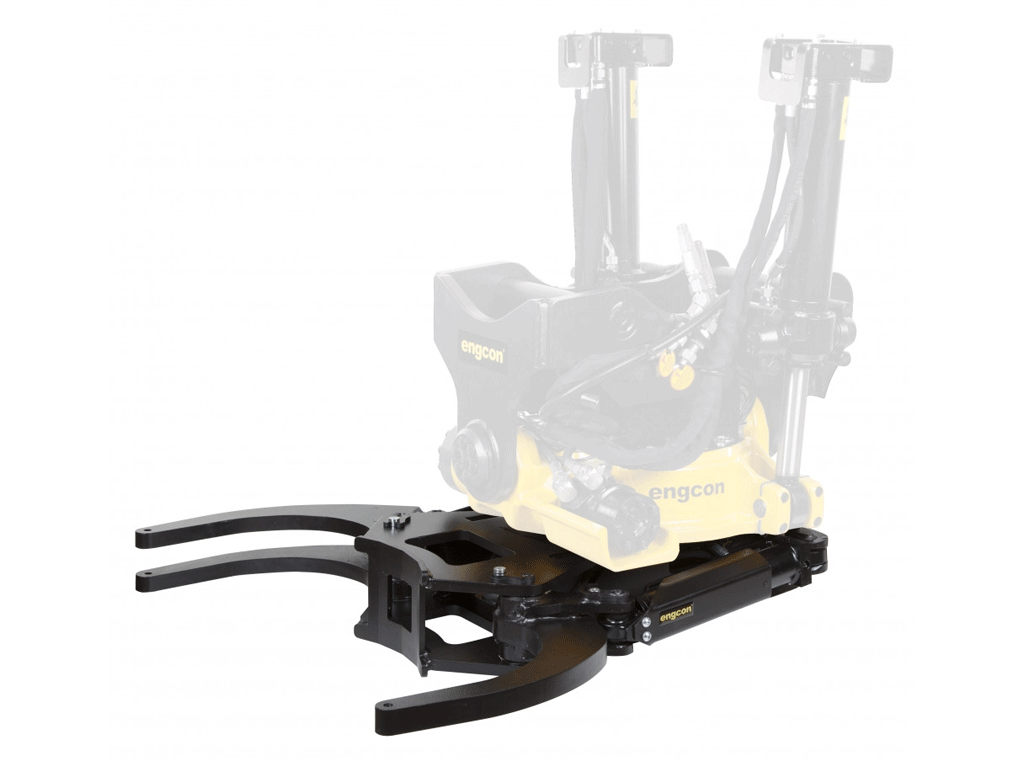

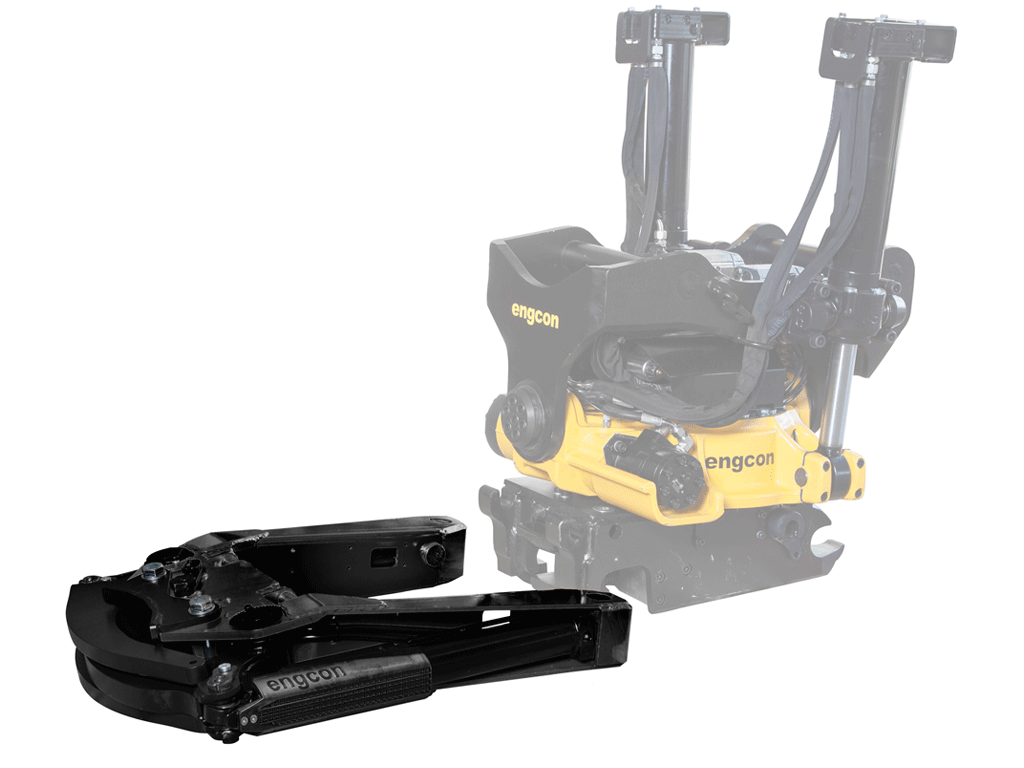

The grab cassette simply hooks onto the Q-Safe-D quick coupler, whereupon the grabber cassette is locked on and the hydraulics are connected with a single maneuver – a procedure that takes less than a minute. The grabber is angled 15 degrees to the tiltrotator, which gives a longer grab reach.
Quick locking
The grab cassette is locked and the hydraulics connected in a single movement with a simple procedure using a 1.3 inches box end wrench. This means attaching or detaching in less than a minute.

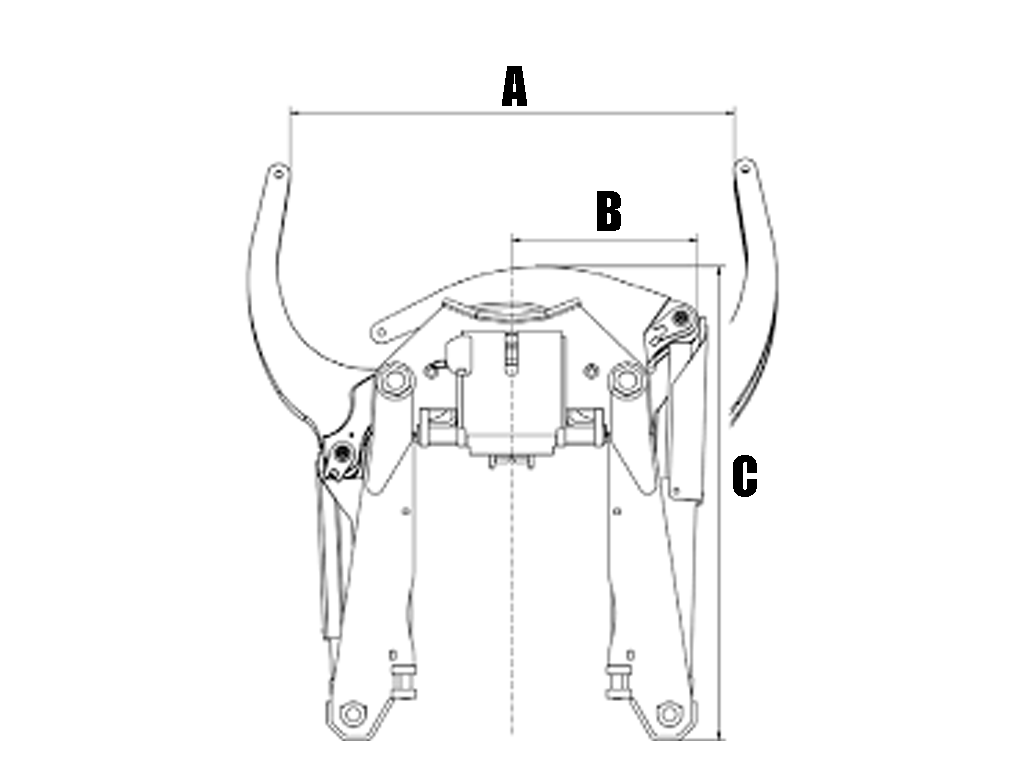

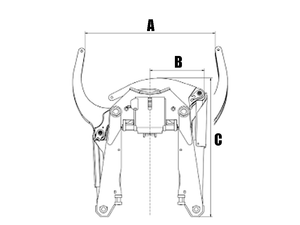

| MODEL | GRD40 | GRD45 | GRD60 | GRD70 |
| GRAB WIDTH (A) | 17" | 24" | 32.3" | 37.4" |
| WIDTH (B) | 8.7" | 10.6" | 14" | 16.1" |
| LENGTH (C) | 21.3" | 28.3" | 34.3" | 35.4" |
| CLAMPING FORCE | 2646 | 3307 | 4850 | 4850 |
| MAX LOAD | 2204 | 3307 | 4409 | 4409 |
| WEIGHT (LBS.) | 99 | 218 | 315 | 348 |
| MAX HYDRAULIC PSI | 3200 | 3200 | 3200 | 3200 |
| FITS QUICK HITCH | S40 | S45 | S60 | S70 |
