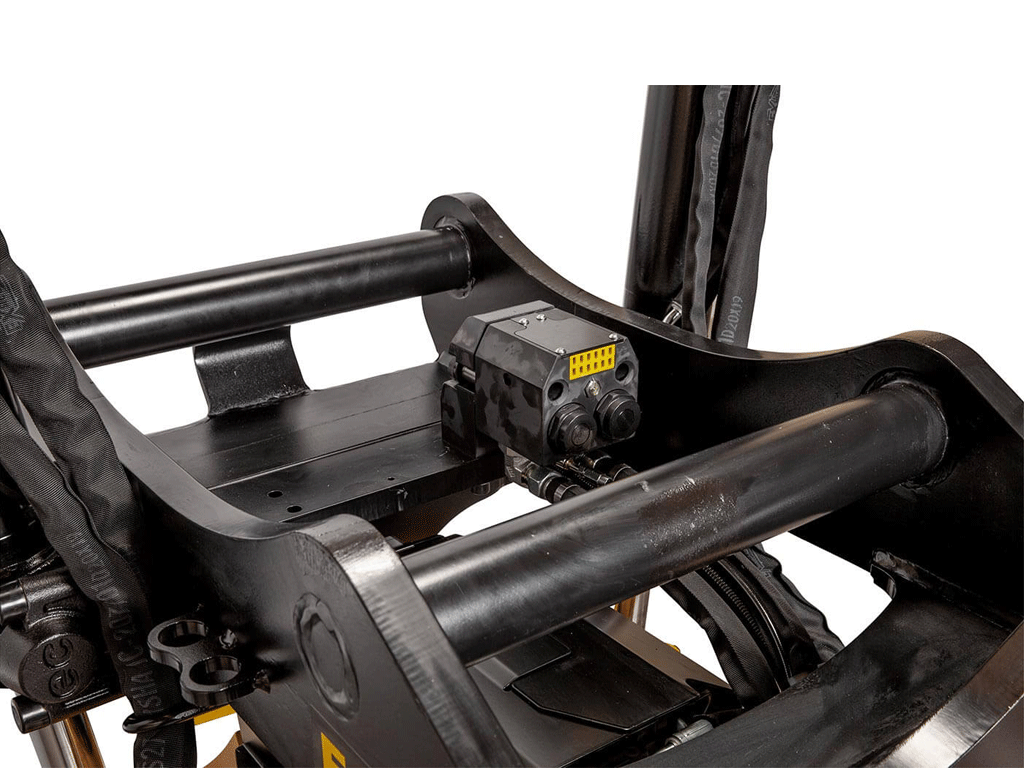

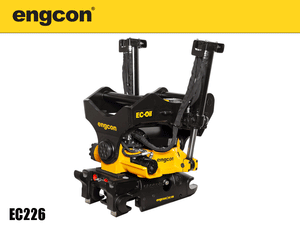

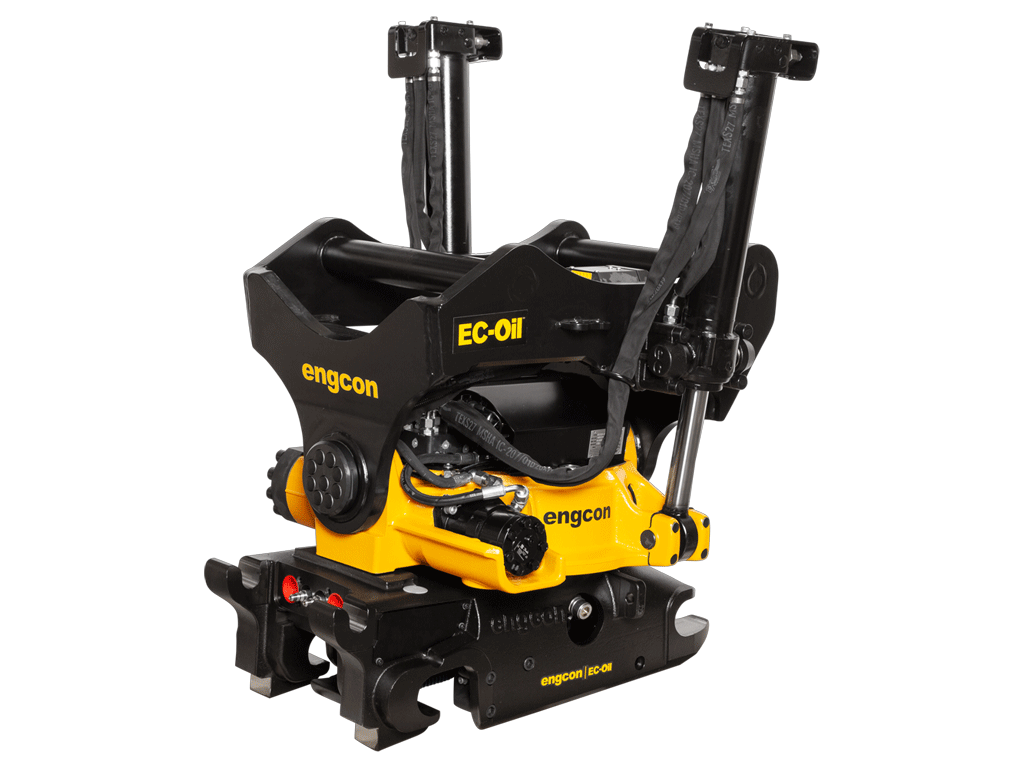

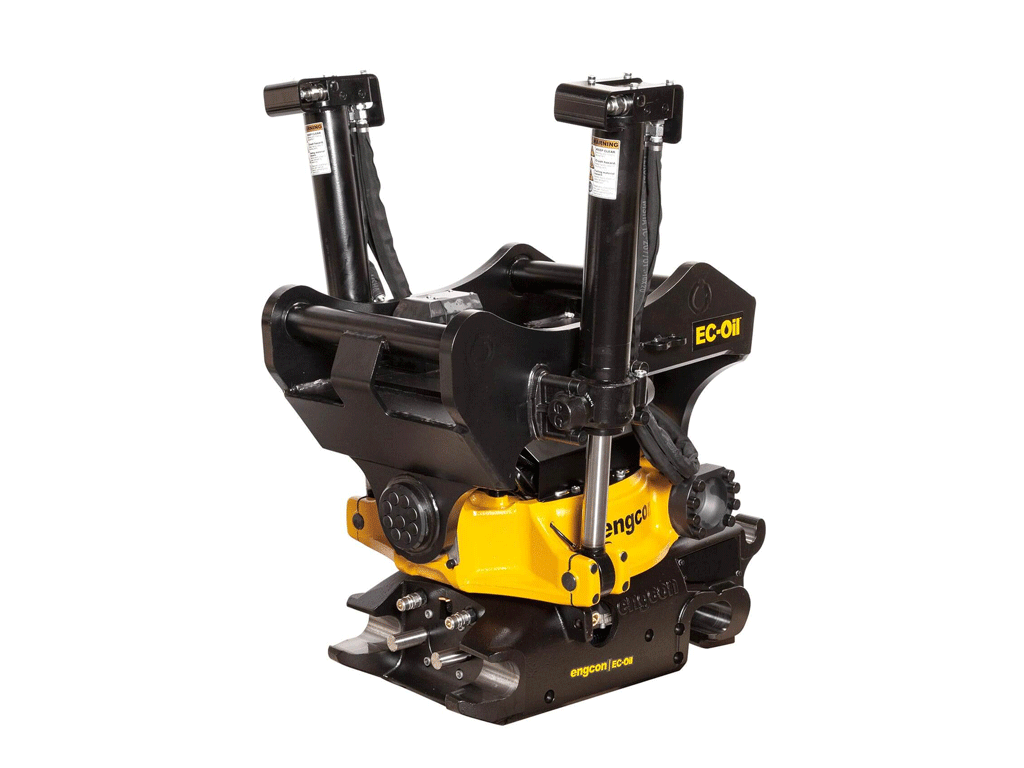

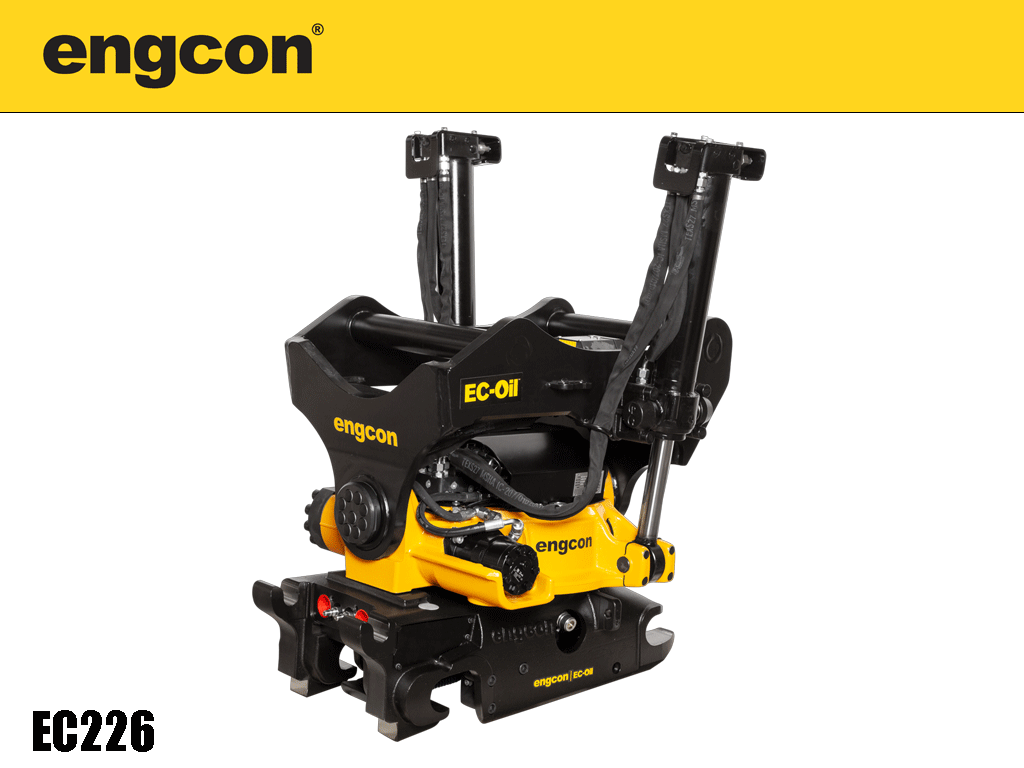

ENGCON EC226 tiltrotator coupler for 41900 to 57300 lbs. excavators
$68,499.28
7/25
ENGON EC226 TILTROTATOR
For 41,900–57,300 lbs. (19-26 metric ton) excavators
A powerful tiltrotator with low weight and height for excavators up to 26 metric tons. If EC226 is selected with engcon’s standard Quick Coupler S70 and the DC2 proportional control system, EC-Oil automatic Quick Coupler system is offered as a standard. This means that the tiltrotator and hydraulic tools can be connected and disconnected without the operator needing to leave the cab.
Features:
- The EC-Oil automatic Quick Coupler system connects the tiltrotator and hydraulic tools without the operator needing to leave the cab
- Q-Safe quick coupler for high safety
- Comes ready for the QSC locking system to avoid improperly connected or dropped buckets
- Comes ready for a rotation sensor (ePS) for connection to the excavator guidance system
- Central lubrication (a single grease point for the entire tiltrotator; can also be connected to the excavator’s central lubrication system)
- Load-holding valves on tilt cylinders for high safety
- Hardened piston rods
- Up to ± 45-degree tilt angle for best access
- Rotation ∞
Quick coupler: S70 comes standard. For other purposes there are a few other hitch types available.
Control system: DC2 comes standard. This proportional control system provides outstanding variable control with remote support capability, track/wheel steering, and boom slew. We also offer custom control systems.
Electrical system: Can be adapted to 12V or 24V.
Accessory: GRD detachable grab cassette.
What is included?
- Coupler
- Tiltrotator
- Hydraulic block
- Hose protection
- C2C-DC2@ Electronics
- DC2 Computer
- MIG2 - Controls / Joysticks
- Installation
Requirements for installation:
- Domestic USA location
- Full covered garage for machine and attachment to be installed in.
- Product must arrive before appointment is scheduled
- Machine and attachment must be at garage location
- Additional man / helper (mostly for lifting)
- Any thumb, attachment or coupler must me removed from the machine before install
* Please read other "TABS"

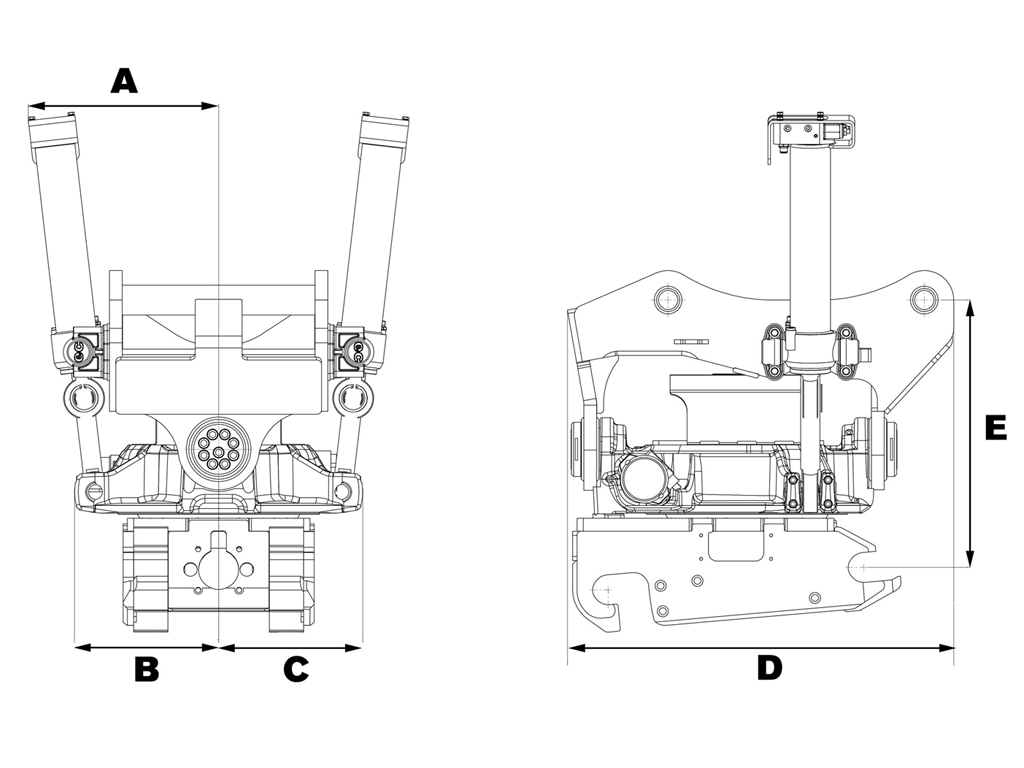

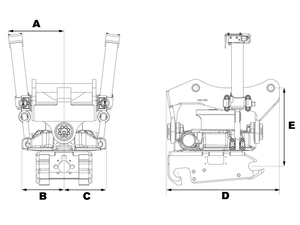

- Width A [inches]:11
- Width B [inches]:13.4
- Width C [inches]:13.4
- Total length D [inches]:29.9
- Build height E [inches]:19.7
- Tilt [°]:2x45
- Weight [lbs]:1,393
- Max bucket width recommended by engcon [inches]:78.7
- Rec hydraulic flow DC2/SS10 [gal/min]:31.7
- Rec hydraulic flow SS9 tilt/rotation [gal/min]:18.5/18.5
- Max hydraulic pressure [psi]:3,200
- Max breakout torque [lbf]:199,142
- Standard mounting:S70
-
Base machine weight [lbs]:41,900–57,300
| MAKE | MODEL | NOTES |
| AIRMAN | ||
| BOBCAT | ||
| CASE | ||
| CAT | ||
| COLTRAX | ||
| DEVELON | ||
| EUROCAMOCK | ||
| HITACHI | ||
| HYUNDIA | ||
| JCB | ||
| JOHN DEERE | ||
| KATO | ||
| KOBELCO | ||
| KOMATSU | ||
| KUBOTA | ||
| LIUGONG | ||
| MECALAC | ||
| NEW HOLLAND | ||
| SANY | ||
| SUNWARD | ||
| TAKEUCHI | ||
| VOLVO | ||
| WACKER NEUSON | ||
| XCMG | ||
| YANMAR |
This is one of the most popular Tiltrotators in the European market. We are expecting great market share in the USA market as the tiltrotator markets continues to grow at a rapid pace. Here are some recommendations.
- The best feature of this tiltrotator is the "sandwich" design. The oil all runs thru the coupler. You do not need to leave the cab to hook up and run the attachments. It is also easy to remove the tiltrotator section.
- Read all that tabs and requirements on this product
- Recommend removing the tiltrotator and just use the coupler when using Hammers, Mulchers, Flail Mowers, Brush Cutters and rippers.
- I would recommend adding counter weight to any excavator using a tilt rotator.
- You will only be using attachments with a "S" Style coupler
- Not all attachments work with the EC-Oil. You need to call us so we can look into mountings, hydraulic flows, back flow and pressures.
- We will need to know if your machine has single circuit or dual circuit auxiliary hydraulics.
- We will need to know if a attachment you want to use requires a case drain.
- We can get EC-Oil top caps for attachments. Example of this is hammers need top caps.
- Machines need to be equipped with a Cab (EROPS). The only units that can run on a non-cab machine (OROPS) is the Basic models.
