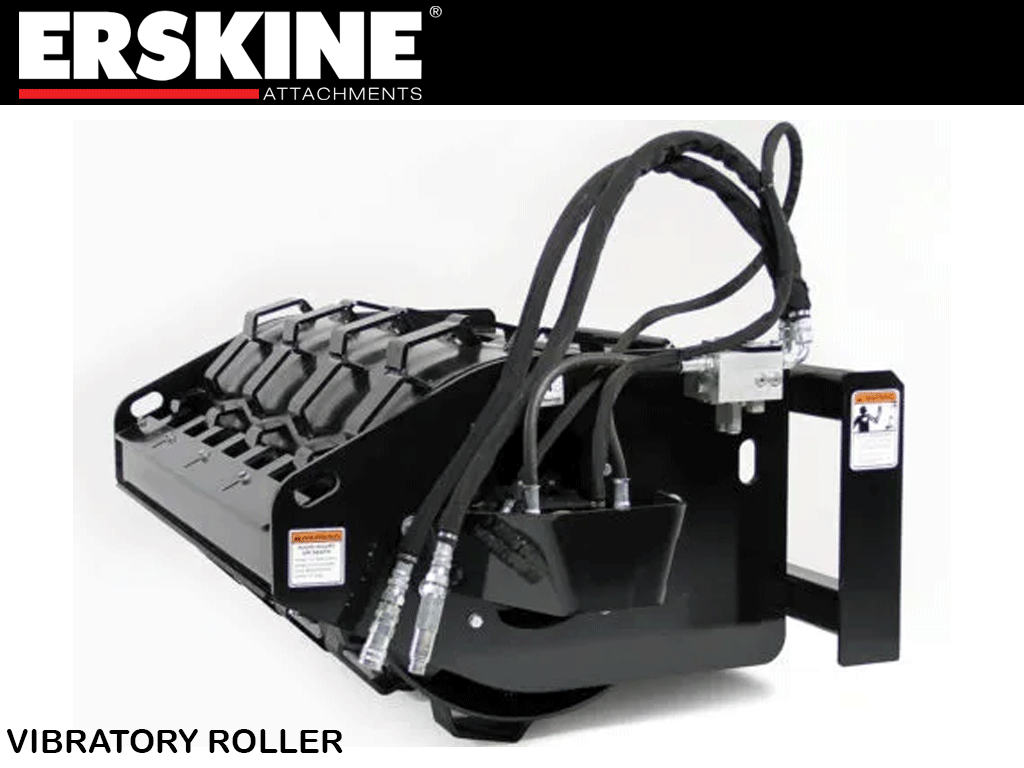

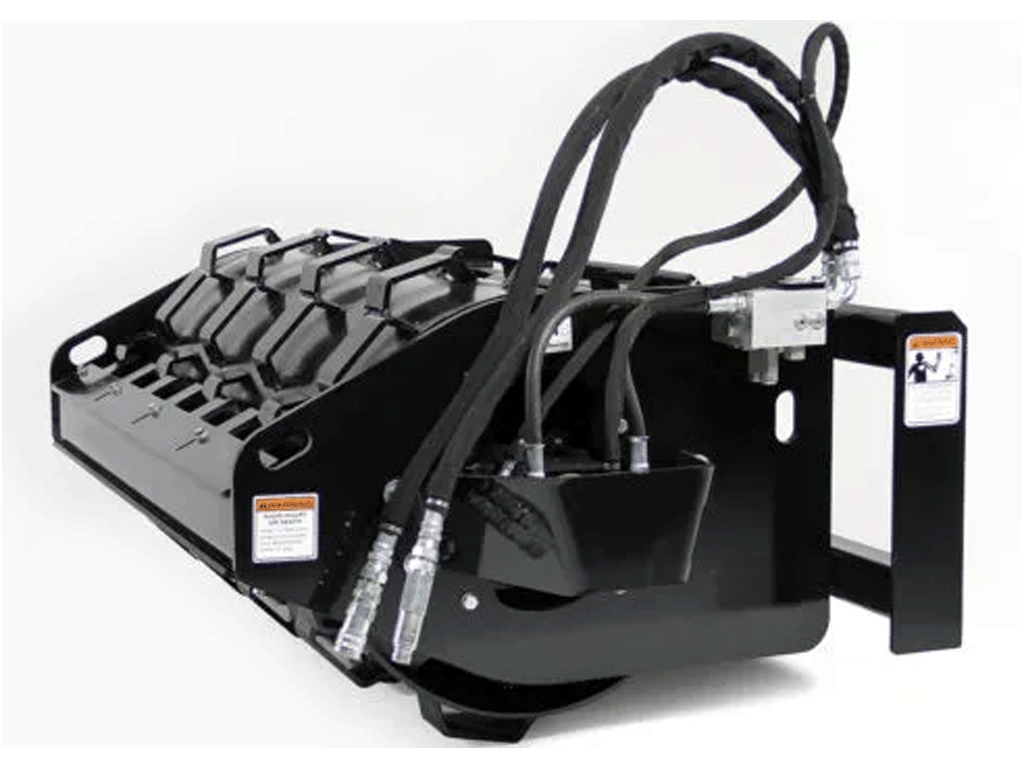

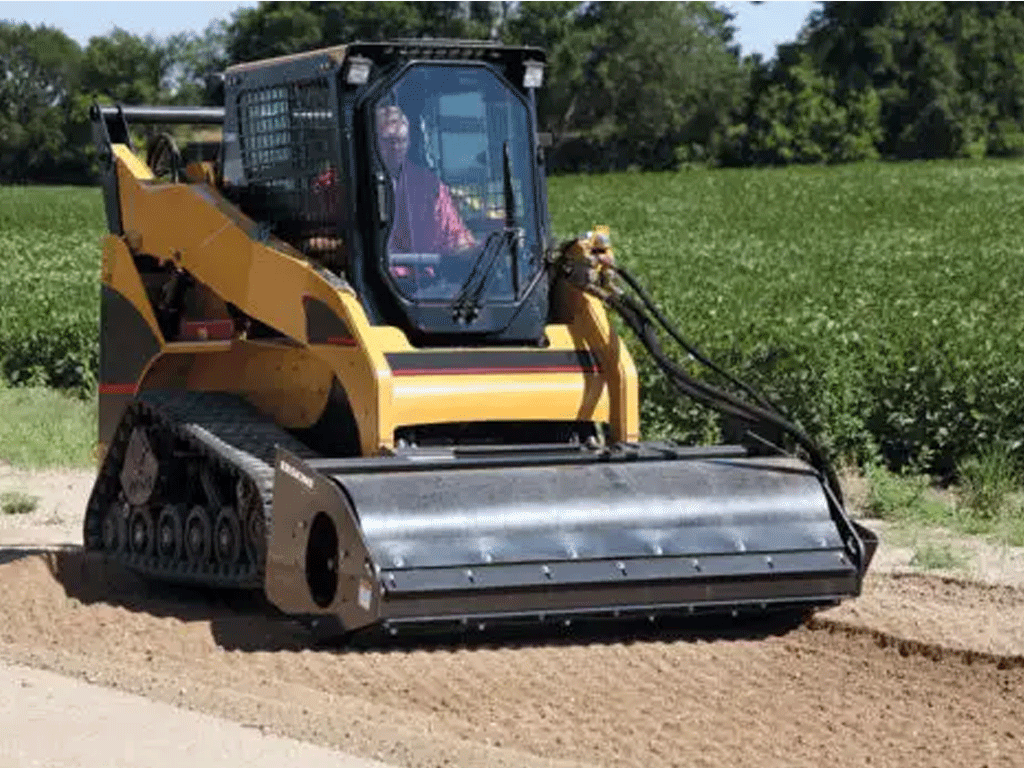

Skid Steer Vibratory Roller

Heavy-Duty Vibratory Roller Attachment for Skid Steers & Compact Track Loaders

Get smooth, consistent compaction with theSkid Steer Vibratory Roller, a heavy-duty attachment designed for compacting soil, gravel, aggregate, trenches, asphalt patches, and other flatwork. Withdual-direction vibration, this roller provides effective compaction while traveling forward or in reverse, helping operators complete jobs with fewer passes.

Available in72" and 80" working widths, the Vibratory Roller is built for skid steers and compact track loaders equipped with a universal quick attach system.

Compact Along Curbs, Walls & Sidewalks

The72" Vibratory Roller features an offset mount that allows the right side of the drum to extend beyond the machine. This makes it easier to compact material directly alongsidecurbs, sidewalks, foundations, walls, and other obstacles without constantly repositioning the loader.

The80" model can be centered on the machine, providing enough width to cover the full track width of most skid steers and compact track loaders.

Key Features

• 72" or 80" working widths
• Offset drum design for close compaction along curbs and walls
• One-piece heavy-duty steel drum
• Dual-direction vibration for forward and reverse compaction
• Drum oscillation for improved ground contact
• Rubber isolation mounts reduce vibration transferred to the loader
• Full-length solid drum shaft
• Four greasable bearings
• Universal skid steer mounting
• Hoses and hydraulic fittings included
• Heavy-duty construction for commercial applications
• 2-year factory warranty

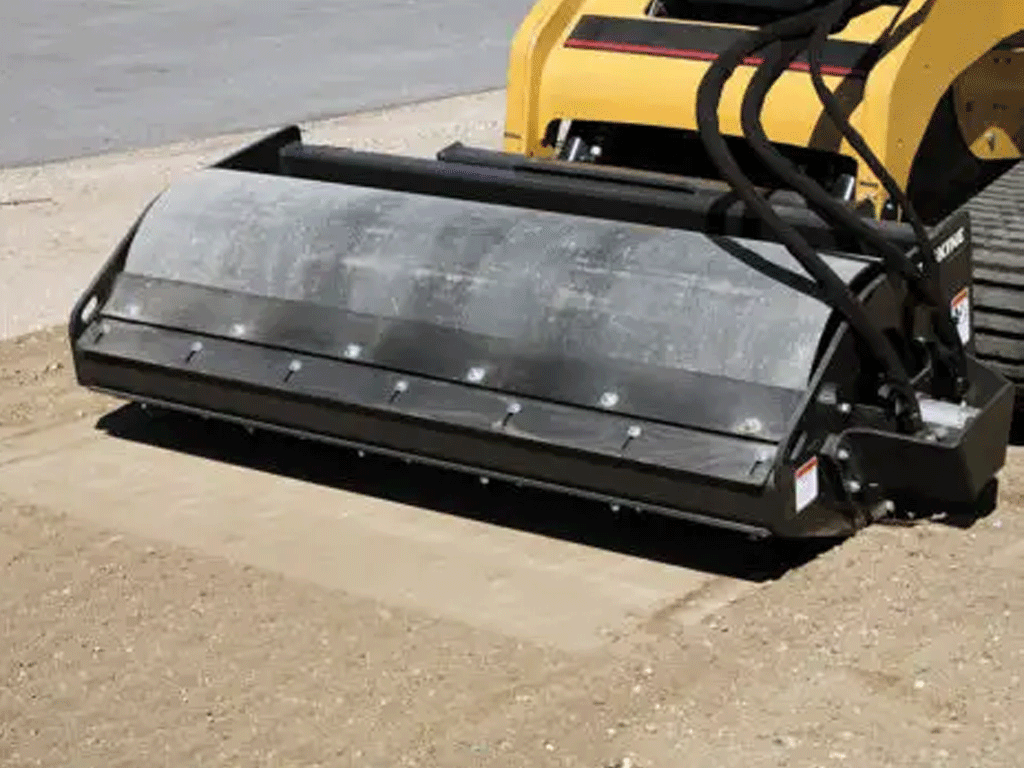

Offset Drum Design

The offset drum configuration allows the roller to extend past the right side of the machine, providing clean and consistent compaction alongsidewalks, curbs, walls, foundations, and other edges. This design reduces the amount of repositioning required and makes finishing tight areas considerably easier.

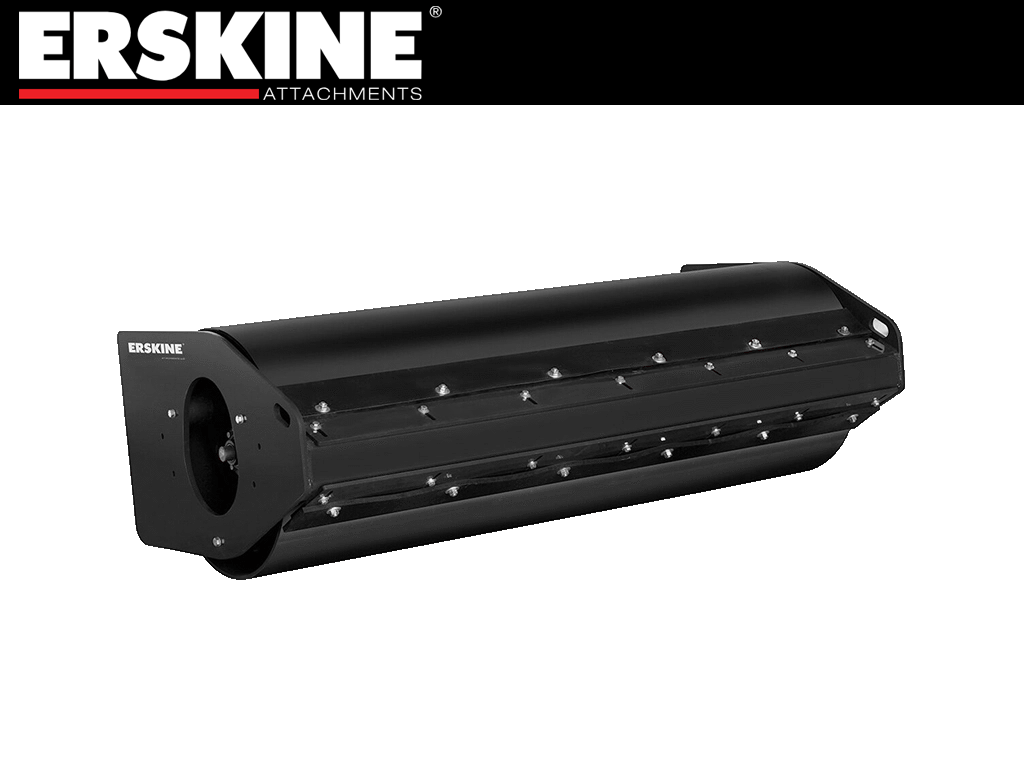

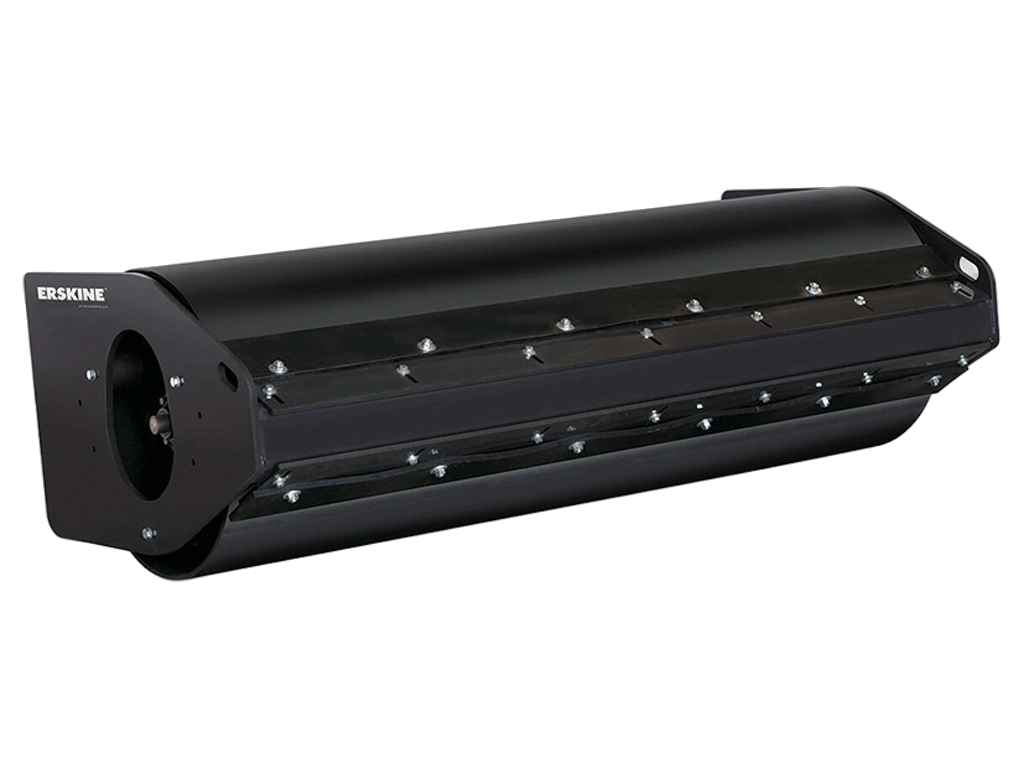

Durable One-Piece Steel Drum

A ruggedone-piece steel drum provides the strength needed for demanding compaction work. Its heavy-duty construction is designed to withstand repeated use in soil, gravel, aggregate, and asphalt applications.

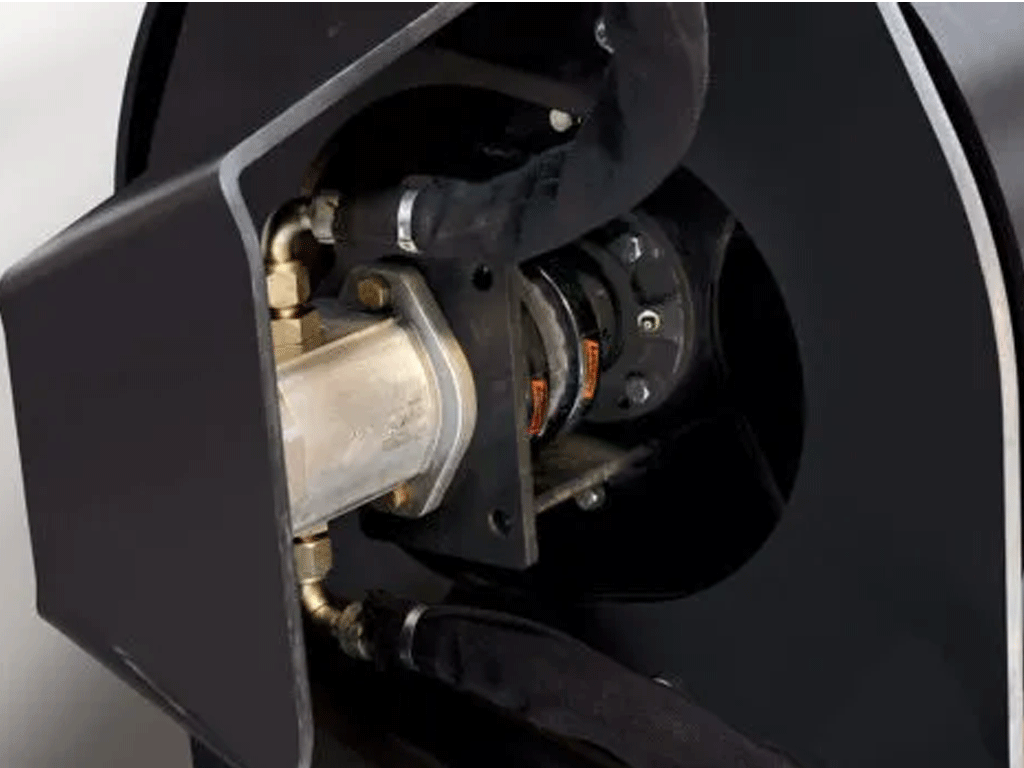

Dual-Direction Vibration

The hydraulic vibration system operates while the machine travelsforward or in reverse. Operators can continue compacting during both directions of travel instead of relying on one-way passes, improving productivity in confined work areas.

Oscillating Drum for Consistent Compaction

The drum features±15° of oscillation, allowing it to follow uneven terrain and maintain more consistent contact with the material being compacted. Better drum-to-ground contact helps produce a smoother and more uniform finished surface.

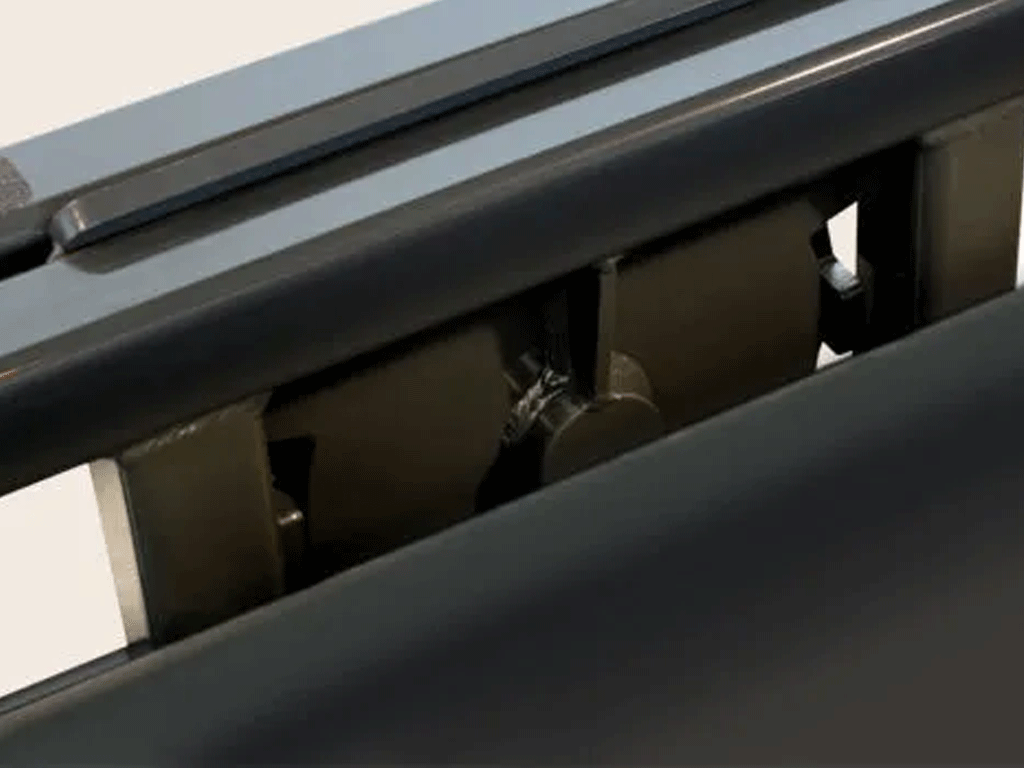

Rubber Isolation Mounts

Heavy-duty rubber isolation mounts help prevent excessive vibration from being transferred from the roller into the skid steer or compact track loader. This improves operator comfort while helping reduce unnecessary vibration and wear on the carrier.

Full-Length Solid Shaft

Afull-length solid shaft supported by four greasable bearings provides a durable foundation for the drum. The design promotes smooth operation while providing the strength and serviceability needed for demanding commercial use.

Vibratory Roller Specifications

Smooth Drum vs. Padded Foot Vibratory Roller

Choose the drum configuration that best matches the material and application.

Smooth Drum: Ideal for flatwork, asphalt patching, gravel, aggregate, and finishing applications where a smooth, uniform surface is required.

Padded Foot Drum: Designed for soil compaction applications where the raised pads can penetrate and work the material during compaction.

Ideal Applications

The Skid Steer Vibratory Roller is an excellent choice for:

• Trench compaction
• Asphalt patching
• Road and driveway repair
• Gravel driveways
• Parking areas
• Sidewalk preparation
• Foundation and building preparation
• Landscaping
• Site development
• Soil and aggregate compaction
• Compacting alongside curbs and walls

Hydraulic Requirements

The Vibratory Roller operates with a hydraulic flow range of11–22 GPM and produces up to2,000 vibrations per minute at 18 GPM.

IMPORTANT – CASE DRAIN REQUIRED

A case drain line is required to operate this Vibratory Roller. Verify that your skid steer or compact track loader is properly equipped with a case drain connection before ordering.

Hydraulic hoses and fittings are included in the price.

Built for Skid Steers & Compact Track Loaders

With auniversal skid steer mounting system, this Vibratory Roller is designed for use with a wide range of skid steers and compact track loaders. Its combination of an oscillating drum, offset design, dual-direction vibration, and heavy-duty construction makes it an excellent attachment for contractors who need dependable compaction performance without bringing a dedicated roller to every jobsite.

Quick Specifications

Working Width: 72" or 80"
Overall Width: 84"–93"
Operating Weight: 1,720–2,025 lb.
Hydraulic Flow: 11–22 GPM
Vibration: 2,000 VPM at 18 GPM
Drum Oscillation: ±15°
Mounting: Universal Skid Steer
Case Drain: Required
Hoses & Fittings: Included
Warranty: 2-Year Factory Warranty
