943004

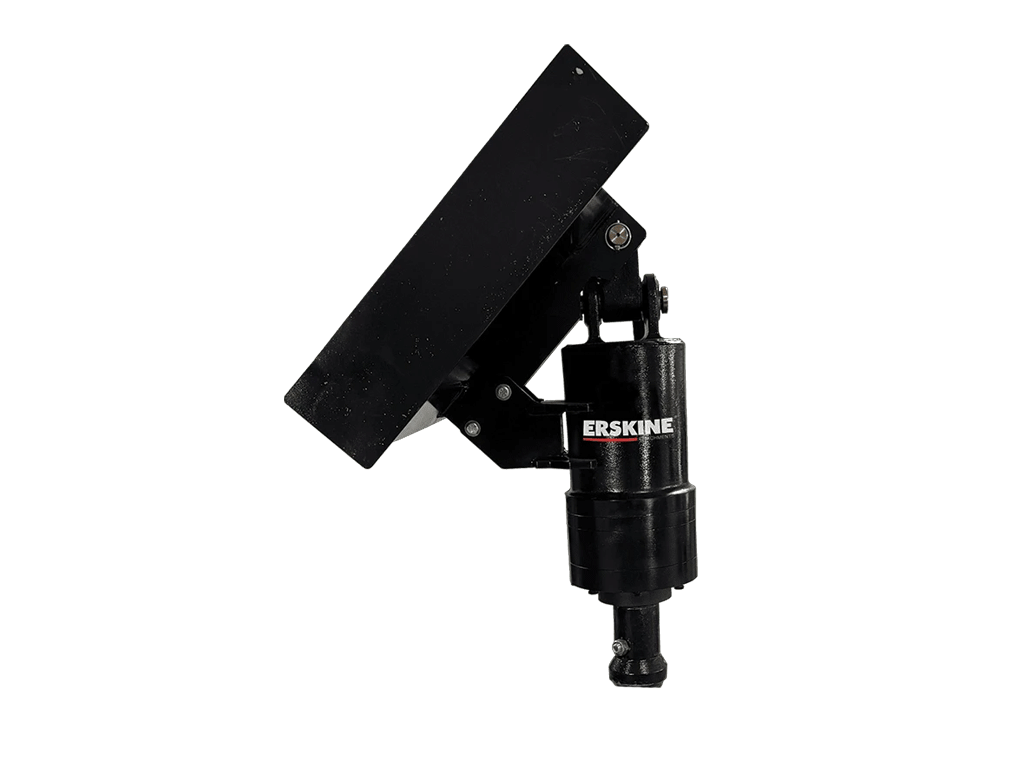

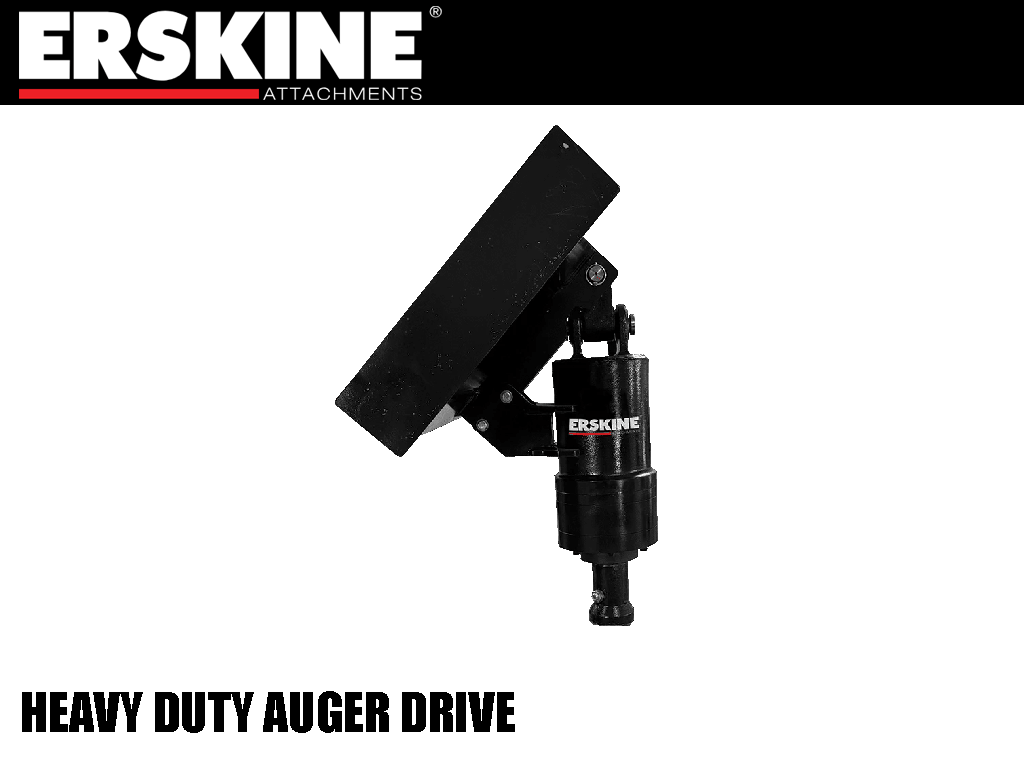

ERSKINE 1025PD heavy duty auger drive
$3,895.00
7/25
HEAVY DUTY EARTH AUGER
SKID STEER
The powerful Earth Auger drive units are durable enough to withstand any construction or utility use in even the toughest ground conditions. These planetary drive units produce high torque at low speeds and offer reverse rotation for cleaning of the hole.
Features
- Planetary gear drive for lower maintenance costs
- Available in 2” hex or 2-9/16” round drive shafts
- Drills vertical or angled holes
- Self-cleaning
| MODEL | FLOW RANGE | MAX PSI |
| 1225PD | 10-25 GPM | 3500 PSI |
| Model | 1025PD | |
|---|---|---|
| Part Number (2"" Hex) w/SS Mount | 943004 | |
| Part Number (2 9/16"" Round) w/SS Mount | 943005 |
|
| Part Number (2"" Hex) w/No Mount | 943006 | |
| Part Number (2 9/16"" Round) w/No Mount | 943007 |
|
| Maximum Diameter | 48” | |
| Minimum Hydraulic Flow | 10 GPM | |
| Maximum Hydraulic Flow | 25 GPM | |
| Maximum Continuous psi | 3,500 psi | |
| Maximum Torque | 3,297 (4471 NM) | |
| Maximum Speed | 72 RPM | |
| Weight | 317 | |
| * | ||
| Options | ||
| Mini Excavator Mount | 332600 |
|
| HD Double Flighted Bits | Double Flighted Rock Bits | Double Flighted Tree Style Bits |
| 4" | 6" | 18" |
| 6" | 9" | 24" |
| 8" | 12" | 30" |
| 9" | 16" | 36" |
| 10" | 18" | 42" |
| 12" | 20" | 48" |
| 16" | 24" | |
| 18" | 30" | |
| 20" | 36" | |
| 24" | ||
| 30" | ||
| 36" | ||
| * | ||
| * | ||
| Adapters | Fixed Length Extensions | Variable Length Extensions |
| 2” Hex Output Shaft 2-9/16” Rnd Collar Opening | 2” Hex 12” | 2” Hex 12” |
| 2” Hex Output Shaft 2” Round Collar Opening | 2” Hex 24” | 2” Hex 24” |
| 2-9/16” Rnd Output Shaft 2” Hex Collar Opening | 2” Hex 48” | 2” Hex 48” |
| 2-9/16” Rnd Output Shaft 2” Rnd Collar Opening | 2” Hex 72” | 2” Hex 72” |
| 2” Rnd Output Shaft 2” Hex Collar Opening | 2-9/16” Rnd 12” | 2-9/16” Rnd 12” |
| 2” Rnd Output Shaft 2-9/16” Rnd Collar Opening | 2-9/16” Rnd 24” | 2-9/16” Rnd 24” |
| 2” Hex Output Shaft 2-1/2” Hex Collar Opening | 2-9/16” Rnd 48” | 2-9/16” Rnd 48” |
| 2-9/16” Rnd 72” | 2-9/16” Rnd 72” |
