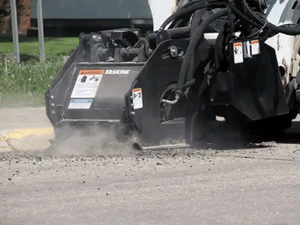

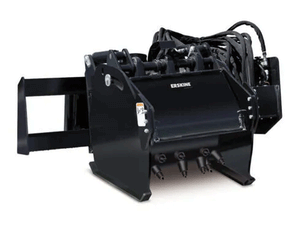

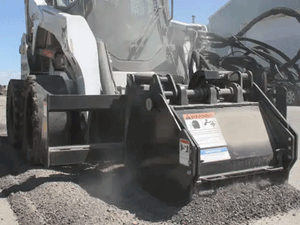

Highly versatile Cold Planers are adaptable to a wide variety of job environments including road repair, bridge deck repair, landscaping, municipal, shopping center and utility work. The Cold Planer is easy to maneuver around manhole and storm drains; excellent for bridge decks where heavier, dedicated planers are not allowed. Hydraulic side-shift and depth control allows skid steer operators to shift it up to 24” for maneuvering close to buildings and other obstacles from the comfort of your seat.
| Model | CP18 | CP24 | CP36 | CP48 |
|---|---|---|---|---|
| Part Number | 900938 | 900939 | 901430 | 901431 |
| Depth of Cut | 0-6” | 0-6” | 0-6” | 0-6” |
| Width of Cut | 18” | 24” | 36” | 48” |

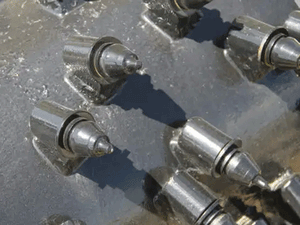

| Number of Teeth | 48 | 60 | 78 | 90 |
| Standard Side-Shift | 24” Hydraulic | 24” Hydraulic | 24” Hydraulic | 24” Hydraulic |
| Tilt | 16° | 16° | 8° | 8° |
| Hydraulic Requirement | 22-40 GPM | 25-40 GPM | 25-50 GPM | 25-50 GPM |
| 2,800-6,525 psi | 3,000-6,525 psi | 3,000-6,525 psi | 3,000-6,525 psi | |
| Weight | 1,600 lb. | 1,750 lb. | 2,550 lb. | 2,800 lb. |

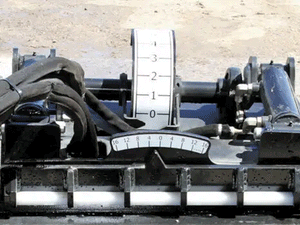

| Depth Control | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
| Tilt Control | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
| Case Drain | Required | Required | Required | Required |
| Hydraulic Flow Classification | High Flow | High Flow | High Flow | High Flow |
| Options | ||||
| Bolt-On Rollers | ||||
| Pistol Grip Control Harness | ||||
| Loader Specific Wire Harness | ||||
| Case Drain Coupler | ||||
| Factory Installed Couplers | ||||
| Factory Installed High Flow Couplers |
