Erskine HD Pick-Up Broom for Skid Steers

The Erskine HD Pick-Up Broom is a heavy-duty skid steer sweeper designed to collect dirt, mud, gravel, light snow, leaves, and jobsite debris. Available in 72-inch and 84-inch widths, this hydraulic pickup broom sweeps in forward or reverse and carries material into its enclosed hopper for easy transport and dumping.

Built for construction, industrial, agricultural, and municipal cleanup, the Erskine pickup broom features 26-inch wafers, a reversible cutting edge, a direct-drive hydraulic motor, and a universal skid steer mount. An optional adjustable wheel kit helps maintain consistent brush contact on uneven surfaces while reducing unnecessary bristle wear.

What Is a Skid Steer Pick-Up Broom?

A skid steer pick-up broom attachment combines a rotating hydraulic brush with a collection bucket or hopper. Instead of simply pushing debris to the side, the broom sweeps material into the hopper so it can be carried away and dumped.

The Erskine HD Pick-Up Broom can sweep, scrape, collect, transport, and dump material without requiring the operator to change attachments.

Heavy-Duty Cleaning in Forward or Reverse

The reversible broom allows operators to clean while traveling forward or backward. Reversible bristle rotation provides greater flexibility when working near buildings, curbs, parking barriers, loading docks, or other confined areas.

The attachment is suitable for cleaning:

• Construction sites
• Roads and parking lots
• Warehouses and industrial facilities
• Machine sheds and farmyards
• Municipal properties
• Driveways and paved surfaces
• Landscaping projects
• Snow-covered areas

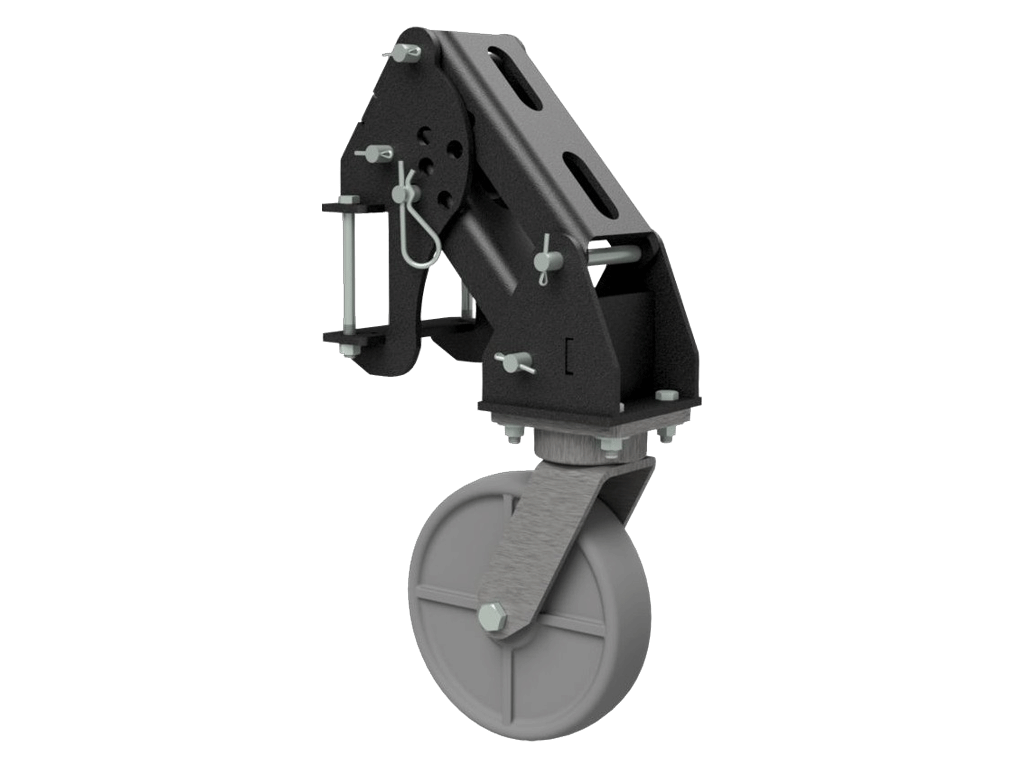

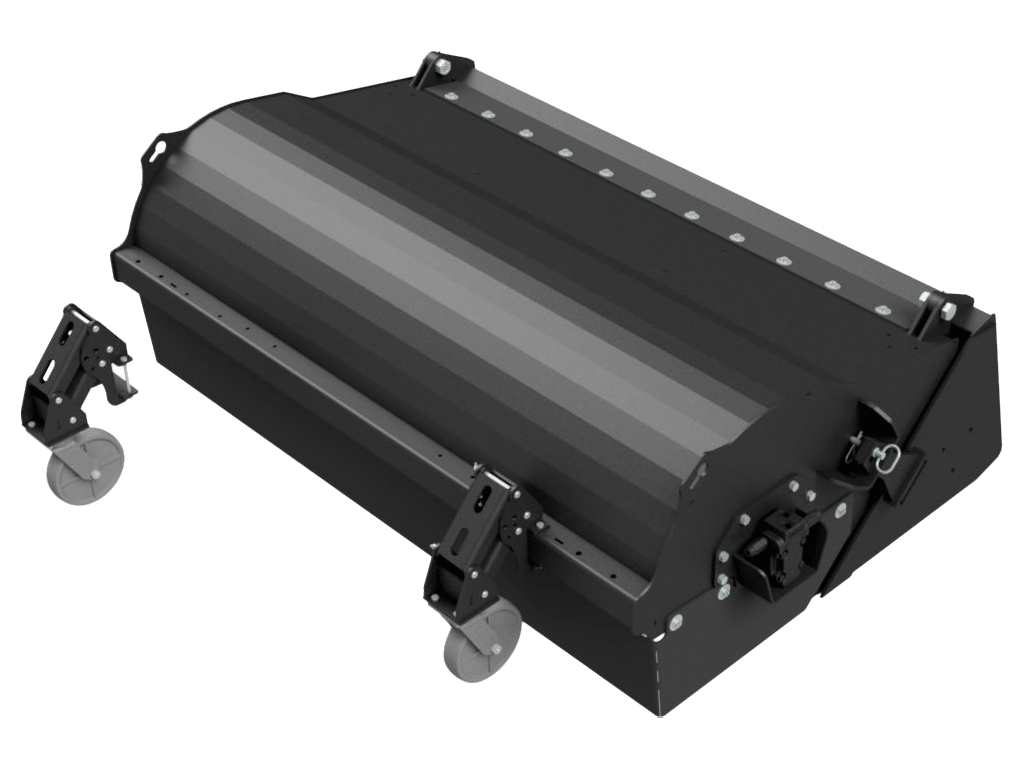

Optional Adjustable Wheel Kit

The optional adjustable wheel kit controls brush height to help the wafers maintain consistent surface contact. This provides smoother operation over uneven surfaces and helps prevent excessive pressure on the bristles.

Proper brush-height adjustment can improve sweeping performance and extend wafer service life.

Large 26″ Broom Wafers

Large 26-inch-diameter wafers provide an extended wear life and dependable sweeping performance. Operators can select either an all-poly wafer package or a combination of poly and steel wafers.

• Poly wafers work well for general-purpose sweeping and lighter debris.
• Poly/steel wafers provide a more aggressive sweeping action for packed dirt and tougher material.

Fully Enclosed Hopper for Dust Control

The broom’s fully enclosed design helps contain dust and debris while sweeping. This makes it useful in warehouses, machine sheds, parking lots, construction areas, and other locations where controlling airborne material is important.

For additional dust suppression, an optional 40-gallon water kit sprays water through four tips during operation.

Reversible Cutting Edge

A heavy-duty 5/8-inch × 6-inch cutting edge helps break up caked-on mud and packed debris before the rotating bristles sweep it into the hopper.

The cutting edge is reversible, allowing both edges to be used before replacement is required.

Direct-Drive Hydraulic Motor

The broom uses a direct-drive hydraulic system with a 13–25 GPM flow range. Its dual-relief motor helps protect the hydraulic system while providing consistent broom operation in demanding conditions.

Always confirm the auxiliary hydraulic flow of your skid steer or compact track loader before ordering.

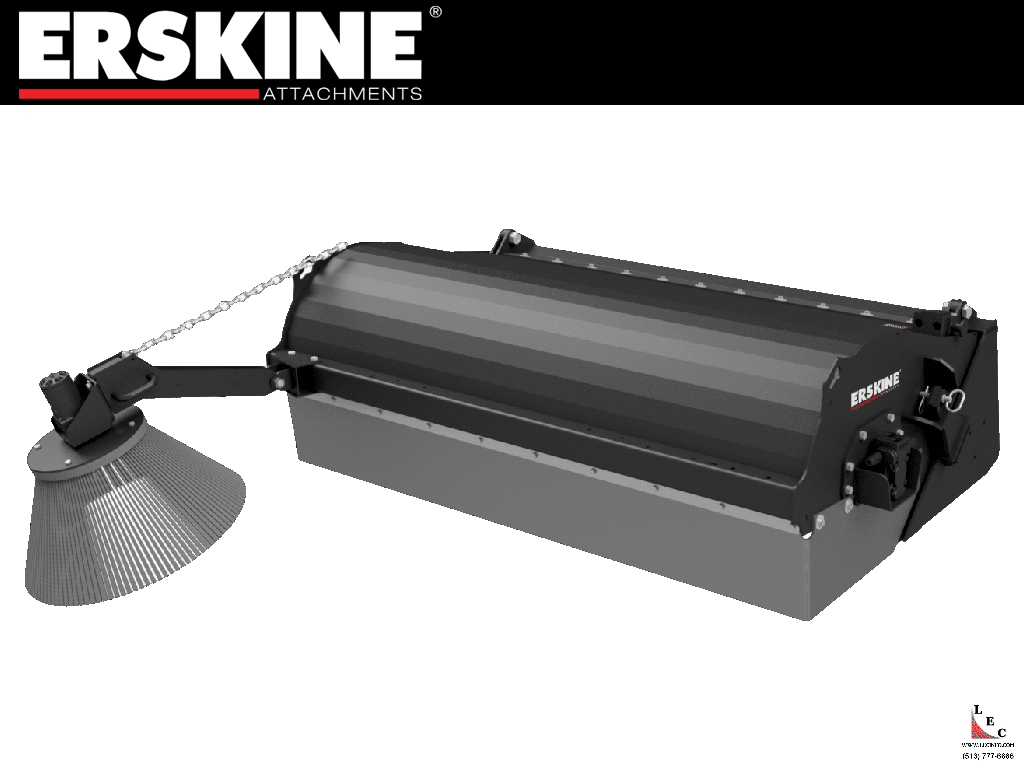

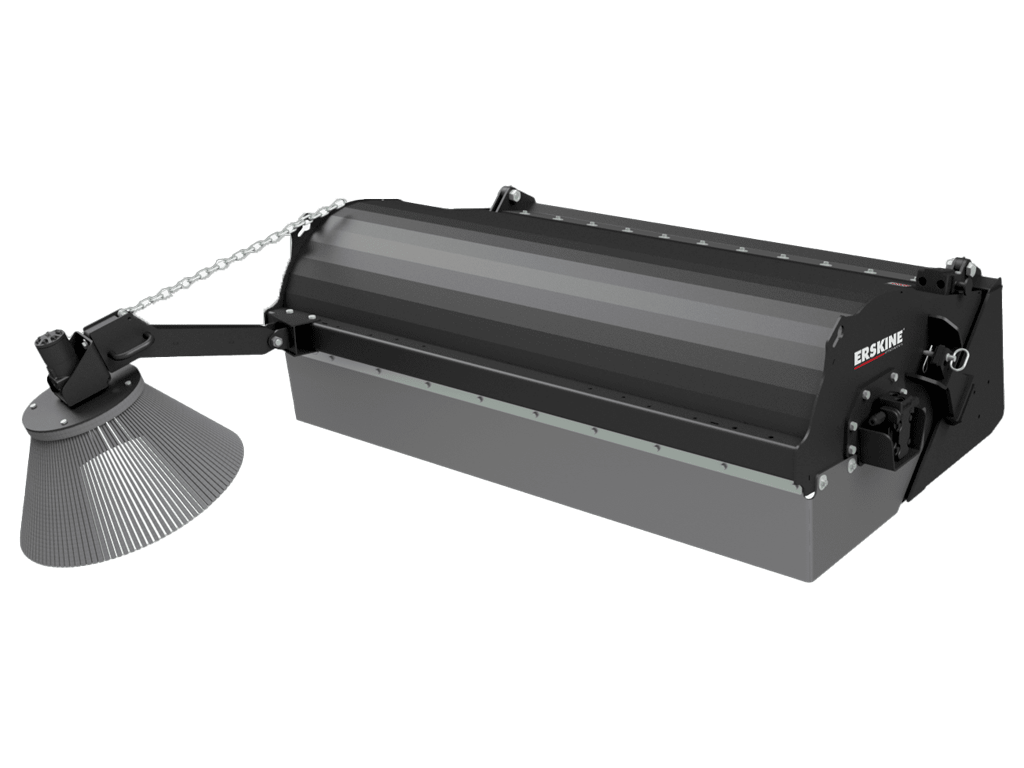

Optional Curb Sweeper

An optional hydraulic curb sweeper helps clean along curbs, walls, sidewalks, and other edges the main broom may not reach.

The curb sweeper uses a direct-drive system and is available with either:

• Steel bristles
• Poly bristles

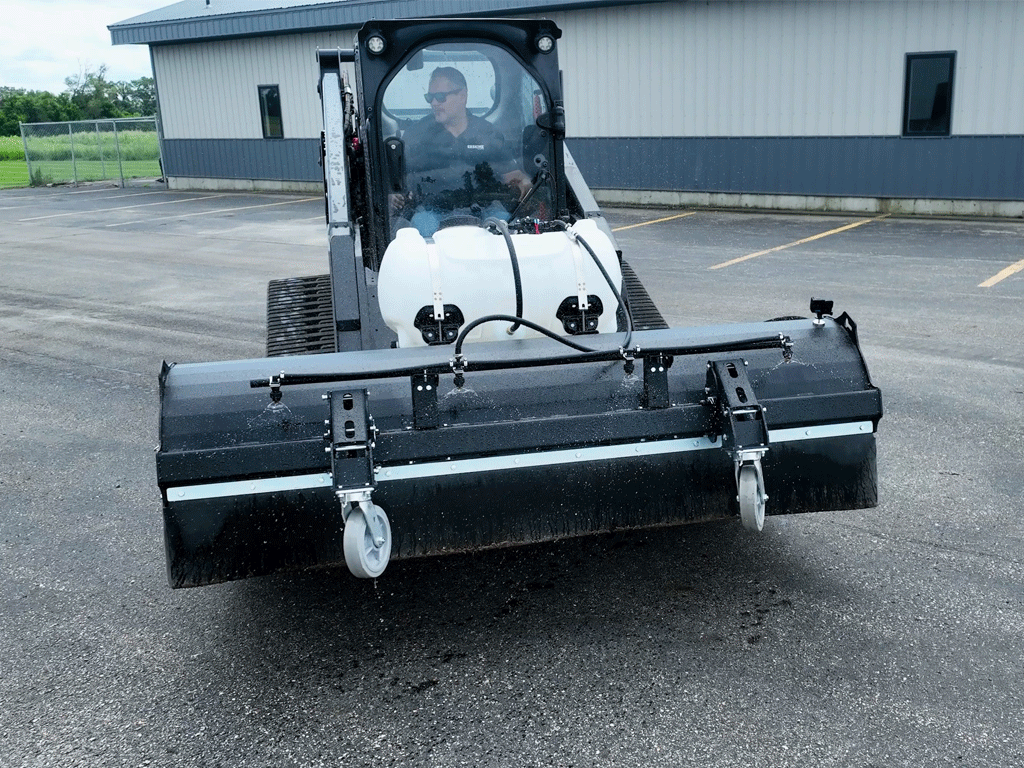

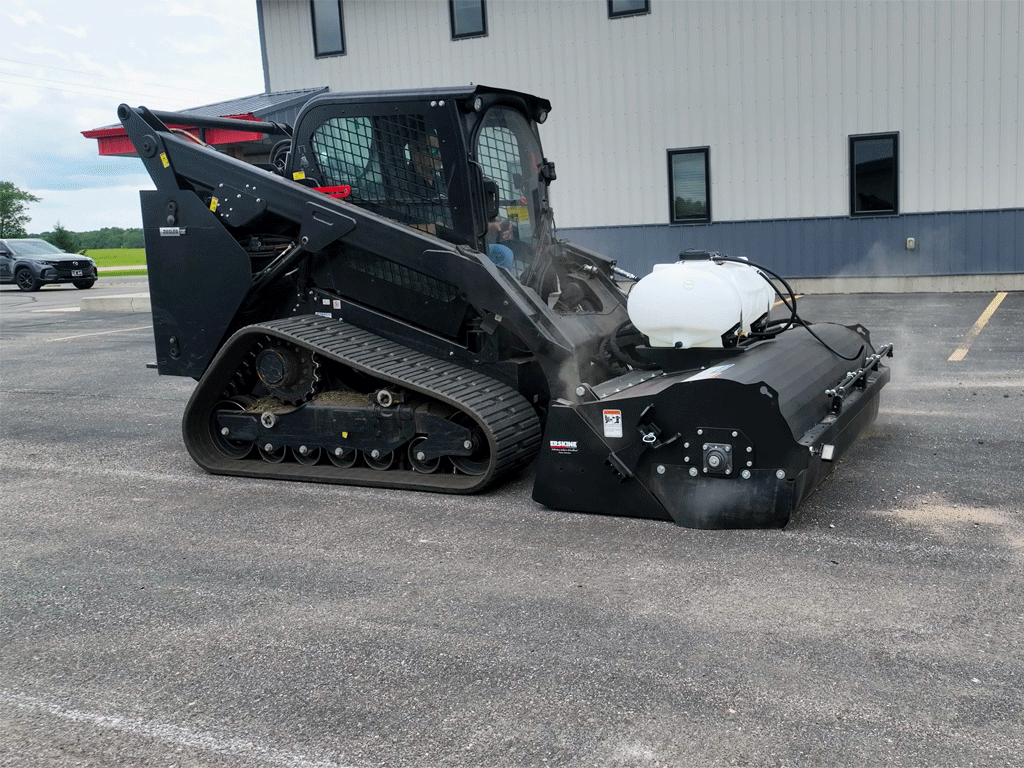

Optional Water Kit

The water kit helps suppress airborne dust in construction, industrial, warehouse, and municipal applications. It includes a 40-gallon tank, four spray tips, and a self-priming diaphragm pump powered by the machine’s 12-volt electrical system.

The system provides approximately 40 minutes of spraying time with a full tank.

Universal Skid Steer Mount

The Erskine HD Pick-Up Broom uses a universal skid steer quick-attach mount. It is compatible with many major skid steer loader and compact track loader brands that use the universal attachment interface.

Factory-installed hydraulic couplers are also available.

Why Choose the Erskine HD Pick-Up Broom?

The Erskine heavy-duty pickup broom is built for operators who need more than a basic skid steer sweeper. Its combination of an enclosed collection hopper, reversible brush rotation, large wafers, adjustable wheel option, reversible cutting edge, protected hydraulic motor, and optional dust-control system makes it a versatile cleanup attachment.

Key features include:

• Sweeps and collects material in forward or reverse
• Available in 72″ and 84″ widths
• Large 26″ wafers for extended wear life
• Poly or poly/steel wafer packages
• Fully enclosed hopper for dust control
• Direct-drive hydraulic motor
• Dual-relief hydraulic protection
• Reversible 5/8″ × 6″ cutting edge
• Optional adjustable wheel kit
• Optional curb sweeper
• Optional 40-gallon water kit
• Universal skid steer mounting
• Two-year factory warranty
