Erskine Mini Pick-Up Broom

Hydraulic Mini Skid Steer Sweeper Attachment

45" Mini Skid Steer Pick-Up Broom | Hydraulic Sweeper with Debris Collection | 7–15 GPM | Poly or Poly/Steel Bristles

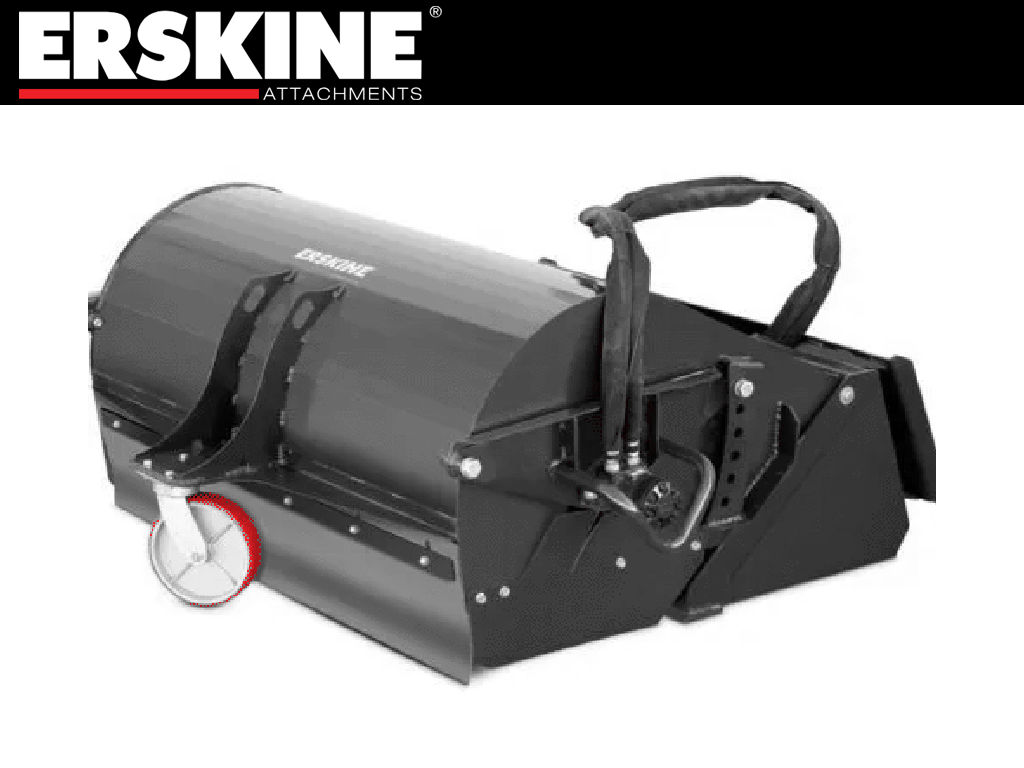

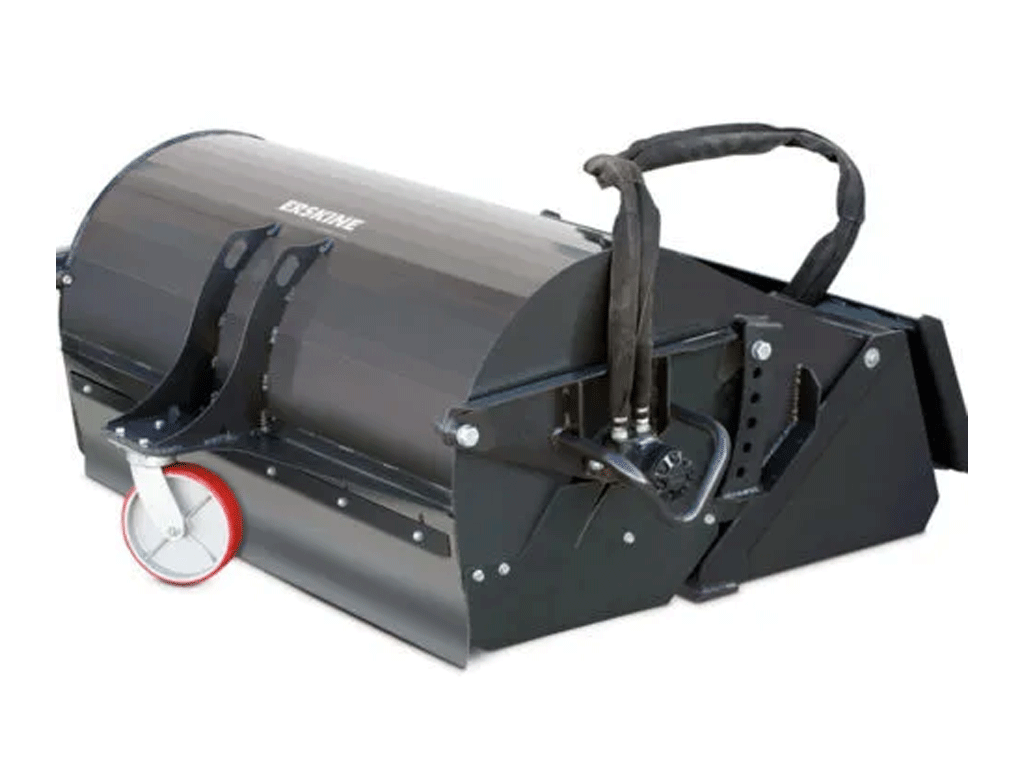

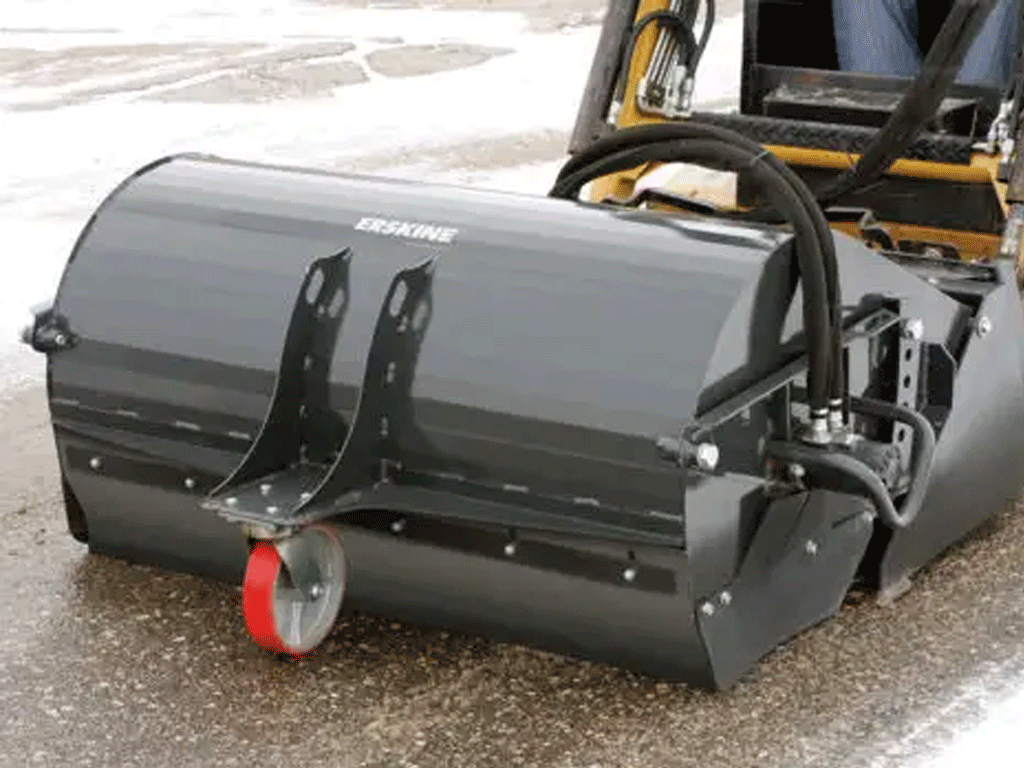

TheErskine Mini Pick-Up Broom is a heavy-dutymini skid steer sweeper attachment designed to sweep, collect, and contain dirt, mud, gravel, and jobsite debris in one efficient operation. Built for construction contractors, landscapers, industrial facilities, municipalities, and property maintenance professionals, this hydraulic pick-up broom transforms a compatible mini skid steer loader or compact tool carrier into a versatile surface-cleaning machine.

Featuring a45-inch working width, 57-inch overall width, 24-inch diameter broom, and integrated debris collection bucket, the Erskine Mini Pick-Up Broom delivers efficient sweeping performance while reducing manual cleanup and airborne dust.

Unlike conventional angle brooms that push debris to the side, theErskine Mini Skid Steer Pick-Up Sweeper collects dirt and debris inside its enclosed hopper, allowing operators to transport and dump the collected material at a designated disposal location.

The hydraulic direct-drive system operates with7–15 GPM hydraulic flow and 2,000–3,000 PSI, providing dependable broom rotation with fewer mechanical components to maintain.

Available withpoly bristles or a combination poly/steel wafer package, the Erskine Mini Pick-Up Broom allows operators to select the appropriate sweeping configuration for different surfaces and cleanup applications.

With adjustable bristle pressure, reversible broom rotation, a replaceable bolt-on cutting edge, and fully enclosed dust-containment housing, this mini skid steer sweeper is engineered for efficient commercial and industrial cleanup.

Whether you're sweeping construction sites, cleaning parking areas, removing dirt from pavement, or maintaining industrial facilities, theErskine Mini Pick-Up Broom helps improve productivity while reducing labor-intensive cleanup.

Erskine Mini Pick-Up Broom Features & Benefits

• 45" Working Width: Efficient sweeping coverage for sidewalks, driveways, parking areas, and confined jobsites.

• 57" Overall Width: Compact design for compatible mini skid steer loaders and compact tool carriers.

• Integrated Debris Collection Bucket: Sweeps and collects material for convenient transport and disposal.

• Forward & Reverse Sweeping: Reversible broom rotation allows effective cleaning while moving in either direction.

• Hydraulic Direct-Drive System: Delivers reliable broom performance with fewer moving parts and reduced maintenance.

• 7–15 GPM Hydraulic Flow: Designed for compatible mini skid steers with sufficient auxiliary hydraulic capacity.

• 2,000–3,000 PSI Operating Pressure: Hydraulic operating range for the broom drive system.

• 24" Diameter Bristles: Provides effective contact with the surface for debris removal.

• Adjustable Arbor Height: Allows operators to control bristle contact pressure for efficient sweeping and longer bristle life.

• Poly or Poly/Steel Bristle Options: Choose the bristle package that matches your surface and debris conditions.

• Fully Enclosed Housing: Helps contain dust and loose debris during sweeping.

• 1/2" × 4" Replaceable Cutting Edge: Helps remove caked-on dirt, mud, and stubborn material.

• 440 LB Heavy-Duty Construction: Built for demanding commercial cleanup applications.

• 2-Year Factory Warranty: Backed by Erskine's manufacturer warranty.

Sweep, Collect & Contain Debris in One Pass

TheErskine Mini Pick-Up Broom is designed to combine sweeping and debris collection into one operation.

As the hydraulic broom rotates, its bristles move loose material into the integrated collection bucket.

Unlike a conventional mini skid steer angle broom that moves material to the side, a pick-up broom collects debris so it can be transported to a disposal area.

Materials the Erskine Mini Pick-Up Broom Can Handle

• Dirt and loose soil

• Sand and fine gravel

• Construction debris

• Loose mud and dried material

• Dust and surface residue

• Landscaping debris

• Small loose aggregate

• General industrial cleanup material

The ability to collect material rather than simply move it across the surface makes thismini skid steer pickup sweeper useful for construction, industrial, and municipal maintenance.

Hydraulic Direct-Drive System – Reliable Sweeping Performance

The Erskine Mini Pick-Up Broom uses adirect-drive hydraulic motor to power the broom.

This design reduces the need for additional mechanical drive components, helping simplify maintenance and improve reliability.

Direct-Drive Advantages

• Fewer mechanical drive components

• Consistent hydraulic broom rotation

• Reduced routine drive-system maintenance

• Efficient power transfer

• Reversible broom operation

• Reliable performance for commercial sweeping

The broom operates within a7–15 GPM hydraulic flow range and requires an operating pressure of2,000–3,000 PSI.

Before ordering, verify that your mini skid steer or compact tool carrier meets the hydraulic flow and pressure requirements.

Adjustable Bristle Pressure for Longer Brush Life

One of the most useful features of theErskine Mini Skid Steer Pick-Up Broom is its adjustable arbor.

The adjustable arbor allows operators to change the broom's position relative to the sweeping surface, controlling bristle contact pressure.

Benefits of Adjustable Bristle Pressure

• Helps improve sweeping performance

• Reduces unnecessary bristle wear

• Allows adjustment for different surfaces

• Helps maintain effective debris collection

• Extends usable bristle life when properly adjusted

• Supports consistent cleaning results

Excessive bristle pressure can cause premature wear. Proper adjustment helps maintain the balance between effective cleaning and bristle service life.

Poly vs. Poly/Steel Bristles – Which Sweeper Should You Choose?

The Erskine Mini Pick-Up Broom is available with two bristle configurations.

Erskine Mini Pick-Up Broom with Poly Wafer Package – Part #900894

Thepoly wafer broom is designed for general-purpose sweeping and collection of loose debris.

Poly bristles provide a practical solution for routine surface cleaning and commercial property maintenance.

Recommended Applications:

• Parking lot sweeping

• Sidewalk cleaning

• General construction cleanup

• Loose dirt and sand removal

• Commercial property maintenance

• Routine pavement sweeping

Erskine Mini Pick-Up Broom with Poly/Steel Wafer Package – Part #900895

Thepoly/steel wafer broom combines polymer and steel bristles for more aggressive sweeping.

The addition of steel bristles helps loosen stubborn dirt and material from suitable surfaces.

Recommended Applications:

• Heavy construction cleanup

• Packed dirt removal

• Dried mud and stubborn debris

• Industrial surface cleaning

• Demanding pavement maintenance

• Rougher cleanup applications

Our Recommendation: Choose the poly wafer package for general-purpose sweeping. Consider the poly/steel wafer package when more aggressive cleaning is needed on surfaces suitable for steel bristles.

Fully Enclosed Housing for Dust-Controlled Sweeping

The Erskine Mini Pick-Up Broom features afully enclosed housing designed to help contain dust and debris during operation.

This makes it useful for jobs where controlling loose material is important.

Dust-Control Benefits

• Helps reduce airborne dust compared with open sweeping

• Contains debris inside the collection area

• Reduces material scattering

• Supports cleaner jobsite operation

• Useful for warehouses and industrial facilities where conditions permit

• Helps minimize repeated cleanup passes

Important: The enclosed design helps limit dust escape but does not eliminate airborne dust. Appropriate ventilation, dust controls, and protective equipment may still be necessary, particularly when sweeping silica-containing materials.

Forward & Reverse Sweeping Capability

TheErskine Mini Pick-Up Broom features reversible broom rotation, allowing operators to sweep while moving forward or backward.

This added versatility helps operators clean around buildings, curbs, loading areas, and other confined spaces.

Reverse Sweeping Advantages

• Improved maneuverability in tight areas

• Easier cleaning around obstacles

• More flexible sweeping direction

• Reduced need to reposition the machine

• Efficient operation in confined jobsites

The ability to reverse broom rotation makes this mini skid steer sweeper a versatile tool for commercial cleanup work.

Replaceable 1/2" × 4" Bolt-On Cutting Edge

The Erskine Mini Pick-Up Broom includes a1/2-inch by 4-inch bolt-on cutting edge.

This cutting edge helps loosen and remove caked-on material before it is swept into the collection bucket.

Cutting Edge Benefits

• Helps remove stubborn dirt and mud

• Assists with loosening caked-on debris

• Replaceable bolt-on design

• Simplifies maintenance

• Provides additional cleanup capability

The cutting edge is particularly useful on construction sites where mud and dirt can become packed onto paved surfaces.

Ideal Applications for the Erskine Mini Pick-Up Broom

Construction Site Cleanup

Collect dirt, sand, gravel, and loose construction debris from suitable paved work areas.

Parking Lot Sweeping

Remove accumulated dirt, sand, and loose debris from commercial parking areas.

Sidewalk & Walkway Cleaning

Clean suitable sidewalks, pedestrian access areas, and paved walkways.

Industrial Facility Maintenance

Sweep suitable warehouse floors, loading areas, and industrial work surfaces.

Municipal Street & Property Maintenance

Collect loose debris from appropriate paved public works areas and maintenance facilities.

Landscaping & Hardscape Cleanup

Remove loose soil, sand, and debris after landscaping and hardscape installation projects.

Equipment Yards & Rental Facilities

Maintain paved storage yards, equipment display areas, and maintenance facilities.

Commercial Property Maintenance

Keep paved areas around businesses, warehouses, and commercial properties cleaner with reduced manual labor.

Erskine Mini Pick-Up Broom vs. Mini Angle Broom

TheErskine Mini Pick-Up Broom is an excellent choice when debris must be collected and removed rather than simply swept away from the work area.

Buy the Erskine Mini Pick-Up Broom from Langefels Equipment Co.

Improve cleanup efficiency with theErskine Mini Pick-Up Broom, a heavy-duty hydraulic mini skid steer sweeper designed to collect dirt, mud, gravel, and jobsite debris.

Available withpoly or poly/steel wafer bristles, this 45-inch working-width pick-up broom combines hydraulic direct-drive performance, adjustable bristle pressure, an enclosed collection housing, and a replaceable cutting edge.

Langefels Equipment Co. supplies professional-grade Erskine attachments, mini skid steer sweepers, pick-up brooms, angle brooms, and construction equipment accessories to customers nationwide.

Call Langefels Equipment Co. at 513-777-6666 for pricing, availability, mounting compatibility, and ordering information.

Erskine Mini Pick-Up Broom Technical Specifications

Machine Compatibility: Confirm that your mini skid steer has the required 7–15 GPM auxiliary hydraulic flow, appropriate operating pressure, sufficient lifting capacity, and the correct mounting configuration before purchasing.

Big Dave Review & Frequently Asked Questions

Big Dave Review – Erskine Mini Pick-Up Broom

"If you're cleaning up construction sites, parking lots, or equipment yards, a pick-up broom is a whole lot more useful than just pushing dirt from one side to the other."

What I like about theErskine Mini Pick-Up Broom is that it actually collects the material you're sweeping.

A regular angle broom has its place, but when you need to remove dirt, sand, gravel, and debris from a property, being able to sweep it into a collection bucket makes a big difference.

The45-inch working width is a good size for compatible mini skid steers working around buildings, sidewalks, and tight areas.

I also like thedirect-drive hydraulic motor. Keeping the drive system simple is important when you're running an attachment in dusty, dirty conditions.

The adjustable arbor is another feature worth mentioning. Being able to control bristle pressure helps you get better sweeping performance without wearing the bristles out unnecessarily.

You also have two bristle options. I'd look at thepoly wafer package for general sweeping and thepoly/steel combination for more aggressive cleanup.

The replaceable cutting edge is another practical feature. If you're cleaning up dried mud or packed dirt, that edge can help loosen material before the broom collects it.

And the enclosed housing helps keep dust and debris contained instead of throwing it all over the work area.

My recommendation: If you're a contractor, landscaper, property maintenance operator, or equipment yard owner who needs to collect debris instead of just moving it around, the Erskine Mini Pick-Up Broom is worth considering. Just make sure your machine has the required 7–15 GPM hydraulic flow and sufficient lifting capacity for the 440-pound attachment.

– Big Dave, Langefels Equipment Co.

Frequently Asked Questions – Erskine Mini Pick-Up Broom

What is the Erskine Mini Pick-Up Broom?

The Erskine Mini Pick-Up Broom is a hydraulic mini skid steer sweeper attachment that sweeps and collects dirt, sand, gravel, and loose debris into an integrated collection bucket.

What is the working width of the Erskine Mini Pick-Up Broom?

The broom has a45-inch working width and a 57-inch overall width.

How much does the Erskine Mini Pick-Up Broom weigh?

Both models weigh440 pounds.

What hydraulic flow does the Erskine Mini Pick-Up Broom require?

The broom requires7–15 GPM of hydraulic flow.

What hydraulic pressure does the Erskine Mini Pick-Up Broom require?

The listed operating pressure range is2,000–3,000 PSI.

What bristle options are available?

Erskine offers a poly wafer package (900894) and a poly/steel wafer package (900895).

What is the difference between poly and poly/steel bristles?

Poly bristles are generally suited for routine sweeping, while poly/steel bristles provide a more aggressive cleaning action for stubborn debris on appropriate surfaces.

What is the bristle diameter?

Both models feature24-inch diameter bristles.

Can the Erskine Mini Pick-Up Broom sweep in reverse?

Yes. The broom features reversible bristle rotation for forward and reverse sweeping.

Does the Erskine Mini Pick-Up Broom collect debris?

Yes. It features an integrated collection hopper that captures swept material for later disposal.

Does the Erskine Mini Pick-Up Broom help control dust?

Yes. The enclosed housing helps contain dust and debris, although additional dust-control measures may be necessary for certain materials.

Can the Erskine Mini Pick-Up Broom remove dried mud?

The attachment includes a replaceable cutting edge designed to help loosen caked-on mud and other stubborn material.

What size cutting edge does the broom use?

The broom features a1/2" × 4" bolt-on cutting edge.

Can the bristle pressure be adjusted?

Yes. The adjustable arbor allows operators to control bristle contact pressure.

Is the Erskine Mini Pick-Up Broom direct-drive?

Yes. It uses a direct-drive hydraulic motor.

Will the Erskine Mini Pick-Up Broom fit my mini skid steer?

Compatibility depends on the machine's mounting system, hydraulic flow, operating pressure, and lifting capacity. Verify fitment before ordering.

Are factory-installed hydraulic couplers available?

Yes. Factory-installed couplers are listed as an available option.

What warranty comes with the Erskine Mini Pick-Up Broom?

The attachment includes a2-year factory warranty, subject to Erskine's warranty terms.
