900895 / 320057

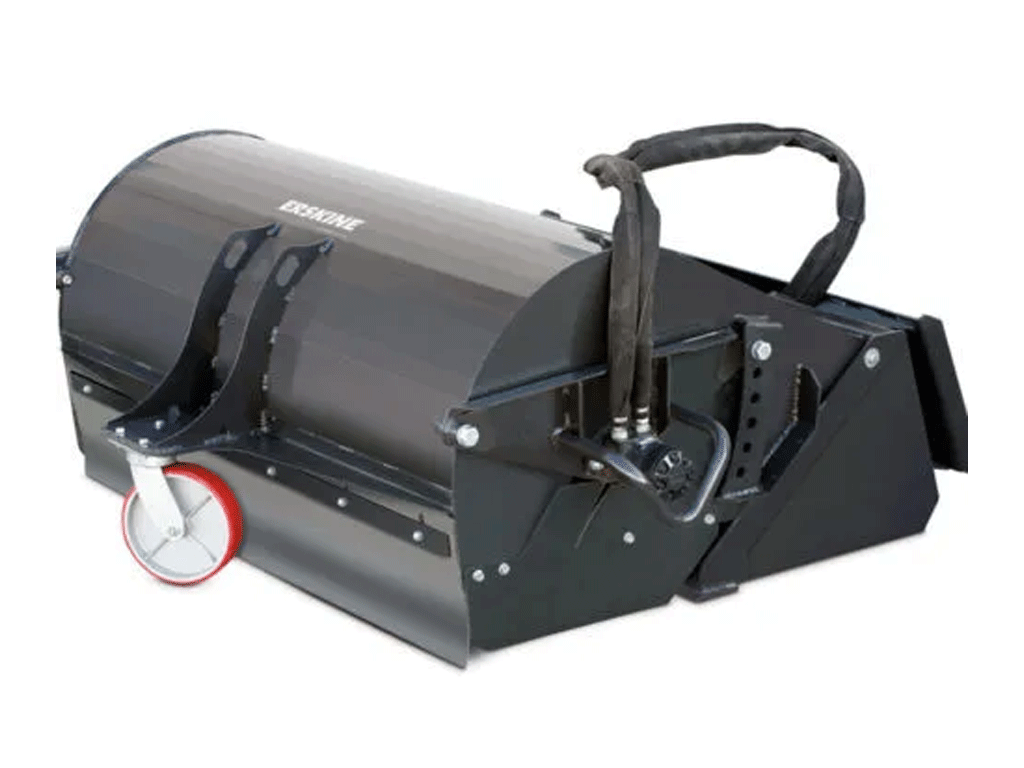

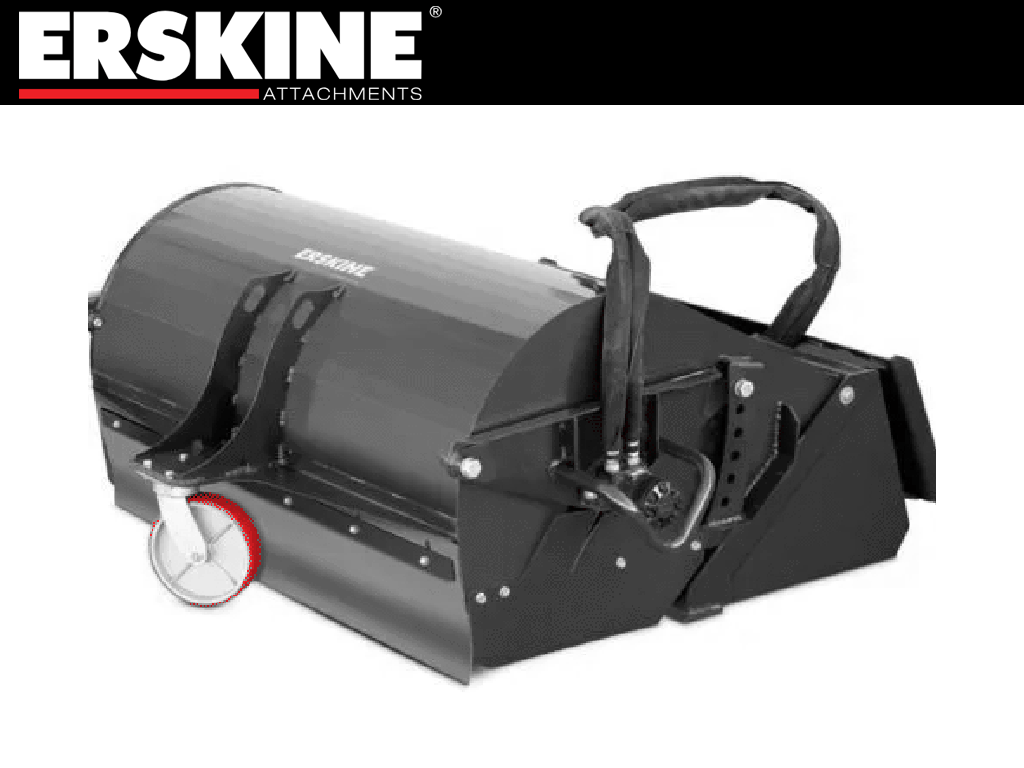

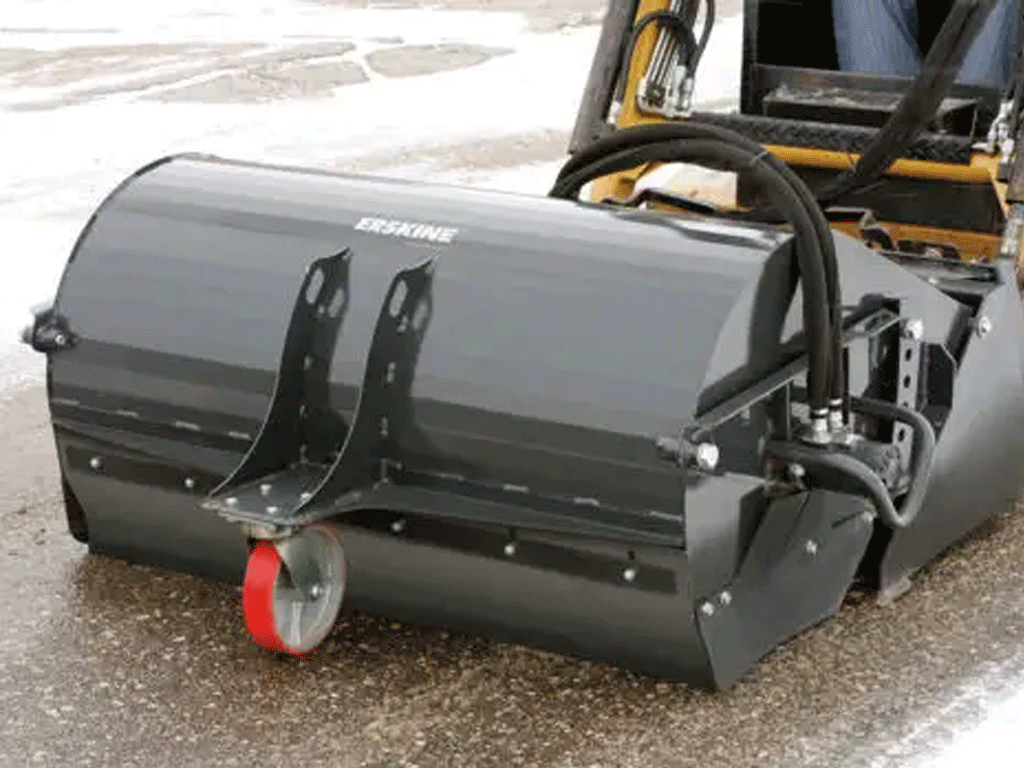

Sweep clean and scrape mud going forward or in reverse. Ideal for construction, industrial or municipal jobs, the Mini Pick-Up Broom is easy to attach and simple to operate. Replaceable cutting edge helps remove caked-on mud, while the sweeper’s poly bristles deposit dirt and debris in the container, which can be dumped when full.
| Model | Pick-up Broom Mini |
| Working Width | 45” |
| Overall Width | 57” |
| Overall Height | 25” |
| Bristle Diameter | 24” |
| Cutting Edge Specs | 1/2” x 4” bolt-on |
| Drive System | Direct-drive Hydraulic Motor |
| Rated Flow | 7-15 GPM |
| Operating psi | 2,000 - 3,000 psi |
| Weight | 440 lb. |
| Mounting Kit Configurations | ASV/Terex (RC/PT30) |
| Bobcat (MT-52/55, 463/S70 | |
| Toro / Vermeer / Boxer / Ditch Witch / Ramrod / Kanga / Cormidi | |
| Universal Mounting Plate (up to 1,000 lb. ROC and within rated flow) | |
| Options | |
| Factory Installed Couplers | |
| Model Description | Part Number |
| With poly wafer package | 900894 |
| With poly/steel wafer package | 900895 |
