901615/320057

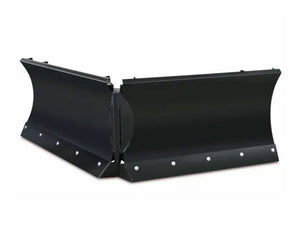

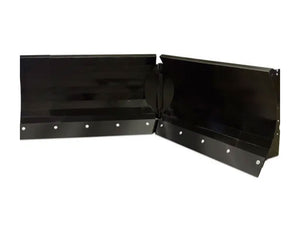

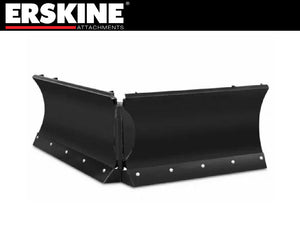

ERSKINE snow v plow blade for skid steer
$8,550.00 - $9,150.00
1/25
SKID STEER
SNOW V-PLOW BLADE
The V-Plow puts you in position for highly productive snow removal. V, scoop, left and right positions allow you maximum maneuverability. Built in oscillation of +/- 5 degrees follows the contour of the surface eliminating second pass clean-up. This attachment is engineered for quality from the ground up.
Features
- + or – 5 degree’s of oscillation to follow contours of the ground
- Two-way hydraulic only control provides full moldboard control in V, scoop, left and right positions
- 2” bore x 10” stroke cylinders with 1 1/4” rods and 1 1/4” cylinder pins
- Trip edge utilizing four extension springs
- Floating moldboard and adjustable cast skid shoes
- Central cutting edge bracket is designed to block snow from passing through the blade hinge point
- Three sizes
| Model | 84” | 96” | 108” |
|---|---|---|---|
| Part Number | 901613 | 901614 | 901615 |
| Straight Blade Width | 86” | 98” | 110” |
| Angled Blade Width | 69” | 79” | 89” |
| V Position Width | 75” | 85” | 96” |
| Scoop Position Width | 63” | 73” | 81” |
| Blade Height | 31.8” | 31.8” | 31.8” |
| Blade Angle | +/- 36° | +/- 36° | +/- 36° |
| Amount of Float | +/- 2.5° | +/- 2.5° | +/- 2.5° |
| Overall Length | 41.75” | 41.75” | 41.75” |
| Moldboard Thickness | .135” | .135” | .135” |
| Bolt-on Cutting Edge | 1/2” x 6” | 1/2” x 6” | 1/2” x 6” |
| Approximate Weight | 840 lb. | 920 lb. | 1,000 lb. |
| Options | |||
| Factory Installed Couplers |
