FAE Forestry Mulchers for skid Steer Loaders

FORESTRY MULCHERS FOR SKID STEERS

Choose your mulcher for skid steer, suitable for mulching trees, brambles, branches, shrubs and grass.

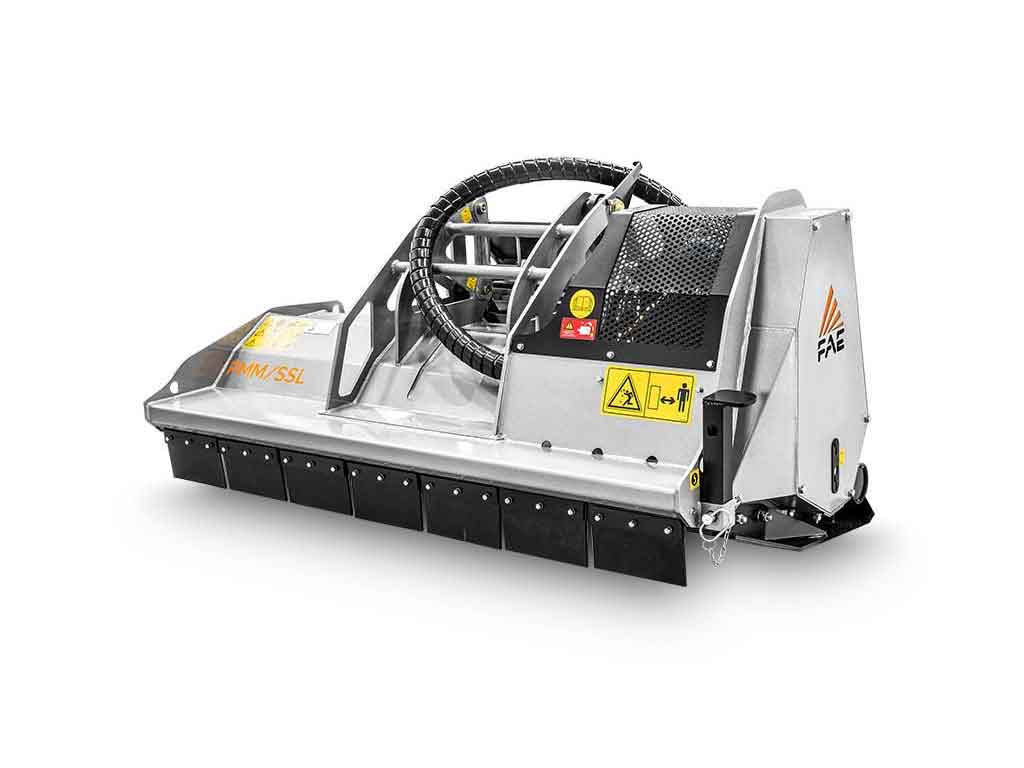

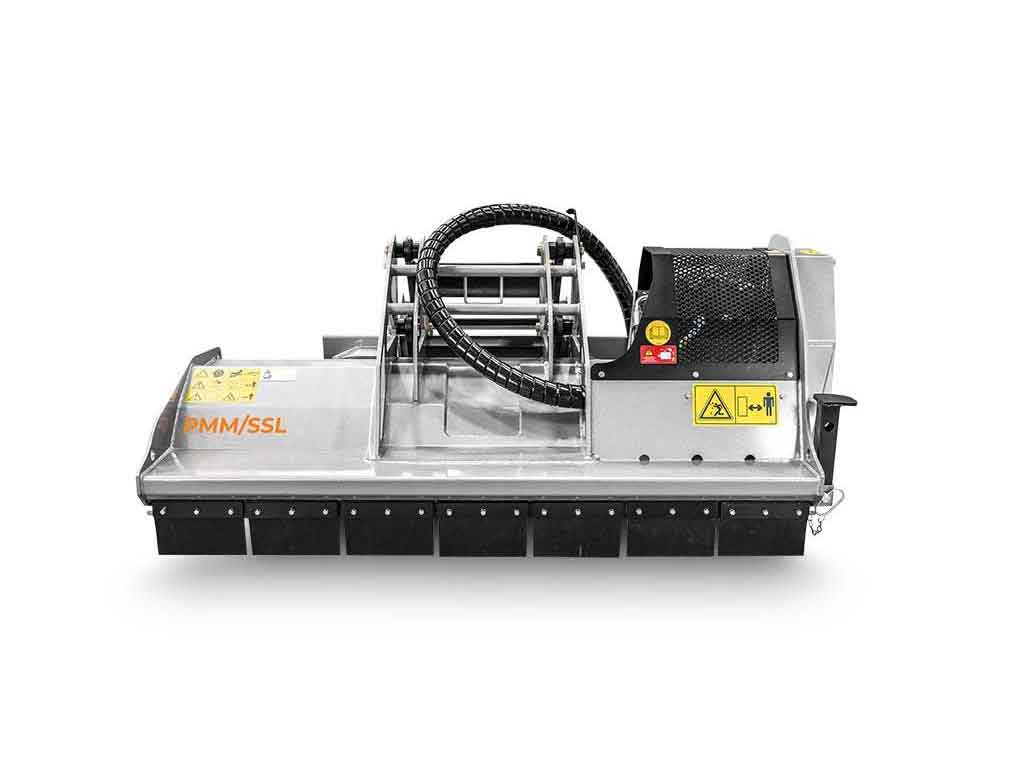

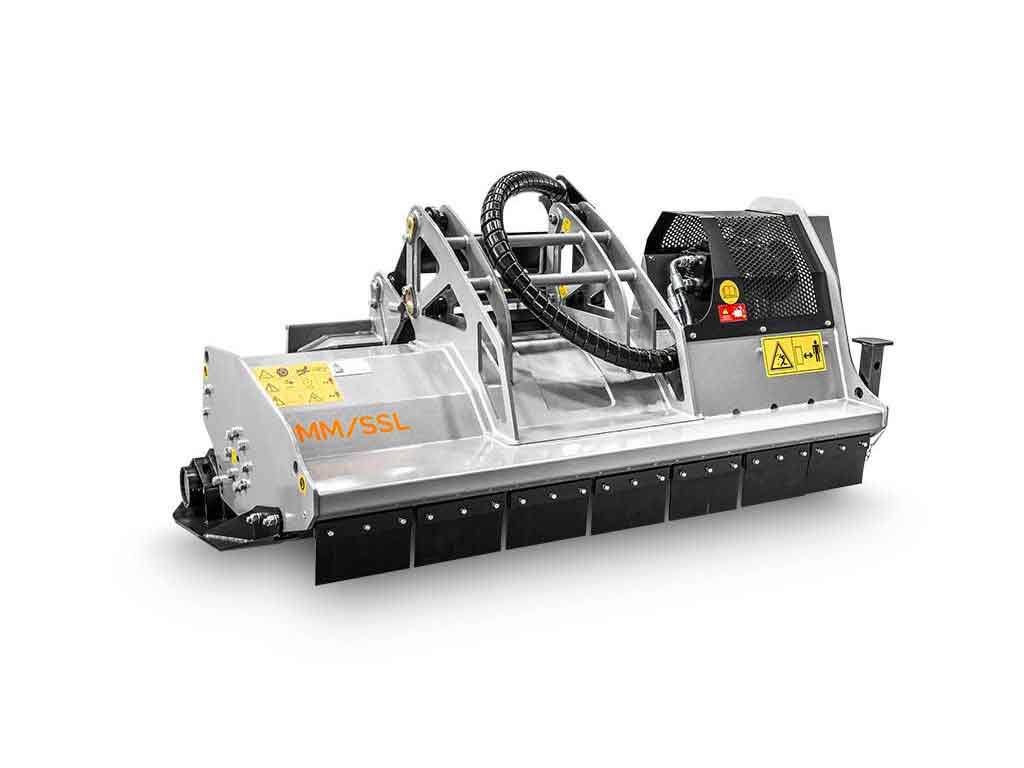

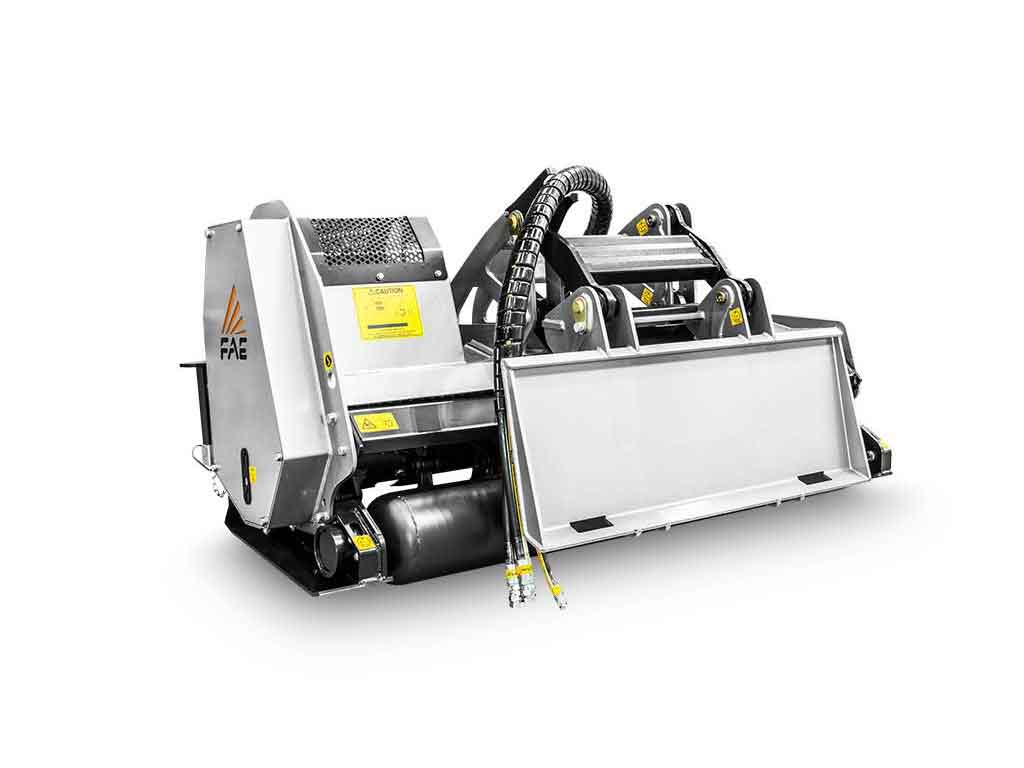

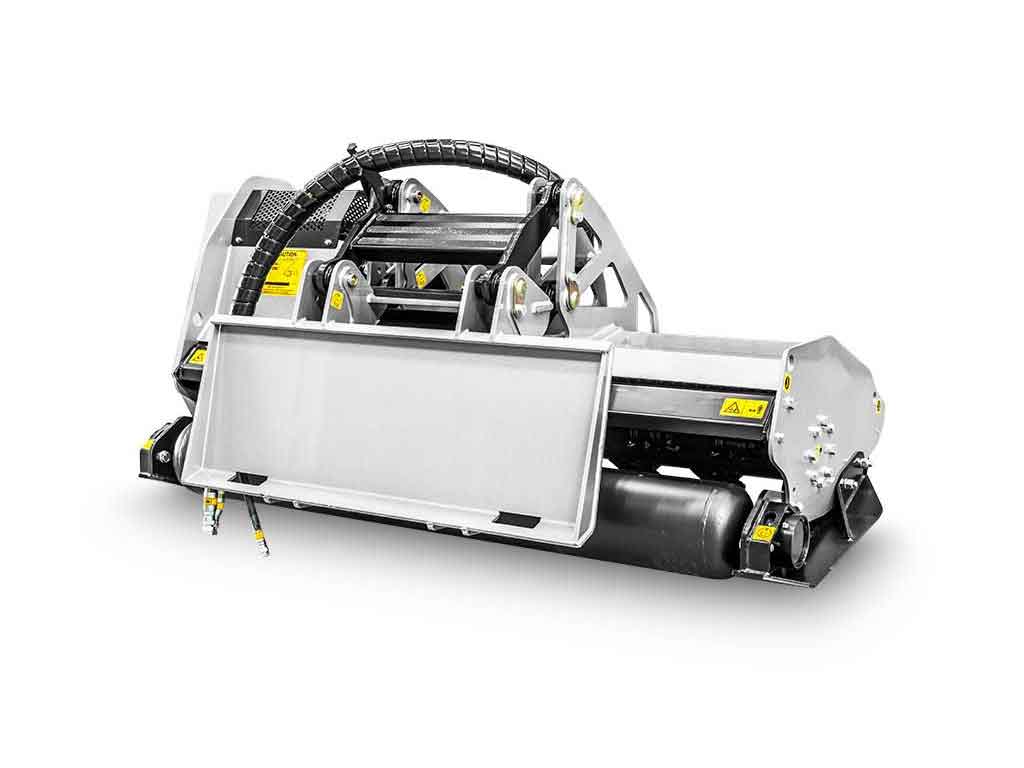

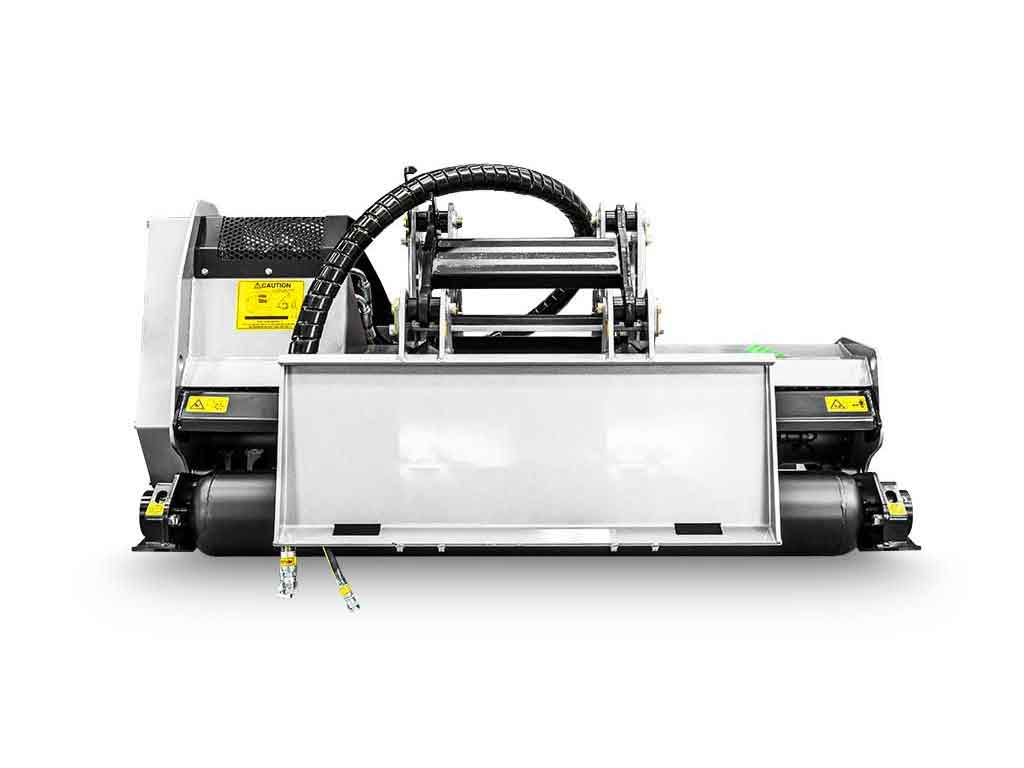

PMM/SSL - from 60 to 100 hp

A universal mulcher suitable for mulching saplings bushes, crop residues and grass.
Thanks to its “floating system”, the mulcher’s rotor adheres perfectly to the terrain, ensuring a homogeneous material after mulching. The support roller, larger in comparison to other attachments, guarantees the best performance even on particularly damp terrain.
The machine can be equipped with hammers for mulching material up to 3 in diameter or grass flail to better respond to the various needs of the customer.

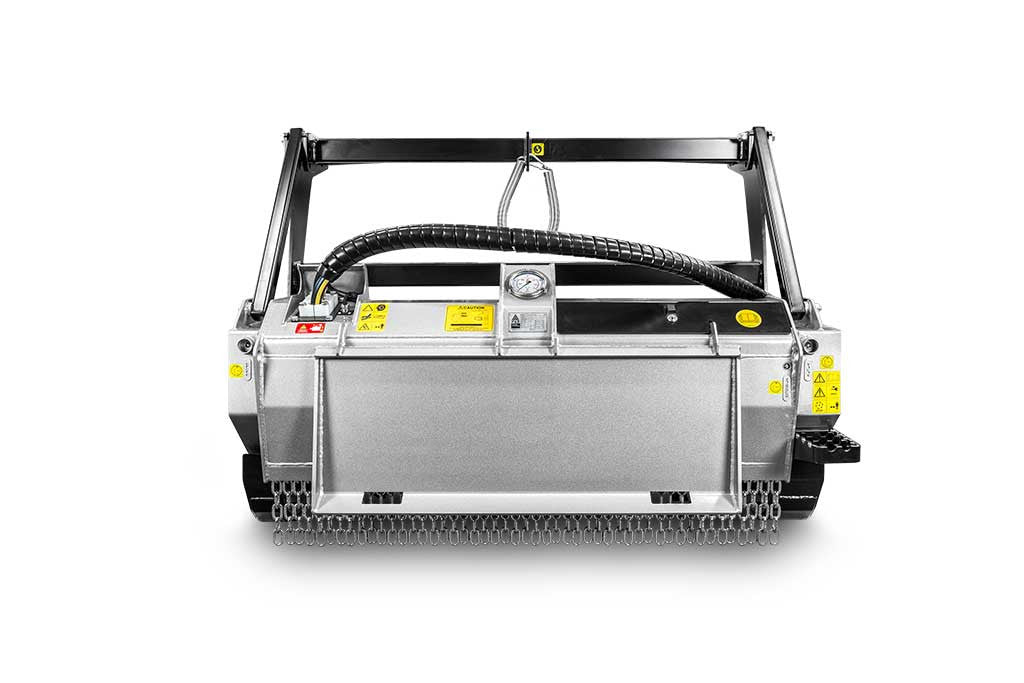

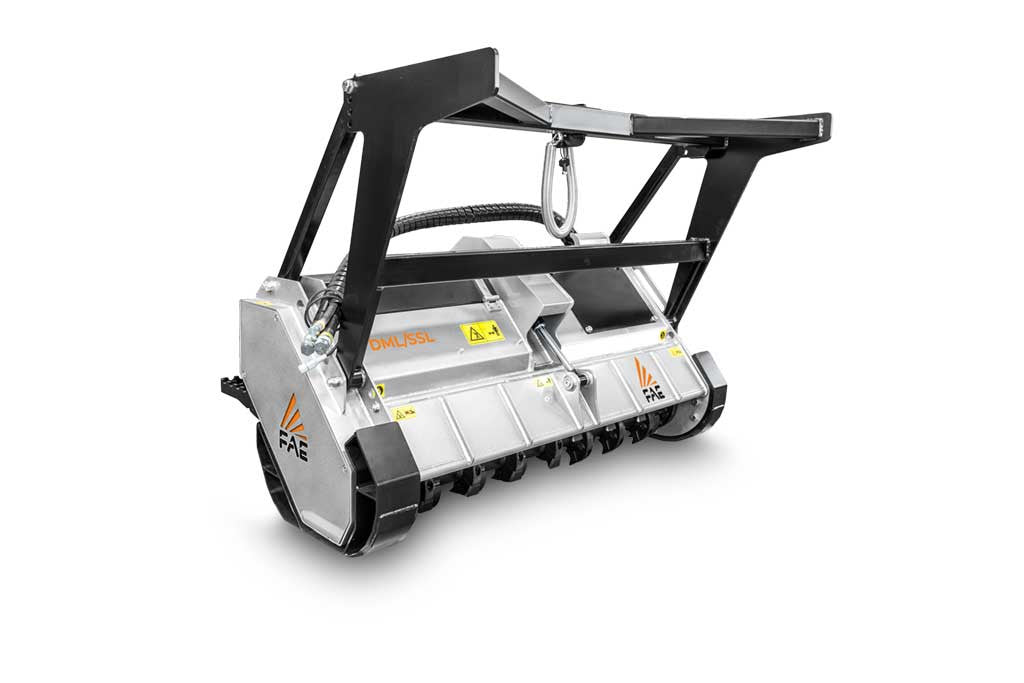

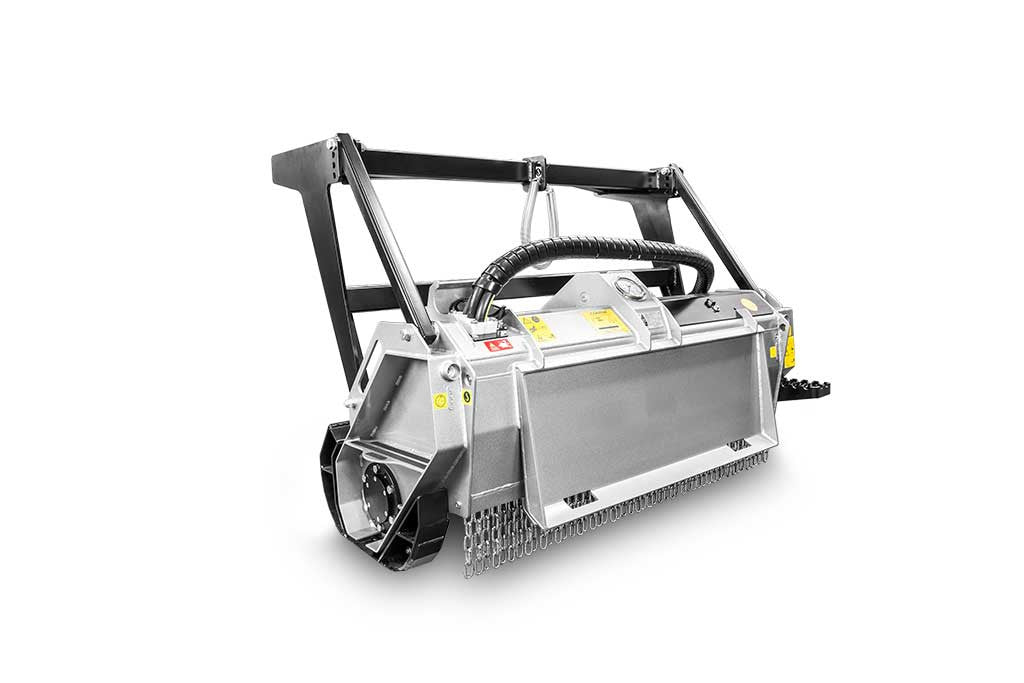

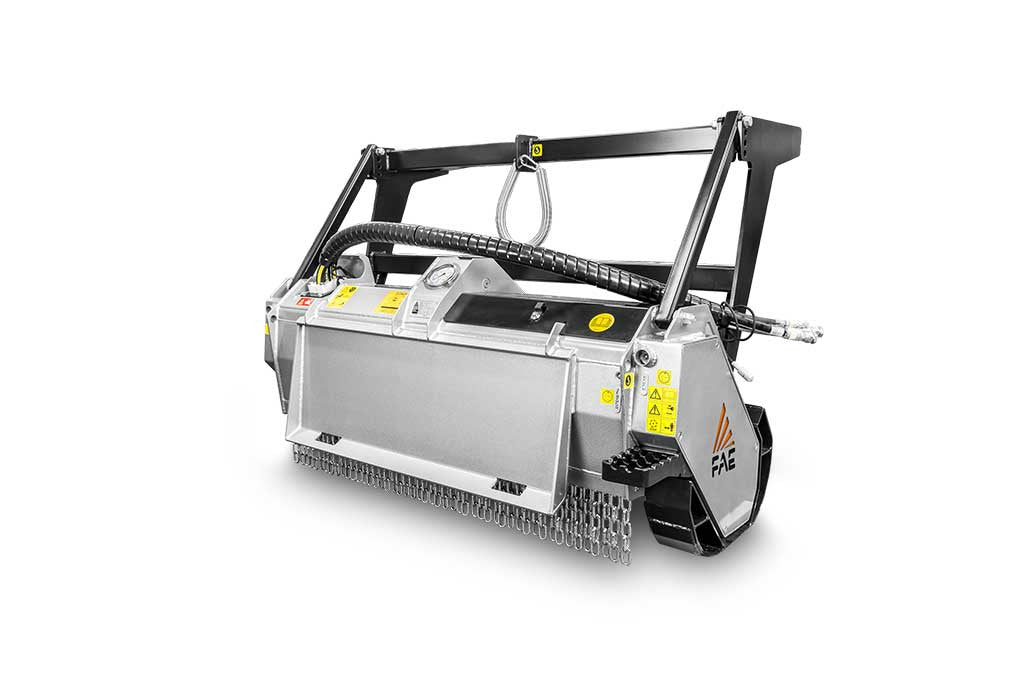

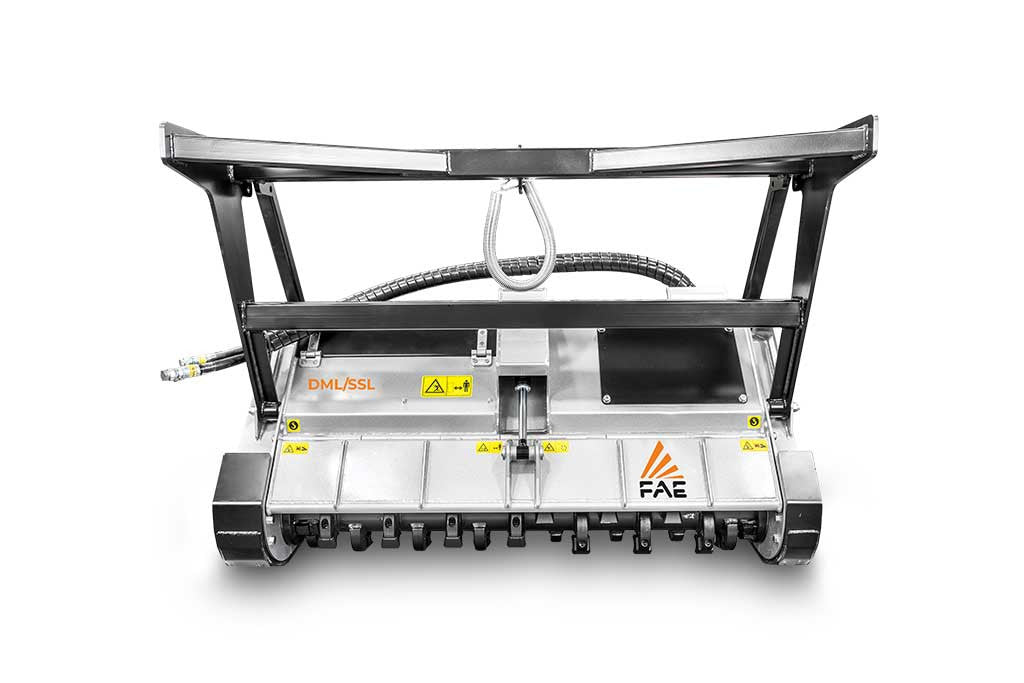

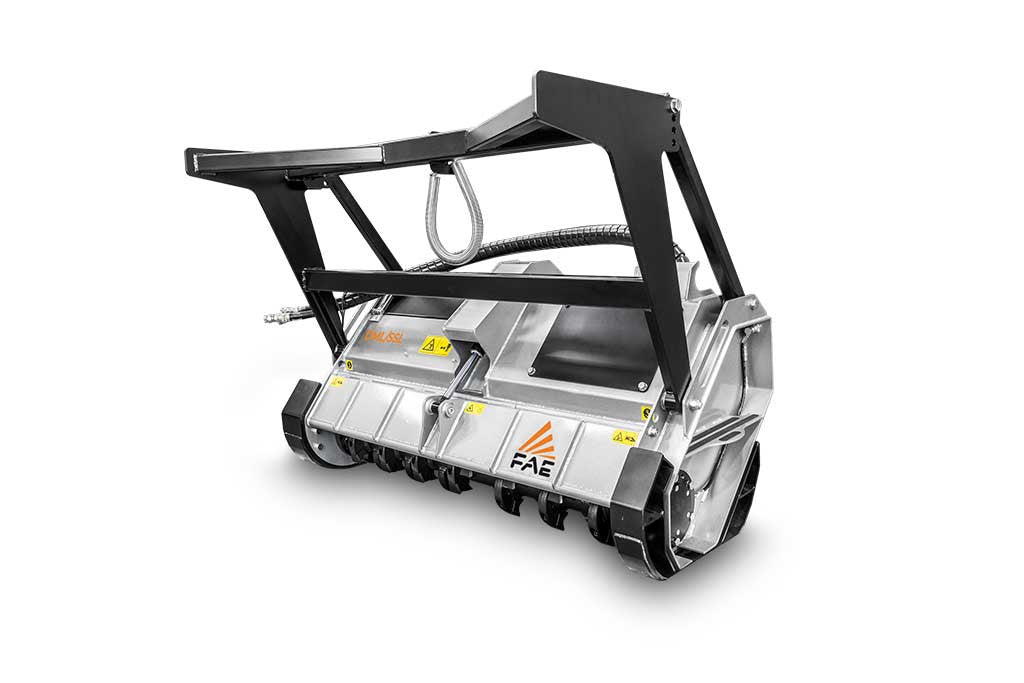

DML/SSL - DML/SSL/VT - from 40 to 70 hp

Forestry Mulcher with fixed tooth rotor for Skid Steer Loaders

The DML/SSL is the smallest of the FAE fixed tooth mulchers designed and manufactured to be utilized with skid steers up to 70 hp. The heavy duty construction of the frame makes it a long term investment, while the special design of the fixed tooth rotor allows a neat cut of the material and guarantees maximum reliability and high performance.
The automatic variable displacement hydraulic motor with mechanical adjustment makes it the ideal solution for skid steers that are not equipped with a high flow system.

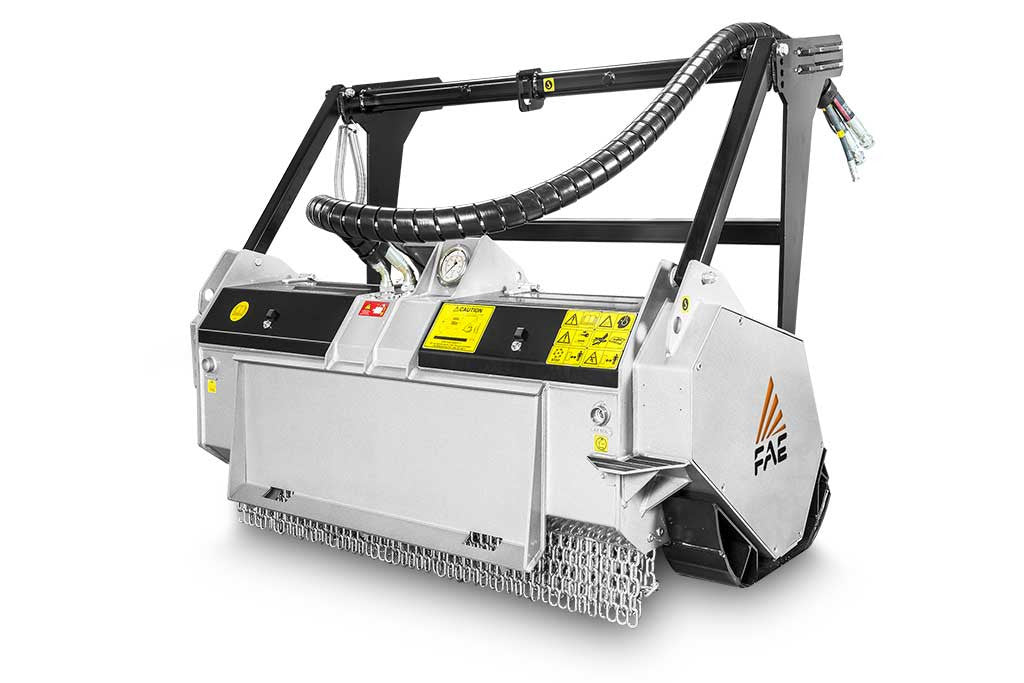

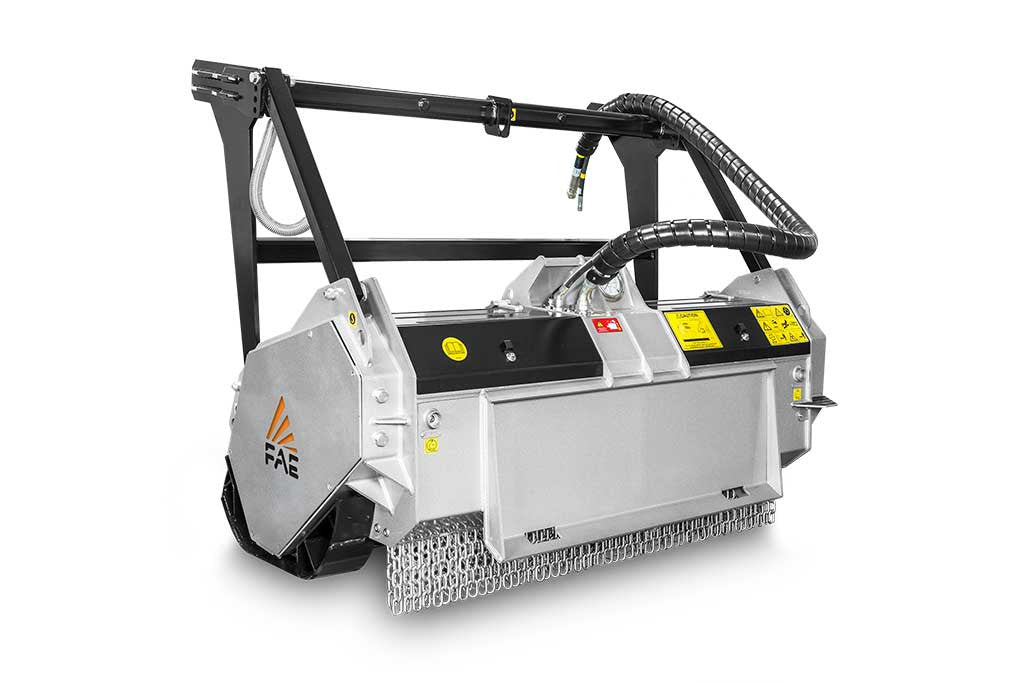

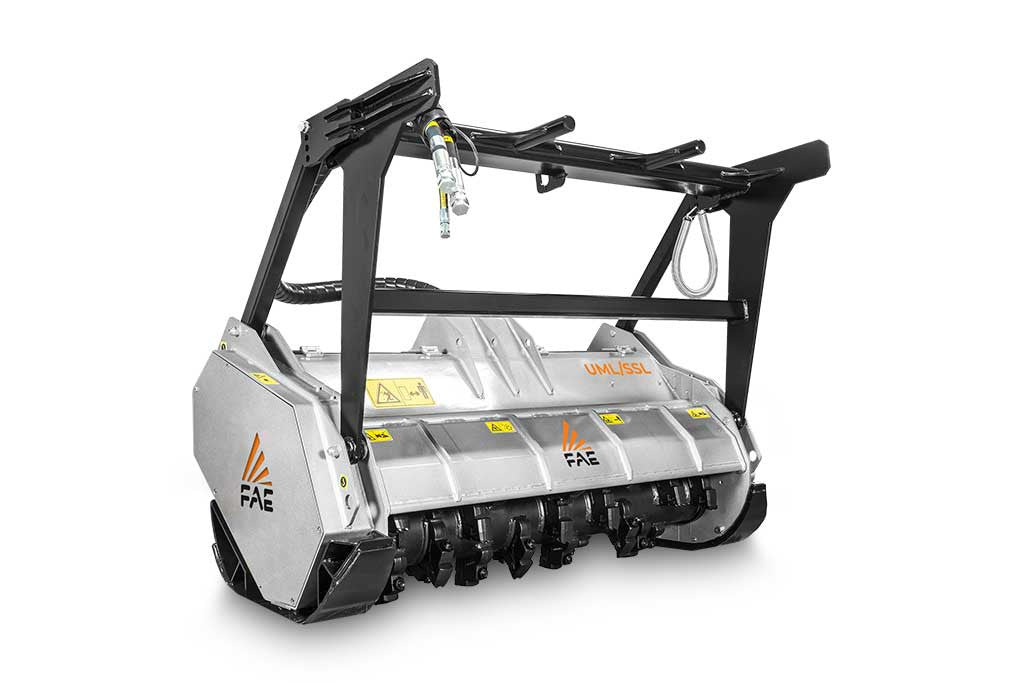

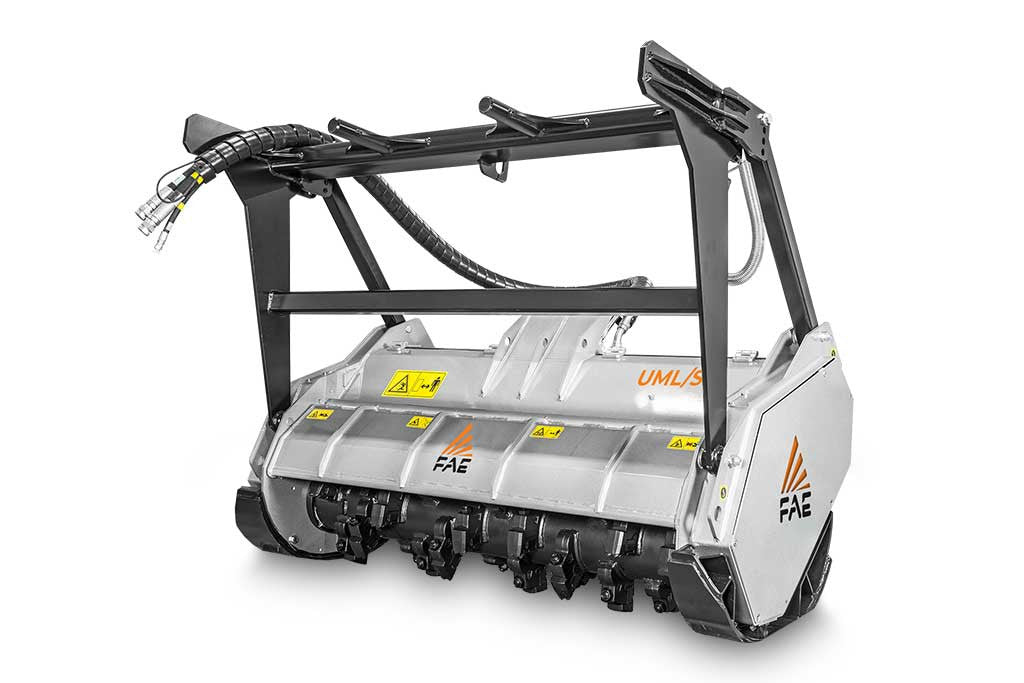

UML/SSL/VT - from 75 to 120 hp

Forestry Mulcher with fixed tooth rotor for Skid Steer Loaders

Robust and compact, the UML/SSL is renowned for its ergonomic design that guarantees excellent visibility for the operator during various situations.
Thanks to the diverter valve kit option, it can be utilized with any brand of skid steer on the market.
The VT version with automatic variable displacement hydraulic motor increases productivity


PMM SSL STANDARD EQUIPMENT 32/65cc variable manual displacement hydraulic piston motor with relief and anti cavitation valve Self levelling protection rubber Motor enclosed in the frame Supporting service leg Belt transmission Welded counter blades Hydraulic hoses Self cleaning rear roller with integrated skids Front hood with mechanical adjustment Attachment plate with self levelling device Adjustable skids

DML STANDARD EQUIPMENT 17/34cc variable manual displacement hydraulic piston motor with relief and anti-cavitation valve (12-28 gpm) (DML/SSL) Hydraulic hoses 55/38cc variable torque hydraulic piston motor (16-30 gpm) (DML/SSL/VT) Hydraulic front hood Diverter valve (plug in and play) Working pressure control gauge Safety and anti-cavitation valve Pushing frame Enclosed / anti dust machine body Protection chains Motor enclosed in the frame Welded counter blades Belt transmission

UML STANDARD EQUIPMENT 110/60cc variable torque hydraulic piston motor (32-53 gpm) Hydraulic front hood Safety and anti-cavitation valve Adjustable skids Enclosed / anti dust machine body Working pressure control gauge Motor enclosed in the frame Guard frame Belt transmission Dual row protection chains Poly Chain® Belt Transmission Welded counter blades Hydraulic hoses

MODEL PMM SSL 150 PMM SSL 175 PMM SSL 200
ENGINE HP 60-100 65-100 70-100
FLOW RATE 15-33 15-33 15-33
PRESSURE 2600-3600 2600-3600 2600-3600
WORKING WIDTH 61" 70" 80"
TOTAL WIDTH 69" 79" 86"
WEIGHT 1742 LBS 1874 LBS 2006 LBS
ROTOR DIAMETER 17.3 17.3 17.3
MAX CUT DIAMETER 3" 3" 3"
# OF HAMMERS 18 22 24
# OF FLAIL 18 22 24


MODEL DML SSL 125 DML SSL 150 PMM SSL 175
ENGINE HP 40-70 40-70 40-70
FLOW RATE 12-28 12-28 12-28
PRESSURE 2600-3600 2600-3600 2600-3600
WORKING WIDTH 49" 58" 68"
TOTAL WIDTH 60" 69" 79"
WEIGHT 1510 LBS 1731 LBS 1951 LBS
ROTOR DIAMETER 11.8 11.8 11.8
MAX CUT DIAMETER 5" 5" 5"
# OF BLADES 30 36 42






MODEL DML SSL 125 DML SSL 150 DML SSL 175
ENGINE HP 40-70 40-70 40-70
FLOW RATE 16-30 16-30 16-30
PRESSURE 2600-5080 2600-5080 2600-5080
WORKING WIDTH 49" 58" 68"
TOTAL WIDTH 60" 69" 79"
WEIGHT 1510 LBS 1731 LBS 1951 LBS
ROTOR DIAMETER 11.8 11.8 11.8
MAX CUT DIAMETER 5" 5" 5"
# OF BLADES 30 36 42



MODEL PMM SSL 150 PMM SSL 175 PMM SSL 200
ENGINE HP 75-120 75-120 75-120
FLOW RATE 32-53 32-53 32-53
PRESSURE 2900-5000 2900-5000 2900-5000
WORKING WIDTH 53" 62" 72"
TOTAL WIDTH 65" 74" 83"
WEIGHT 2646 LBS 2866 LBS 3086 LBS
ROTOR DIAMETER 16.5 16.5 16.5
MAX CUT DIAMETER 8" 8" 8"
# OF HAMMERS 26-2 32-2 36-2
# OF FLAIL 36-2 42-2 50-2
