010801100; 500000458-O; 110822000-K-1

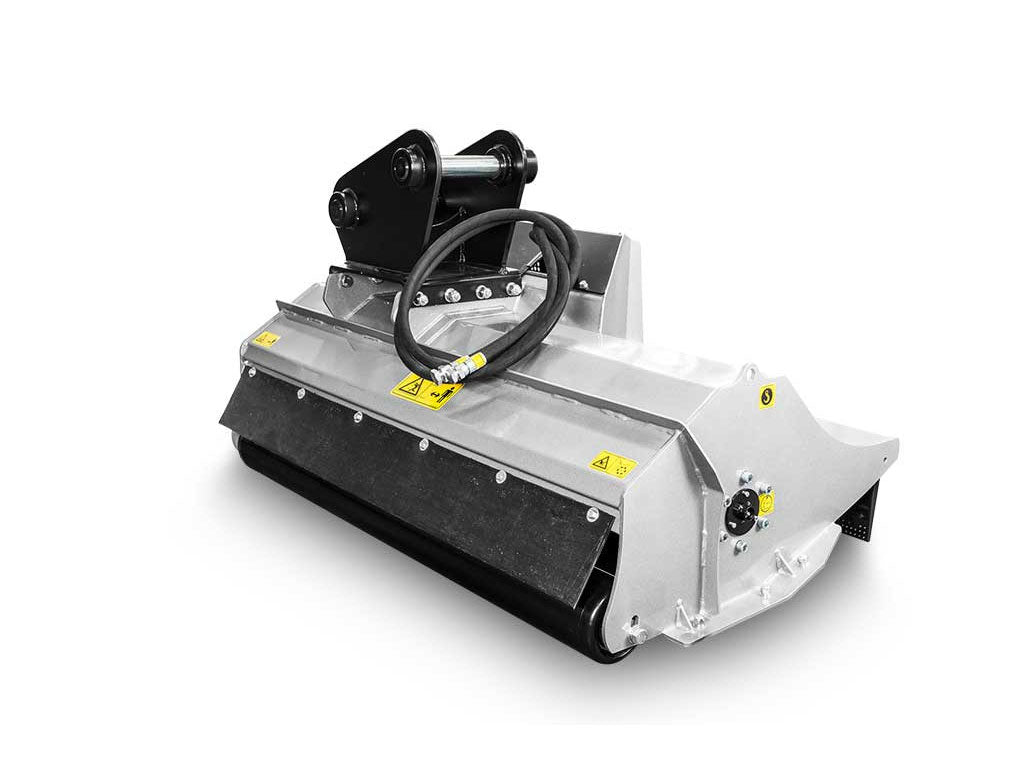

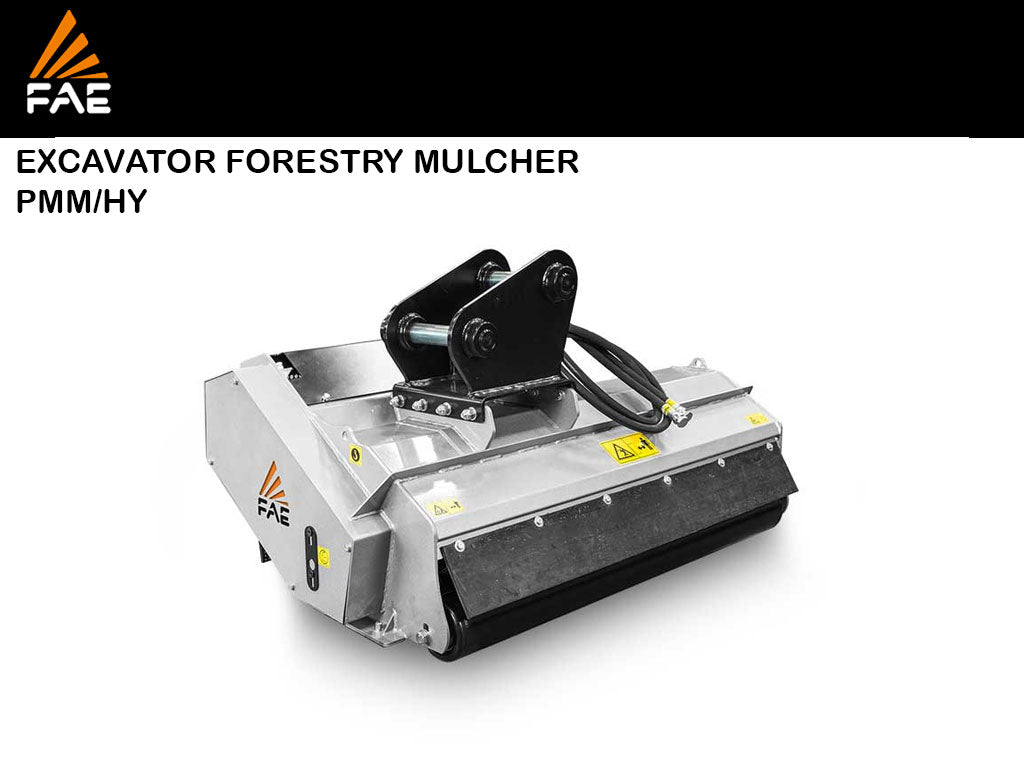

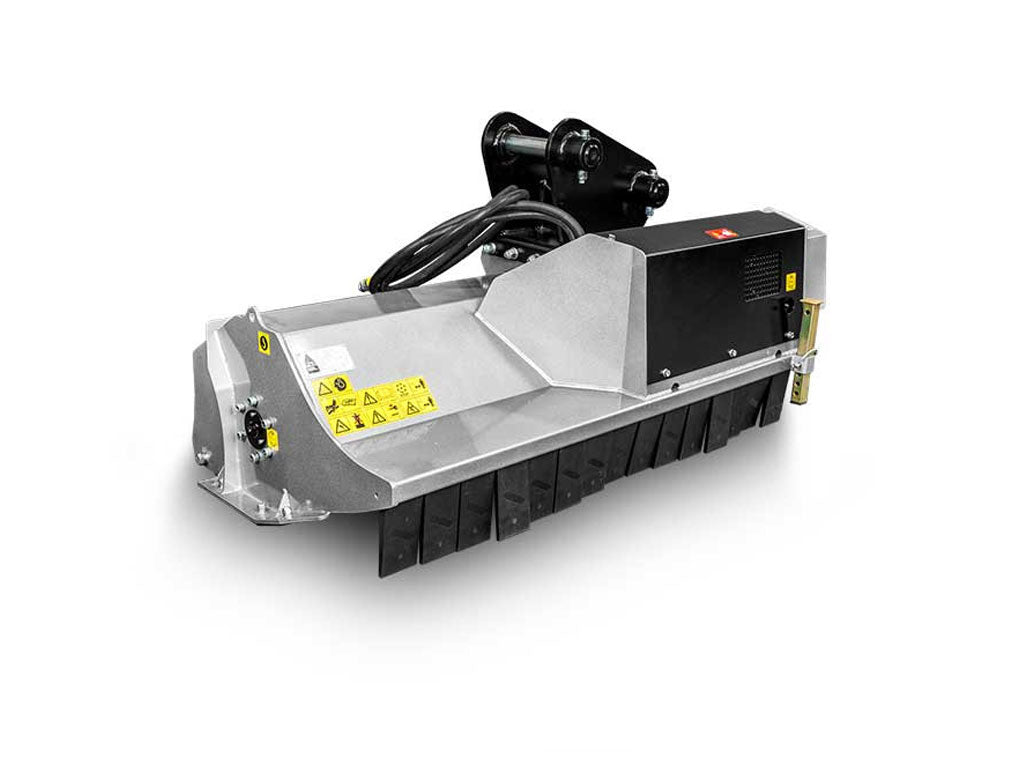

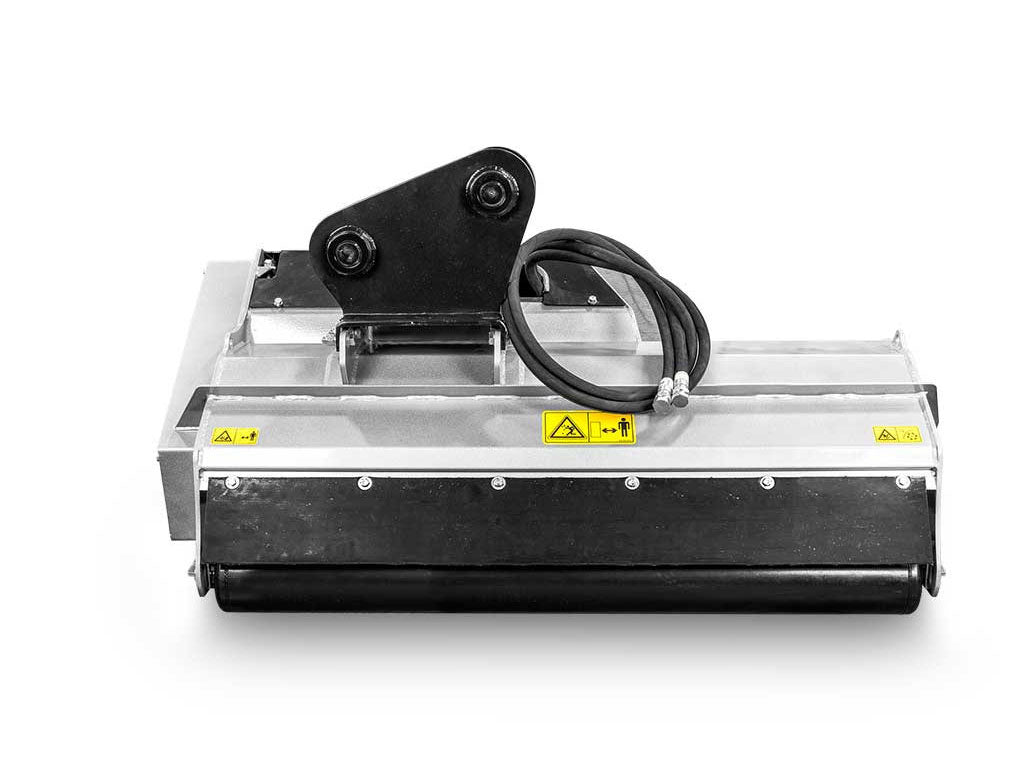

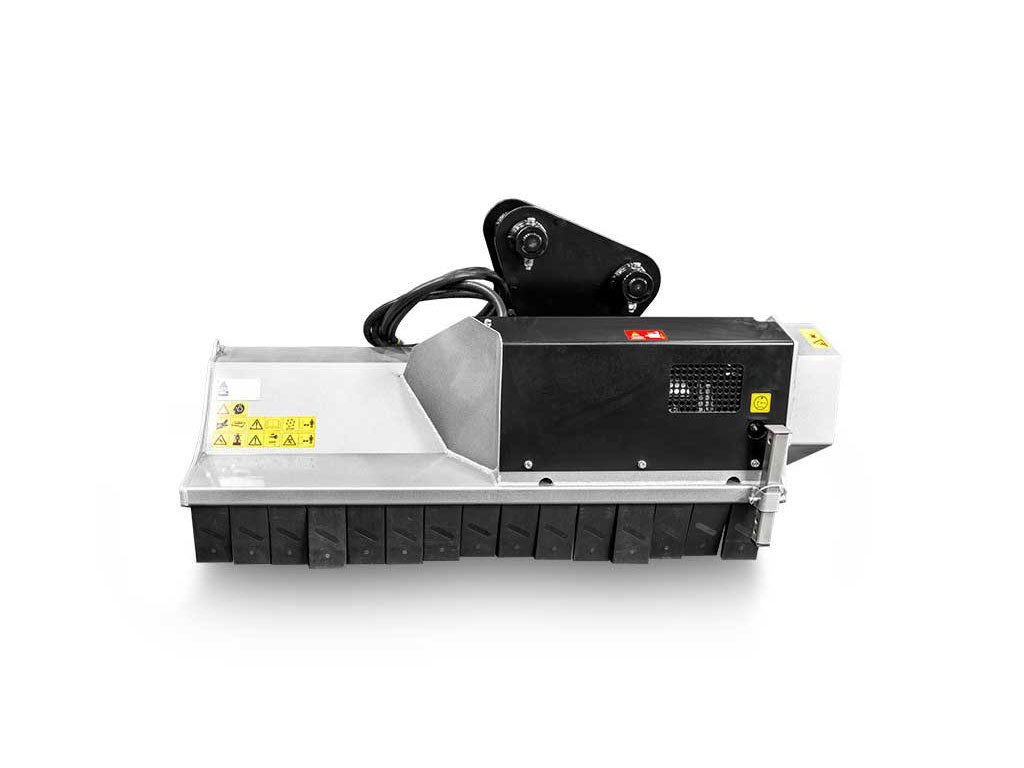

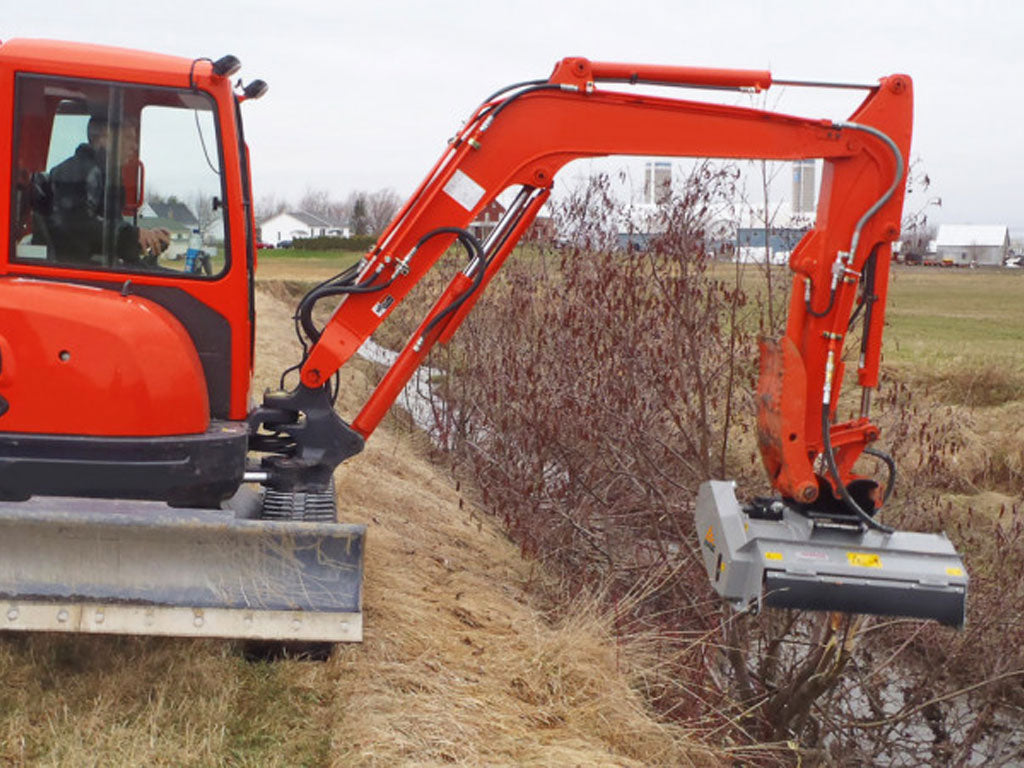

FAE PMM/HY forestry mulcher for mini-excavators, 7000 - 11000 lbs. machines

MODEL
MOUNTING
TEETH

MULCHERS FOR EXCAVATORS

PMM/HY

Mulcher with hammer/flail rotor for excavators.

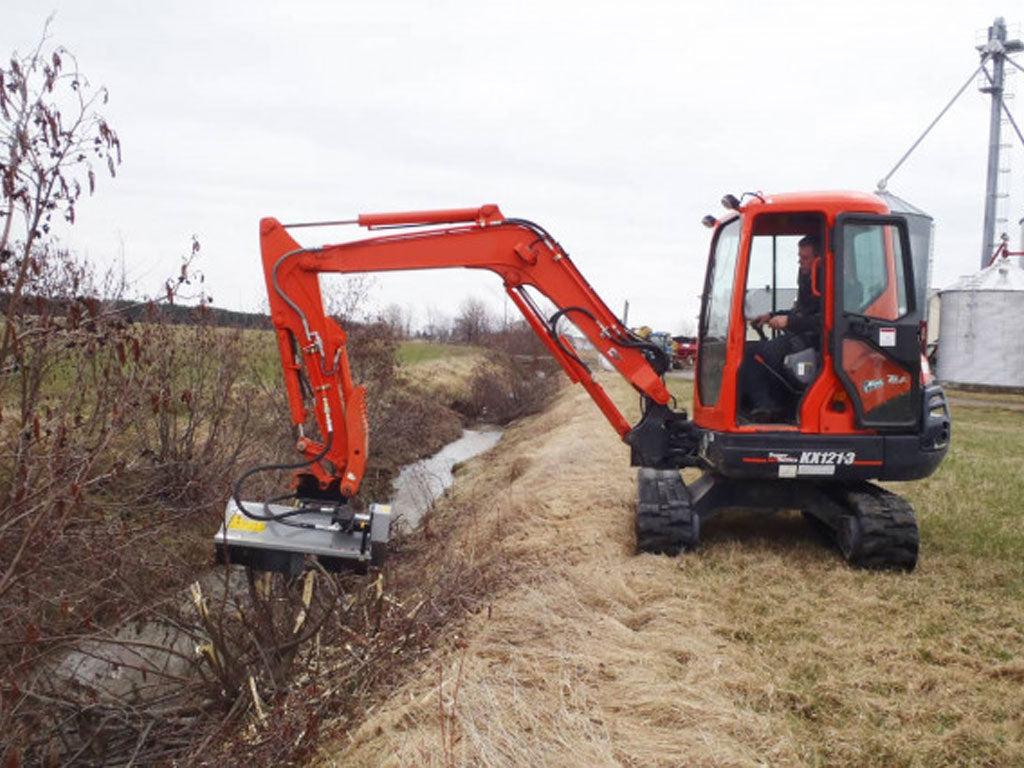

Thanks to its compact dimensions and versatility, the PMM/HY is the most requested model for grass and brush mulching in FAE’s small mulcher lineup.
The mulcher can be equipped with a standard 16cc motor or an optional 27cc motor for mounting on 3.5 to 5.5 ton excavators.
The flow control valve ensures an easy and rapid mounting of the mulcher without adjustments or modifications to the hydraulic system of the excavator.

APPLICATIONS:

STANDARD EQUIPMENT

  • Enclosed/anti dust machine body
  • Welded steel counter-blades
  • Motor enclosed in the frame
  • Hydraulic hoses
  • Self levelling protection rubber
  • Supporting service leg
  • Transmission with belts
  • 16cc gear motor with integrated anti-cavitation valve
  • Flow control system valve
  • Rear roller
                  TOOLS Hammer PML Blade Y/2
                  EQUIPPED STANDARD OPTIONAL
                  APPLICATION Bushes and branches Bushes and branches
                  PHOTO Hammer PML | FAE Blade Y/2 | FAE



                  OPTIONS

                  • 27CC GEAR MOTOR WITH INTEGRATED ANTICAVITATION VALVE
                  • 17/34CC VARIABLE MANUAL DISPLACEMENT HYDRAULIC PISTON MOTOR WITH RELIEF AND ANTICAVITATION VALVE - requires case drain line
                  • CUSTOMIZED SETTING HYDRAULIC MOTOR

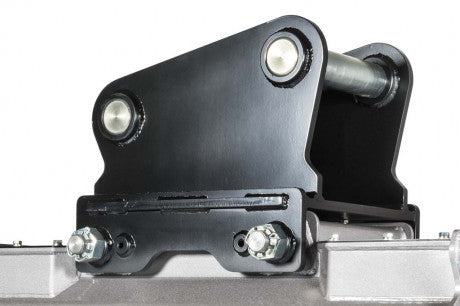

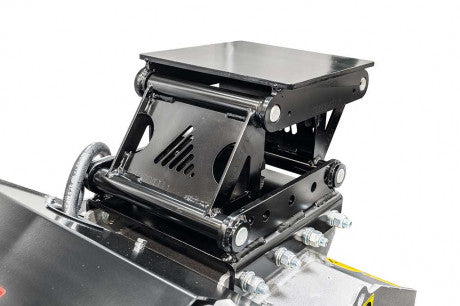

                  • CUSTOMIZED ATTACHMENT BRACKET WITH PINS

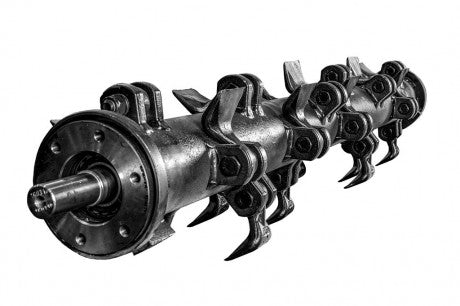

                  • POSSIBILLITY TO HAVE THE ROTOR EQUIPPED WITH PML HAMMERS OR Y-FLAILS


                  MODEL PMM/HY 100 PMM/HY 125
                  Flow rate (gal/min) 10-31.7 10-31.7
                  Pressure (PSI)  2200-3050 2200-3050
                  Excavator weight (t) 3.5-5.5 4.0-5.5
                  Working width (in) 40 49
                  Weight (lbs) 551 639
                  Rotor diameter (in) 14.2 14.2
                  Max shredding diameter (in) 2 2
                  No. hammers type PML 16 20
                  No. flails type Y/2 16 20
