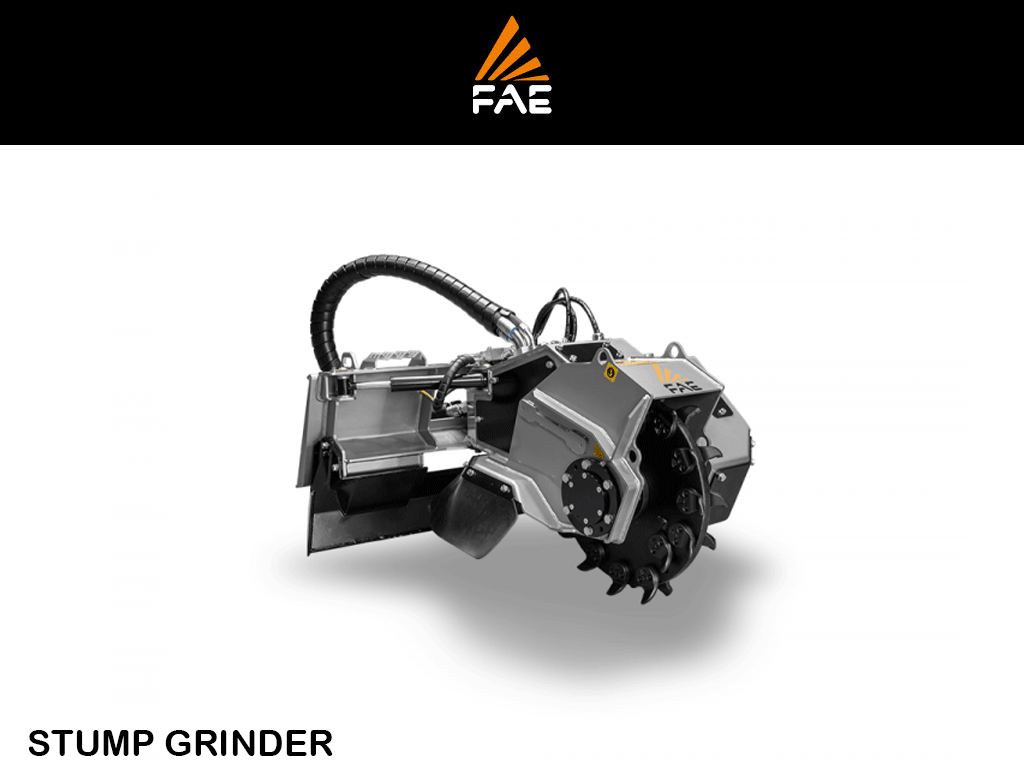

FAE Stump cutter for skid steer
$0.00
SCL/SSL
Stump cutters for 75-120 hp skid steers.
The SCL/SSL works with 75-120 hp skid steers. This head can shred large stumps and roots up to 50 cm deep. Lateral oscillation with proportional hydraulic control makes it possible to work on a large area without moving the vehicle. The SCL/SSL’s Direct Drive motor minimizes maintenance and permits a more compact design.
STANDARD EQUIPMENT
- 125 cc hydraulic piston motor
- Direct-drive transmission
- Hydraulic block with safety and anti-cavitation valves
- Hydraulic and proportional swing control
- 12 V diverter valve
- Enclosed, dust-resistant machine body
- Hydraulic hoses
- Supporting leg
- Interchangeable forged steel rotor shafts
- Motor enclosed in the frame
OPTIONS

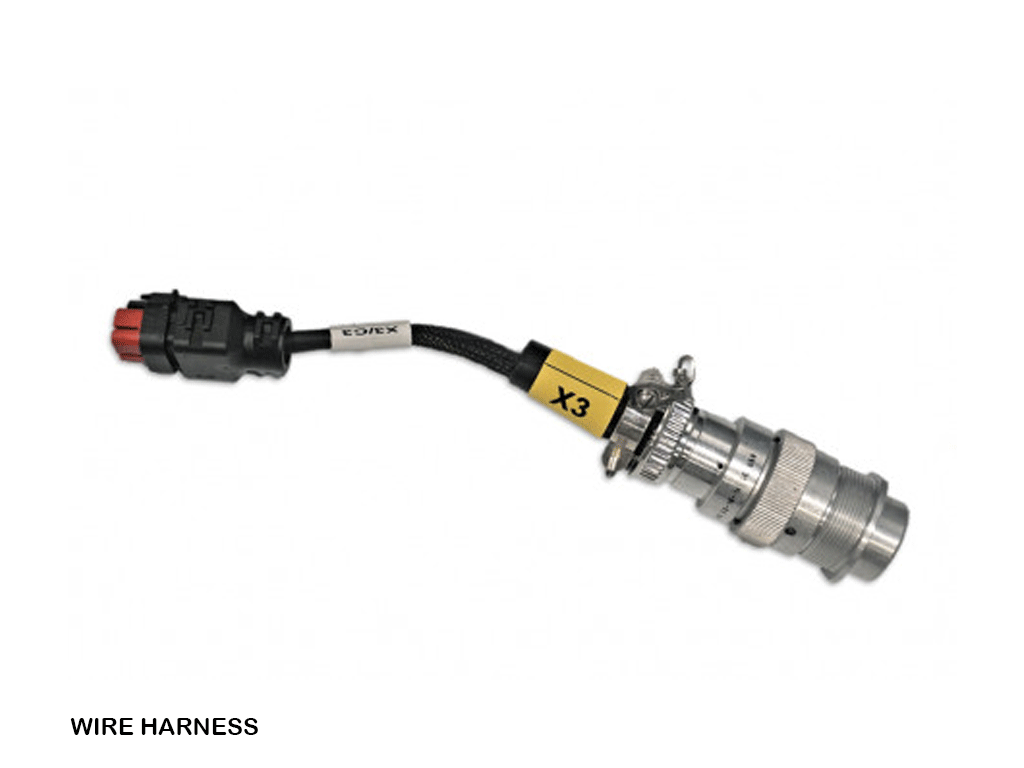

- Adaptor wiring

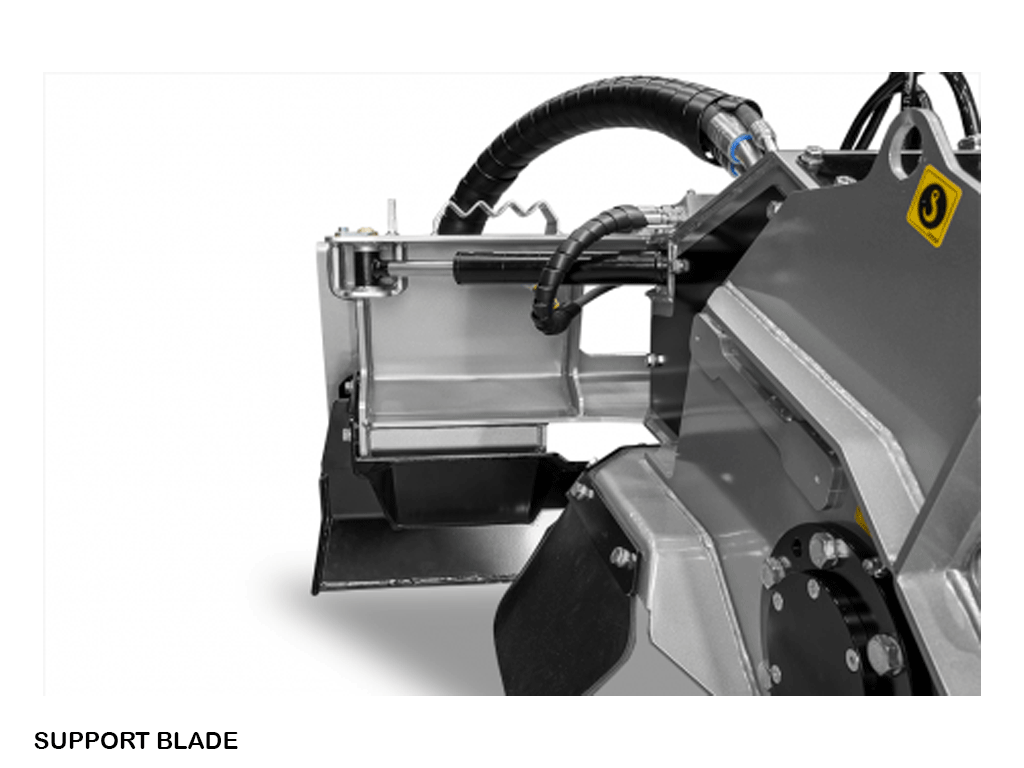

- Support blade
* CASE DRAIN LINE REQUIRED
| MODEL | STC / SSL |
| ENGINE (HP) REQ | 75-120 |
| PRESSURE (PSI) | 2600-5080 |
| WORKING WIDTH MAX (IN) | 37 |
| TOTAL WIDTH (IN) | 46 |
| WEIGHT (LBS) | 992 |
| MAX SHREADING DIAMETER (IN) | 16 |
| DISC DIAMETER (IN) | 26 |
| DISC ROTOR WIDTH (IN) | 4.4 |
| MAX WORKING DEPTH (IN) | 20 |
| NO. TEETH / TYPE | L/1 = 15, L/2=15 |
