FFC

FFC TILLER (SSL)(CTL)

ORDER NUMBER
OPTION

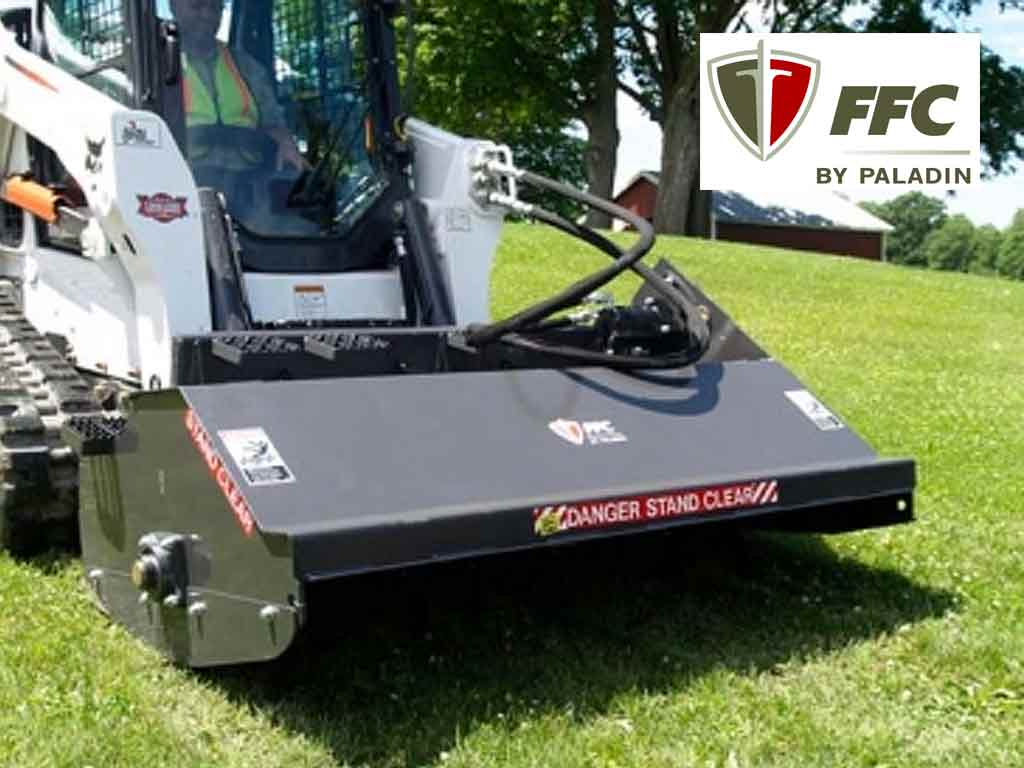

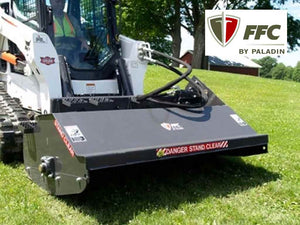

Tillers

FFC Tillers are perfect for landscaping and site preparation. They turn up hard-packed ground, leaving the perfect seedbed for gardens or lawns. This product is also available CE certified.

  • Efficiently breaks up sod and clumps of soil, mixes in compost, prepares soil for seeding
  • Hardened, replaceable tines cut 6" deep
  • Bi-directional shaft undercuts and top cuts in both directions of travel
  • Works next to walls, fences and other obstacles

Fixed Offset, Dual Direct Drive Adjustable Offset, Chain Drive

  • Dual direct drive motors propel both ends of the tiller drive shaft for balanced torque and minimal wear and tear
  • Offset tiller mounting permits work up close to walls, building and pipes, covers 76” wheel tracks
  • Bi-directional shaft rotation permits under cutting and top-cutting in both directions of travel
  • Available in 38”, 52”, & 68” working widths
  • 1 year warranty on structure, 6 month warranty on hydraulics

Adjustable Offset, Chain Drive

  • High torque efficient chain drive system
  • Exclusive two position offset mount on 66” & 78” tiller covers wheel tracks and allows tight cut next to obstacles
  • Standard dual rotation with bi-directional tines

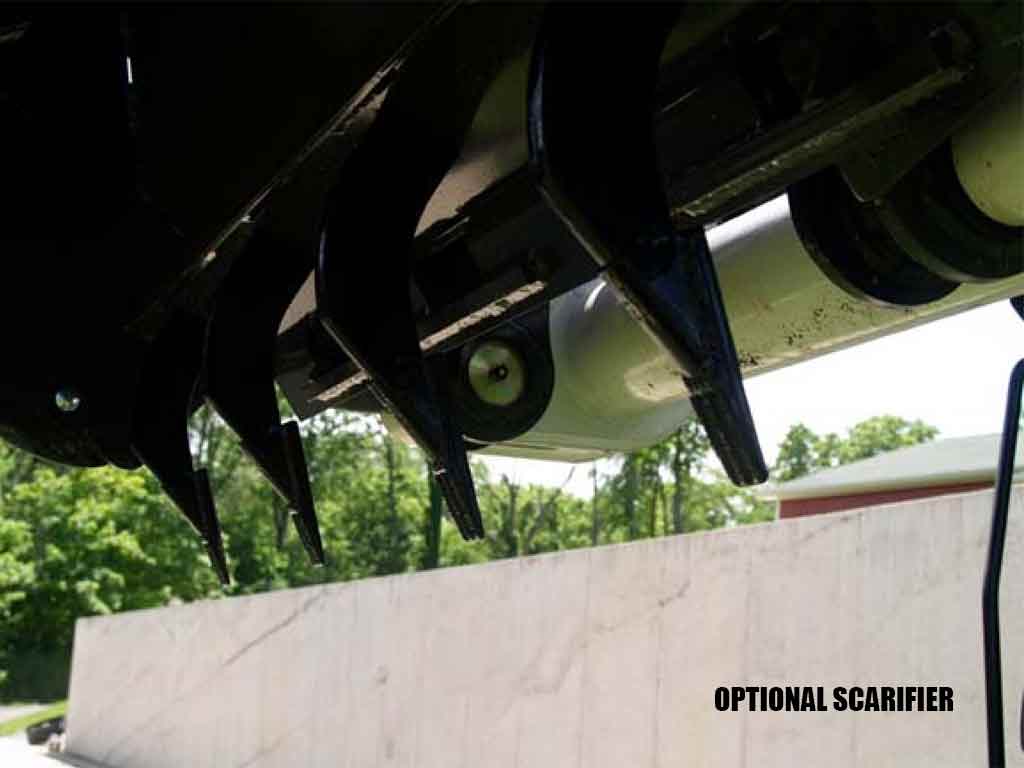

  • Scarifier assembly increases productivity by combining the tractive effort and force of the loader with the hydraulic horse power of the tiller
  • Available in 52”, 66”, & 78” working widths
  • 1 year limited warranty
SPECIFICATIONS 38" 52" 68"
ORDER CODE LAF3438 LAF3452 LAF3468
WEIGHT 435 600 695
WORKING WIDTH 38" 52" 68"
WIDTH 44" 68" 78"
TINES 20 28 36
GPM RANGE 6-12 12-40 15-40
PSI RANGE 1500-3000 2000-3500 2300-3500
TORQUE 470 939 939
CARRIER CAPACITY <9000 <9000 <9000
CARRIER WEIGHT <11000 <11000 <11000



SPECIFICATIONS 52" 66" 78"
ORDER CODE HT52 HT66 HT78
WEIGHT 750 1000 1300
WORKING WIDTH 52" 66" 78"
WIDTH 62" 76" 84"
TINES 24 32 40
GPM RANGE 14-28 14-44 29-44
SCARIFIER 4 5 6
