FOX SCOOP PLOW (CTL)(SSL)

Call for Price

DESCRIPTION
SPECIFICATIONS

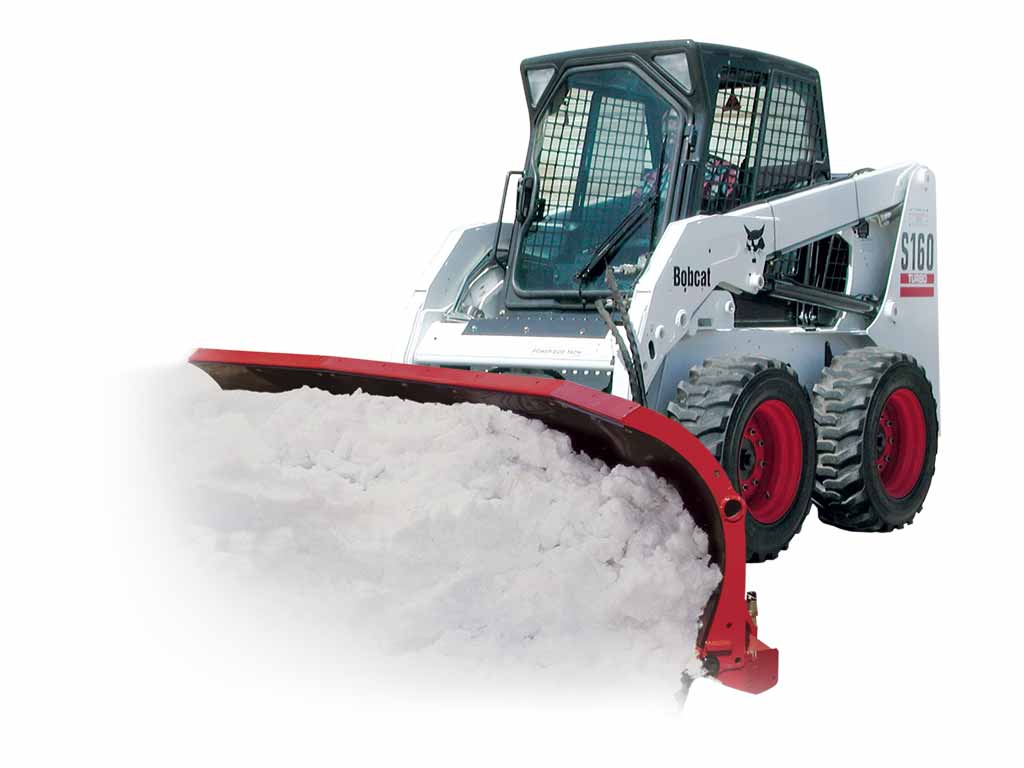

Skid Steer Scoop Plow

Series 2682/2692 Snowplow

Concave shape captures snow to efficiently clear lots and parking areas. Angles left or right for conventional plowing.

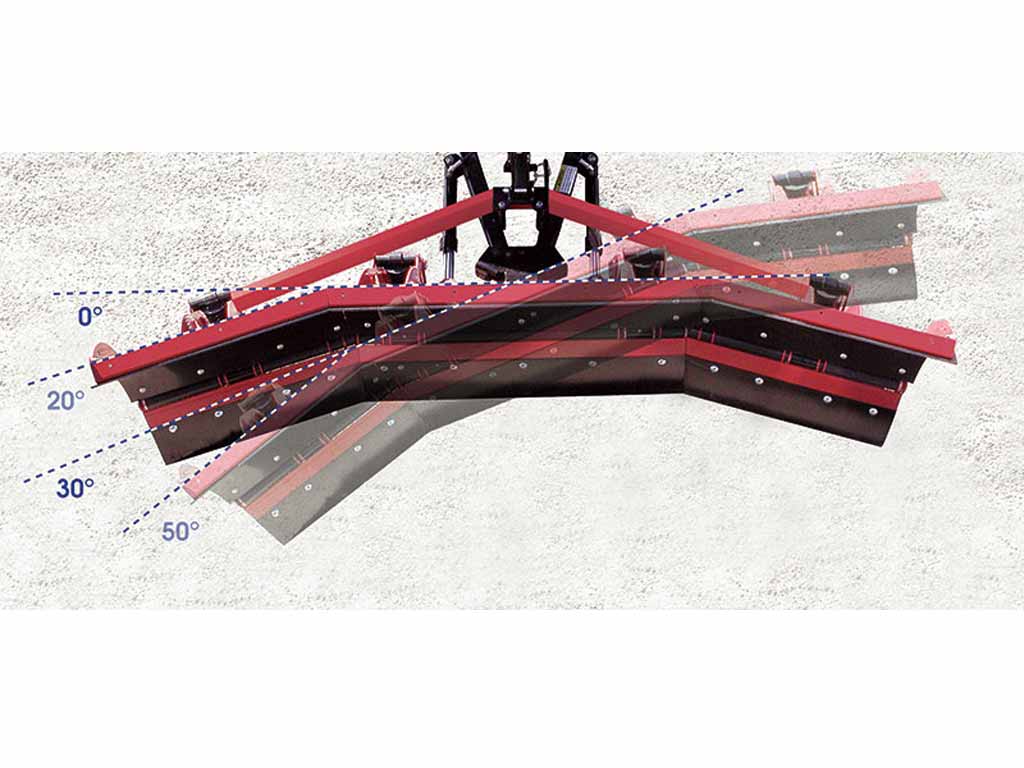

Outer end is angled forward at 50° in full left or right position, reducing high-side spillage.

20° Fixed-angle outer ends
Conventional plow weight and simplicity
V-Plow capacity and efficiency

Efficiently Clear Lots & Parking Areas

Concave shape captures snow to efficiently clear lots and parking areas. Angles left or right for conventional plowing. Outer end is angled forward at 50° in full left or right position, reducing high-side spillage.

Features

Free floating blade with 15 degrees of horizontal oscillation to clean uneven surfaces
Rapid, easy hook up on skid steers equipped with universal mount plate
Box-section tubular steel frames for added strength
Blade comes complete with replaceable cutting edges and adjustable skid shoes
Includes electrical wiring harness and hydraulic hoses
Electro-hydraulic valve included with V-Plow and C-Plow models (not required for conventional or scoop plows)

Operating Requirements

Universal Mounting Plate
Auxiliary hydraulics outlets (one pair) with 2100 psi. pressure relief setting
Dealer or user must supply appropriate hydraulic couplers

MODEL	2682	2692
BLADE HEIGHT	30″
BLADE WIDTH	8′	9′
BLADE THICKNESS	1⁄4″ HMW Poly
WEIGHT	705 lbs.	759 lbs.
