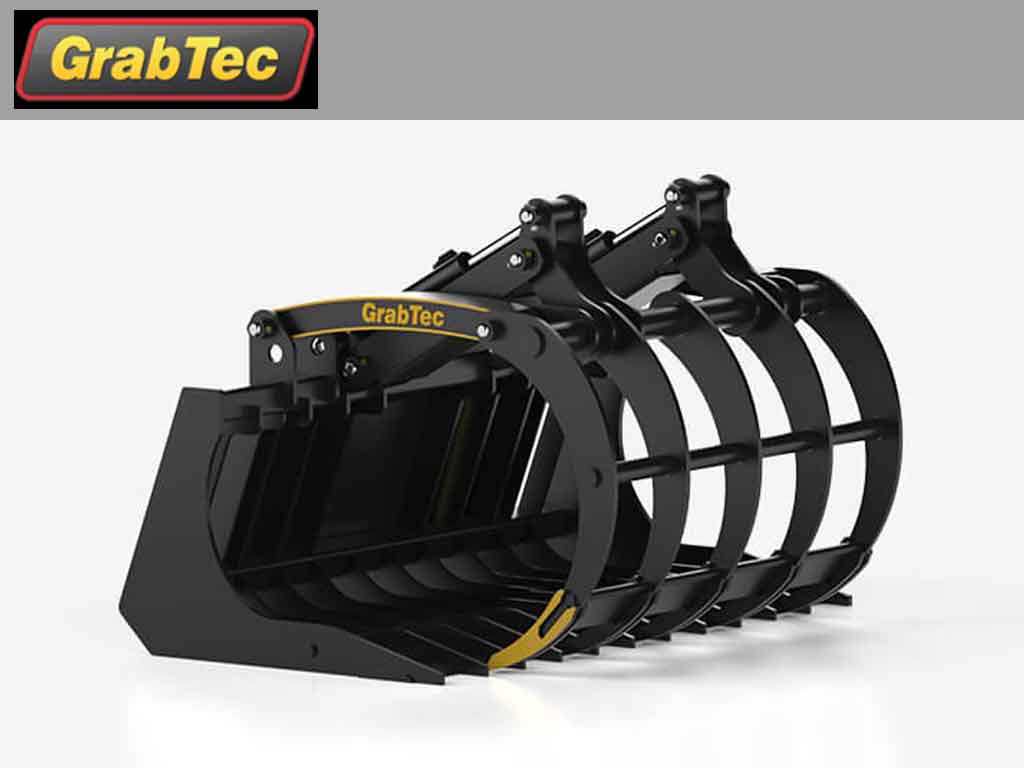

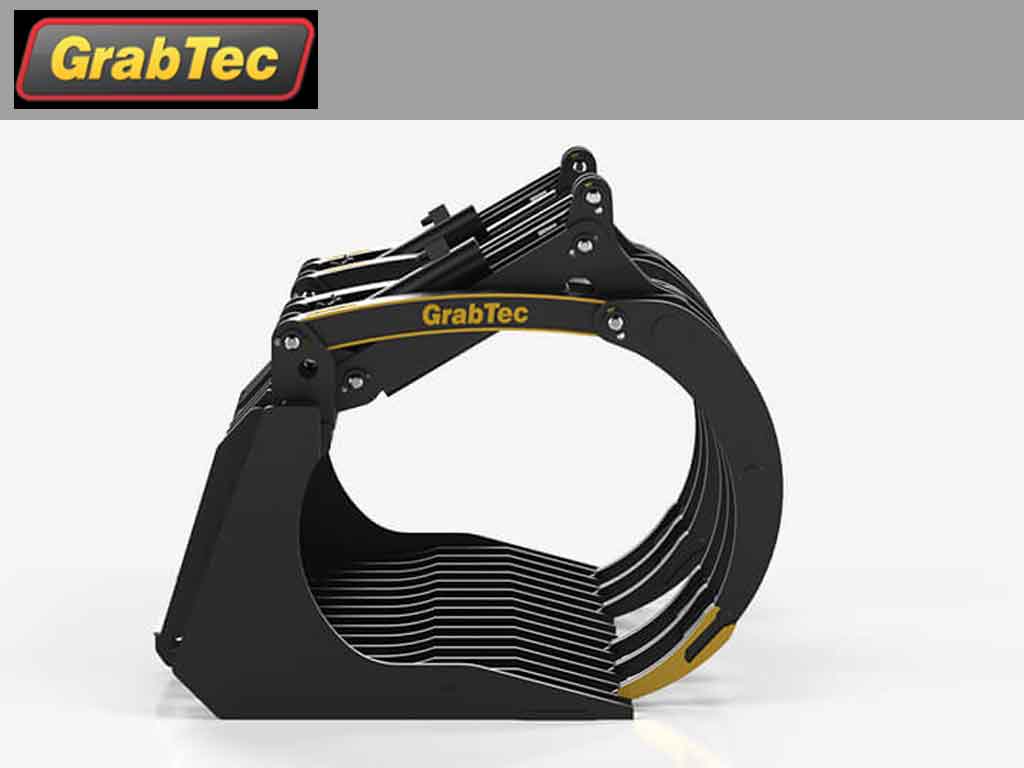

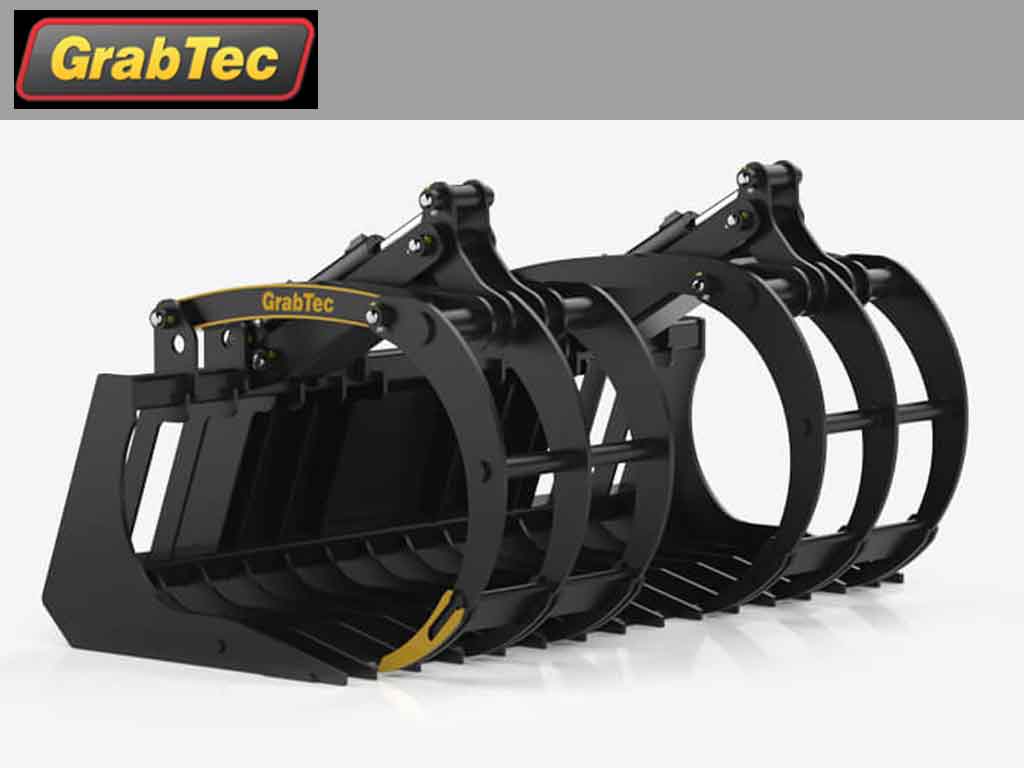

    GrabTech GDX demolition grapple for skid steer
    GrabTech GDX demolition grapple for skid steer
    GrabTech GDX demolition grapple for skid steer
    GrabTech GDX demolition grapple for skid steer
    GrabTech GDX demolition grapple for skid steer

    GrabTech GDX demolition grapple for skid steer

    Call for Price
    Size
    MODEL GDX - SKID LOADER DEMO GRAPPLE WITH ICLAW™ ACTION
    BUILT FOR
    Designed for extreme skid loader applications involving demolition, rock hauling, and tree work.
    SPLIT GRAPPLE
    Each side is designed to be independently operated.
    FITS STANDARD SKID LOADER QUICK ATTACHES
    Fits any machine that has a universal skid loader quick attach.

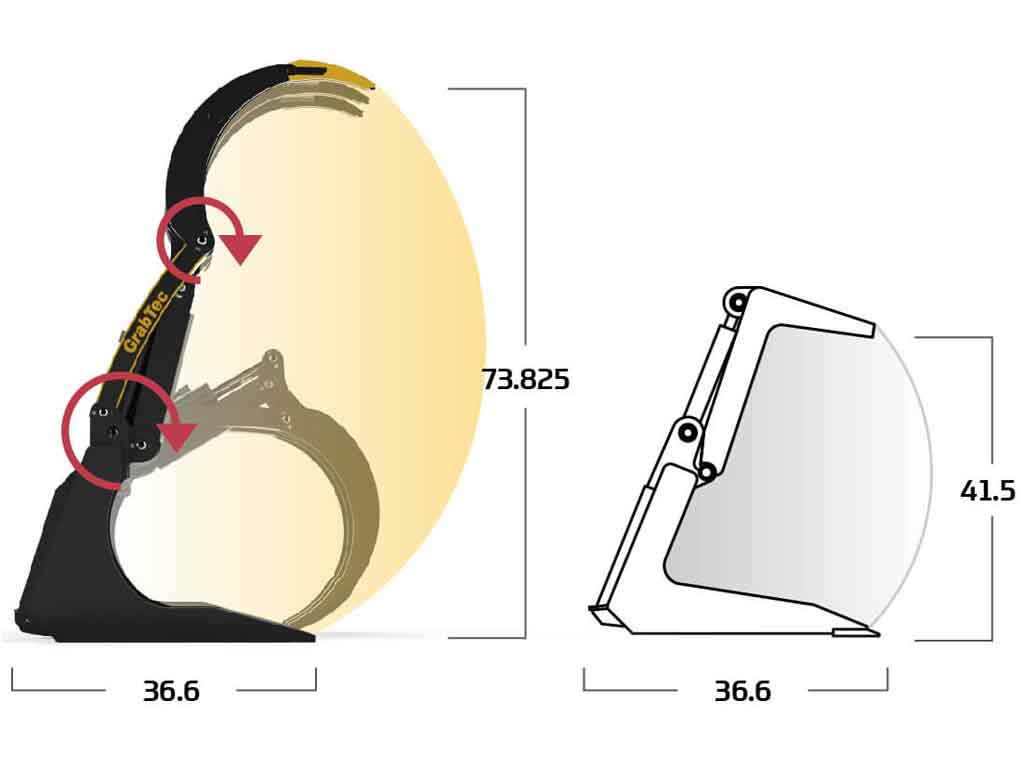

    GDX VS. TRADITIONAL GRAPPLE

    More than 2.5X the capacity of a traditional grapple
    HOW IT WORKS The patent pending motion of the GDX grapple features 2 actions happening simultaneously as it closes. THE MOTION
    1. The Claw is rotating about the end of the arm helping to PULL (AND HOLD) material.
    2. The Arm is swinging out over the cutting edge pulling material in.
     INTERLOCKING TEETH Bitting action holds loads better ensuring the biggest load possible.
     TRIPLE LAYER TEETH More strength, longer life making your investment last longer. FORWARD LOCATED CUTTING EDGE Allows unit to be used as a ground leveler CUTTING EDGE ON CLAWS Helps grab and hold material, provides lateral strength while moving loads. Making you more productive by having peace of mind.
    CONFIGURATIONSFOR ALL TYPES APPLICATIONS
    • SINGLE CLAW Single acting claw provides maximum clamping pressure for smaller machines

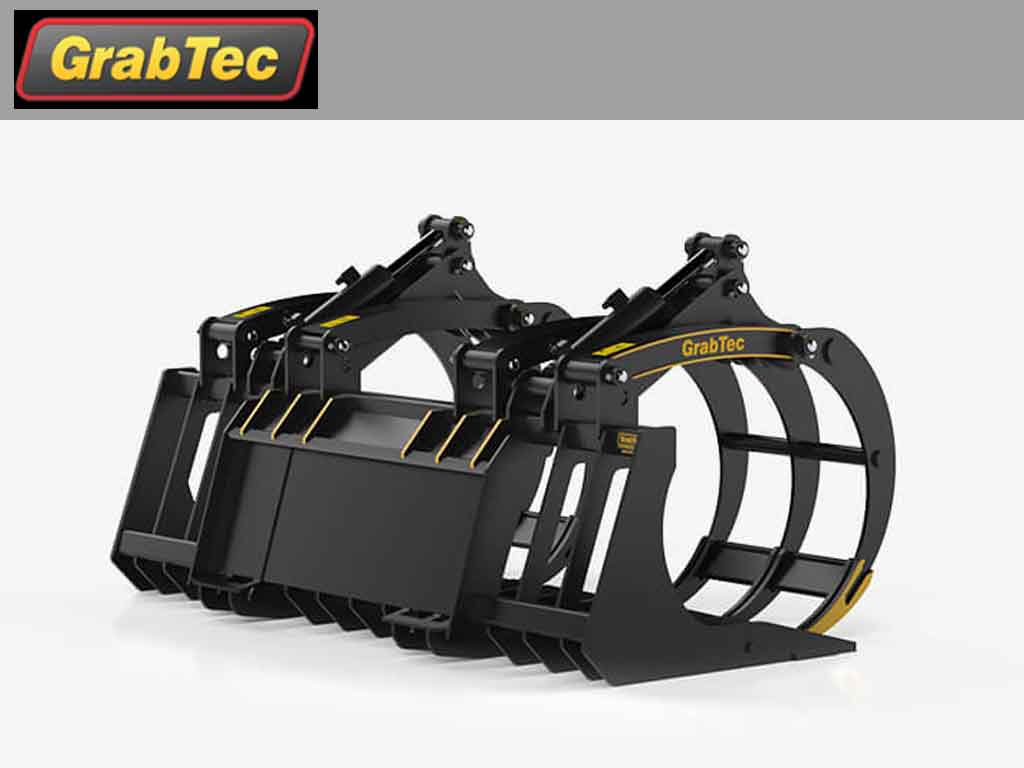

    • INDEPENDENT CLAWS Independent action allows for claws to fit to uneven load shapes

    TWIST RESISTANT HINGES
    With our patent pending iClaw™ action and massive 1-1/4 chrome pins we are able to achieve a twist resitant grapple. This gives your grapple a longer life and saves you money over time.
    MASSIVE CLAMPING FORCE
    The cylinders used in the GDX are the cylinders you find in our wheel loader grapples. This gives the grapple clamping force like you've never seen in a skid loader grapple before. The single claw options have 2 cylinders for the single claw. And the Independent claw option has 2 massive cylinders, 1 for each claw.
    OFFSET QUICK ATTACH
    The quick attach is offset from the angle on the back of the bucket, thus offering better clearance to machine compomemts while keeping loads as close to machine as possible.
    QUICK ATTACHED INTERGRATED INTO BUCKET RIBS
    Stronger connection providing support for bigger heavier loads. This style of construction better handles the shaking of the grapple when dumping loads giving your machine a longer life.

    MASSIVE CHROME PINS Composite bushings along with massive chrome pins provides an almost frictionless motion allowing for smoother and longer use of attachment

    RUBBER SEALS Rubber Seals on each side of the bushing keep debris and moisture out for longer life of the attachment

    3 YEAR, 5000 HOUR WARRANTY

    Large Pin diameter, chrome pin, and rubber seals keep your grapple working longer and harder

    GENERAL SPECS GDX66 GDX72 GDX84
    CLAW OPTIONS SINGLE DOUBLE DOUBLE
    WEIGHT (LBS) 1189 1399 1479
    HEIGHT (IN) 30.13 30.13 30.13
    HEIGHT TO TEETH 73.88 73.88 73.88
    WIDTH 66 72 84
    CLAW WIDTH 46.63" 58.00 [Overall]
    23.63 [Each]     		69.50 [Overall]
    23.63 [Each]
    Clamping Force 9,330 11,850 11,850
    Max (psi) 4000 4000 4000

     MODEL GDX66 GDX72 GDX84
    GRAPPLE WIDTH 66" 72" 84"
    GRAPPLE SIGLE DUAL DUAL
    GREASELESS YES YES YES
