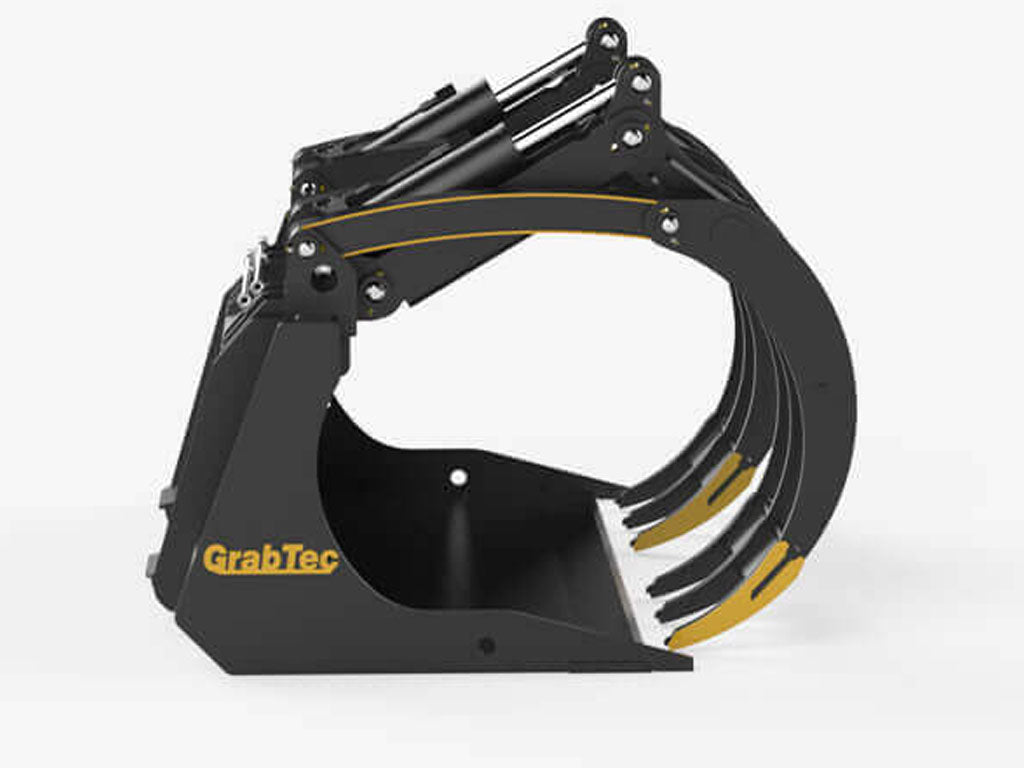

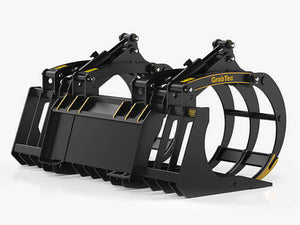

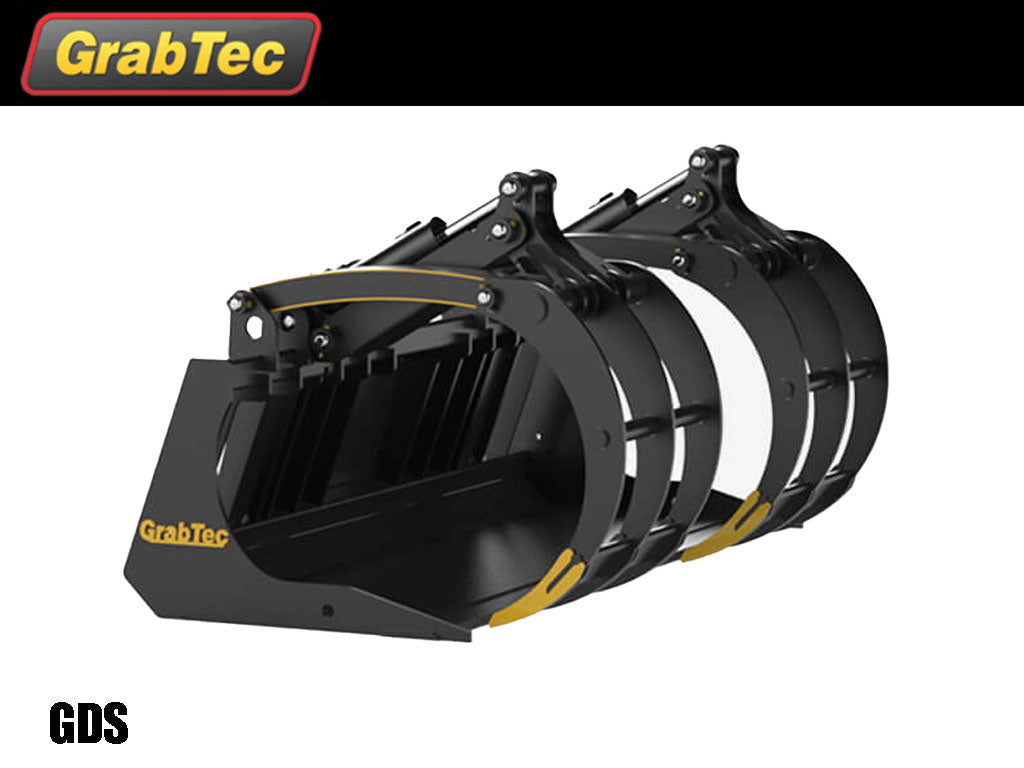

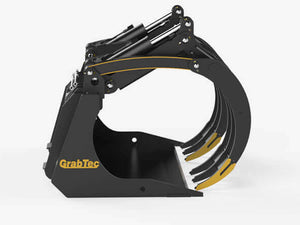

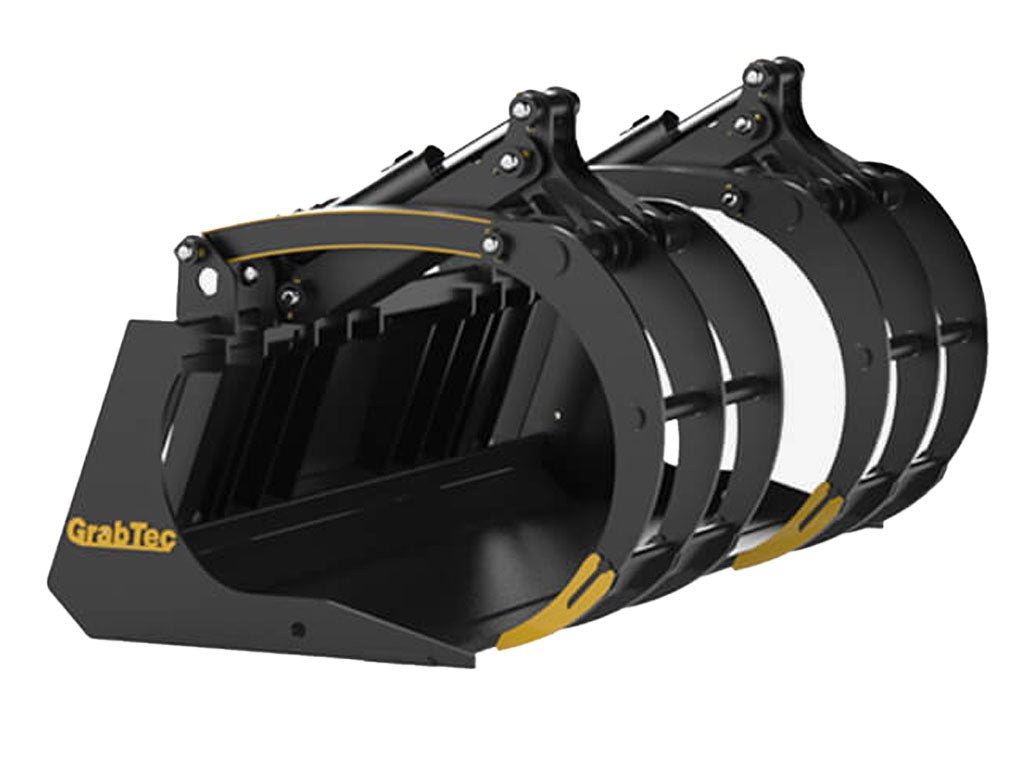

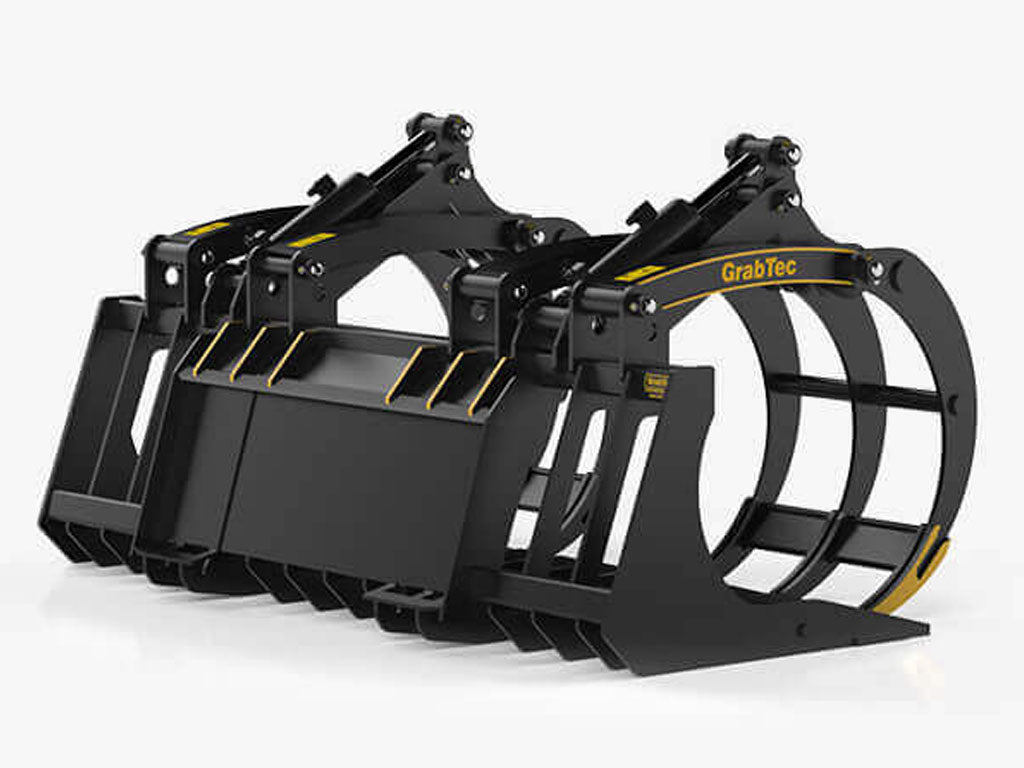

GrabTech GDX demolition grapple

$0.00

Model GDX Demolition Grapple With IClaw™ Action (Solid Bottom)

Built For: Designed for extreme skid loader applications involving demolition, rock hauling, and tree work.
Split Grapple: Each side is designed to be independently operated.
Solid Bottom: A Solid bottom to keep material inside bucket.
Fits Todays Standard Skid Steer Quick Attaches: Fits any machine that has a universal skid loader quick attach.

FEATURES

Configurations for all types of applications - Single Claw: Single acting claw provides maximum clamping pressure for smaller machines. Independent Claws: Independent action allows for claws to fit to uneven load shapes
TWIST RESISTANT HINGES - With our patent pending iClaw™ action and massive 1-1/4 chrome pins we are able to achieve a twist resistant grapple. This gives your grapple a longer life and saves you money over time. fatigue and extend the life of the parts and product.
GREASLESS PINS - Chrome Pins Composite bushings along with massive chrome pins provides an almost frictionless motion allowing for smoother and longer use of attachment Rubber Seals Rubber Seals on each side of the bushing keep debris and moisture out for longer life of the attachment 3 Year, 5000 hour Warranty Large Pin diameter, chrome pin, and rubber seals keep your grapple working longer and harder
BETTER CYLINDERS- Threaded Glands Built to withstand today's heavy use, Buttress Style threaded Glands provide 2x the shear strength as standard threads insuring longer life of the cylinder. Cross Eye Design Both ends of the cylinder use a Cross Eye design to increase the contact surface area between cylinder and pin. This helps distribute the load over a greater area and help reduce wear on the pins. Cushioned Cylinders Prevents the shock that comes from opening and closing the grapple allowing longer life for your investment.

Specification	GDS72	GDS84
Claw Type Options	DOUBLE	DOUBLE
Weight (lbs)	1399	1479

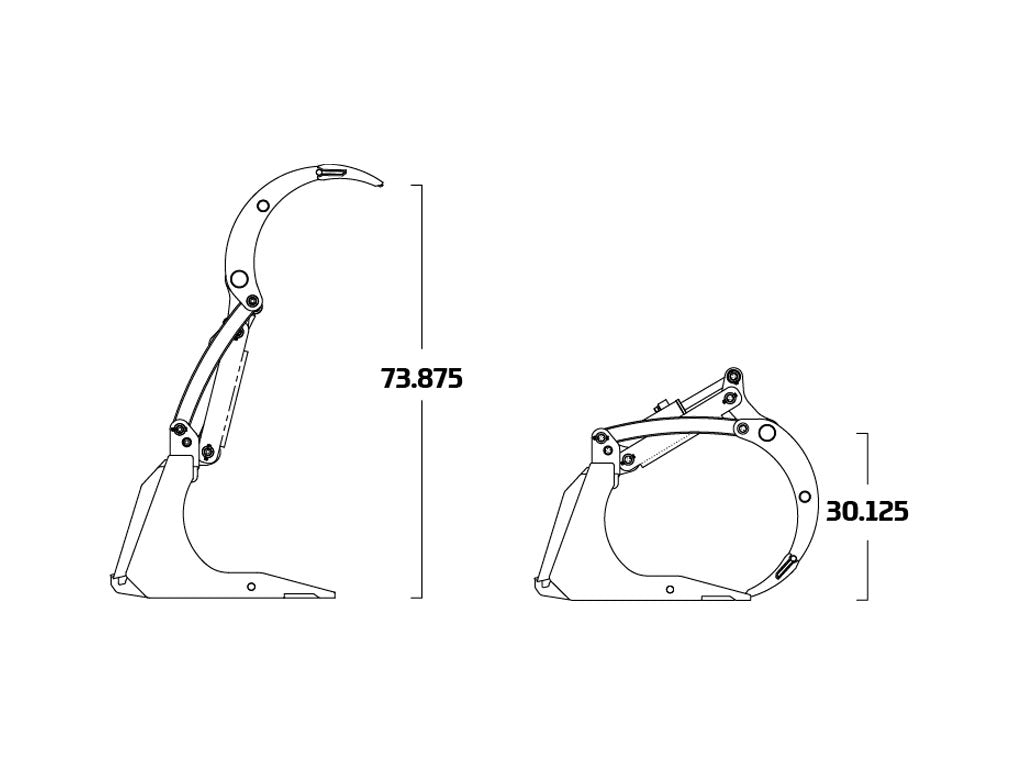

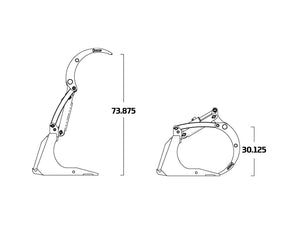

Height - Ground to Link (in)	30.13	30.13
Height - Ground to Teeth (in)	73.88	73.88
Width - Body (in)	72	84
Width - Claw (in)	58.00 [Overall] 23.63 [Each]	69.50 [Overall] 23.63 [Each]
Number of Teeth Available	6 (Claws with 3 Teeth)	6 (2 Claws with 3 teeth)
Maximum Primary Clamping Force teeth w/ 3,500psi (lbs.)	4,784	4,784
Maximum recommended operating pressure (psi)	4000	4000
