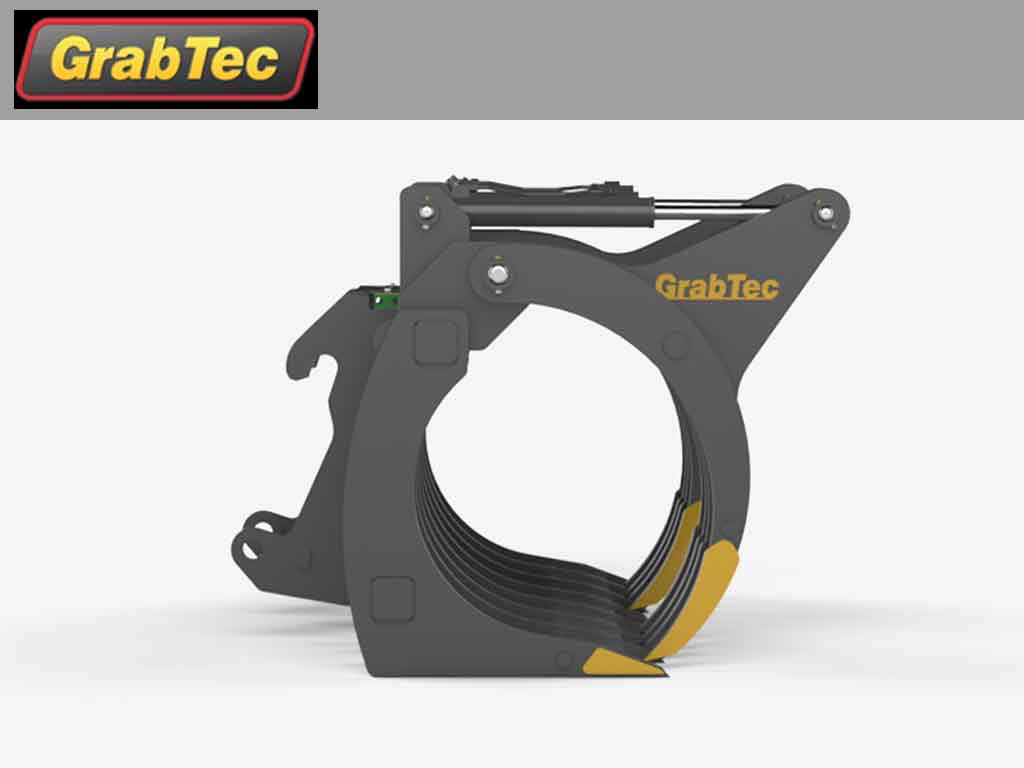

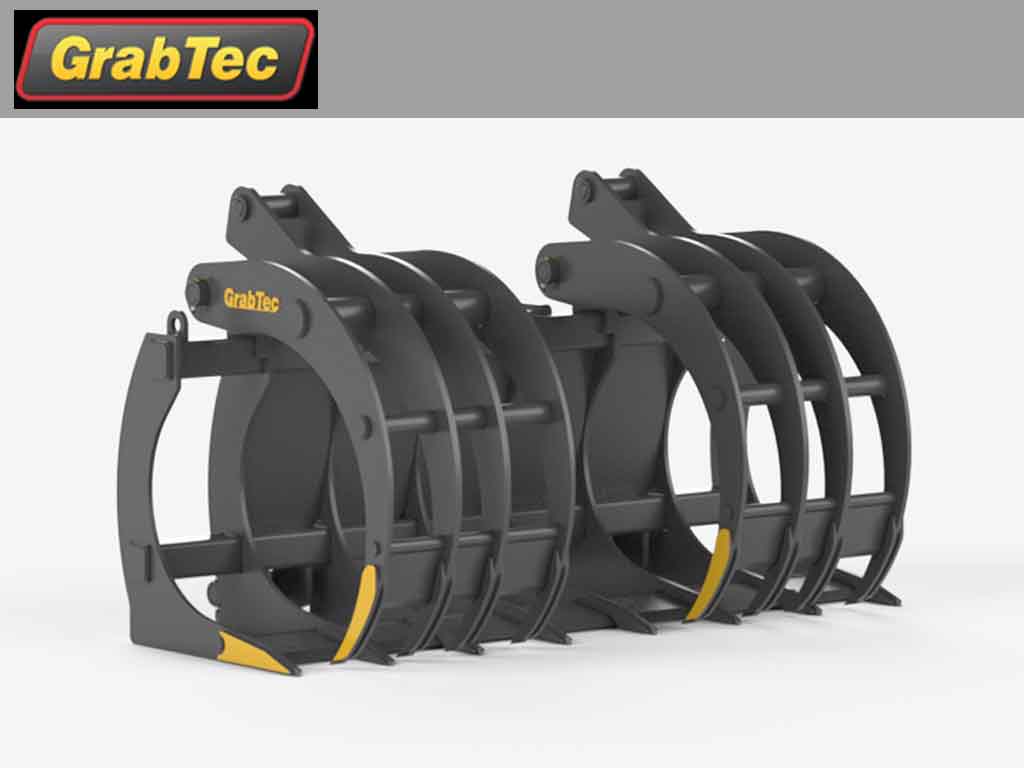

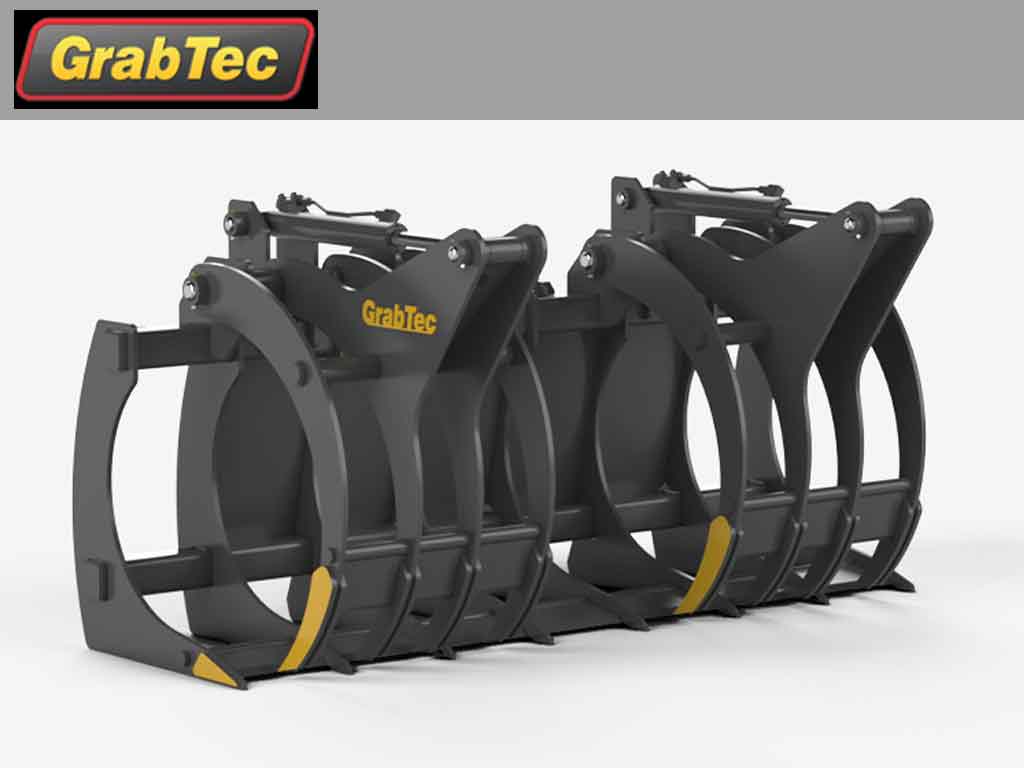

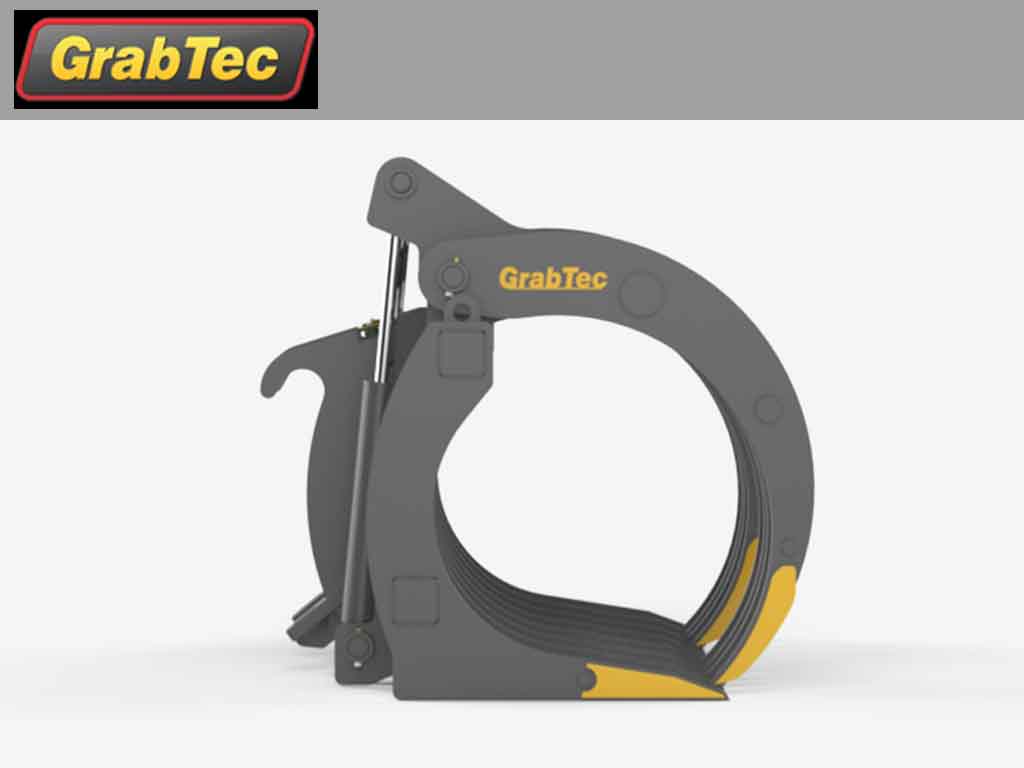

GrabTech RDX demolition grapple

Model

Model RDX Demolition Grapples

WHEEL LOADER

Built For
Designed for extreme wheel loader applications involving demolition, rock hauling, and tree work.
Split Grapple
Each side is designed to be independently operated
Wide Bottom Rake
Allows for debris and dirt to easily fall through leaving only wanted material
Fits Todays Popular Quick Attaches
Available in Volvo, John Deere Hi-Vis, CAT IT, CAT Fusion, JRB Compatible
FEATURES
  • BITTING ACTION - A closing gap that overlaps the ends of the teeth provides for maximum clamping force. This ‘Biting Action’ helps hold material and items stable which reduces the ability of loads to ‘shift’ and helps prevent bent and/or broken Teeth with unnecessary twisting. Cutting Edge supports between the Teeth provide lateral stability as well as additional ‘Biting Action’ for loose material or odd shaped items. Staggered Teeth provide better ‘Biting Action’ helping to grab and hold on to material.
  • TWIST RESISTANT HINGES - All pivot pins feature zero-maintenance bushings and wiper seals. No grease is required anywhere on the grapple. The pins are hardened steel with chrome plating and have generous tapers for easy installation.Wider hinge spacing and massive Pin Diameters allow for maximum clamping power while minimizing flexing. Less flexing helps reduce material fatigue and extend the life of the parts and product.
  • GREASLESS PINS - Chrome Pins Composite bushings along with massive chrome pins provides an almost frictionless motion allowing for smoother and longer use of attachment Rubber Seals Rubber Seals on each side of the bushing keep debris and moisture out for longer life of the attachment 3 Year, 5000 hour Warranty Large Pin diameter, chrome pin, and rubber seals keep your grapple working longer and harder
  • BETTER CYLINDERS - Threaded Glands Built to withstand today's heavy use, Buttress Style threaded Glands provide 2x the shear strength as standard threads insuring longer life of the cylinder. Cross Eye Design Both ends of the cylinder use a Cross Eye design to increase the contact surface area between cylinder and pin. This helps distribute the load over a greater area and help reduce wear on the pins. Cushioned Cylinders Prevents the shock that comes from opening and closing the grapple allowing longer life for your investment.
  RDX150 RDX175 RDX280 RDX360
Grapple Body & Tine Thickness (in) .625 .625 .75 & 1.00 .75 & 1.00
Diameter of main grapple pivot pins (in) 2.00 2.00 2.50 2.50
Diameter of cylinder pivot pins (in) 1.50 1.50 2.50 2.50
Limited warranty on pivot bushings 3 years or 5,000 hours 3 years or 5,000 hours 3 years or 5,000 hours 3 years or 5,000 hours
Limited warranty on grapple material and workmanship 1 year or 2,000 hours 1 year or 2,000 hours 1 year or 2,000 hours 1 year or 2,000 hours



RDX150 RDX175 RDX280  RDX360
Max. Clamping force at tips of teeth with 3750psi (lbs) 4,110 5,867 10,300 10,300
Cylinder Bore (in) 2.50 3.00 4.00 4.00
Cylinder Pressure rating (psi) 5,000 5,000 5,000 5,000



Grapple Width (in) Grapple Max Opening (in) Unit Weight (lbs) Greaseless
RDX-150 93.5 65 2075 YES
RDX-175 98.5 76 2710 YES
RDX-280 106 81.75 4150 YES
RDX-360 106 98.75 5220 YES
