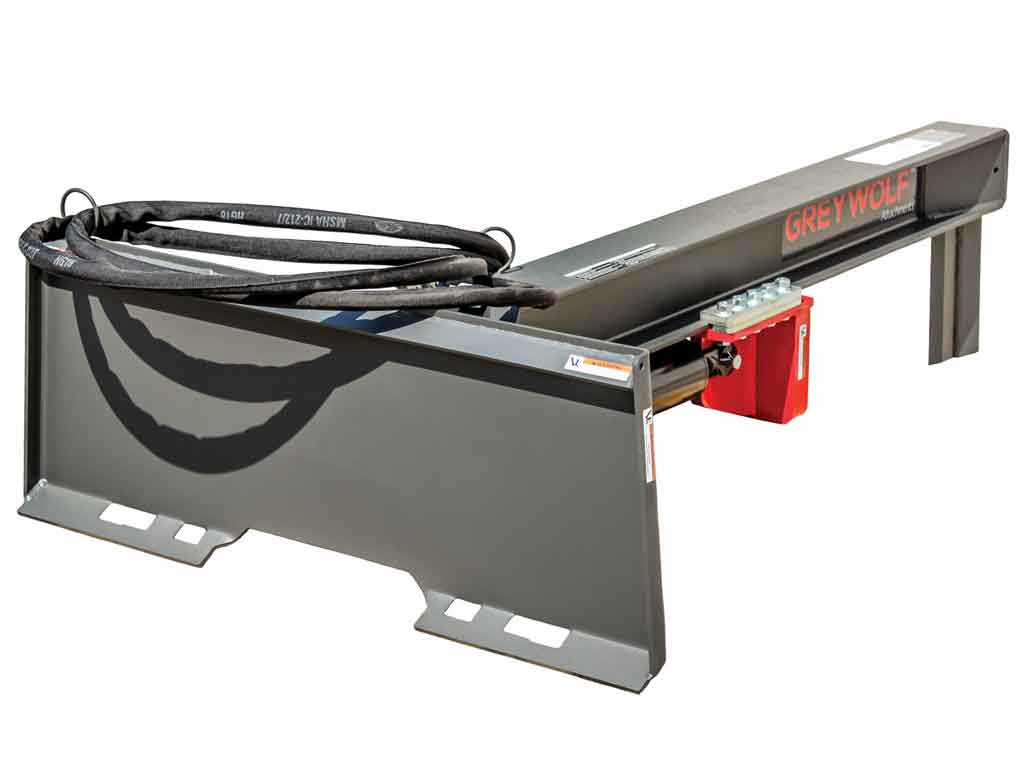

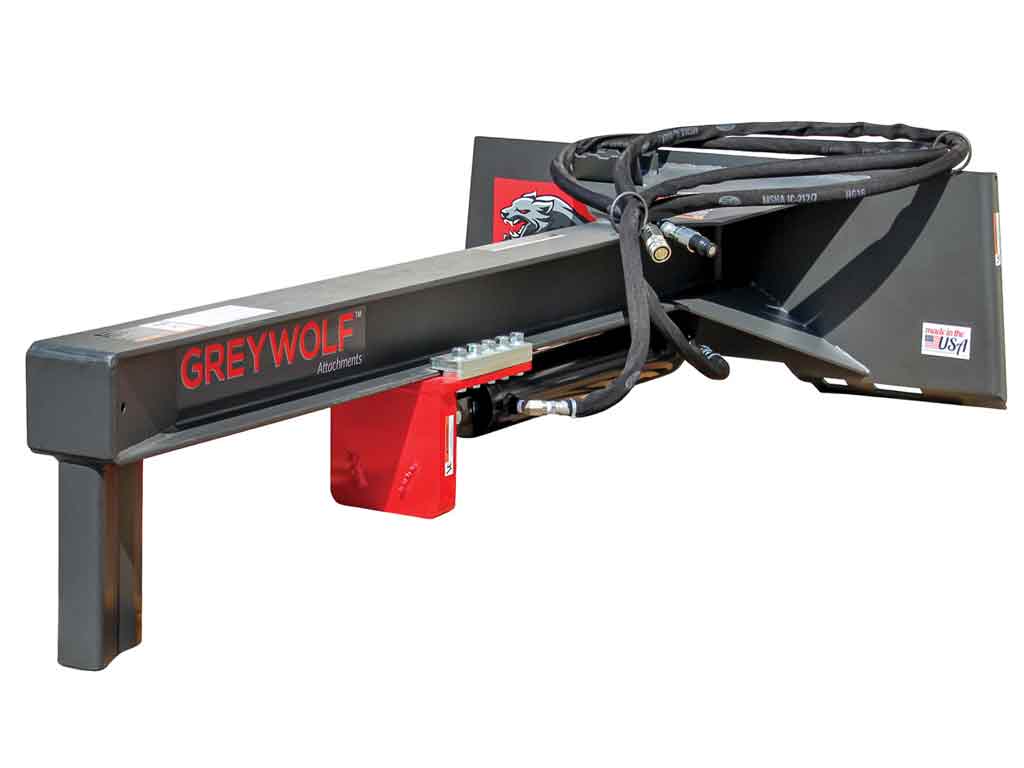

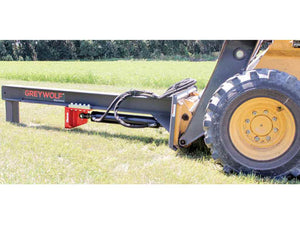

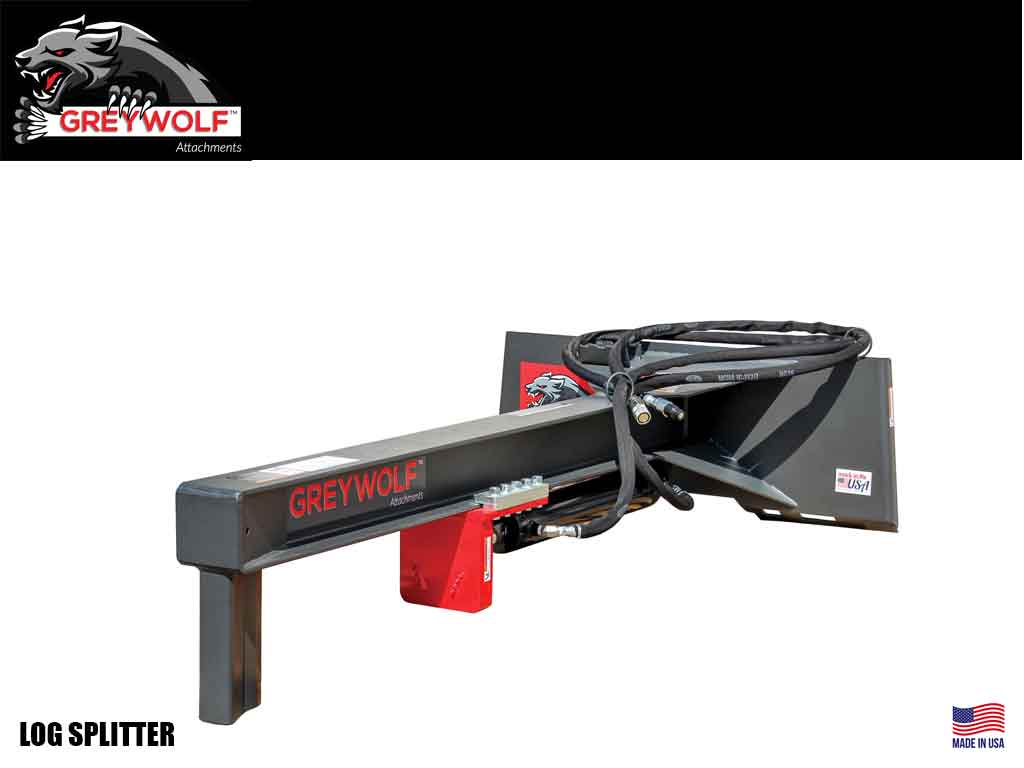

GREYWOLF 24 TON INVERTED LOG SPLITTER (CTL)(SSL)

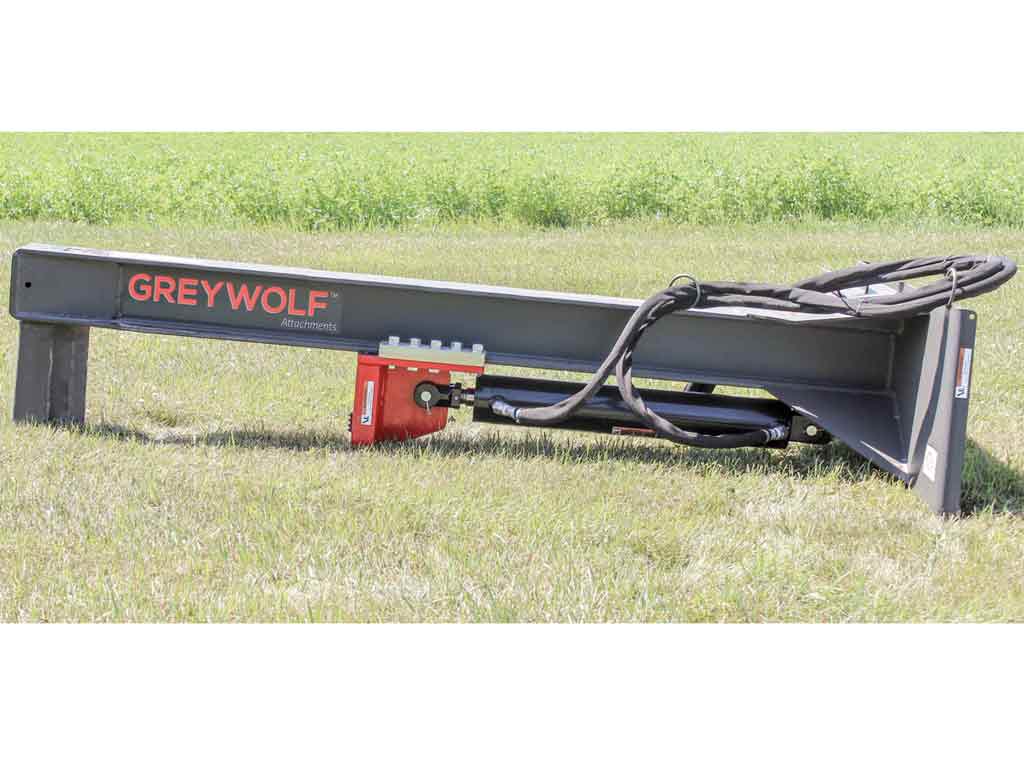

GreyWolf™ Skid Steer 24 Ton Log Splitter Attachment

The GreyWolf™ Skid Steer 24 Ton Log Splitter Attachment
is constructed from a 6" x 25 lb I-Beam.

This outdoor hydraulic powered machine is designed
to split wood logs using the power of your skid steer.

• Primarily used for splitting logs lengthwise with the grain
• For skid steers using the standard universal quick attachment
• Gray/red powder coat finish
• Heavy-duty construction with 5/16" thick steel plate
• 49" x 24" x 83" (W x H x L)
• Weighs 500 lbs
• 6" x 25 lb I-beam
• 12" splitting wedge to push wood away from operator
• Splits logs up to 25" long and 24" in diameter
• Cylinder: 4" bore (for faster cycle time) x 24" stroke
• 24 tons of splitting force
• Maximum pressure of 3,500 PSI
• Connected to and powered by skid steer hydraulic system
• Designed to spit wood logs using a hydraulically powered moving push block

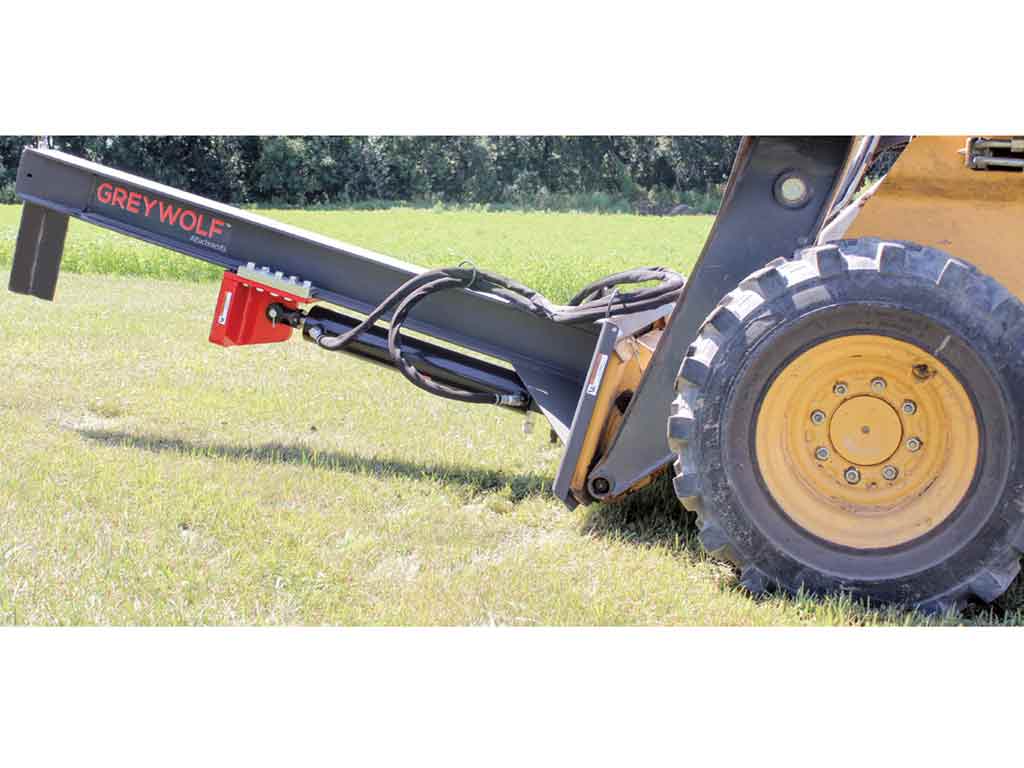

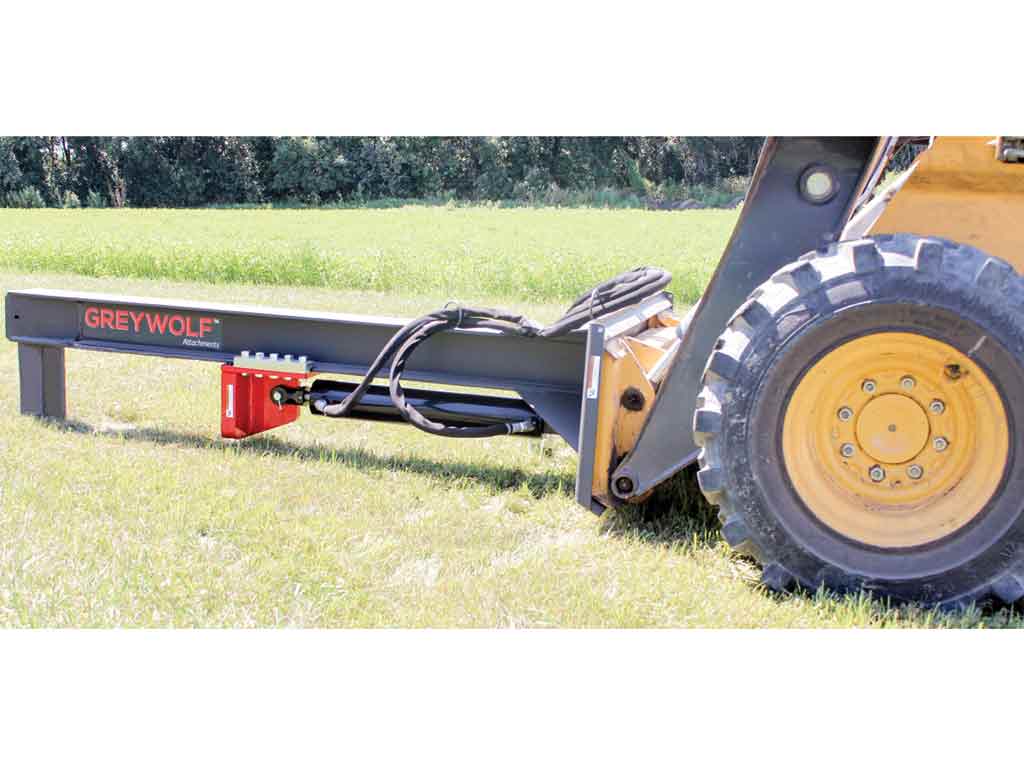

• Inverted to allow for splitting of wood from inside the cab
• This splitter is designed to split logs lengthwise with the grain only

Splitting Force




Maximum Pressure


Hydraulic Cylinder Bore


Hydraulic Cylinder Stroke


Maximum Log Diameter


Maximum Log Length


Hydraulic Fluid Type


Hydraulic Oil Capacity


Dimensions


Weight


Up To 24 Tons Depending on Skid Steer




3,500 PSI


4" (for faster cycle time)


24"


24"


25"


Depending on Skid Steer


Depending on Skid Steer


49" x 24" x 83" (W x H x L)


500 lbs


Features:

  • Gray/Red powder coat finish
  • Heavy-duty construction
  • 12" splitting wedge mounted to beam to allow wood to push away from the operator
  • Quick attach plate constructed of 5/16" thick steel
  • Designed to split wood logs using a hydraulically powered moving push block
  • Inverted to allow for splitting of wood from inside the cab
  • Connected to and powered by your skid steer’s hydraulic system
  • Can be used in the horizontal splitting position only

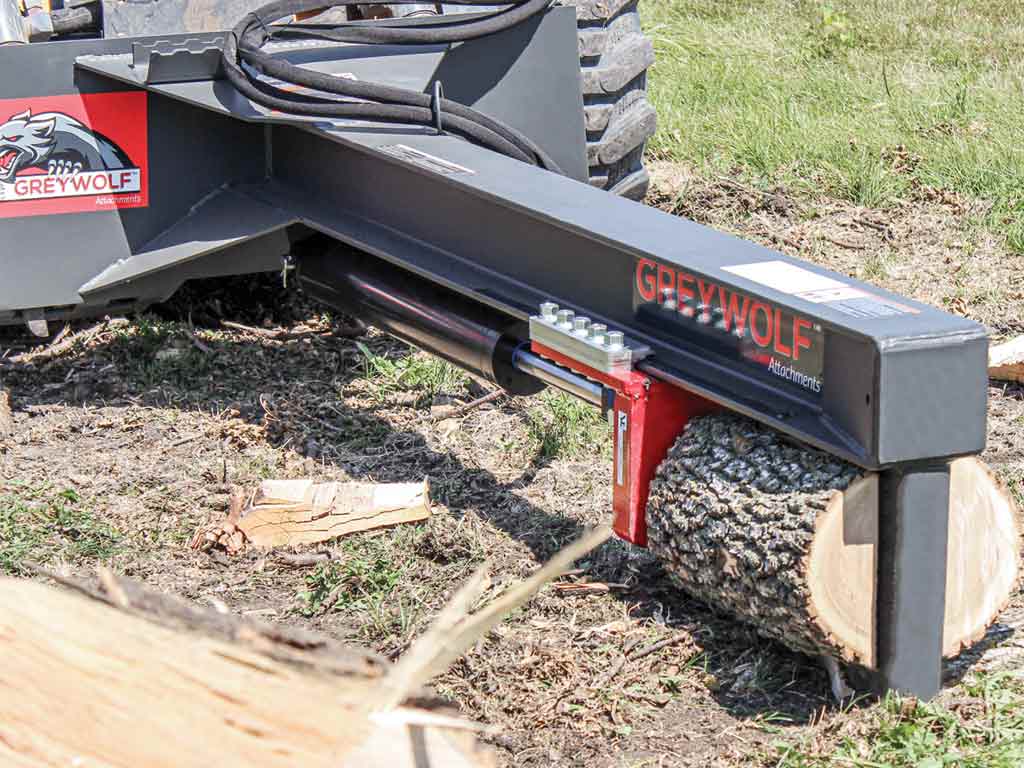

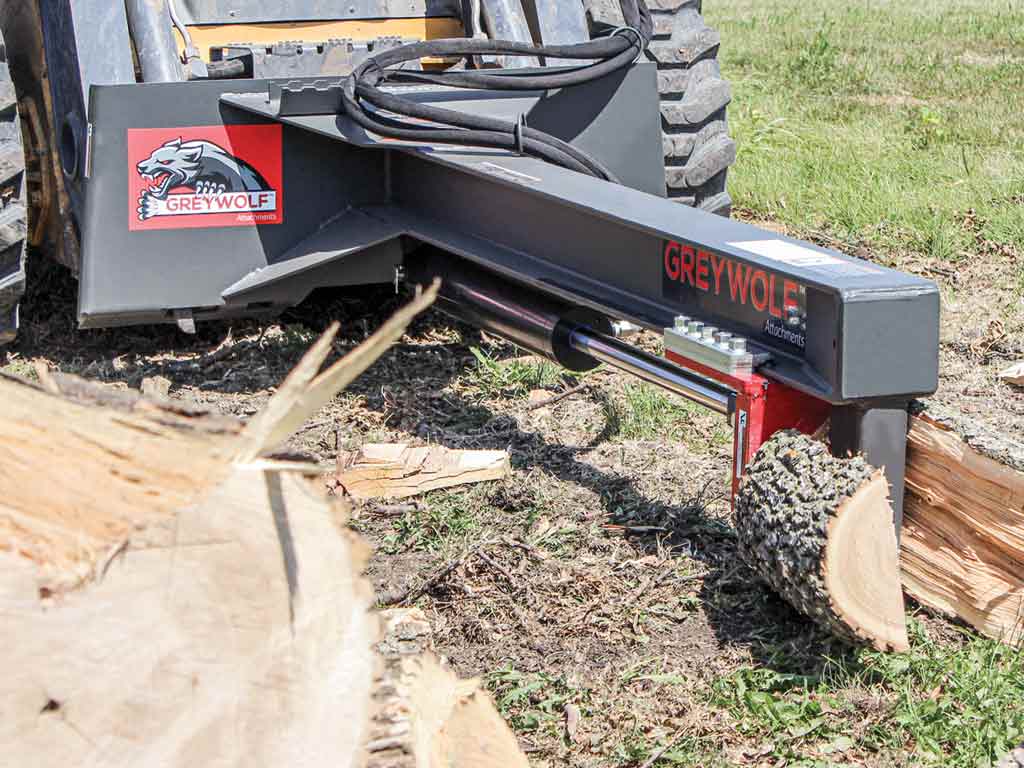

  • When a splitter is set up to operate in the horizontal splitting position, the log splitter is positioned over the log and the ram moves horizontally pushing the log end into the wedge to split it

Please Note: This splitter is designed to split logs lengthwise with the grain only.
