HARLEY

22748H3

HARLEY POWER BOX RAKE, (SSL)(CTL)

MODEL

Power Box Rake — Chain Drive

ORDER INCLUDES:

  • UNIVERSAL / BOBCAT SKID STEER MOUNTING
  • CARBIDE TEETH
  • REMOVABLE BOX SIDES
  • (H) MODELS WILL HAVE HYDRAULIC ANGLE & A CONTROL BOX W/ POWER LEAD
  • (M) MODELS ARE MANUAL ANGLE
  • HYDRAULIC CONTROL OPTIONS AVAILABLE FOR MOST BRANDS, TO MANY OPTIONS TO LIST, SORRY - YOU NEED TO CALL ME.

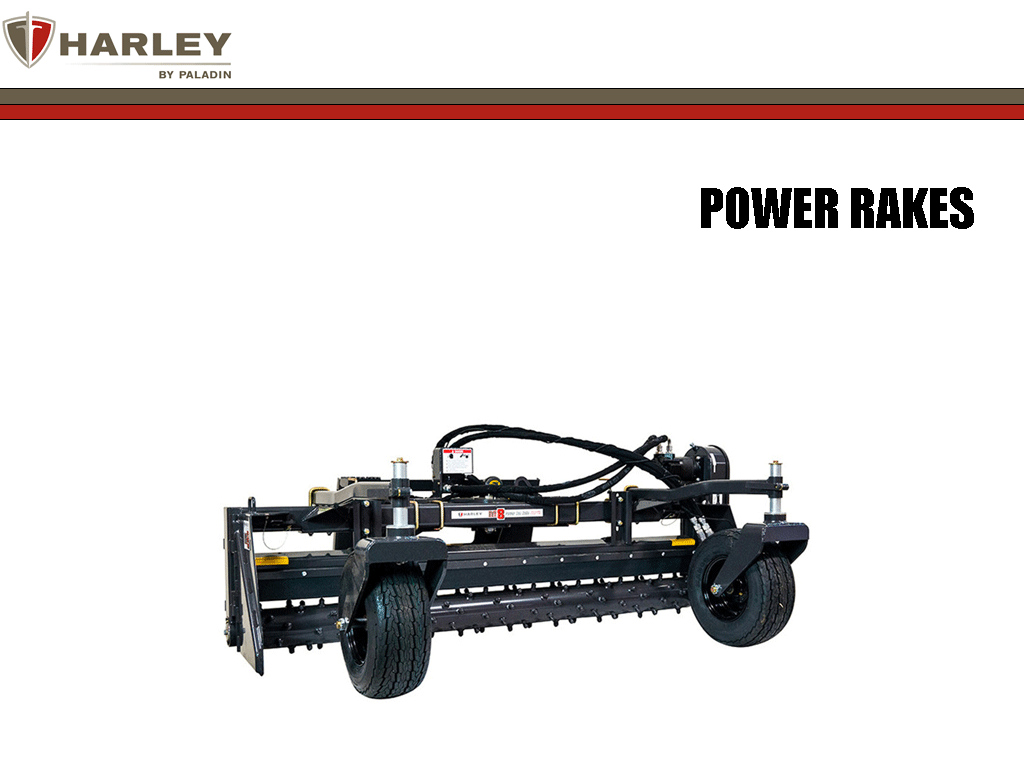

Harley Power Rakes, by Paladin, are the perfect choice for preparing seedbeds, cutting grades, grading dirt or gravel roads, and cleaning up and finish grading residential or commercial sites. When preparing a seed bed there are many challenges your equipment must conquer! It must be able to work in either dry or wet conditions. It needs to create a dimpled seedbed that promotes moisture, soil and seed retention. Old lawns, weeds, pebbles, rocks, and other debris larger than 3/4” in size need to be removed. It should have the ability to grade, shape and blend the new seedbed into existing site topography. Paladin provides the highest quality, most durable and versatile power rakes available. Widely regarded as the “gold standard” for soil preparation attachments, they are designed to create the most optimal seedbed conditions. Our rakes allow the operator to make precise adjustments to the rake allowing a match to existing grades and a seamless blend into adjacent established landscaping.

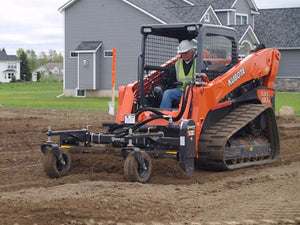

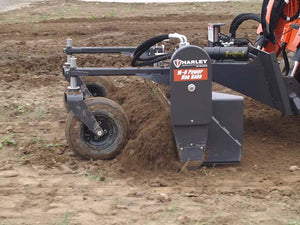

It is possibly the most versatile and effective landscape tool in the marketplace. ROI can almost be met in days. What can you do with the power box rake? There are two types of Power Box Rakes: direct drive by FFC and chain reduction drive by HARLEY. There are two types of operations: all four tires; or with complete track assembly on the ground, you can doze, shape, cut and course grade. By bridging up the loader front, running on the rake's front casters and loader's rear tractive drives (rear tires or front elevated tracks), you can do fine grading from zero to 3.5" depth cut. This is an excellent way to clean and prep for seeding a very large area in a short period of time, all while safely operating the loader in a forward direction. In this same way of setting up, you can de-thatch and remove turf by backing slowly and rushing forward in the same path, stripping out grasses but leaving the workable loam.
  • Skid Steer Models: M-5, M-6, MX7 and MX8
  • Tractor Models: TM4, TM5, T6, TM7 and TM8



     MODEL M4 M5 M6 MX7 MX8
    WEIGHT 460 938 1004 1075 1347
    WIDTH 48 60 72 84 90
    ANGLED WIDTH 45 58 68 79 85
    ANGLE ROLL DEGREE 20 20 20 20 20
    REQ FLOW 8-20 GPM 13-20 GPM 13-25 GPM 15-25 GPM 17-40 GPM
    MAX PSI 3000 3000 3000 3000 3000



    QUICK SHIP PRODUCT: MX7H, M6M, M6H, T6H

    • USUALLY SHIPS IN (5) DAYS

    OTHER MODELS

    • USUALLY SHIP IN (2) TO (4) WEEKS

    This is the original and probably the best option when looking at a power rake.
