MFSB 60

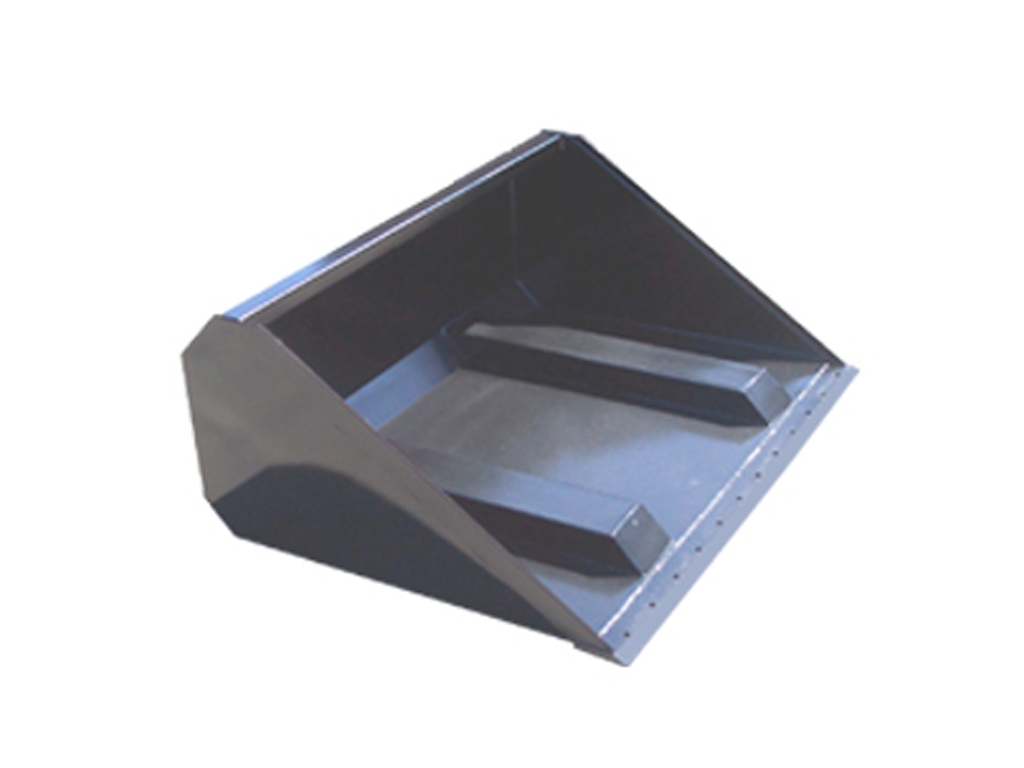

HAUGEN FORK SLOT BUCKETS FOR TELEHANDLERS/FORKLIFTS
$2,895.00 - $5,110.00

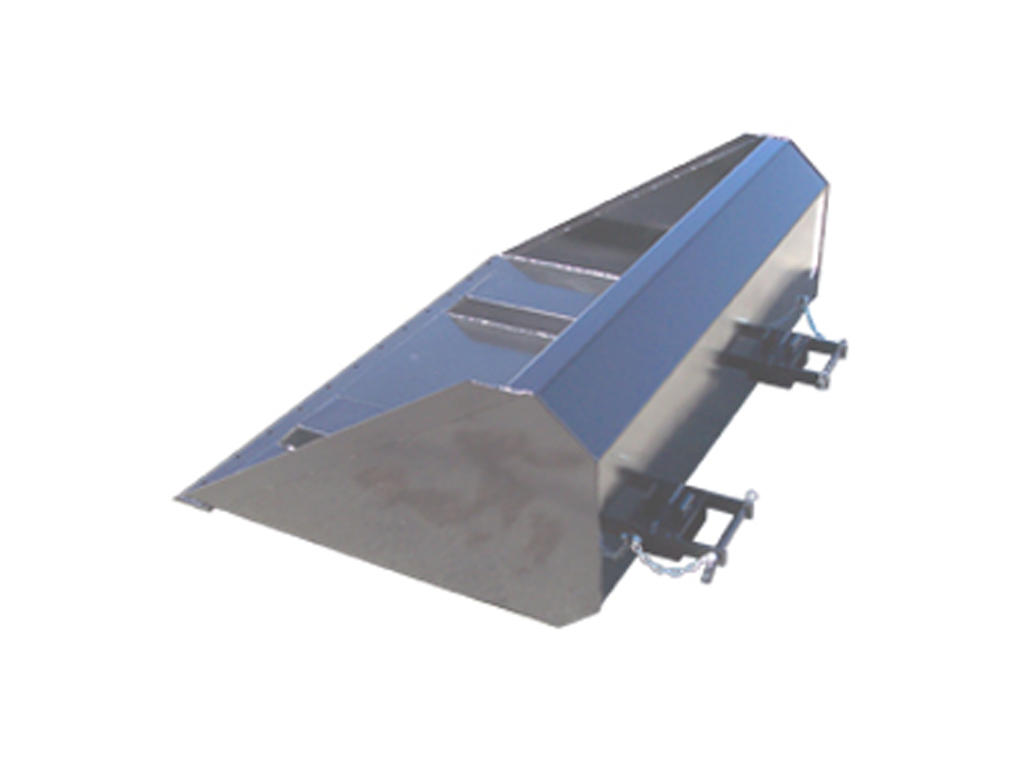

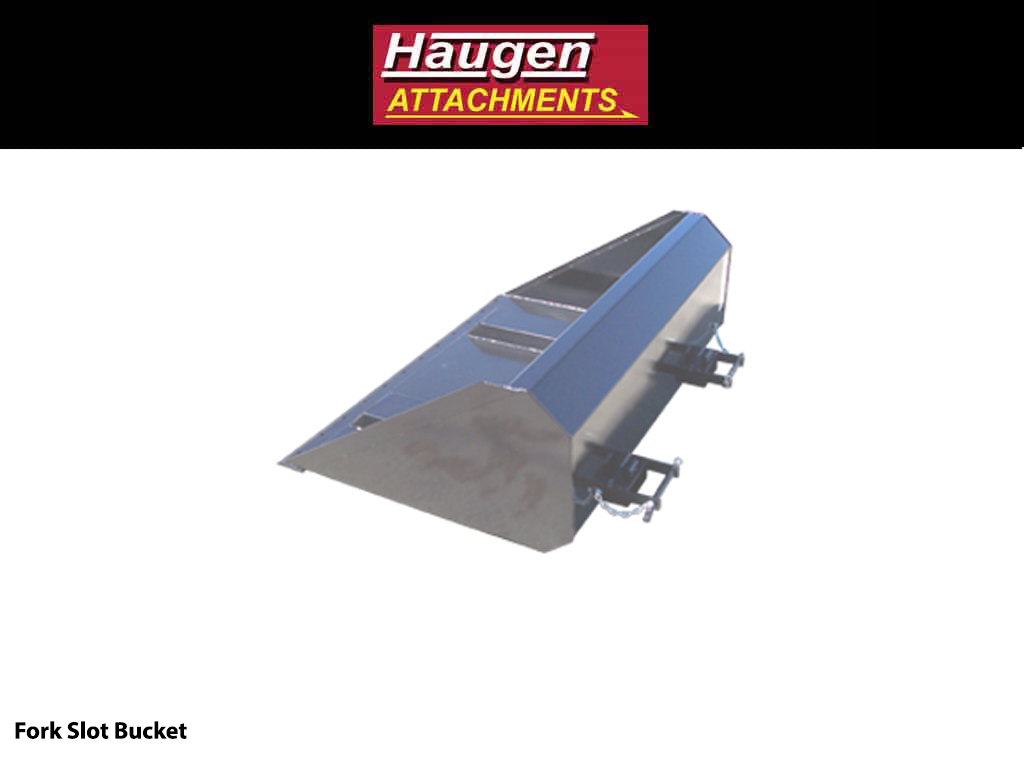

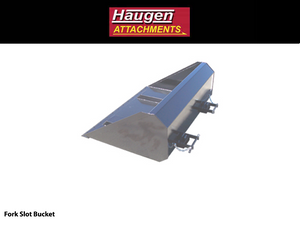

Fork Slot Bucket
- Slips over your fork tines.
- It has a high carbon 3/4" x 6" cutting edge
- Heavy duty 1-inch diameter pins secure the bucket to your forks.
- It's ideal for light material, trash, and general site clean up.
- The fork slot bucket is available in 60", 72", 96" and 108" widths.
____________________________________________________________________________________________________________________________________________________________________________________________
Extended Fork Slot Bucket
- Slips on Fork Tines up to 60" long
- Standard Pocket size 3 1/2" x 7 1/2"
- Keeper pins are chained to the Bucket
- 3/4" x 6" Weld-on Edge with an optional Bolt-on Edge
- 1/2" x 3" Wear Strips
Fork Slot Bucket
| Model | Bucket Height | Inside Depth | Bucket Width | Struck Capacity | Weight |
|---|---|---|---|---|---|
| MFSB 60 | 28.0" | 52.0" | 60" | 1.00 cu. yd. | 630 lbs. |
| MFSB 72 | 28.0" | 52.0" | 72" | 1.20 cu. yd. | 675 lbs. |
| MFSB 96 | 28.0" | 52.0" | 96" | 1.60 cu. yd. | 850 lbs. |
| MFSB 108 | 28.0" | 52.0" | 108" | 1.80 cu. yd. | 920 lbs. |
| High Capacity |
|||||
|
MFSB-48H-72 |
38.5" | 52.0" |
72" |
1.6 cu. yd. |
750 lbs. |
| MFSB-48H-96 |
38.5" | 52.0" |
96" |
2.2 cu. yd. |
925 lbs |
| SHC-01 | Add Shurlock Chain and Hook options (2 chains and 2 hooks per bucket) | ||||
Extended Fork Slot Bucket
| Model | Bucket Width |
Bucket Height |
Bucket Depth |
Struck Capacity |
Weight |
|---|---|---|---|---|---|
| MFSB 60D-72 |
72" |
32.5" |
64.0" |
2.1 cu. yd. |
825 lbs |
| MFSB 60D-96 |
96" |
32.5" |
64.0" |
2.7 cu. yd. |
1025 lbs |
