HRDG 60
HAUGEN ROD GRAPPLES FOR SKID STEERS
$5,695.00 - $7,365.00

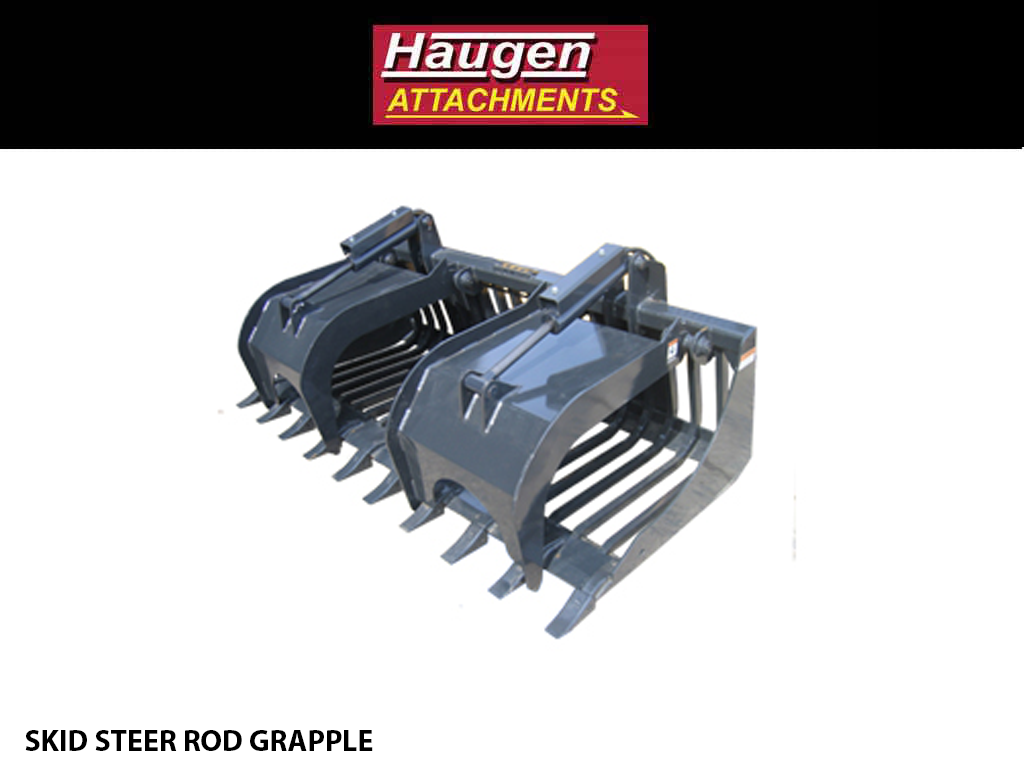

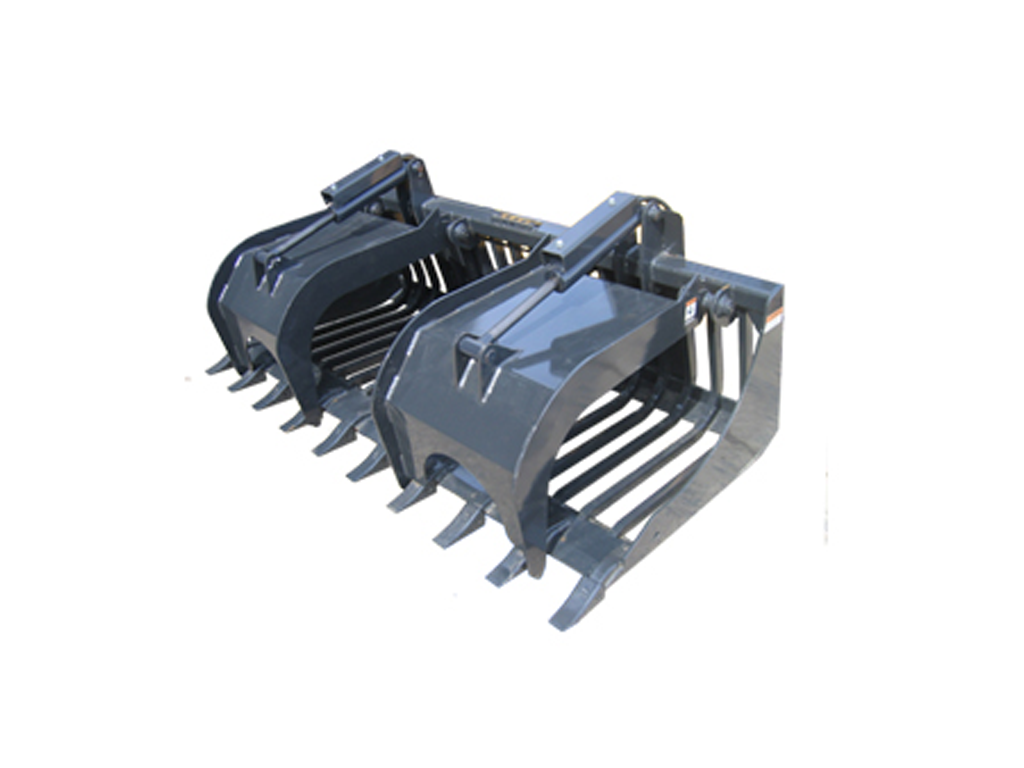

Rod Grapples
The rod grapple is designed for handling rocks and brush. It has independent twin grapples and industrial grade cylinders. Available sizes are 60", 68", and 76"
Features
- Weld-on Tooth bar with replaceable teeth
- All pivot points are greaseable
- Excellent hose routing and abrasion sleeves to protect the hoses from damage
- 3 inch spacing between the rods
- 7/8" round rods (great for cleanout)
- Double cylinder grapple with independent claws
- Industrial 2.5" x 10" cylinders
- Powder Coat Finish
- Many sizes available
Options
- Euro/global style mount
- Other Tractor mounts available
__________________________________________________________________________________________________________________________________________________________________________________________

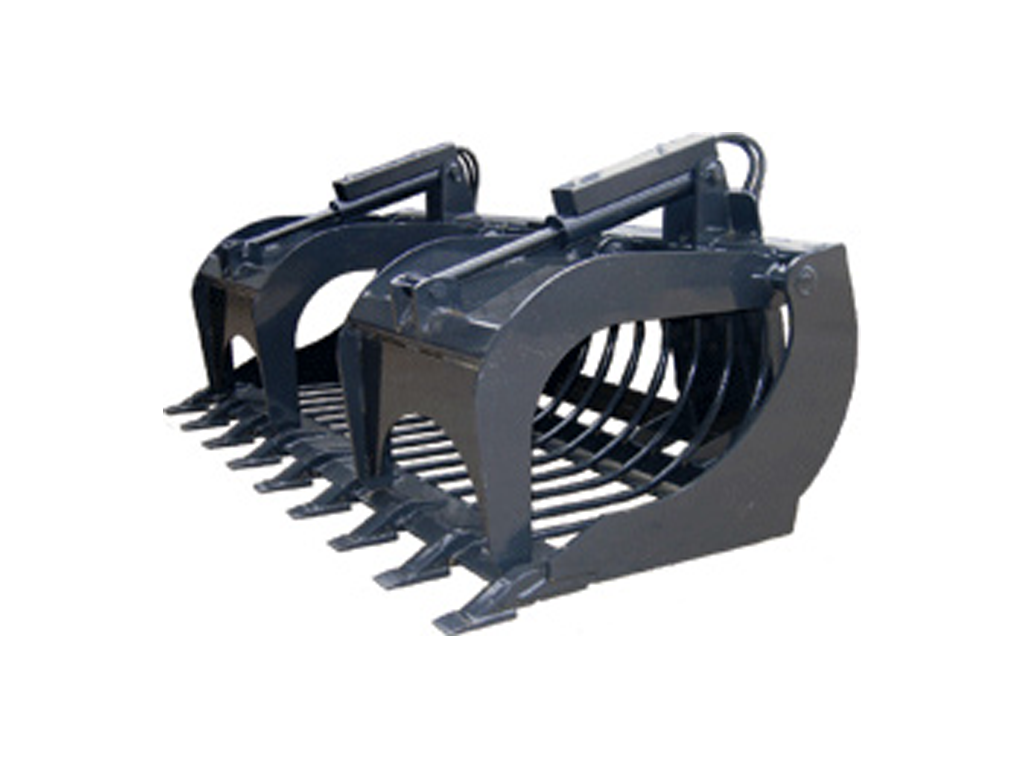

Industrial Rod Grapples
The Industrial rod grapple is designed for handling rocks and brush. It has independent twin grapples and industrial grade cylinders. Available sizes are 76",and 84"
Features
- Weld-on Tooth bar with replaceable teeth
- All pivot points are greaseable
- Excellent hose routing and abrasion sleeves to protect the hoses from damage
- 3 inch spacing between the rods
- Heavy duty Tines are made of 1' x 1 1.2' curved flat bar
- Double cylinder grapple with independent claws
- Industrial 2.5" x 10" cylinders
- Powder Coat Finish
- Many sizes available
Rod Grapples
| Spec | HRDG 60 | HRDG 68 | HRDG 76 |
|---|---|---|---|
| Bucket Width | 60.5" | 68.5" | 76.5" |
| Depth of Bucket | 39" | 39" | 39" |
| Height of Bucket Back | 24" | 24" | 24" |
| Height w/ Grapple closed | 31" | 31" | 31" |
| Overall Grapple Width | 54.5" | 62.5" | 70.5" |
| Grapple Width each | 21.5" | 21.5" | 21.5" |
| Grapple Opening | 37" | 37" | 37" |
| Weight | 890 lbs. | 940 lbs. | 990 lbs. |
| Rod Size/Flat Bar Size | 7/8" | 7/8" | 7/8" |
| Tine Spacing | 3" | 3" | 3" |
| Cast Tooth w/ replaceable Tip | 8 | 9 |
10 |
Industrial Rod Grapples
| Spec | HIRG 76 | HIRG 84 |
|---|---|---|
| Bucket Width | 76" | 84" |
| Depth of Bucket | 42" | 42" |
| Height of Bucket Back | 25" | 25" |
| Height w/ Grapple closed | 32" | 32" |
| Overall Grapple Width | 63" | 71" |
| Grapple Width each | 21.5" | 21.5" |
| Grapple Opening | 40.5" | 40.5" |
| Weight | 1,230 lbs. | 1,330 lbs. |
| Rod Size/Flat Bar Size | 1" x 1.5" | 1" x 1.5" |
| Tine Spacing | 3" | 3" |
| Cast Tooth w/ replaceable Tip | 10 | 11 |
